8-15 — FIXING PARTS; WIRING HARNESS (#34709) — 668 parça

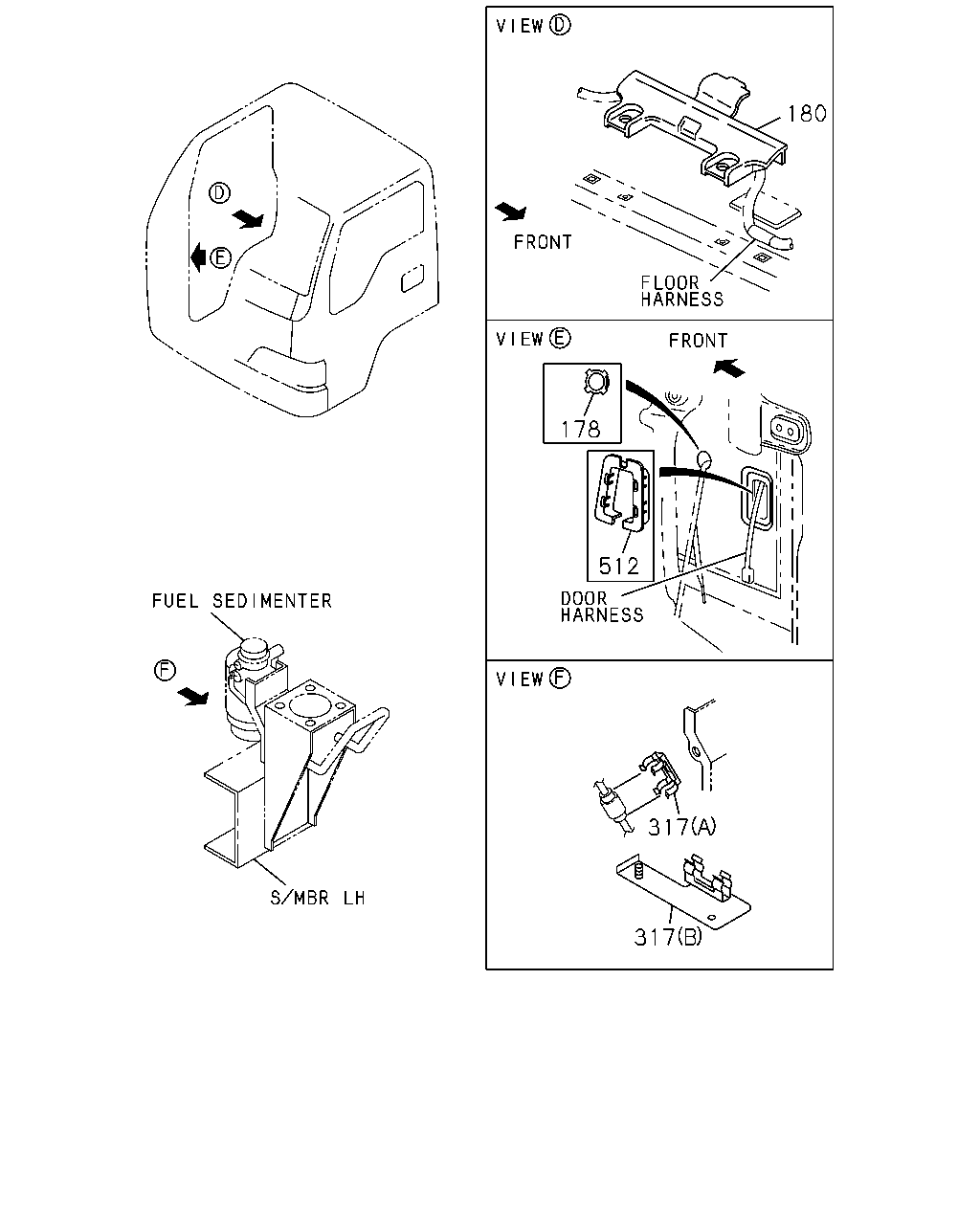

çizim 7673
180 178 512 317 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 9811- ● ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 9811- ● ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9811-0105 ● ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 9811-0105 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0106-0107 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0106-0107 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0108- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94441-365-0 01 1 0108- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 9811-0107 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) (B) 		8-94366-903-0 01 1 0108- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 9811- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUSTRALIA EQUIPMENT(RR3) 		8-97072-950-0 02 1 9811- ● ● ● ●
çizim 45325
16 48 48 16 16 183 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=80 		5-09700-307-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=15-40 		8-97223-033-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) ID=12 		5-09700-331-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (E) ID=8.3 & 16.5 		8-94169-027-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=10 & 11 		8-94438-996-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=14-20 		8-97061-603-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (I) ID=13 L=20 		9-09525-235-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) T=9.2 		5-09709-013-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=19 H=33 L=45 		1-09701-045-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=19 L=60 		9-09525-893-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (T) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (U) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0001- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (X) T=4.5 & 9 		5-09709-023-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (Y) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (Z) L=330 		5-09709-118-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AA) ID=24 		8-94149-610-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (AB) ID=27 		5-09700-323-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AC) ID=27 H=40 L=33 		1-09700-156-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AD) ID=11 L=16 		9-09525-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AE) ID=31 L=30 		1-09700-969-0 AR 1 0202- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 9811-0105 ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0106-0107 ● ● ● ●
183 02.559 CLIP; CONNECTOR
02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0106-0107 ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0108- ● ● ●
183 02.559 CLIP; CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0108- ●
183 02.559 CLIP; CONNECTOR
02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0108- ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 9811- ● ●
çizim 45438
16 48 16 264 16 16 48 464 397 183 48 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=80 		5-09700-307-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=15-40 		8-97223-033-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) ID=12 		5-09700-331-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (E) ID=8.3 & 16.5 		8-94169-027-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=10 & 11 		8-94438-996-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=14-20 		8-97061-603-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (I) ID=13 L=20 		9-09525-235-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) T=9.2 		5-09709-013-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=19 H=33 L=45 		1-09701-045-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=19 L=60 		9-09525-893-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (T) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (U) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0001- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (X) T=4.5 & 9 		5-09709-023-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (Y) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (Z) L=330 		5-09709-118-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AA) ID=24 		8-94149-610-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (AB) ID=27 		5-09700-323-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AC) ID=27 H=40 L=33 		1-09700-156-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AD) ID=11 L=16 		9-09525-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AE) ID=31 L=30 		1-09700-969-0 AR 1 0202- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 9811-0105 ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0106-0107 ● ● ● ●
183 02.559 CLIP; CONNECTOR
02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0106-0107 ●
183 02.559 CLIP; CONNECTOR
4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0108- ● ● ●
183 02.559 CLIP; CONNECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0108- ●
183 02.559 CLIP; CONNECTOR
02.480 (A) ID=10.5 & 4.8 		8-97019-966-0 01 1 0108- ●
183 02.559 CLIP; CONNECTOR
(B) L=15 		8-94315-436-1 02 1 9811- ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 ID=10 & 16 		8-94413-325-0 03 1 9811- ● ● ● ● ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 9811- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-0105 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-0105 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0106-0107 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0106-0107 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0106-0107 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0108- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0108- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0108- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 9811-0107 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0108- ● ● ● ● ●
çizim 45440
483 48 48 483 48 48 48 48 49 16 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=80 		5-09700-307-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=15-40 		8-97223-033-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) ID=12 		5-09700-331-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (E) ID=8.3 & 16.5 		8-94169-027-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=10 & 11 		8-94438-996-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=14-20 		8-97061-603-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (I) ID=13 L=20 		9-09525-235-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) T=9.2 		5-09709-013-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=19 H=33 L=45 		1-09701-045-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=19 L=60 		9-09525-893-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (T) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (U) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0001- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (X) T=4.5 & 9 		5-09709-023-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (Y) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (Z) L=330 		5-09709-118-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AA) ID=24 		8-94149-610-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (AB) ID=27 		5-09700-323-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AC) ID=27 H=40 L=33 		1-09700-156-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AD) ID=11 L=16 		9-09525-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AE) ID=31 L=30 		1-09700-969-0 AR 1 0202- ● ● ● ● ● ●
49 02.559 CLIP; GEN HARNESS
4JH1 ENG(RJX) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0106- ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 9811-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 04.342 (A) L=197 		1-83574-032-0 01 1 9811-0105 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0106- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 9811-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (C) ID=11 L=20 		9-09525-035-0 01 1 9811-0105 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0106- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) 02.343 (D) ID=16 L=20 		9-09525-535-0 01 1 0106- ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-1 02 1 9811-9908 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 02 1 0005-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (B) L=140 		5-09707-031-1 02 1 0106- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0005-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0106-0107 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0106-0107 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
çizim 45786
14 16 48 162 208 220 483 484 16 488 48 14 16 16 48 464 488 16 16 483 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
03.430 (A) L=200 		8-94464-835-0 01 1 9811- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 9811-0105 ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0106-0107 ● ● ●
14 02.559 CLIP; BAND,HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-1 01 1 0106-0107 ●
14 02.559 CLIP; BAND,HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ●
14 02.559 CLIP; BAND,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ●
14 02.559 CLIP; BAND,HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ●
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=80 		5-09700-307-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=15-40 		8-97223-033-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) ID=12 		5-09700-331-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (E) ID=8.3 & 16.5 		8-94169-027-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=10 & 11 		8-94438-996-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=14-20 		8-97061-603-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (I) ID=13 L=20 		9-09525-235-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) T=9.2 		5-09709-013-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=19 H=33 L=45 		1-09701-045-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=19 L=60 		9-09525-893-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (T) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (U) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0001- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (X) T=4.5 & 9 		5-09709-023-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (Y) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (Z) L=330 		5-09709-118-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AA) ID=24 		8-94149-610-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (AB) ID=27 		5-09700-323-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AC) ID=27 H=40 L=33 		1-09700-156-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AD) ID=11 L=16 		9-09525-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AE) ID=31 L=30 		1-09700-969-0 AR 1 0202- ● ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 9811-0105 ● ● ● ● ●
162 02.559 CLIP; SW HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0106-0107 ● ● ●
162 02.559 CLIP; SW HARNESS
03.162 L=140 		5-09707-031-1 01 1 0106-0107 ●
162 02.559 CLIP; SW HARNESS
4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0106-0107 ●
162 02.559 CLIP; SW HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0108- ● ●
162 02.559 CLIP; SW HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0108- ●
162 02.559 CLIP; SW HARNESS
03.162 L=140 		5-09707-031-1 01 1 0108- ●
162 02.559 CLIP; SW HARNESS
4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0108- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140 		5-09707-031-1 01 1 0106- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9811-0105 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9811-0105 ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5 		5-09709-047-0 01 1 0106- ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 9811-0105 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 9811-0105 ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 0106- ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 L=140 		5-09707-031-1 01 1 0106- ●
220 02.559 CLIP; HARNESS TO CABLE
4JH1 ENG(RJX) 03.162 L=140 		5-09707-031-1 01 1 0106- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-0105 ● ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-0105 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 9811-0105 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0106-0107 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0106-0107 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0106-0107 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0108- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0108- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0108- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 9811-0107 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 02.587 (A) L=112 		8-94232-618-0 01 1 0108- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 9811-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 04.342 (A) L=197 		1-83574-032-0 01 1 9811-0105 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) 04.342 (A) L=197 		1-83574-032-0 01 1 0106- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 9811-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (C) ID=11 L=20 		9-09525-035-0 01 1 9811-0105 ● ● ●
483 02.559 CLIP; ENG HARNESS
4JB1 ENG(RLF) (C) ID=11 L=20 		9-09525-035-0 01 1 0106- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4JH1 ENG(RJX) 02.343 (D) ID=16 L=20 		9-09525-535-0 01 1 0106- ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) 03.162 (B) L=140 		5-09707-031-1 02 1 9811-9908 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 02 1 0005-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 (B) L=140 		5-09707-031-1 02 1 0106- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0005-0105 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0106-0107 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0106-0107 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1 ENG(RLS) HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
4HF1 ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 9909-0004 ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED<RS6> 02.587 (B) L=112 		8-94232-618-0 04 1 9811- ● ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY NON FLAT BED(RS5) 02.587 (B) L=112 		8-94232-618-0 04 1 9811- ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED<RS6> (A) L=250 		5-09707-030-1 01 1 9811- ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY NON FLAT BED(RS5) (A) L=250 		5-09707-030-1 01 1 9811- ●
488 02.559 CLIP; CABLE,TRAILER
EXC. DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 9811- ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 9811- ● ●

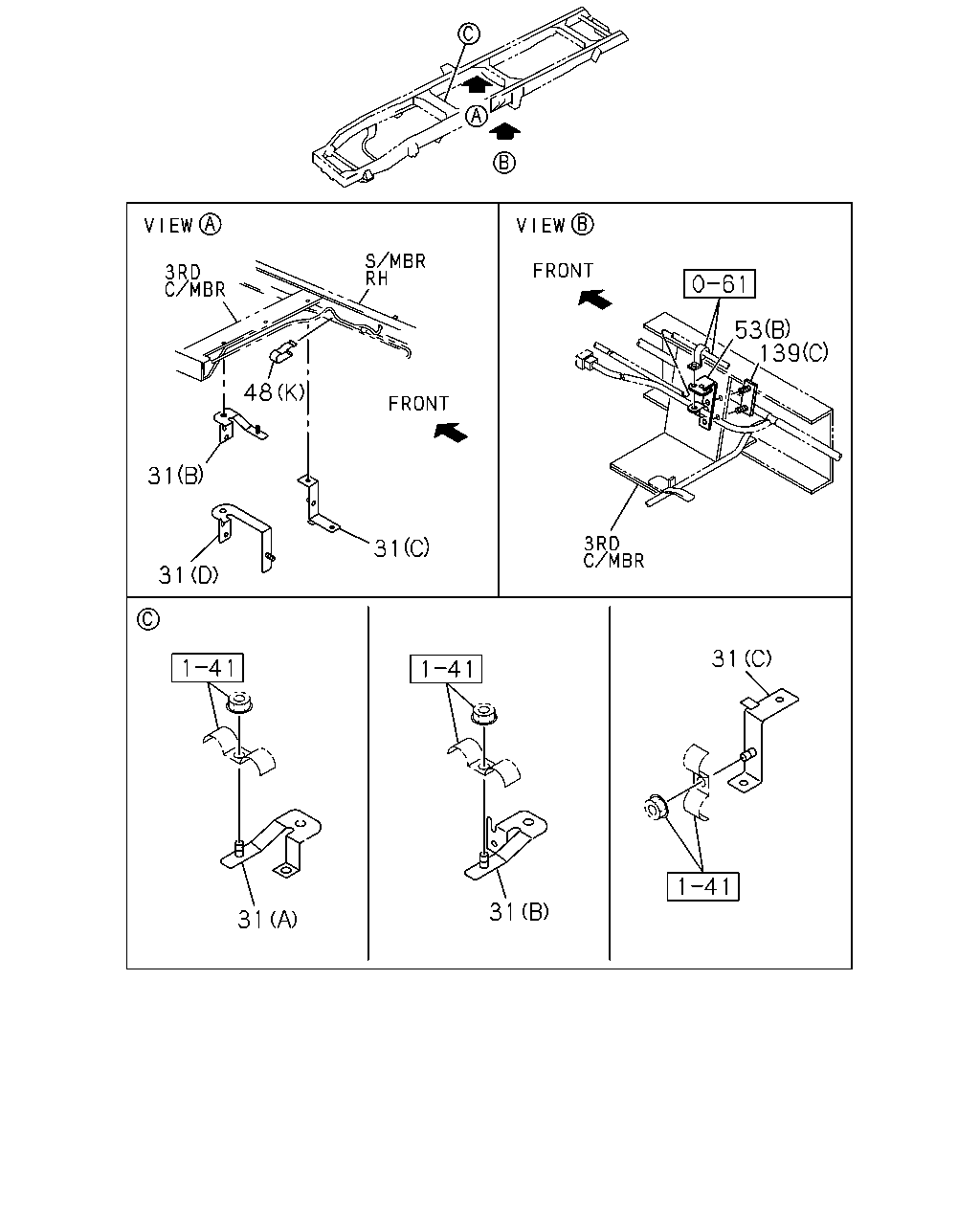

çizim 46267
53 139 48 31 31 31 31 31 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 02 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97077-845-0 02 1 9811-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC) (B) 		8-97077-845-0 02 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 0106- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 02 1 0106- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1 ENG(RLF) (B) 		8-97077-845-0 02 1 0106- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97077-845-0 02 1 0106- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20 		8-94165-263-1 01 1 9811-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=20 		8-94165-263-1 01 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS) (A) L=20 		8-94165-263-1 01 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=20 		8-94165-263-1 01 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME-KICK UP<7EW> (A) L=20 		8-94165-263-1 01 1 0106- ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97017-071-2 01 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (C) 		8-97017-071-2 01 1 9811-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97017-071-2 01 1 0106-0107 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (C) 		8-97017-071-2 01 1 0106-0107 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(C) 		8-97017-071-2 01 1 0106-0107 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97017-071-2 01 1 0108- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) 		8-97017-071-2 01 1 0108- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(C) 		8-97017-071-2 01 1 0108- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-845-0 01 1 9811-0105 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) (B) 		8-97077-845-0 01 1 9811-0105 ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (B) 		8-97077-845-0 01 1 0106-0107 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-845-0 01 1 0106-0107 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97077-845-0 01 1 0106-0107 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 01 1 0106-0107 ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97077-845-0 01 1 0108- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (B) 		8-97077-845-0 01 1 0108- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97077-845-0 01 1 0108- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 01 1 0108- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4JH1 ENG(RJX) (D) 		8-97288-169-0 01 1 0106- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (E) ID=8.3 & 16.5 		8-94169-027-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=10 & 11 		8-94438-996-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=14-20 		8-97061-603-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (I) ID=13 L=20 		9-09525-235-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) T=9.2 		5-09709-013-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=19 H=33 L=45 		1-09701-045-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=19 L=60 		9-09525-893-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (T) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (U) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0001- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (X) T=4.5 & 9 		5-09709-023-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (Y) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (Z) L=330 		5-09709-118-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AA) ID=24 		8-94149-610-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (AB) ID=27 		5-09700-323-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AC) ID=27 H=40 L=33 		1-09700-156-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AD) ID=11 L=16 		9-09525-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AE) ID=31 L=30 		1-09700-969-0 AR 1 0202- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) (D) 		8-97062-325-1 01 1 9811-0105 ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9811-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0106-0107 ● ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-97062-178-3 01 1 0106-0107 ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0106-0107 ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0108- ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0108- ●
53 02.483 BRACKET; HARNESS
(B) 		8-97062-178-3 01 1 0108- ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0108- ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97091-462-1 01 1 9811-0105 ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97091-462-1 01 1 0106- ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) (C) 		8-97062-324-1 01 1 9811-0105 ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF),4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ● ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ● ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0106- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ● ●
139 02.559 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0106- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) (C) 		8-97028-451-3 01 1 9811-0105 ● ● ● ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 0106-0107 ● ● ● ● ●
139 02.559 BOLT; BRKT
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 0108- ● ● ● ● ●
139 02.559 BOLT; BRKT
FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
139 02.559 BOLT; BRKT
FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 0004- ●
çizim 47904
53 53 53 312 312 510 504 514 514 514
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) (D) 		8-97062-325-1 01 1 9811-0105 ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 9811-0105 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0106-0107 ● ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-97062-178-3 01 1 0106-0107 ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0106-0107 ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0108- ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0108- ●
53 02.483 BRACKET; HARNESS
(B) 		8-97062-178-3 01 1 0108- ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) (B) 		8-97062-178-3 01 1 0108- ●
53 02.483 BRACKET; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97091-462-1 01 1 9811-0105 ●
53 02.483 BRACKET; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97091-462-1 01 1 0106- ●
53 02.483 BRACKET; HARNESS
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) (C) 		8-97062-324-1 01 1 9811-0105 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) (A) 		8-97018-095-3 01 1 9811-0105 ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) 		8-97018-095-3 01 1 9811-0105 ●
312 02.559 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) 		8-97018-095-3 01 1 0106-0107 ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) (A) 		8-97018-095-3 01 1 0108- ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) 		8-97018-095-3 01 1 0108- ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97018-095-3 01 1 0108- ●
312 02.559 BRACKET; CLIP HARNESS
(A) 		8-97018-095-3 01 1 0108- ●
312 02.559 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97046-762-0 01 1 0004- ●
504 02.559 PROTECTOR; HARNESS
16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-0105 ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-0105 ●
504 02.559 PROTECTOR; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 L=200 		8-97096-423-0 01 1 0106- ●
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0106- ● ● ● ●
504 02.559 PROTECTOR; HARNESS
EXC. FRAME-KICK UP<7EW> 04.785 L=200 		8-97096-423-0 01 1 0106- ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 9811- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 9811-0105 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JH1 ENG(RJX) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0106- ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 9811- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0106- ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4JH1 ENG(RJX) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0106- ● ● ●
514 02.559 FINISHER; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0106-0107 ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0106-0107 ● ●
514 02.559 FINISHER; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0108- ● ● ●
514 02.559 FINISHER; HARNESS
16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0108- ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0108- ●
çizim 48024
16 48 48 208 16 48 52 48 48 48 48 48 48 48 48 48 208 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(A) L=250 		5-09707-030-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (B) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=100 		8-94442-388-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(E) L=100 		8-94327-067-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=10 & 16 		8-94413-325-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (G) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (H) ID=6 & 10-13 		8-97069-515-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(I) L=155 		8-97173-307-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (J) ID=22 & 22 		8-94464-837-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(K) L=60 		8-94457-053-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
04.342 (L) ID=14-12 		8-94379-592-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(M) L=80 		5-09700-307-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=175 		8-97110-167-0 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) ID=15-40 		8-97223-033-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 9811- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(S) ID=12 		5-09700-331-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (D) ID=9.6 		8-94147-870-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.855 (E) ID=8.3 & 16.5 		8-94169-027-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=10 & 11 		8-94438-996-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=35 L=35 		1-09700-895-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=14-20 		8-97061-603-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.516 (I) ID=13 L=20 		9-09525-235-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (J) T=5.5 		5-09709-047-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(K) T=9.2 		5-09709-013-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) ID=25 L=60 		1-09701-041-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=20 		5-09700-321-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=9 		8-97063-874-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(O) ID=20 		8-94169-650-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=19 H=33 L=45 		1-09701-045-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(Q) L=170.3 		1-09987-182-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=19 L=60 		9-09525-893-0 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (T) L=140 		5-09707-031-1 AR 1 9811- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.866 (U) ID=24 H=60 L=27 		1-09701-004-0 AR 1 0001- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0008- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=31 L=33.5 		1-09987-165-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (X) T=4.5 & 9 		5-09709-023-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (Y) T=9.2 & 9 		5-09709-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.008 (Z) L=330 		5-09709-118-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AA) ID=24 		8-94149-610-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (AB) ID=27 		5-09700-323-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AC) ID=27 H=40 L=33 		1-09700-156-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AD) ID=11 L=16 		9-09525-025-0 AR 1 0106- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(AE) ID=31 L=30 		1-09700-969-0 AR 1 0202- ● ● ● ● ● ●
52 02.559 CLIP; HARNESS TO BRKT
EXC. FRAME-KICK UP<7EW> 01.240 ID=14 L=47 		5-09700-319-0 01 1 9811- ●
52 02.559 CLIP; HARNESS TO BRKT
01.240 ID=14 L=47 		5-09700-319-0 01 1 9811- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) EXC. TURBOCHARGER<K51> 03.162 (C) L=140 		5-09707-031-1 01 1 0106- ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9811-0105 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 01.240 (B) T=5.5 		5-09709-047-0 01 1 9811-0105 ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 01.240 (B) T=5.5 		5-09709-047-0 01 1 0106- ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 9811-0105 ● ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.557 (A) ID=10 		5-09700-318-0 02 1 9811-0105 ● ● ● ●
208 02.559 CLIP; HARNESS,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.557 (A) ID=10 		5-09700-318-0 02 1 0106- ● ● ● ● ●
çizim 48545
38 139 150 38 150 8 38 460 150 358 139 377 38 139 139 466 139 159 386 64 511 55 219 219 219 294 515 219 469 515 524 519
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.559 BOLT; BRKT,CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9811-0105 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 9811-0105 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0106-0107 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0106-0107 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0108- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9811-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 9811-0105 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME-KICK UP<7EW> 02.334 (D) M6X25 FLANGE 		0-28680-625-0 02 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0106-0107 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0106-0107 ●
38 02.559 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0106-0107 ●
38 02.559 BOLT; CLIP,HARNESS
4JH1 ENG(RJX),4HF1 ENG(RLS) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0108- ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0108- ●
38 02.559 BOLT; CLIP,HARNESS
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0108- ●
38 02.559 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) 02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0108- ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0106- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
FRT INDEPENDENT SUSPENSION(6PP) 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
38 02.559 BOLT; CLIP,HARNESS
FRAME-KICK UP<7EW> 04.930 (C) M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
55 02.559 WASHER; PL,CLIP
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9811-0105 ● ● ● ● ●
55 02.559 WASHER; PL,CLIP
EXC. FRAME-KICK UP<7EW> 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9811-0105 ●
55 02.559 WASHER; PL,CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 0106- ●
55 02.559 WASHER; PL,CLIP
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 0106- ● ● ● ●
55 02.559 WASHER; PL,CLIP
EXC. FRAME-KICK UP<7EW> 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 0106- ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 9811- ● ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF),4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ● ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ● ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 02.183 (D) M8X35 FLANGE 		0-28680-835-0 01 1 0106- ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ● ●
139 02.559 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JB1 ENG(RLF),4HF1 ENG(RLS) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 9811-0105 ●
139 02.559 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0106- ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) (C) 		8-97028-451-3 01 1 9811-0105 ● ● ● ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 9811-0105 ●
139 02.559 BOLT; BRKT
4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 0106-0107 ● ● ● ● ●
139 02.559 BOLT; BRKT
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C) 		8-97028-451-3 01 1 0108- ● ● ● ● ●
139 02.559 BOLT; BRKT
FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
139 02.559 BOLT; BRKT
FRAME-KICK UP<7EW> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ●
139 02.559 BOLT; BRKT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 02.334 (E) M6X25 FLANGE 		0-28680-625-0 01 1 0004- ●
150 02.343 BOLT; CLIP
4JB1 ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9811-0105 ● ● ● ● ●
150 02.343 BOLT; CLIP
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9811-0105 ● ● ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0106- ● ● ● ● ●
150 02.343 BOLT; CLIP
4JH1 ENG(RJX) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 01 1 0106- ● ● ●
150 02.343 BOLT; CLIP
RR BODY NON FLAT BED(RS5) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9811- ●
159 02.559 BOLT; GRAND ENG ELEC
02.343 M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811- ● ● ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9811-0105 ● ● ● ● ● ●
219 02.559 NUT
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 9811-0105 ● ● ● ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0106-0107 ● ● ● ● ●
219 02.559 NUT
4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0106-0107 ● ● ● ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0108- ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE 		5-09440-003-0 01 1 0108- ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ●
219 02.559 NUT
4JB1 ENG(RLF),4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ●
219 02.559 NUT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ●
219 02.559 NUT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
219 02.559 NUT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
219 02.559 NUT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
219 02.559 NUT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP), FRAME-KICK UP<7EW> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ●
219 02.559 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0106- ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0106- ● ● ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0106- ●
219 02.559 NUT
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (D) M6 FLANGE 		5-09440-004-0 01 1 9811-0107 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B) 07.829 (D) M6 FLANGE 		5-09440-004-0 01 1 0108- ● ● ● ● ●
219 02.559 NUT
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ● ● ● ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ● ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
219 02.559 NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
219 02.559 NUT
4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
219 02.559 NUT
4JG2 ENG(RJC),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
219 02.559 NUT
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ● ● ● ● ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ● ● ●
219 02.559 NUT
FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ●
219 02.559 NUT
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ● ●
219 02.559 NUT
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ●
219 02.559 NUT
FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ●
219 02.559 NUT
EXC. FRAME-KICK UP<7EW> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ●
219 02.559 NUT
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ●
219 02.559 NUT
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0108- ●
294 02.559 NUT
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0107 ● ● ● ● ●
294 02.559 NUT
RR BODY NON FLAT BED(RS5) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0107 ●
294 02.559 NUT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ● ●
294 02.559 NUT
RR BODY NON FLAT BED(RS5) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ●
358 02.480 BOLT; EARTH
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0005-0105 ● ● ● ● ●
358 02.480 BOLT; EARTH
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0106- ● ● ● ●
377 02.559 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811- ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9811- ● ● ● ● ● ●
460 02.559 BOLT; HARNESS PROTECTOR
FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811-0105 ●
460 02.559 BOLT; HARNESS PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
460 02.559 BOLT; HARNESS PROTECTOR
FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
466 02.483 BOLT; HEAT PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0106- ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9),REAR WIDE TREAD(V4T) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ● ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9811-0012 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ● ● ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9),REAR WIDE TREAD(V4T) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0101-0105 ● ● ●
466 02.483 BOLT; HEAT PROTECTOR
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ●
466 02.483 BOLT; HEAT PROTECTOR
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ●
466 02.483 BOLT; HEAT PROTECTOR
02.183 M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ● ● ●
469 02.559 NUT; PROTECTOR
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9),REAR WIDE TREAD(V4T) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), FRAME-KICK UP<7EW> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), FRAME-KICK UP<7EW> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9),REAR WIDE TREAD(V4T) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ●
469 02.559 NUT; PROTECTOR
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ●
469 02.559 NUT; PROTECTOR
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
469 02.559 NUT; PROTECTOR
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
469 02.559 NUT; PROTECTOR
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9811- ● ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF),4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ● ●
515 02.559 NUT; BRKT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ●
515 02.559 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0012 ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) EXC. REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ●
515 02.559 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
515 02.559 NUT; BRKT
4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
515 02.559 NUT; BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
515 02.559 NUT; BRKT
4HF1 ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ● ● ● ●
515 02.559 NUT; BRKT
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ●
515 02.559 NUT; BRKT
4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0106-0107 ● ● ● ● ●
515 02.559 NUT; BRKT
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0108- ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) 05.586 M12 FLANGE 		0-91150-112-0 01 1 9811-0105 ● ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
4JB1 ENG(RLF) 05.586 M12 FLANGE 		0-91150-112-0 01 1 0106- ● ● ● ●
519 02.559 NUT; EARTH CABLE
05.586 M12 FLANGE 		0-91150-112-0 01 1 0106- ●
524 02.559 NUT; HARNESS
4JH1 ENG(RJX) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
