◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#34708) — 386 parça

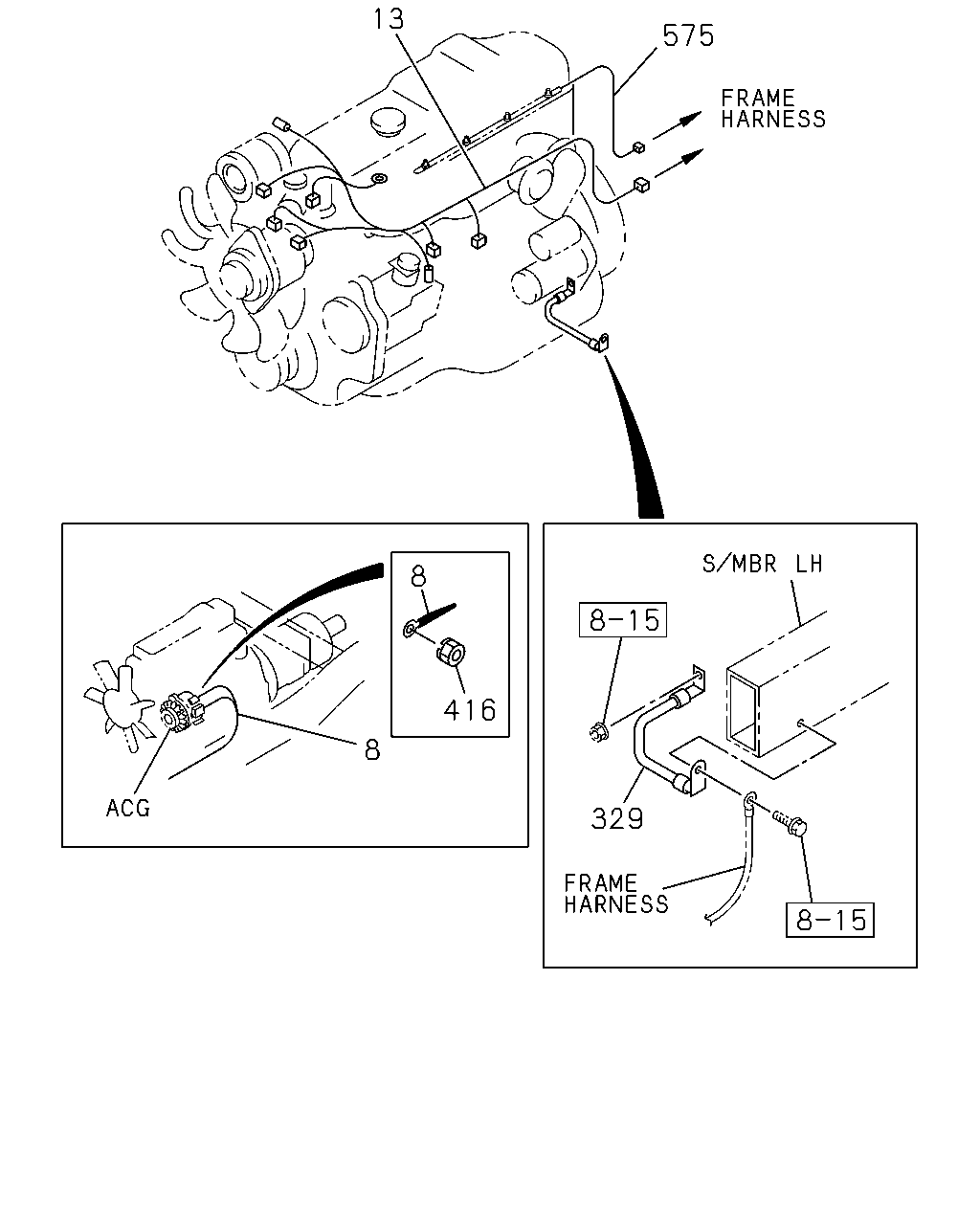

çizim 45675
13 575 8 416 8 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. REAR WIDE TREAD(V4T) 		8-97212-321-1 01 1 9811-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-699-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97217-730-1 01 1 9811-0105 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-707-0 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 		8-97188-706-1 01 1 9811-0105 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97260-389-0 01 1 0106-0107 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97260-389-2 01 1 0108- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97188-697-2 01 1 9811-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-697-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-492-1 01 1 0106- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97188-698-2 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-493-2 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97220-759-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97260-391-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-701-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97260-494-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 		8-97212-322-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) 		8-97312-706-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97205-650-0 01 1 9811-9907 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-0 01 1 9908-0009 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-0 01 1 0010-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-0 01 1 0106-0107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-1 01 1 0108- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97205-651-0 01 1 9811-9907 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97233-367-0 01 1 9908-0107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97233-367-1 01 1 0108- ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 		8-97173-694-1 01 1 9811-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97173-694-1 01 1 0106- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FAST GLOW SYSTEM<KM6>,ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 9811- ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> THAILAND EQUIPMENT(PM9) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> 		8-97173-695-2 01 1 9811-0105 ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) POWER STEERING<N40> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97261-132-4 01 1 0106- ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97261-132-4 01 1 0106- ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-266-0 01 1 9811-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-266-0 01 1 0106- ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> EXC. ENGINE POWER N-SPEC(7QV) 		8-97170-515-1 01 1 9811- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 		8-97173-696-1 01 1 9811-0105 ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. GENERATOR 12V80A(K97),HONG KONG EQUIPMENT(PQ1) 		8-97240-032-5 01 1 0106- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97213-192-0 01 1 9811-0105 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-97260-486-1 01 1 0106- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0106- ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0106- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97177-383-0 01 1 9811-0107 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97177-383-0 01 1 0108- ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9811-0105 ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106-0107 ● ● ● ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106-0107 ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0108- ● ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0108- ●
416 02.559 NUT; TERMINAL
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0108- ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 		8-97212-328-0 01 1 9901-0105 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) 		8-97212-328-0 01 1 0106- ● ● ●

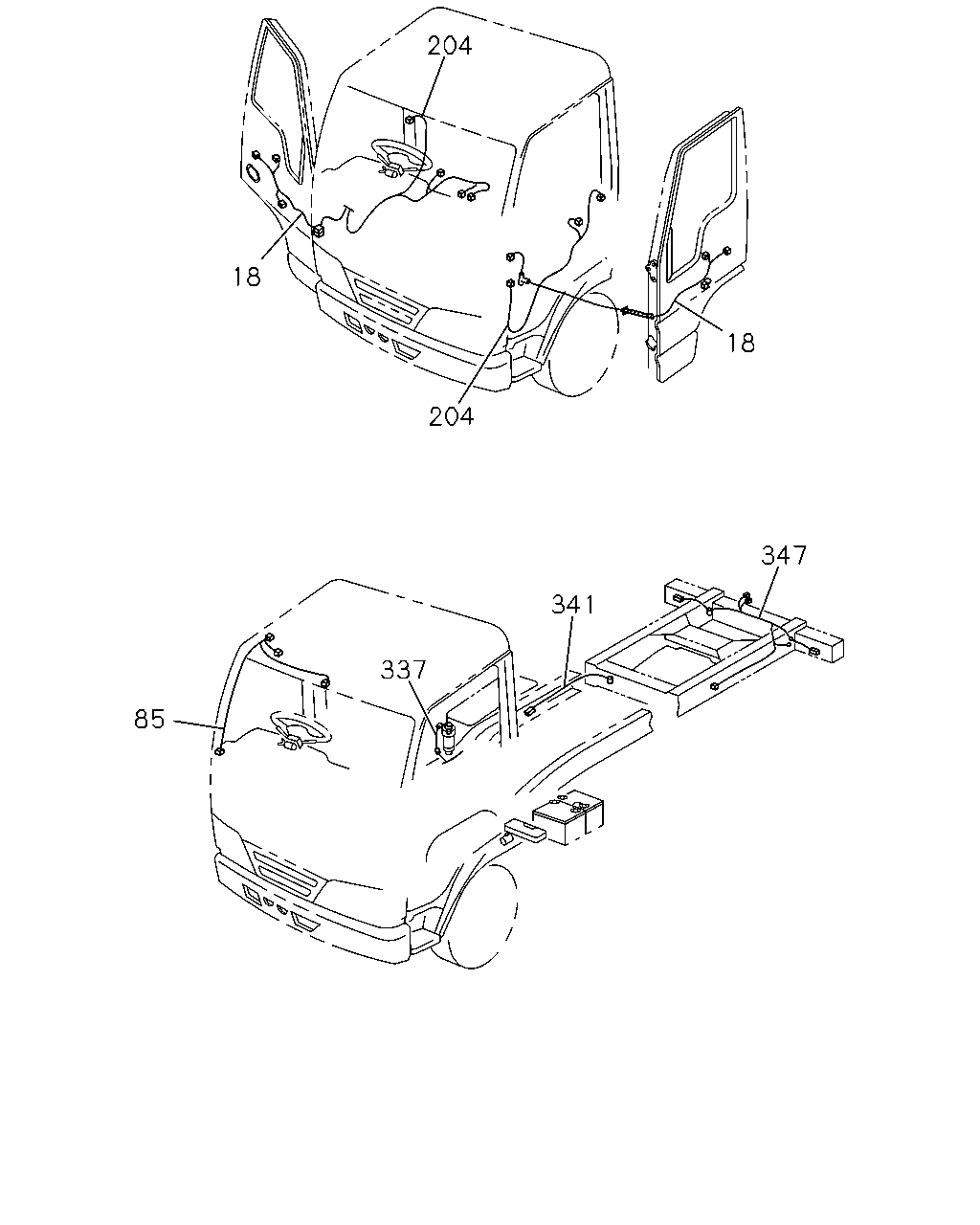

çizim 45864
204 18 18 204 347 341 337 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0112- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-196-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-194-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-197-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-195-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 9811- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97162-631-2 01 1 0106- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 9811- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 9811- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9811-0105 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0106- ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 9811-0105 ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9811-0105 ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 0106- ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 9811- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 9811- ●

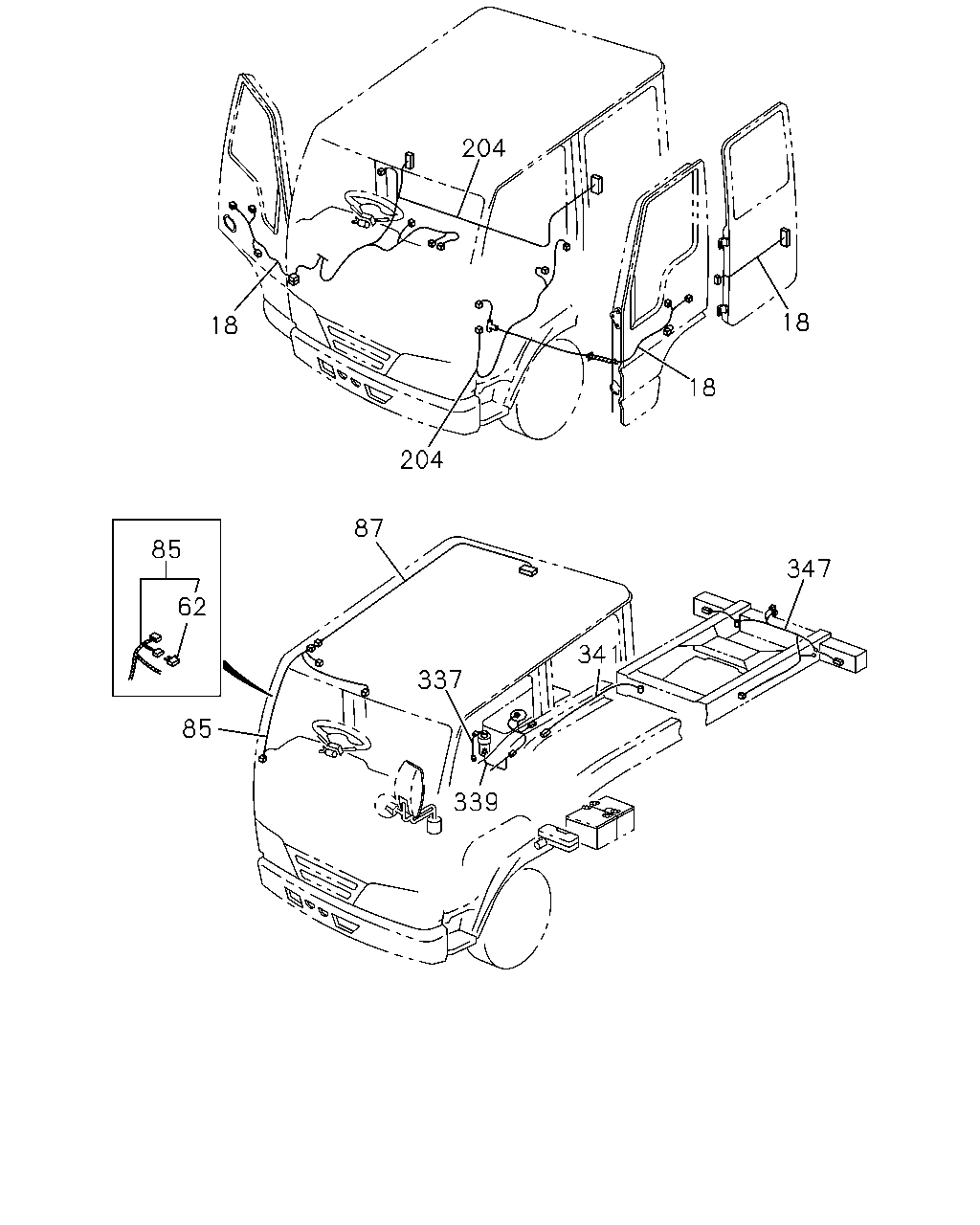

çizim 47266
204 18 18 18 204 87 85 347 62 341 337 85 339
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97312-148-0 01 1 0112- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3),RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/F M W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97226-669-0 01 1 9905-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 0106- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9811-0105 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 0106-0111 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF> FRONT DOOR 		8-97185-142-1 01 1 0112- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-196-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97217-194-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-197-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97217-195-0 01 1 9811-0105 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9811- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 9811- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 9811- ● ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97162-631-2 01 1 0106- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 9811- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 9811- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9811-0105 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0106- ● ● ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9811- ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 9811-0105 ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9811-0105 ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97081-340-2 01 1 0106- ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97213-566-0 01 1 9811- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-565-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 9811- ●

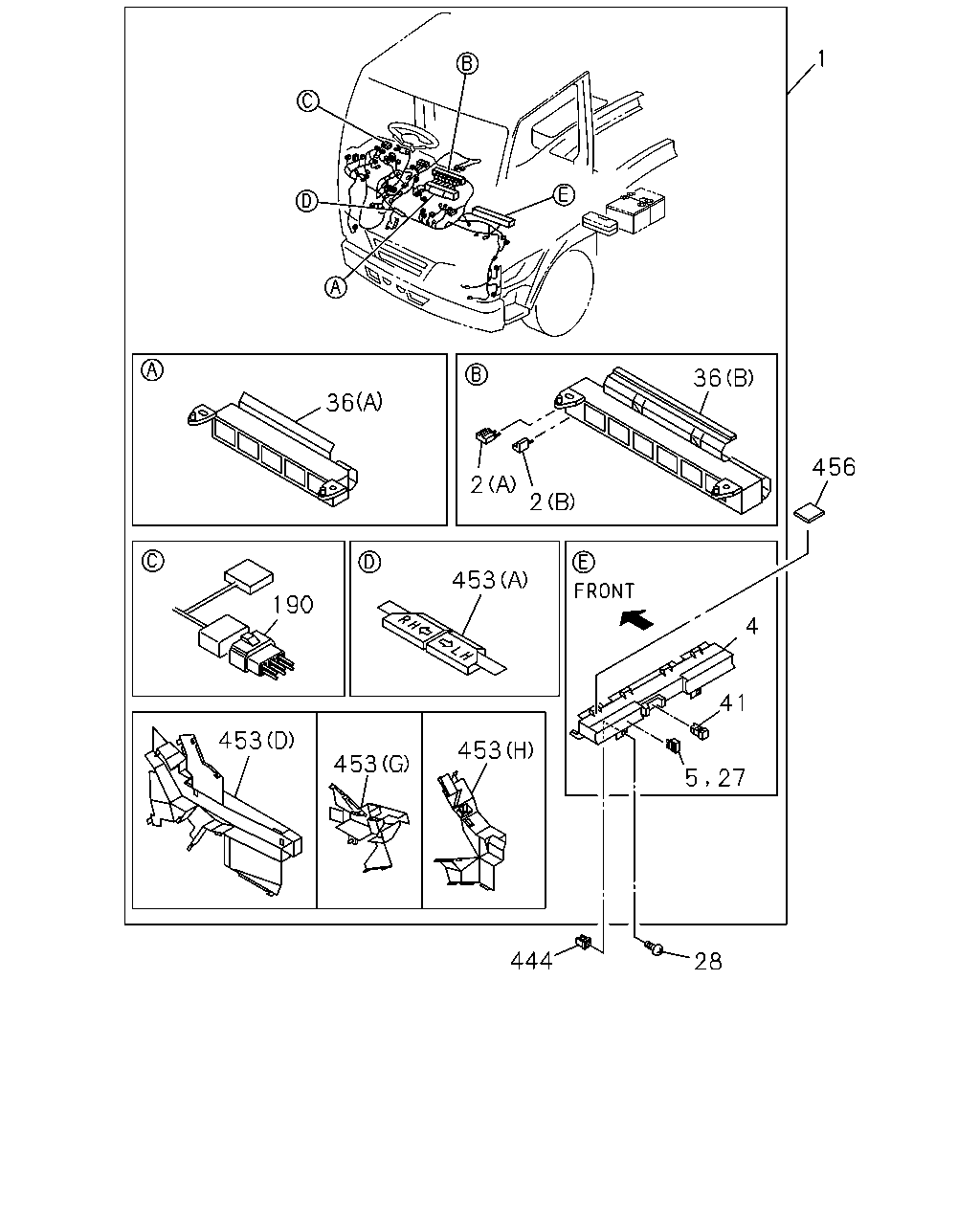

çizim 47365
1 36 36 456 2 2 453 190 4 41 453 453 453 27 444 28 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 		8-97326-597-0 01 1 0112- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) 		8-97260-553-1 01 1 0106-0107 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) 		8-97260-553-1 01 1 0108-0111 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-97260-553-1 01 1 0112- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) 		8-97217-161-1 01 1 9811-9907 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC (7QV) 		8-97217-161-1 01 1 9908-0009 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC (7QV) 		8-97287-764-0 01 1 0010-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC (7QV) 		8-97309-111-0 01 1 0106-0107 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC (7QV) 		8-97309-111-1 01 1 0108- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-163-1 01 1 9811-9907 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97217-163-1 01 1 9908-0105 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97309-085-0 01 1 0106-0107 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97309-085-1 01 1 0108- ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) 		8-97217-162-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97217-158-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB 8-97217-158-1 01 1 9811-0105 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97309-082-1 01 1 0106- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97217-159-1 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) 		8-97312-691-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-366-0 01 1 9908-0009 ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-366-0 01 1 0010-0105 ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-0 01 1 0106-0107 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97309-087-1 01 1 0108- ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97233-365-0 01 1 9908-0009 ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97233-365-0 01 1 0010-0105 ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-0 01 1 0106-0107 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97309-086-1 01 1 0108- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97214-415-0 01 1 9811-9901 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97214-415-0 01 1 9902-0105 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 9902-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97214-415-0 01 1 9902-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97214-415-0 01 1 0106-0107 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97214-415-0 01 1 0108-0108 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0108-0108 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97214-415-0 01 1 0108- ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0108- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) 		8-97077-664-0 01 1 9811-9901 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9811- ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 15A BLUE 		5-82516-003-0 01 1 9811-0105 ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0108-0108 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0108-0108 ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109- ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0109- ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0109- ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0109- ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0109- ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-640-1 01 1 0109- ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3),ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0109- ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) 		8-97087-640-1 01 1 0109- ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 0109- ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97087-638-1 01 1 9811-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9811-0105 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) (A) 		8-97087-638-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97087-638-1 01 1 0106-0108 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (A) 		8-97087-638-1 01 1 0109- ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97087-639-1 01 1 9811-0105 ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9811-0105 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) (B) 		8-97087-639-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97087-639-1 01 1 0106-0107 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97087-639-1 01 1 0108-0108 ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0108-0108 ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97087-639-1 01 1 0108- ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0108- ● ●
41 08.821 PULLER; FUSE
4JB1 ENG(RLF),4HF1 ENG(RLS) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ●
41 08.821 PULLER; FUSE
EXC. AUSTRALIA EQUIPMENT(RR3) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106-0107 ● ● ● ● ● ●
41 08.821 PULLER; FUSE
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0108-0108 ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0108-0108 ● ●
41 08.821 PULLER; FUSE
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0108- ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0108- ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JB1 ENG(RLF),4HF1 ENG(RLS) 		5-82690-411-0 01 1 9811-9901 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9811-9901 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		5-82690-411-0 01 1 9811-9901 ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (I) 		8-97075-706-4 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
(J) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (J) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
(J) 		8-97093-668-1 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97120-590-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (G) 		8-97259-731-2 01 1 0106-0107 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (G) 		8-97259-731-2 01 1 0108-0108 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0108-0108 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (G) 		8-97259-731-2 01 1 0108- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (H) 		8-97262-956-3 01 1 0106-0107 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (H) 		8-97262-956-3 01 1 0108-0108 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97262-956-3 01 1 0108-0108 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (H) 		8-97262-956-3 01 1 0108- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97262-956-3 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9811-0007 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-0007 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 9811-0007 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-0007 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0008-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0008-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (B) 		8-97120-589-0 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (B) 		8-97120-589-0 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97074-957-0 01 1 9811-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9811-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) (A) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (D) 		8-97259-730-2 01 1 0106-0107 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97259-730-2 01 1 0108-0108 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0108-0108 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97259-730-2 01 1 0108- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 9811-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0106- ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9811- ● ● ● ● ● ●

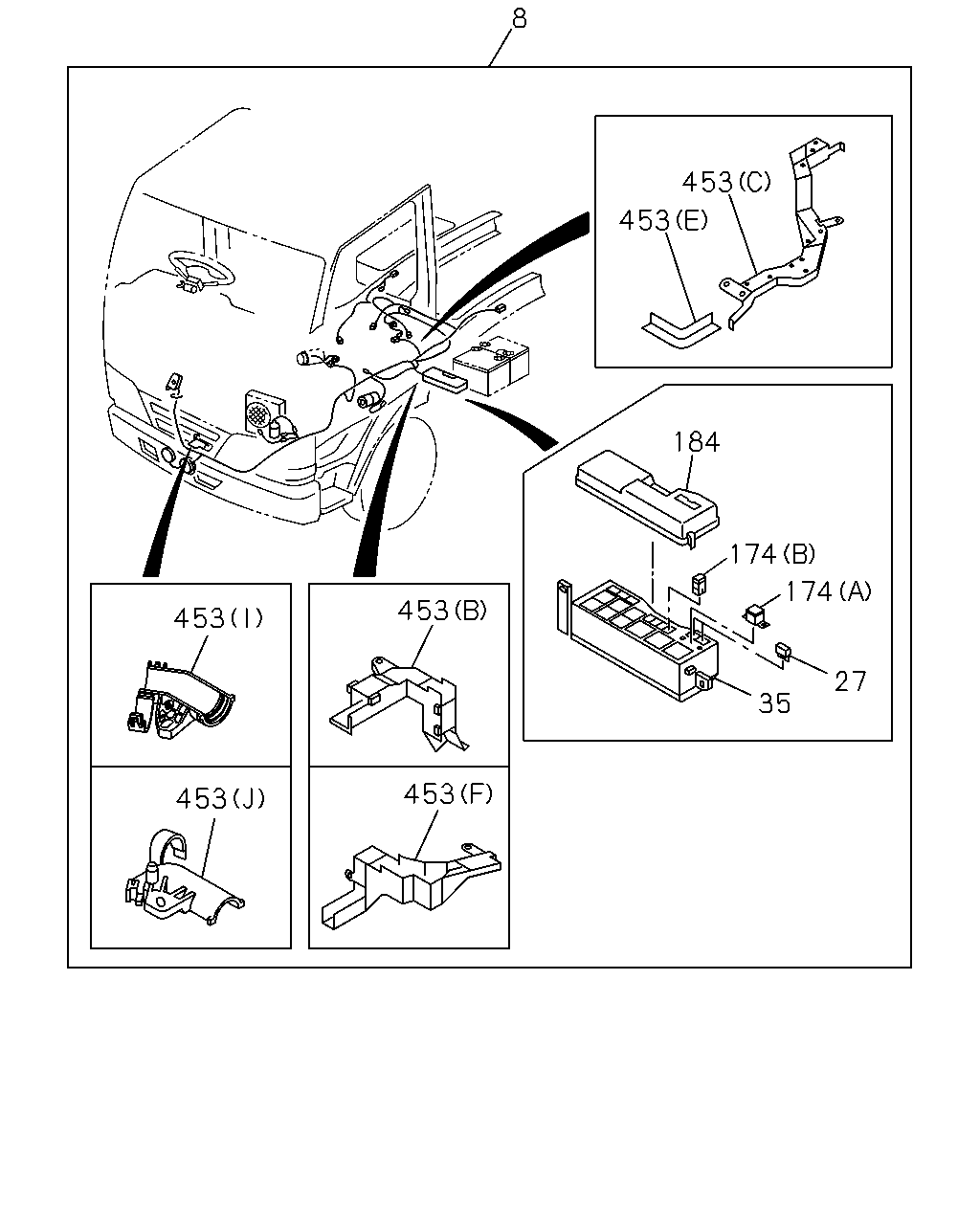

çizim 47901
8 453 453 184 174 174 453 453 27 35 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. REAR WIDE TREAD(V4T) 		8-97212-321-1 01 1 9811-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-699-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97217-730-1 01 1 9811-0105 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97312-707-0 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 		8-97188-706-1 01 1 9811-0105 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97260-389-0 01 1 0106-0107 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 		8-97260-389-2 01 1 0108- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T) 		8-97188-697-2 01 1 9811-0105 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT 8-97188-697-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-492-1 01 1 0106- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97188-698-2 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-493-2 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97220-759-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME-KICK UP<7EW> 		8-97260-391-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-701-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> 		8-97260-494-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 		8-97212-322-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) 		8-97312-706-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97205-650-0 01 1 9811-9907 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-0 01 1 9908-0009 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-0 01 1 0010-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-0 01 1 0106-0107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) ENGINE POWER N-SPEC(7QV) 		8-97233-368-1 01 1 0108- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97205-651-0 01 1 9811-9907 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97233-367-0 01 1 9908-0107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) 		8-97233-367-1 01 1 0108- ●
27 08.965 FUSE UNIT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 15A BLUE 		5-82516-003-0 01 1 9811-0105 ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9811- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (I) 		8-97075-706-4 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
(J) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (J) 		8-97093-668-1 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (J) 		8-97093-668-1 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
(J) 		8-97093-668-1 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (J) 		8-97093-668-1 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97120-590-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (E) 		8-94452-553-0 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (G) 		8-97259-731-2 01 1 0106-0107 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (G) 		8-97259-731-2 01 1 0108-0108 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0108-0108 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (G) 		8-97259-731-2 01 1 0108- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-97259-731-2 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (H) 		8-97262-956-3 01 1 0106-0107 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (H) 		8-97262-956-3 01 1 0108-0108 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97262-956-3 01 1 0108-0108 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (H) 		8-97262-956-3 01 1 0108- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-97262-956-3 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (B) 		8-97120-589-0 01 1 9811-0007 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-0007 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 9811-0007 ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97120-589-0 01 1 9811-0007 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97120-589-0 01 1 0008-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0008-0105 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (B) 		8-97120-589-0 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0106-0107 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0106-0107 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (B) 		8-97120-589-0 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. TURBOCHARGER<K51> (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (B) 		8-97120-589-0 01 1 0108- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF),4HF1 ENG(RLS) (A) 		8-97074-957-0 01 1 9811-0105 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9811-0105 ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) (A) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (D) 		8-97259-730-2 01 1 0106-0107 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97259-730-2 01 1 0108-0108 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0108-0108 ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) 		8-97259-730-2 01 1 0108- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-730-2 01 1 0108- ● ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 9811-0105 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C) 		8-97075-705-2 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
