◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#34704) — 70 parça
çizim 45427
177 161 166 165 166 152
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9811-0011 ● ● ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012-0105 ● ● ● ● ● ●
152 16.714 PROTECTOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-97287-563-0 02 1 0012-0105 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0106- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-462-3 01 1 9811- ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 9811- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9811- ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9811- ● ● ● ● ● ●

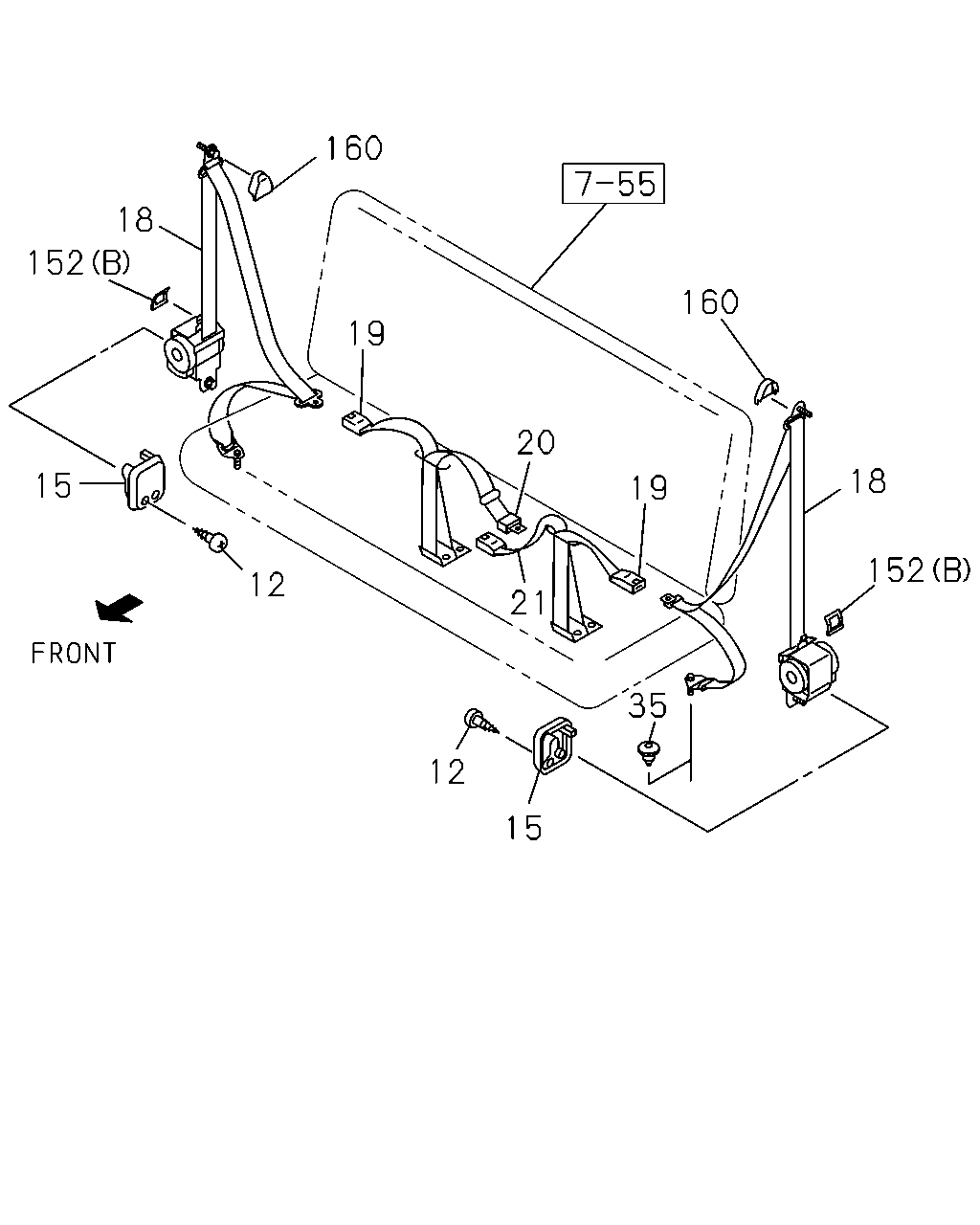

çizim 46299
160 18 152 160 19 20 18 15 19 152 12 21 35 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 9811- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 9811- ● ●
18 16.714 BELT; SEAT,RR
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97198-780-1 02 1 0011-0105 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97890-362-0 02 1 0011-0105 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97198-785-0 01 1 0011-0105 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97198-784-0 01 1 0011-0105 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> FRONT OD=22 		9-61168-535-0 03 1 9811- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
REAR OD=22 		9-61168-535-0 04 1 9811-0010 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
REAR OD=22 		9-61168-535-0 04 1 0011-0105 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. HONG KONG EQUIPMENT(PQ1) REAR OD=22 		9-61168-535-0 04 1 0011-0105 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
REAR OD=22 		9-61168-535-0 04 1 0106- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9811-0011 ● ● ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012-0105 ● ● ● ● ● ●
152 16.714 PROTECTOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-97287-563-0 02 1 0012-0105 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0106- ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 9811-0010 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0011-0105 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97854-897-0 02 1 0011-0105 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0106- ● ● ● ● ● ●

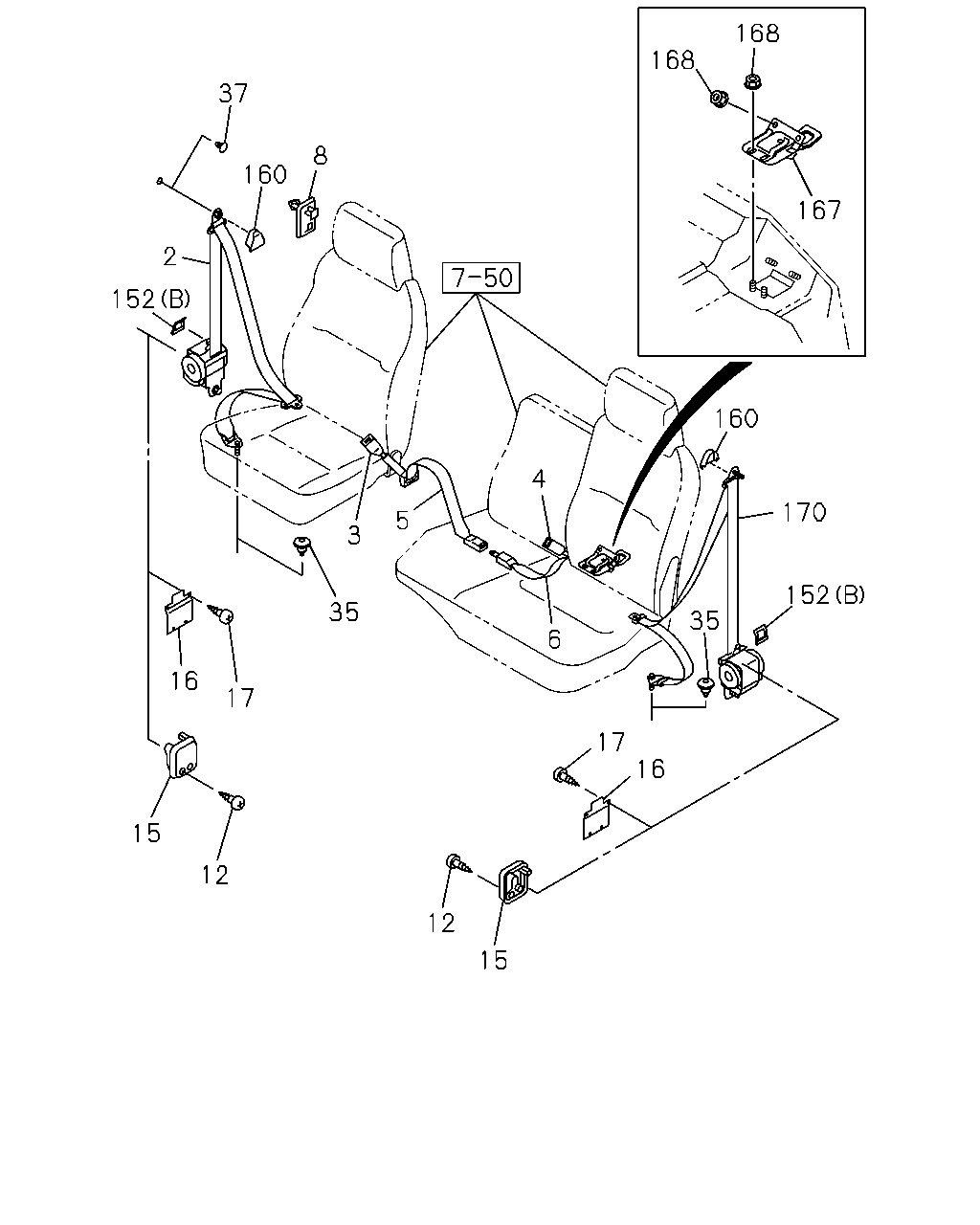

çizim 47480
168 168 37 8 160 167 2 152 160 4 170 5 3 152 35 35 6 16 17 17 16 15 12 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9811- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97198-780-1 01 1 9811-0105 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97294-526-0 01 1 0106- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97199-102-0 01 1 9811-0005 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97296-647-0 01 1 0006- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-892-0 01 1 9811- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-362-0 01 1 9811- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97199-045-0 01 1 9811- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-479-0 01 1 9811- ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-782-0 01 1 9811- ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-783-0 01 1 9811- ● ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 9811- ● ● ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 9811- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 9811- ● ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 		8-97854-868-1 02 1 9811- ● ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 16.584 M6X13 		5-09981-074-0 08 1 9811- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> FRONT OD=22 		9-61168-535-0 03 1 9811- ● ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
REAR OD=22 		9-61168-535-0 04 1 9811-0010 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
REAR OD=22 		9-61168-535-0 04 1 0011-0105 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. HONG KONG EQUIPMENT(PQ1) REAR OD=22 		9-61168-535-0 04 1 0011-0105 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
REAR OD=22 		9-61168-535-0 04 1 0106- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9811-0010 ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9811-0010 ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0011-0105 ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0011-0105 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. HONG KONG EQUIPMENT(PQ1) L=18.5 		8-94279-726-0 02 1 0011-0105 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0106- ● ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0106- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9811-0011 ● ● ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012-0105 ● ● ● ● ● ●
152 16.714 PROTECTOR
HONG KONG EQUIPMENT(PQ1) (B) 		8-97287-563-0 02 1 0012-0105 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0106- ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 9811-0010 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0011-0105 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97854-897-0 02 1 0011-0105 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0106- ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 9811- ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9811- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9811- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97198-780-1 01 1 9811-0105 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97294-526-0 01 1 0106- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97199-104-1 01 1 9811-0005 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97296-649-0 01 1 0006- ● ● ● ●
