◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#34699) — 10 parça

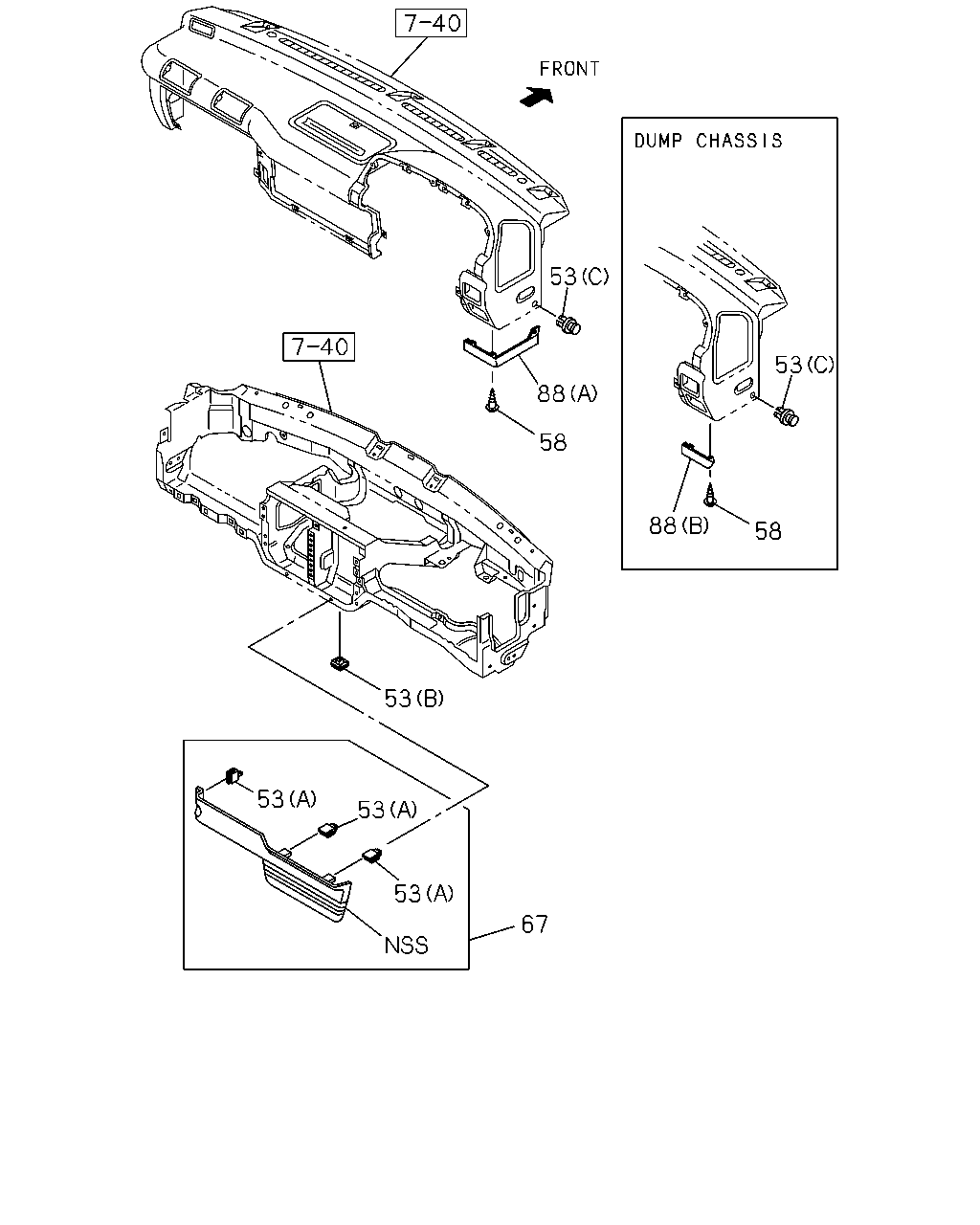

çizim 49204
53 53 88 58 88 58 53 53 53 53 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 03 1 9811- ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 9811- ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97857-542-0 01 1 9811- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97857-542-0 01 1 9811- ●
53 16.085 CLIP; UNDER COVER
DUMP CHASSIS(V4D) 16.800 (C) BLACK 		8-94493-404-0 01 1 9811- ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97856-660-3 01 1 9811- ● ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
(A) DARK GRAY 		8-97859-801-2 01 1 9811- ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. DUMP CHASSIS(V4D) (A) DARK GRAY 		8-97859-801-2 01 1 9811- ●
88 16.081 COVER; UNDER,INST PNL SIDE
DUMP CHASSIS(V4D) (B) DARK GRAY 		8-97859-803-2 01 1 9811- ●
