◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#34698) — 94 parça

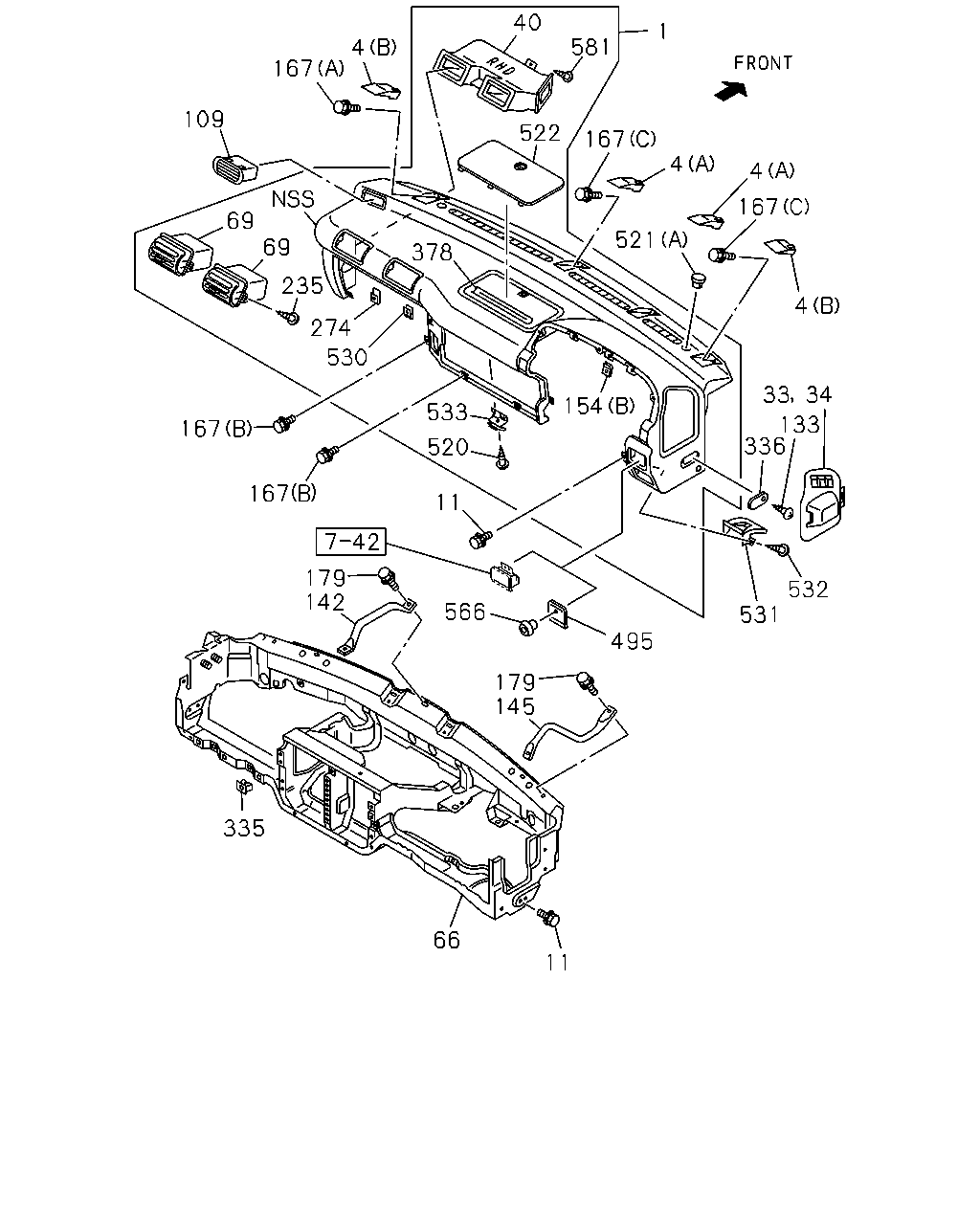

çizim 9690
40 1 581 4 167 109 522 167 4 4 167 69 521 69 378 235 4 274 530 33 34 154 533 133 336 167 520 167 11 179 142 532 566 531 495 179 145 335 66 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9811- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
16.085 M8X20 FLANGE 		8-97114-431-0 04 1 9811-0106 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0107- ● ● ● ● ● ●
33 16.081 LID; CHECK HOLE,CLU FLUID
THAILAND EQUIPMENT(PM9) DARK GRAY 		8-97859-824-5 01 1 9811-0105 ● ● ●
34 16.085 LID; OIL TANK
EXC. THAILAND EQUIPMENT(PM9) DARK GRAY 		8-97859-800-7 01 1 9811-0105 ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 9811-0105 ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 0106- ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97035-234-0 01 1 9811-0007 ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.262 		8-97262-688-0 01 1 0008- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97194-312-3 01 1 9811-9901 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97892-865-0 01 1 9902-9909 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97896-977-0 01 1 9910-9911 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-307-0 01 1 9912-0005 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-461-4 01 1 0006- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9811- ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9811- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9811- ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-637-2 01 1 9811- ● ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-638-3 01 1 9811- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 0209- ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
154 16.085 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 9811- ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9811- ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9811- ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9811- ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9811- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 9811- ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9811- ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
(A) DARK GRAY 		8-97857-529-2 01 1 9811-0105 ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
(A) DARK GRAY 		8-97857-529-2 01 1 0106- ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
4JH1 ENG(RJX) (A) DARK GRAY 		8-97857-529-2 01 1 0106- ● ● ●
521 16.081 COVER; SUN SENSOR
4JH1 ENG(RJX) (B) DARK GRAY 		8-97857-529-2 01 1 0106- ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 9811- ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9811- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 9811- ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9811- ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9811- ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●

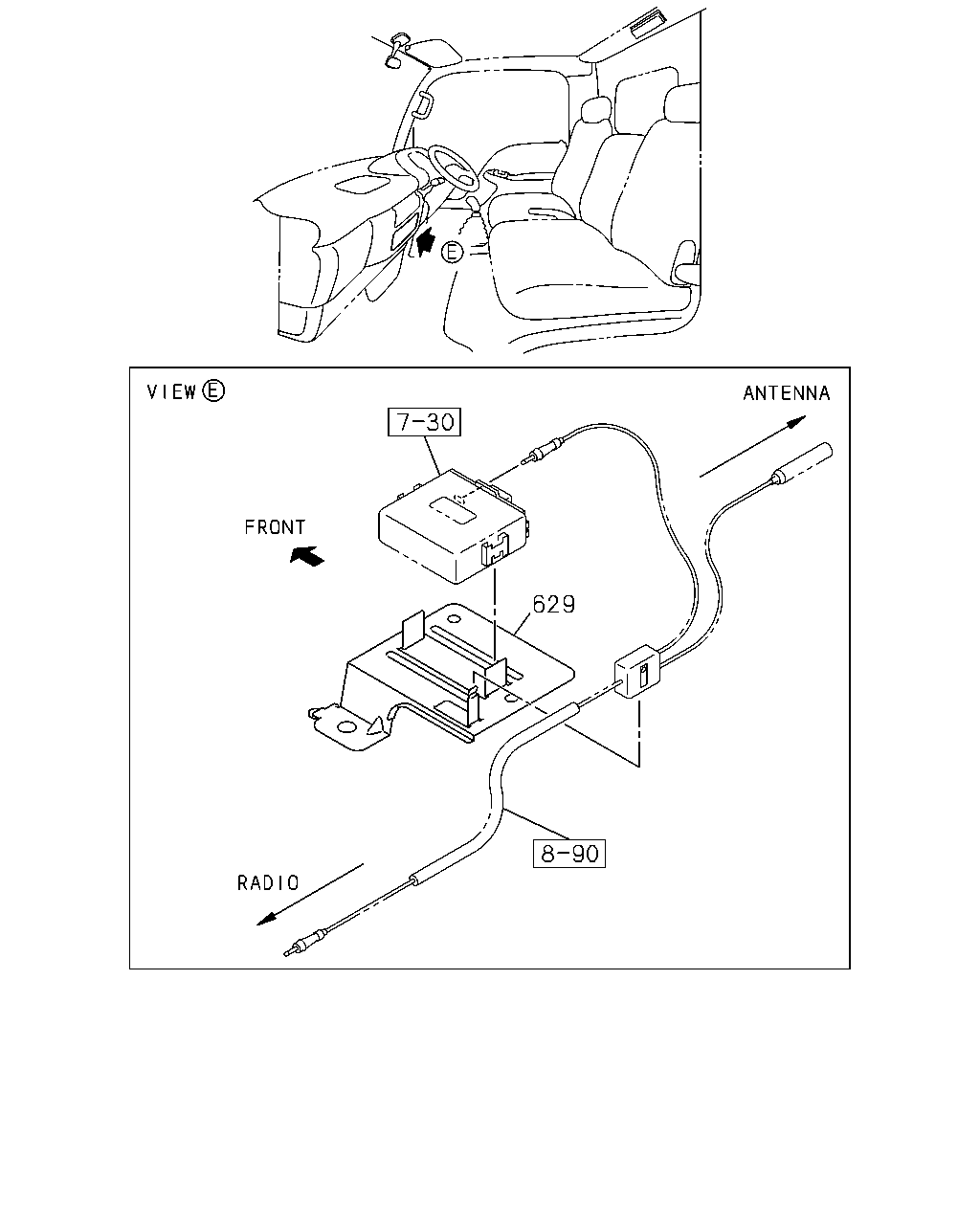

çizim 10907
629
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
629 16.085 BRACKET; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-97859-513-3 01 1 0112- ● ● ● ●

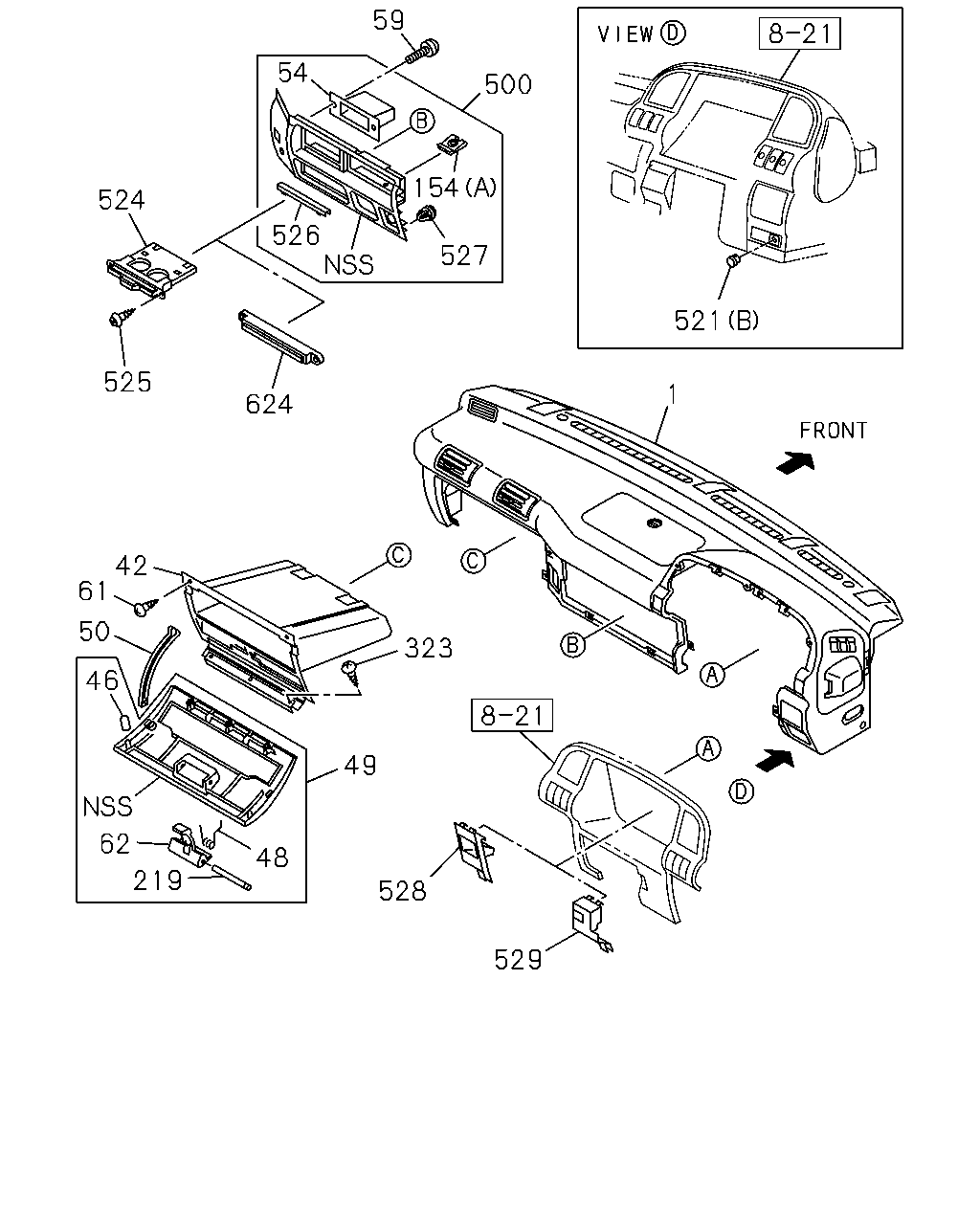

çizim 49098
59 54 500 154 524 526 527 521 525 1 624 42 61 50 323 46 49 62 48 219 528 529
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 9811- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 9811- ● ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9811-0208 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9811- ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97859-798-5 01 1 9811- ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9811- ● ● ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97196-294-2 01 1 9902- ● ● ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 16.067 M5X14 		8-94279-325-0 02 1 9902-0208 ● ● ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 01.269 M5X14 		8-94148-576-1 02 1 0209- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9811- ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9811- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 0209- ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
154 16.085 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9811- ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97859-813-9 01 1 9811-9901 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97199-872-0 01 1 9902-9902 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97198-489-2 01 1 9902- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97859-812-9 01 1 9811-9901 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97199-870-0 01 1 9902-9902 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97892-187-5 01 1 9902- ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
(A) DARK GRAY 		8-97857-529-2 01 1 9811-0105 ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
(A) DARK GRAY 		8-97857-529-2 01 1 0106- ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
4JH1 ENG(RJX) (A) DARK GRAY 		8-97857-529-2 01 1 0106- ● ● ●
521 16.081 COVER; SUN SENSOR
4JH1 ENG(RJX) (B) DARK GRAY 		8-97857-529-2 01 1 0106- ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 9811- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9811-9901 ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9902-9904 ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9905- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9811-9901 ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-169-0 08 1 9902-0208 ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0209- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 		8-97853-169-0 04 1 9902-0208 ● ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-071-5 01 1 9811-0009 ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-071-5 01 1 0010- ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-074-5 01 1 9811-0009 ● ● ●
529 16.100 POCKET; COIN
BLACK 		8-97867-074-5 01 1 9811-0009 ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-074-5 01 1 0010- ● ● ● ●
529 16.100 POCKET; COIN
BLACK 		8-97867-074-5 01 1 0010- ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9811- ● ● ● ● ● ●
