7-20 — MIRROR AND MIRROR STAY (#34696) — 93 parça

90 92 19 126 69 88 142 59 13 59 87 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97094-318-0	02	1	0106-	●	●	●	●
19	10.186 GASKET; MIRROR AUSTRALIA EQUIPMENT(RR3) 16.588	8-97857-925-0	02	1	9811-0105	●	●	●	●
19	10.186 GASKET; MIRROR AUSTRALIA EQUIPMENT(RR3) 16.588	8-97857-925-0	02	1	0106-	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE> 16.588	8-97857-925-0	02	1	0106-	●	●	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3) M6X30	8-94279-327-0	08	1	0106-	●	●	●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3) T=2.6	8-94279-073-0	04	1	0106-	●	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3) M10	1-09984-134-0	02	1	0106-	●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94272-677-0	02	1	0106-	●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0106-	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-528-0	01	1	9811-0105	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-528-0	01	1	0106-	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588	8-97868-528-0	01	1	0106-	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-527-0	01	1	9811-0105	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-527-0	01	1	0106-	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588	8-97868-527-0	01	1	0106-	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9811-	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-637-3	01	1	0106-	●			●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-638-3	01	1	0106-	●			●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-938-3	01	1	0106-		●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-939-3	01	1	0106-		●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97856-622-2	02	1	0106-	●	●	●	●

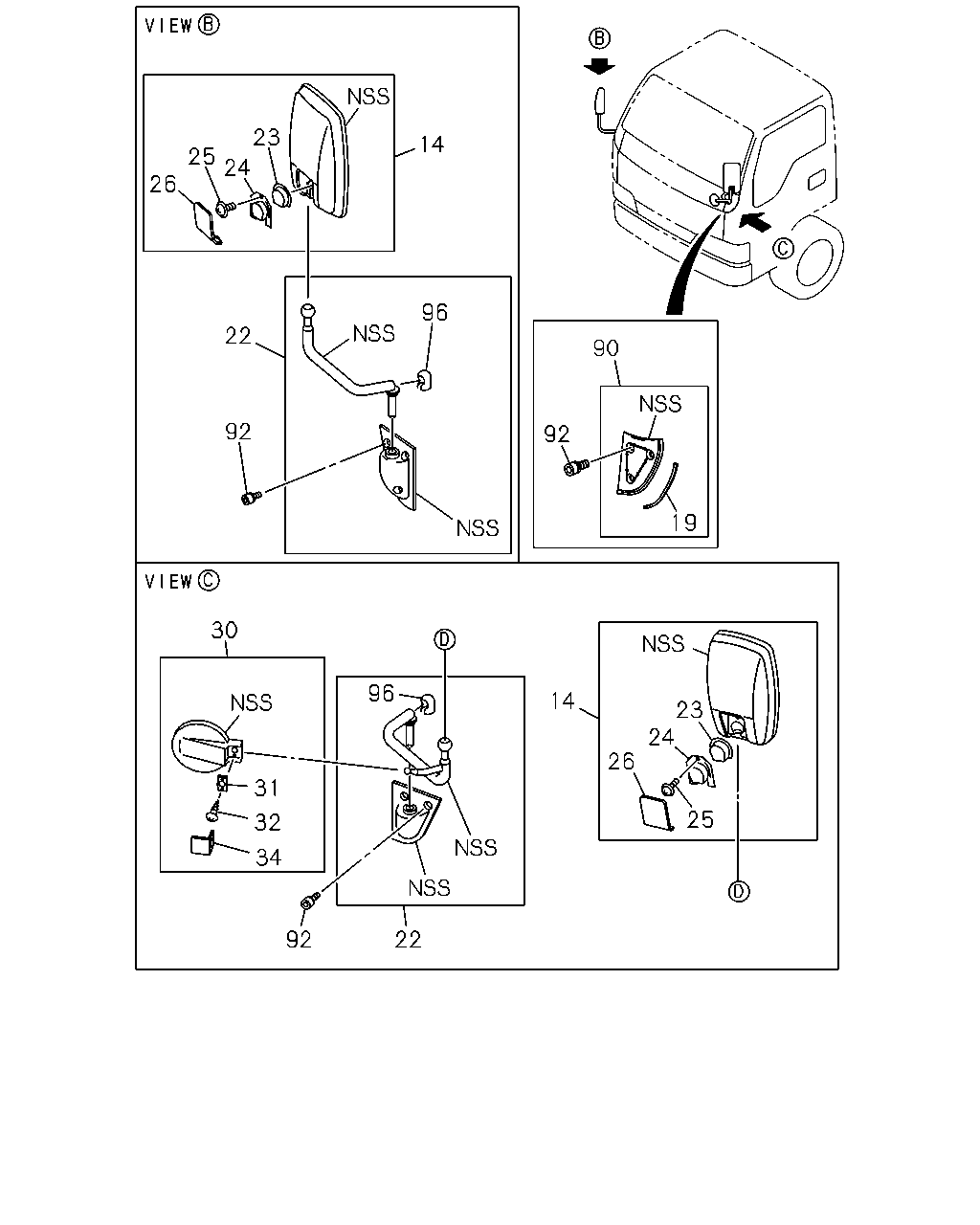

23 14 25 24 26 96 22 90 92 92 19 30 96 14 23 24 26 31 25 32 34 92 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94262-542-3	02	1	9811-0105	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. AUSTRALIA EQUIPMENT(RR3)	8-94262-542-3	02	1	9811-0105	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94262-542-3	01	1	0106-	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE>	8-94262-542-3	01	1	0106-	●	●	●	●	●	●
19	10.186 GASKET; MIRROR AUSTRALIA EQUIPMENT(RR3) 16.588	8-97857-925-0	02	1	9811-0105	●	●	●	●
19	10.186 GASKET; MIRROR AUSTRALIA EQUIPMENT(RR3) 16.588	8-97857-925-0	02	1	0106-	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE> 16.588	8-97857-925-0	02	1	0106-	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37> EXC. AUSTRALIA EQUIPMENT(RR3),UNDER MIRROR<RR9>	8-97856-739-8	01	1	9811-	●			●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97866-942-1	01	1	9811-	●			●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3)	8-97868-237-0	01	1	9811-0105	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR	8-97868-237-0	01	1	9811-0105					●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE>	8-97868-237-1	01	1	0106-	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR	8-97868-237-1	01	1	0106-					●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3),UNDER MIRROR<RR9>	8-97856-557-7	01	1	9811-0105		●	●			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3),UNDER MIRROR<RR9>	8-97856-557-8	01	1	0106-	●	●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97866-944-1	01	1	9811-0105		●	●			●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97866-944-2	01	1	0106-	●	●	●			●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) T=2.0	8-94262-545-0	01	1	9811-0105	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3) T=2.0	8-94262-545-0	01	1	9811-0105	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) T=2.0	8-94262-545-0	01	1	0106-	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE> T=2.0	8-94262-545-0	01	1	0106-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) T=1.6	8-94262-546-1	01	1	9811-0105	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3) T=1.6	8-94262-546-1	01	1	9811-0105	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) T=1.6	8-94262-546-1	01	1	0106-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE> T=1.6	8-94262-546-1	01	1	0106-	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) M6X30	8-94279-365-0	01	1	9811-0105	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3) M6X30	8-94279-365-0	01	1	9811-0105	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) M6X30	8-94279-365-0	01	1	0106-	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE> M6X30	8-94279-365-0	01	1	0106-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) T=2.3	8-94262-547-2	01	1	9811-0105	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3) T=2.3	8-94262-547-2	01	1	9811-0105	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) T=2.3	8-94262-547-2	01	1	0106-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE> T=2.3	8-94262-547-2	01	1	0106-	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94262-625-2	01	1	9811-	●	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94262-631-0	01	1	9811-	●	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) M5X18	8-94279-372-0	02	1	9811-	●	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94262-629-0	01	1	9811-	●	●	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-528-0	01	1	9811-0105	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-528-0	01	1	0106-	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588	8-97868-528-0	01	1	0106-	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-527-0	01	1	9811-0105	●	●	●	●
90	16.069 BRACKET; MIRROR STAY AUSTRALIA EQUIPMENT(RR3) 16.588	8-97868-527-0	01	1	0106-	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588	8-97868-527-0	01	1	0106-	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9811-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) OD=40	8-97853-206-2	01	1	9811-0105	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. AUSTRALIA EQUIPMENT(RR3) OD=40	8-97853-206-2	01	1	9811-0105	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSISTSIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. AUSTRALIA EQUIPMENT(RR3) OD=40	8-97853-206-2	01	1	0106-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0106-	●	●	●	●	●	●

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-346-2	01	1	9811-0105	●	●	●	●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-346-2	01	1	0106-0208	●	●	●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-663-1	01	1	0209-	●	●	●	●	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-348-2	01	1	9811-0105	●	●	●	●	●	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-348-2	01	1	0106-	●	●	●	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-347-2	01	1	9811-0208	●	●	●	●		●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-633-1	01	1	0209-	●	●	●	●		●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	9811-0105	●	●	●	●		●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0106-	●	●	●	●		●
2	16.069 SCREW; MIRROR TO BODY 03.671 M5X20	5-09981-059-0	02	1	9811-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	9811-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	9811-	●	●	●	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 16.588	8-94279-039-0	01	1	9811-	●	●	●	●	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	9811-	●	●	●	●	●	●
159	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> 24V 10W	5-82194-030-0	01	1	9811-0105	●	●	●	●		●
159	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> 24V 10W	5-82194-030-0	01	1	0106-	●	●	●	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0106-						●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W	5-82194-015-0	01	1	9811-9907	●	●	●	●		●
159	08.991 BULB; ROOM LAMP 12V 10W	5-82194-015-0	01	1	9811-9907					●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W	8-97128-771-0	01	1	9908-0105	●	●	●	●		●
159	08.991 BULB; ROOM LAMP 12V 10W	8-97128-771-0	01	1	9908-0105					●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W	8-97128-771-0	01	1	0106-	●	●	●	●
159	08.991 BULB; ROOM LAMP 12V 10W	8-97128-771-0	01	1	0106-					●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0209-	●	●	●	●	●	●
