◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#34695) — 80 parça
çizim 9175
35 2 2 35 96 130 9 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
(A) 		8-94242-996-1 01 1 9811-9907 ●
2 03.680 LABEL; FUEL CAUTION
(B) 		8-97203-837-0 01 1 9908- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(ATB) CAUTION SPANISH<YN1> (A) 		8-97188-833-0 01 1 0106- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(ATB) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-832-0 01 1 0106- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4HF1 ENG(RLS) (ASD),(09V),(10V),(22H),(23H),(25H), (26H),(29H),(45C) EXC. AUSTRALIA EQUIPMENT(RR3), CAUTIONSPANISH<YN1> (B) 		8-94178-979-0 01 1 9811- ●
5 05.880 LABEL; TIRE AIR PRESSURE
4JB1 ENG(RLF),4HF1 ENG(RLS) (ASD),(09V),(10V),(22H),(23H),(25H), (26H),(29H),(45C) CAUTION SPANISH<YN1> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94400-943-0 01 1 9811- ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (A) 		8-94440-619-0 01 1 9811- ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> (B) 		8-94440-618-0 01 1 9811- ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 9811-9812 ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 9901-0105 ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX),4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 0106- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 9811-9812 ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 9901-0105 ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 0106- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9811-9812 ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9901-0105 ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 0106- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MXA5R(RMT) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 9811-0105 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MXA5R(RMT) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0106-0107 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0108- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MXA5R(RMT) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 9811-0107 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0108- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 9811-0107 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0108- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9811- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9811- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9811- ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97092-930-0 01 1 9811-9905 ● ● ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 		8-97092-930-0 01 1 9811-9905 ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97092-930-0 01 1 9906-0105 ● ● ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JH1 ENG(RJX) 		8-97066-479-1 01 1 0106- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97066-479-1 01 1 0106- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER<K51> 		8-97066-479-0 01 1 9906-0105 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 		8-97092-930-1 01 1 0106- ● ● ● ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 9811-0008 ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 0009- ● ●

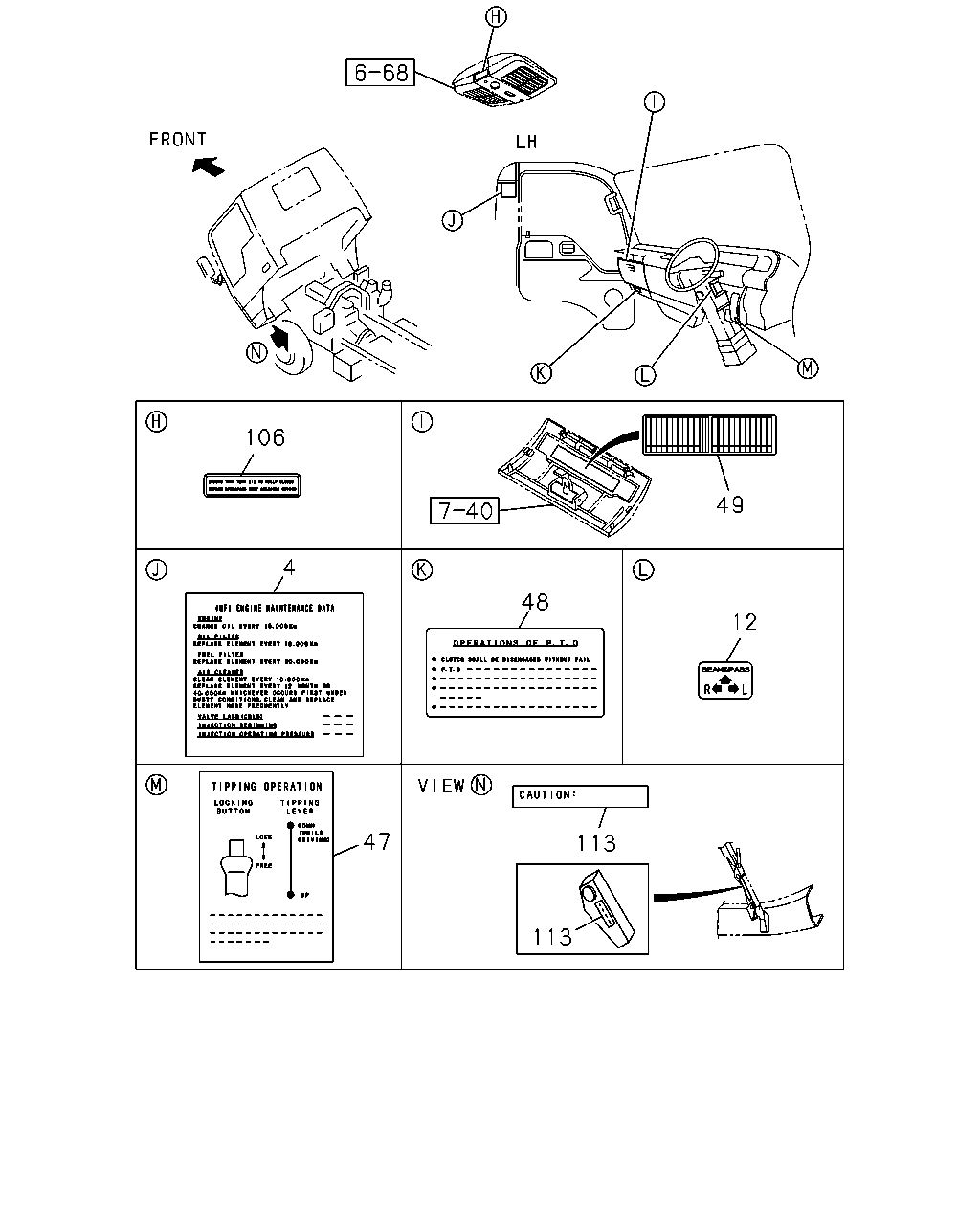

çizim 12275
106 49 4 48 12 47 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> 		8-97189-401-1 01 1 0108- ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. TURBOCHARGER<K51> 		8-97189-414-0 01 1 9811- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,CAUTION SPANISH<YN1> 		8-97189-413-0 01 1 9811- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> 		8-97231-256-0 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) 		8-97189-417-0 01 1 9811-0105 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) CAUTION SPANISH<YN1> 		8-97260-428-1 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) 		8-97215-749-0 01 1 9811-0105 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) 		8-97215-749-0 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) 		8-97215-749-0 01 1 0106- ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> EXC. ENGINE POWER N-SPEC(7QV) 		8-97189-399-0 01 1 9811- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1>,ENGINE POWER N-SPEC(7QV) 		8-97189-398-0 01 1 9811- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> 		8-97215-748-0 01 1 9811-0105 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> 		8-97215-748-0 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> 		8-97215-748-0 01 1 0106- ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> 		8-97218-365-0 01 1 9906-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> 		8-97218-365-0 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1> 		8-97189-415-0 01 1 9811-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> 		8-97189-415-0 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) CAUTION SPANISH<YN1> EURO2 SPECIFICATION<7AF> 		8-97230-699-0 01 1 9906-0105 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> 		8-97260-427-1 01 1 0106- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 		8-97189-419-0 01 1 9811-9905 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. CAUTION SPANISH<YN1> 		8-97189-419-0 01 1 9906-0105 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER<K51> CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> 		8-97231-257-0 01 1 0106- ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 9811- ● ● ● ● ● ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP BODY 2.8M SHINMEIWA(RS7) 		8-97115-792-0 01 1 9811- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> 		8-94313-054-0 01 1 9811- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 9811- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JH1 ENG(RJX) 		8-97260-561-0 01 1 0106- ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> 		8-97182-191-0 01 1 9811-0105 ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HF1 ENG(RLS) 		8-97182-191-0 01 1 0106-0107 ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-191-0 01 1 0106-0107 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HF1 ENG(RLS) 		8-97182-191-0 01 1 0108- ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97182-191-0 01 1 0108- ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-191-0 01 1 0108- ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. VOLTAGE 24V<7AE> 		8-97182-190-0 01 1 9811-0105 ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-190-0 01 1 9811-0105 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1 ENG(RLF) 		8-97182-190-0 01 1 0106- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-190-0 01 1 0106- ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9811- ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9811- ● ● ● ● ● ●
113 08.808 PLATE; CAUTION,CAB STAY
MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97108-090-0 01 1 0106- ●
çizim 47328
261 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) (A) 		8-97315-725-0 01 1 0106-0106 ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) EXC. CAUTION SPANISH<YN1> (A) 		8-97315-725-0 01 1 0107- ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JH1 ENG(RJX) CAUTION SPANISH<YN1> (B) 		8-97319-705-0 01 1 0107- ● ● ●
