◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#34693) — 54 parça

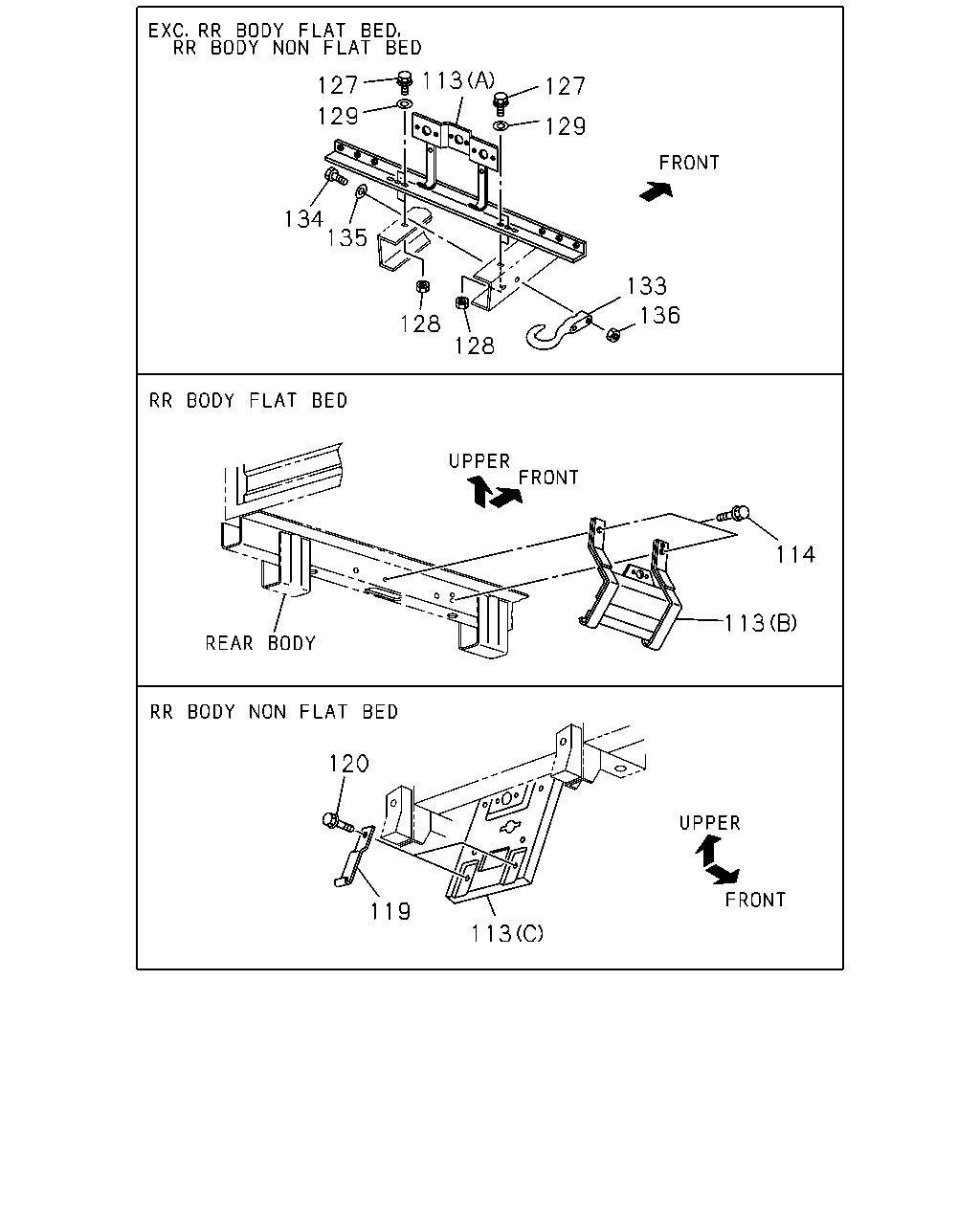

çizim 44720
113 127 127 129 129 134 135 133 136 128 128 114 113 120 119 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-1 01 1 9811- ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
02.662 (A) 		8-97096-644-1 01 1 9811- ● ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED<RS6> (B) 		8-97077-573-2 01 1 9811- ● ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY NON FLAT BED(RS5) (C) 		8-94197-117-0 01 1 9811- ●
113 07.800 BRACKET; LICENSE PLATE
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 07.039 (D) 		8-97033-248-2 01 1 9811- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9811-0004 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED<RS6> 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0005- ● ●
119 07.800 HOOK; LICENSE PLATE BRKT
RR BODY NON FLAT BED(RS5) 		8-97069-728-0 02 1 9811- ●
120 07.800 BOLT
RR BODY NON FLAT BED(RS5) 		8-97069-572-0 02 1 9811- ●
127 02.662 BOLT; CROSS PLATE
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 9811- ● ● ● ●
127 02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 9811- ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8 		9-09110-408-0 02 1 9811- ● ● ● ●
128 02.662 NUT; CROSS PLATE
02.559 M8 		9-09110-408-0 02 1 9811- ● ●
129 03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9811- ●
133 07.112 HOOK
07.330 		8-94183-262-0 01 1 9811- ● ● ●
133 07.112 HOOK
DUMP CHASSIS(V4D) 07.330 		8-94183-262-0 01 1 9811- ●
133 07.112 HOOK
EXC. DUMP CHASSIS(V4D) 07.068 		8-94249-270-2 01 1 9811- ●
133 07.112 HOOK
07.068 		8-94249-270-2 01 1 9811- ● ●
134 07.068 BOLT; HOOK
00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9811- ● ● ●
134 07.068 BOLT; HOOK
DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9811- ●
134 07.068 BOLT; HOOK
EXC. DUMP CHASSIS(V4D) 07.039 M14X50 		0-10806-450-0 02 1 9811- ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10806-450-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. DUMP CHASSIS(V4D) 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 02 1 9811- ● ● ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D) 07.529 M14 		9-99110-514-0 02 1 9811- ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811- ● ●
çizim 45475
134 2 306 133 135 136 9 13 12 2 2 1 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> 		8-97174-004-1 01 1 9811- ●
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> 		8-97174-005-1 01 1 9811- ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.347 (B) M14X30 		0-20801-430-0 08 1 9811- ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 9811- ● ● ●
9 07.070 NUT; BUMPER
BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9811- ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 08 1 9811- ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 08 1 9811- ● ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A) 		8-97096-644-1 01 1 9811- ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
02.662 (A) 		8-97096-644-1 01 1 9811- ● ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED<RS6> (B) 		8-97077-573-2 01 1 9811- ● ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY NON FLAT BED(RS5) (C) 		8-94197-117-0 01 1 9811- ●
113 07.800 BRACKET; LICENSE PLATE
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 07.039 (D) 		8-97033-248-2 01 1 9811- ●
133 07.112 HOOK
07.330 		8-94183-262-0 01 1 9811- ● ● ●
133 07.112 HOOK
DUMP CHASSIS(V4D) 07.330 		8-94183-262-0 01 1 9811- ●
133 07.112 HOOK
EXC. DUMP CHASSIS(V4D) 07.068 		8-94249-270-2 01 1 9811- ●
133 07.112 HOOK
07.068 		8-94249-270-2 01 1 9811- ● ●
134 07.068 BOLT; HOOK
00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9811- ● ● ●
134 07.068 BOLT; HOOK
DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9811- ●
134 07.068 BOLT; HOOK
EXC. DUMP CHASSIS(V4D) 07.039 M14X50 		0-10806-450-0 02 1 9811- ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10806-450-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. DUMP CHASSIS(V4D) 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 02 1 9811- ● ● ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D) 07.529 M14 		9-99110-514-0 02 1 9811- ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811- ● ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP BL 		8-97128-333-0 01 1 9811- ● ● ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP BR 		8-97128-334-0 01 1 9811- ● ● ●
