Sayfa 6-84 - Isuzu EPC

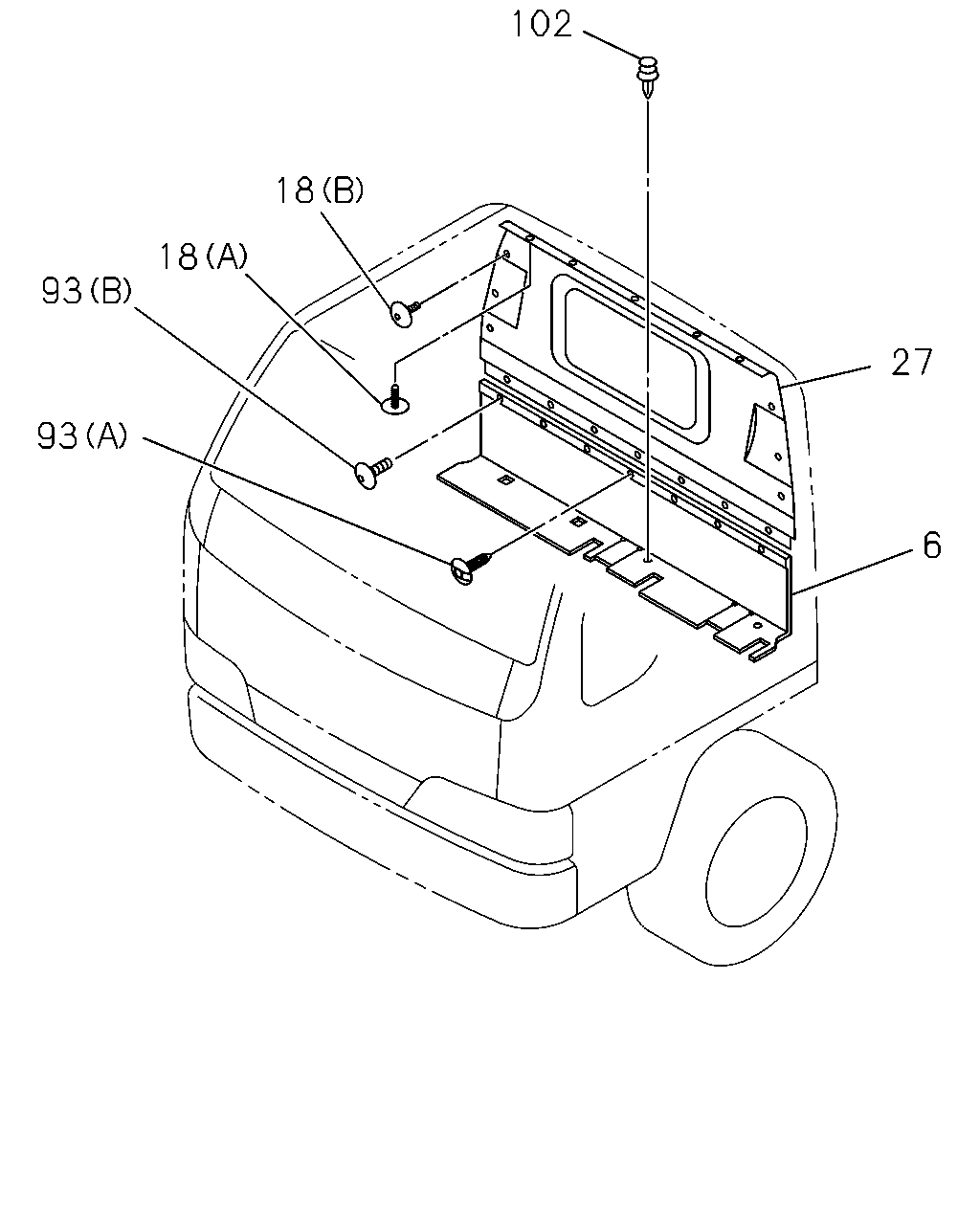

6-84 — BACK TRIM (#34692) — 7 parça

102 18 18 93 27 93 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	16.592 MAT; SILENCER,CAB BACK INTERIOR DELUXE(RBB) DARK GRAY	8-97859-869-5	01	1	9811-	●	●	●	●
18	16.587 CLIP; TRIM COVER,CAB BACK INTERIOR DELUXE(RBB) AUSTRALIA EQUIPMENT(RR3) 16.742 (A) LIGHT GRAY	8-97153-166-0	05	1	9811-	●	●	●	●
18	16.587 CLIP; TRIM COVER,CAB BACK INTERIOR DELUXE(RBB) AUSTRALIA EQUIPMENT(RR3) (B) LIGHT GRAY	8-97867-200-0	06	1	9811-	●	●	●	●
27	16.587 COVER; TRIM,BACK INTERIOR DELUXE(RBB) AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97859-888-0	01	1	9811-	●	●	●	●
93	16.584 CLIP; SILENCER MATTERESS INTERIOR DELUXE(RBB) (B) DARK GRAY	8-97857-054-0	05	1	9811-	●	●	●	●
93	16.584 CLIP; SILENCER MATTERESS INTERIOR DELUXE(RBB) (A) DARK GRAY	8-97866-675-0	02	1	9811-	●	●	●	●
102	16.584 CLIP; TRAY,BACK PANEL 16.165 OD=7.9 BLACK	8-94279-974-1	01	1	9811-	●	●	●	●
