6-80 — BACK PANEL (#34690) — 43 parça

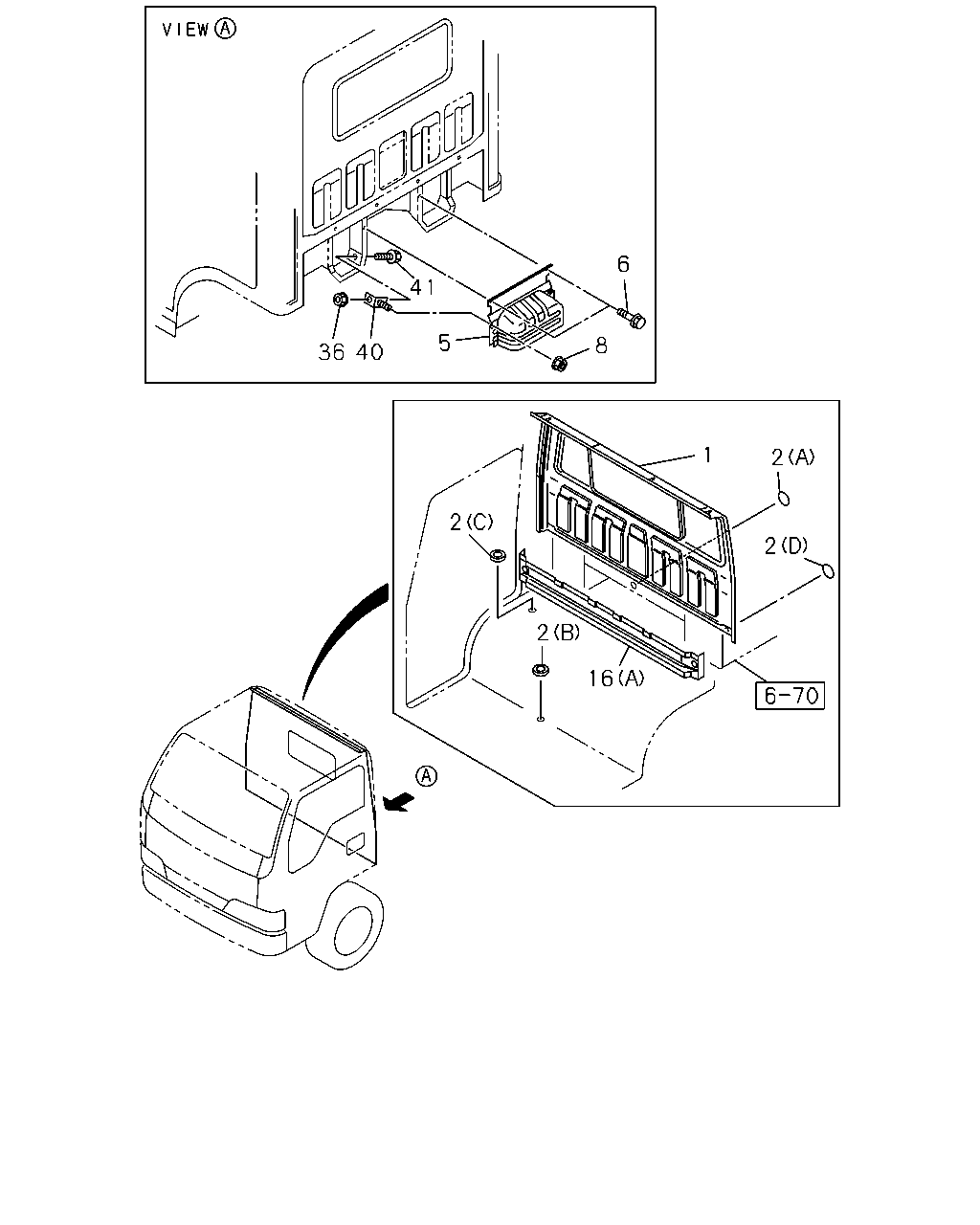

6 41 5 8 36 40 1 2 2 2 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.587 PANEL; BACK OUTER	8-97851-352-2	01	1	9811-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 08.155 (B) OD=28.5	8-94279-711-0	02	1	9811-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (C) OD=16.2	8-94492-493-0	02	1	9811-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9811-	●		●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (D) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9811-	●		●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (E) OD=35	8-94122-971-0	04	1	9811-		●			●
5	16.587 PANEL; CAB BACK 4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97259-949-1	01	1	0111-	●
6	16.587 BOLT; BACK PANEL 4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0111-	●
8	16.587 NUT; BACK PANEL 4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0111-	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) INTERIOR DELUXE(RBB) AUSTRALIA EQUIPMENT(RR3) (A)	8-97867-148-1	01	1	9811-	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. INTERIOR DELUXE(RBB) (A)	8-97867-215-0	01	1	9811-0105	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97867-215-0	01	1	9811-0105	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97867-215-0	01	1	9811-0105		●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. INTERIOR DELUXE(RBB) (A)	8-97867-215-0	01	1	0106-0107	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JH1 ENG(RJX),4JB1 ENG(RLF) (A)	8-97867-215-0	01	1	0106-0107	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97867-215-0	01	1	0106-0107		●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. INTERIOR DELUXE(RBB) (A)	8-97867-215-0	01	1	0108-	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF) (A)	8-97867-215-0	01	1	0108-	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97867-215-0	01	1	0108-		●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-300-1	01	1	9811-		●			●
36	16.587 NUT; BRKT 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0112-	●
40	16.587 BRACKET; BACK PANEL 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0112-	●
41	16.587 BOLT 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0112-	●

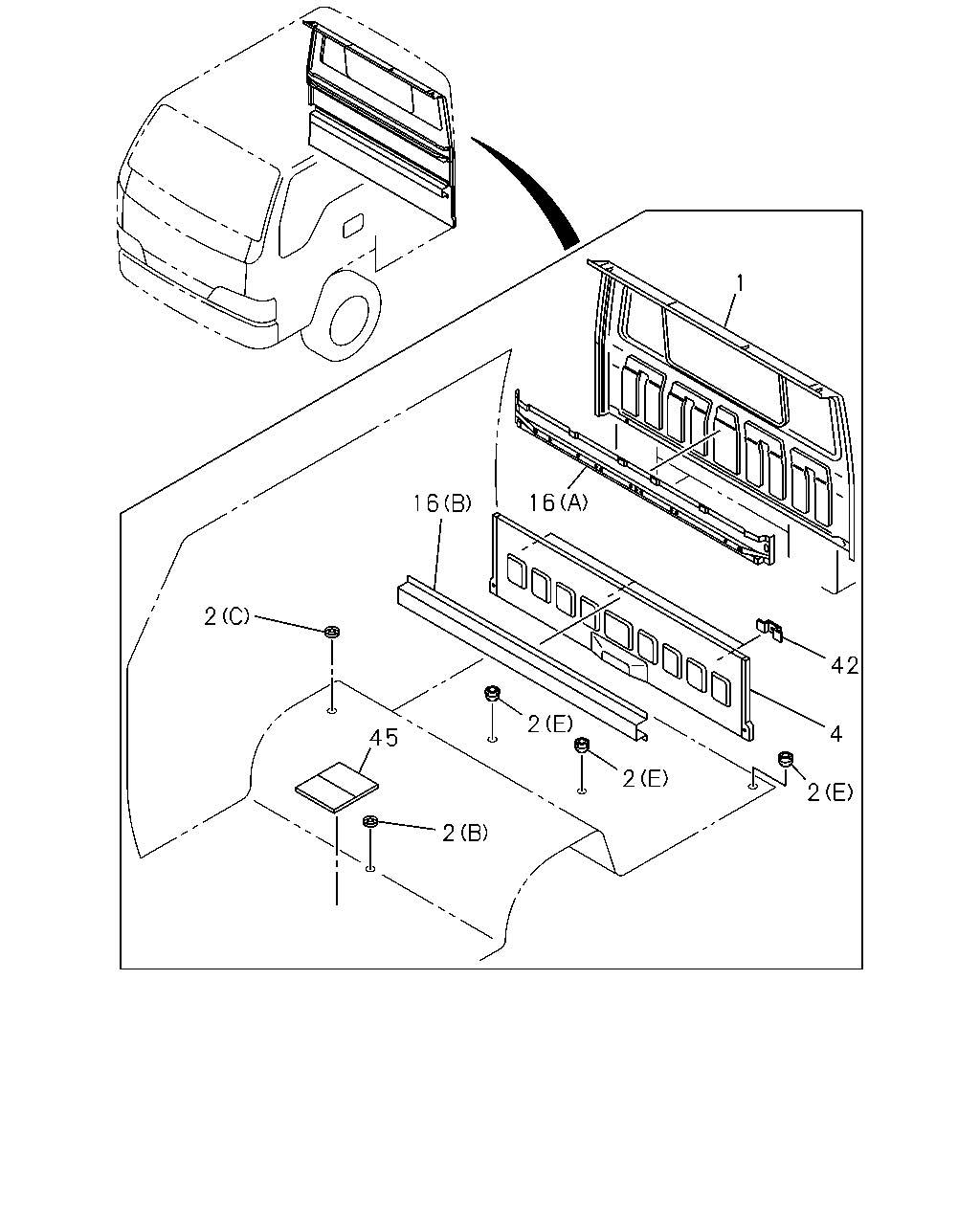

1 16 16 2 42 2 45 4 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.587 PANEL; BACK OUTER	8-97851-352-2	01	1	9811-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 08.155 (B) OD=28.5	8-94279-711-0	02	1	9811-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (C) OD=16.2	8-94492-493-0	02	1	9811-	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	9811-	●		●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (D) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9811-	●		●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (E) OD=35	8-94122-971-0	04	1	9811-		●			●
4	16.575 PANEL; CAB BACK LWR	8-97851-145-6	01	1	9811-		●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) INTERIOR DELUXE(RBB) AUSTRALIA EQUIPMENT(RR3) (A)	8-97867-148-1	01	1	9811-	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. INTERIOR DELUXE(RBB) (A)	8-97867-215-0	01	1	9811-0105	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97867-215-0	01	1	9811-0105	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97867-215-0	01	1	9811-0105		●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. INTERIOR DELUXE(RBB) (A)	8-97867-215-0	01	1	0106-0107	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4JH1 ENG(RJX),4JB1 ENG(RLF) (A)	8-97867-215-0	01	1	0106-0107	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97867-215-0	01	1	0106-0107		●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1 ENG(RLS) EXC. INTERIOR DELUXE(RBB) (A)	8-97867-215-0	01	1	0108-	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF) (A)	8-97867-215-0	01	1	0108-	●		●	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97867-215-0	01	1	0108-		●			●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-300-1	01	1	9811-		●			●
42	16.587 BRACKET; HEAT PROTECTOR 16.588	8-94265-170-1	03	1	9811-		●			●
45	16.587 SHEET; MELTING,BACK PANEL 16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY	8-94262-093-0	02	1	9811-		●			●
