◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#3469) — 67 parça

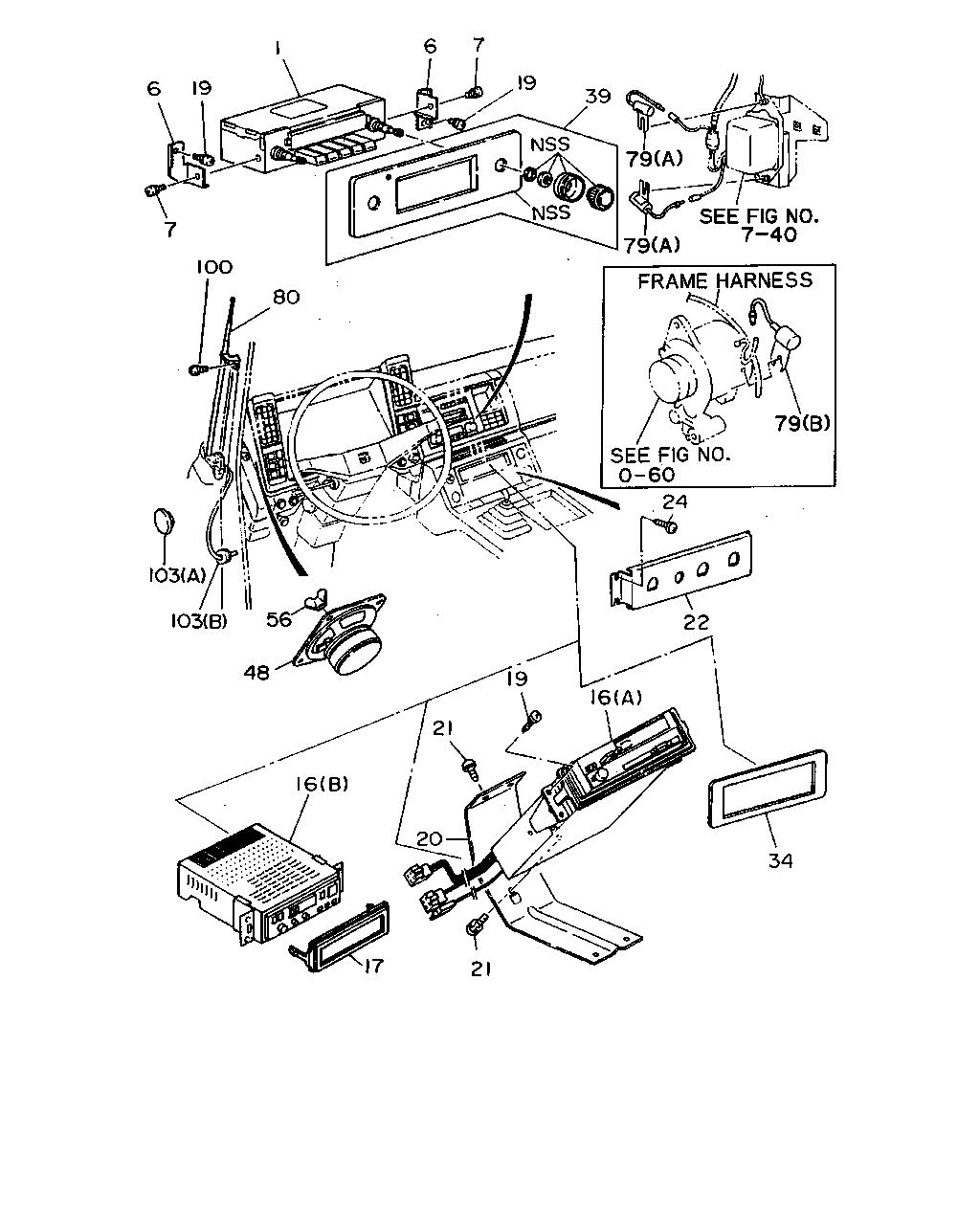

çizim 36142
24 79 79 79 39 19 7 6 1 19 6 7 80 100 103 103 56 48 16 21 19 16 22 34 21 17 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIO
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) TUNER BAND LATIN AMERICA<TCG> 		1-84112-060-0 01 1 9311- ● ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-025-0 01 1 9002-9003 ● ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> 		1-84112-025-0 01 1 9004-9210 ● ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-025-0 01 1 9211-9212 ● ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-036-0 01 1 9307-9307 ● ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-059-0 01 1 9308-9310 ● ● ●
1 RADIO
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. TUNER BAND LATIN AMERICA<TCG> 		1-84112-059-0 01 1 9311- ● ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-036-0 01 1 9301-9306 ● ●
6 BRACKET; RADIO TO PANEL
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-84116-056-0 01 1 9002-9307 ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-84116-057-0 01 1 9002-9307 ● ● ●
7 SCREW; RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M5X8 W/LK WASHER 		9-03910-508-0 02 1 9002- ● ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) (A) 		1-84120-024-0 01 1 9002-9003 ● ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> (A) 		1-84120-024-0 01 1 9004-9210 ● ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) (A) 		1-84120-024-0 01 1 9211-9212 ● ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) (B) 		1-84120-051-0 01 1 9301-9307 ● ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) (B) 		1-84120-057-0 01 1 9308- ● ● ●
17 ATTACH KIT; CASSETTE
RADIO AM & TAPE PLAYER(UM1) 		1-84125-016-0 01 1 9301- ● ● ●
19 SCREW; DECK
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9002- ● ● ●
20 BRACKET; STEREO
RADIO AM & TAPE PLAYER(UM1) EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-84126-033-0 01 1 9301-9306 ● ● ●
20 BRACKET; STEREO
RADIO AM & TAPE PLAYER(UM1) EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-84126-025-0 01 1 9002-9212 ● ● ●
20 BRACKET; STEREO
RADIO AM & TAPE PLAYER(UM1) EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-84126-025-0 01 1 9307-9308 ● ● ●
20 BRACKET; STEREO
RADIO AM & TAPE PLAYER(UM1) EXC. POWER BRAKE LOCK SYSTEM(J50) 		1-84126-033-0 01 1 9309- ● ● ●
20 BRACKET; STEREO
POWER BRAKE LOCK SYSTEM(J50) RADIO AM & TAPE PLAYER(UM1) 		1-84126-030-0 01 1 9002- ●
21 SCREW; STEREO
RADIO AM & TAPE PLAYER(UM1) M5X12 TAPPING W/PL WASHER 		0-74300-512-0 04 1 9002- ● ● ●
21 SCREW; STEREO
RADIO AM & TAPE PLAYER(UM1) M5X8 W/LK WASHER 		9-03910-508-0 01 1 9002- ● ● ●
21 SCREW; STEREO
RADIO AM & TAPE PLAYER(UM1) M5X10 W/LK WASHER 		9-03910-510-0 04 1 9002- ● ● ●
22 PANEL; RADIO 1-65670-887-1 01 1 9002-9505 ● ● ●
22 PANEL; RADIO
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-65670-887-1 01 1 9506- ● ● ●
24 SCREW; BLIND PANEL 5-09981-005-0 04 1 9002-9505 ● ● ●
24 SCREW; BLIND PANEL
EXC. RADIO AM & TAPE PLAYER(UM1) 		5-09981-005-0 04 1 9506- ● ● ●
34 COVER; RADIO HOLE
EXC. RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84125-007-1 01 1 9002-9003 ● ● ●
34 COVER; RADIO HOLE
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84125-007-2 01 1 9004-9306 ● ● ●
34 COVER; RADIO HOLE
EXC. RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84125-007-2 01 1 9004-9306 ● ● ●
34 COVER; RADIO HOLE
EXC. RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-84125-007-2 01 1 9307- ● ● ●
39 ESCUTCHEON
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84119-033-1 01 1 9002-9212 ● ● ●
39 ESCUTCHEON
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84119-034-1 01 1 9301-9307 ● ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1) 		1-84114-033-0 02 1 9002-9003 ● ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1) 		1-84114-033-0 02 1 9004-9012 ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-033-0 02 1 9004-9012 ● ● ●
48 SPEAKER; AUDIO
RADIO FUJITUU(SQ2) 		1-84114-033-0 01 1 9002-9306 ● ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1) 		1-84114-033-0 02 1 9101- ● ● ●
48 SPEAKER; AUDIO
RADIO CLARION<SK2> 		1-84114-033-0 01 1 9307- ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-049-0 02 1 9101-9306 ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-09984-118-0 04 1 9002-9003 ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-09984-118-0 04 1 9004-9306 ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-09984-118-0 04 1 9004-9306 ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO FUJITUU(SQ2) 		1-09984-118-0 02 1 9002-9306 ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-09984-118-0 04 1 9307- ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION<SK2> 		1-09984-118-0 02 1 9307- ● ● ●
79 CONDENSER; RADIO
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) (A) 		1-84132-001-1 02 1 9002- ● ● ●
79 CONDENSER; RADIO
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) (B) 		1-84132-006-0 01 1 9307- ● ● ●
79 CONDENSER; RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) (B) 		1-84132-006-0 01 1 9002-9306 ● ● ●
79 CONDENSER; RADIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) (B) 		1-84132-006-0 01 1 9002-9306 ● ● ●
80 ANTENNA
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84115-052-1 01 1 9002-9003 ● ● ●
80 ANTENNA
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84115-052-1 01 1 9004-9306 ● ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-052-1 01 1 9004-9306 ● ● ●
80 ANTENNA
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-84115-052-1 01 1 9307- ● ● ●
100 SCREW; ANTENNA HOLE,FRT
EXC. RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M4X12 TAPPING 		9-07067-412-0 03 1 9002-9003 ● ● ●
100 SCREW; ANTENNA HOLE,FRT
EXC. RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-09983-094-0 03 1 9004-9306 ● ● ●
100 SCREW; ANTENNA HOLE,FRT
EXC. RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) 		1-09983-094-0 03 1 9307- ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) (B) ID=10 OD=42 T=5 		1-09983-111-0 01 1 9307- ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
EXC. RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER(UM1) (A) 		9-09756-038-0 01 1 9307- ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) (B) ID=10 OD=42 T=5 		1-09983-111-0 01 1 9002-9003 ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) (B) ID=10 OD=42 T=5 		1-09983-111-0 01 1 9004-9306 ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (B) ID=10 OD=42 T=5 		1-09983-111-0 01 1 9004-9306 ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
EXC. RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) (A) 		9-09756-038-0 01 1 9002-9003 ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
EXC. RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		9-09756-038-0 01 1 9004-9306 ● ● ●
