4-65B — REAR LEAF SPRING (#34683) — 18 parça

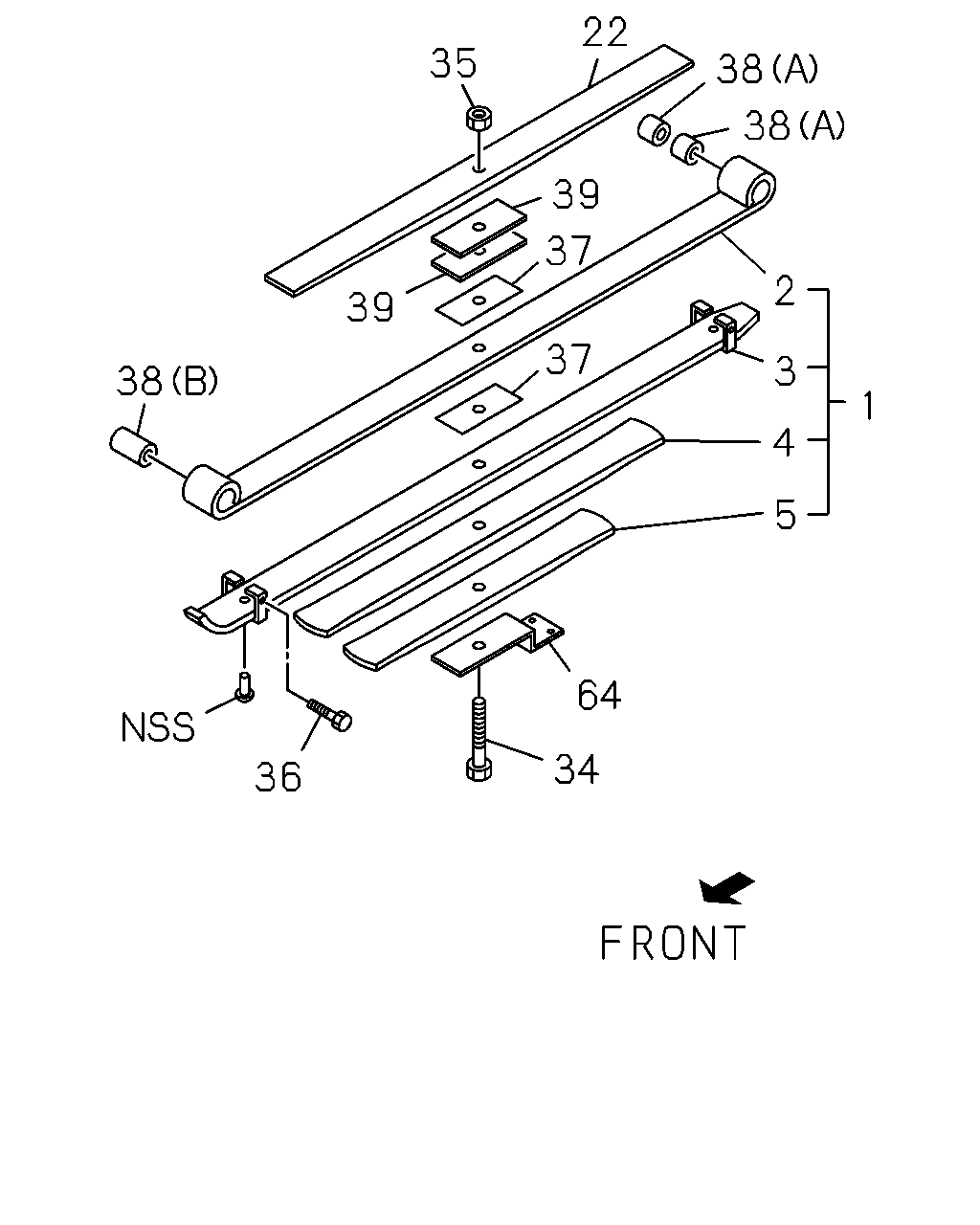

çizim 70636
22 35 38 38 39 37 2 39 37 3 38 1 4 5 64 34 36
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97033-560-2, 97033560 		8-97084-757-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97033-560-2, 97033560 		8-97084-758-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97033-560-2, 97033560 		8-97084-759-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97033-560-2, 97033560 		8-97084-760-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97033-560-2, 97033560 		8-97084-761-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97033-560-2, 97033560 		8-97084-763-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=100 ASM PART: A = 8-97033-560-2, 97033560 		8-94165-306-0 01 1 9507-
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: A = 8-97033-560-2, 97033560 		8-94165-307-0 01 1 -9506
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
08.917, M12 LOCK NUT ASM PART: A = 8-97033-560-2, 97033560 		9-09131-512-0 01 1 9504-
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97033-560-2, 97033560 		9-99110-512-0 01 1 -9503
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97033-560-2, 97033560 		8-94407-133-0 02 1 -9506
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97033-560-2, 97033560 		8-97084-102-0 02 1 -9506
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97033-560-2, 97033560 		8-97084-102-0 01 1 9507-
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97033-560-2, 97033560 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97033-560-2, 97033560 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=8 ASM PART: A = 8-97033-560-2, 97033560 		8-97084-668-0 02 1 -9506
39 07.518 SEAT; LEAF SPR,RR MAIN
T=8 ASM PART: A = 8-97033-560-2, 97033560 		8-97084-668-0 01 1 9507-
64 07.513 SUPPORT; RR SPR
ASM PART: A = 8-97033-560-2, 97033560 		8-94342-863-0 01 1 -
