4-60 — REAR SUSPENSION (#34680) — 594 parça

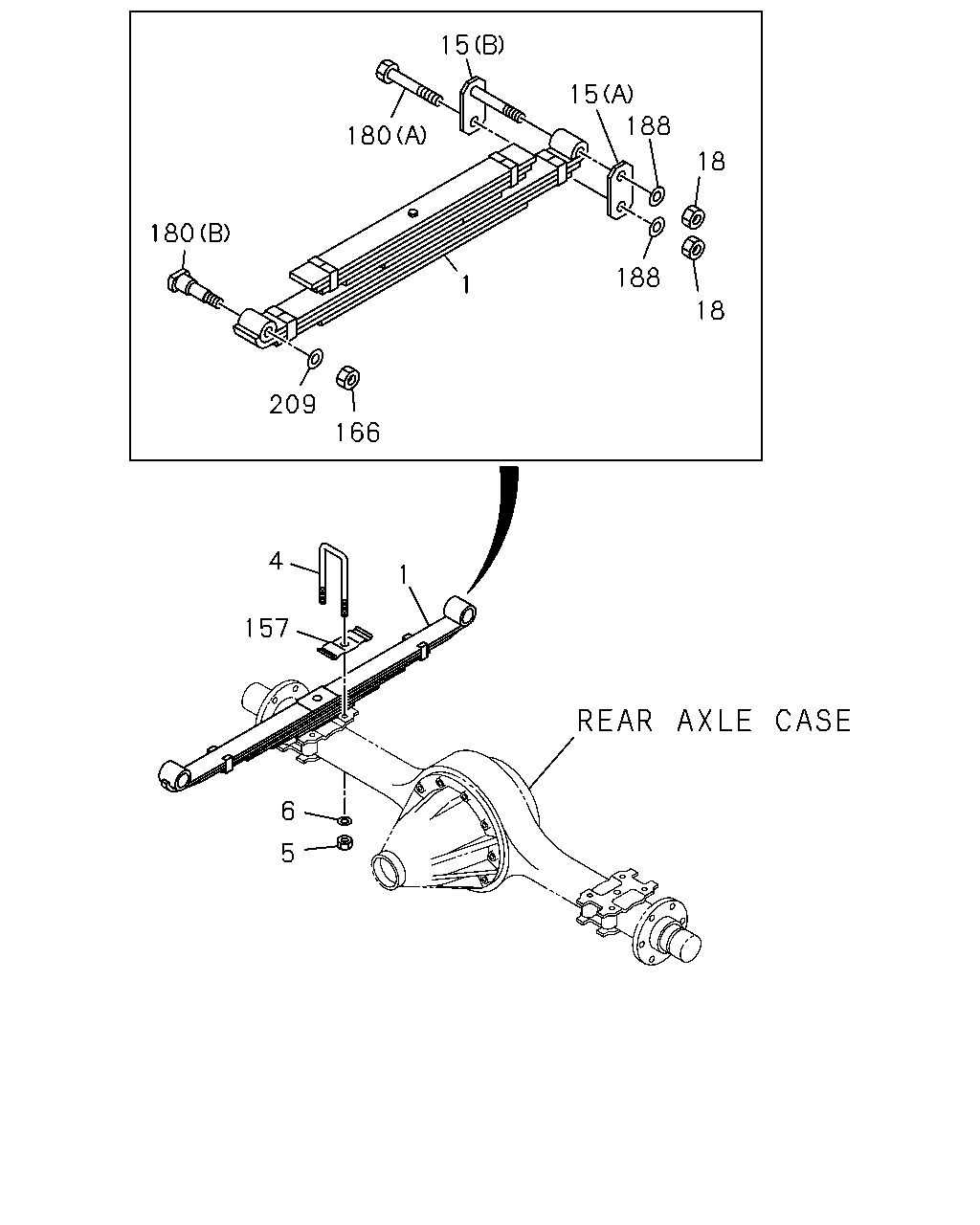

çizim 66460
15 15 188 180 18 180 188 1 18 209 166 4 1 157 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1> 16-LEAF 		8-97073-225-2 02 1 9312-9510 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9511-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 16-LEAF 		8-97073-225-2 02 1 9802- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-3 02 1 9507-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9604-9807 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9808- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-3 02 1 9507-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9604-9807 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9808- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) FRAME STRAIGHT TYPE<7KJ> 9-LEAF 		8-97174-306-0 02 1 9712- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97174-307-0 02 1 9712- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 10-LEAF 		8-97092-458-1 02 1 9312-9506 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 10-LEAF 		8-97092-458-1 02 1 9507-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FINAL GEAR RATIO 39/7(GV1) G.V.W. 6.0-6.5TON(RPV) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 10-LEAF 		8-97092-458-1 02 1 9604-9807 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FINAL GEAR RATIO 39/7(GV1) G.V.W. 6.0-6.5TON(RPV) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 10-LEAF 		8-97092-458-1 02 1 9808- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9312-9506 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9507-9510 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97092-459-1 02 1 9511- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1> 10-LEAF 		8-97073-224-1 02 1 9312-9506 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 10-LEAF 		8-97073-224-1 02 1 9507-9603 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97073-224-1 02 1 9604- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9312-9506 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9507-9510 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9507-9510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9511-9711 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9511-9711 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> 4-LEAF 		8-97033-492-2 02 1 9712- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9712- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-3 02 1 9312-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-4 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97122-382-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9604-9711 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9802- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) 12-LEAF 		8-97096-576-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97096-576-0 02 1 9802- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9604-9801 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1> L=325 		8-94175-946-0 04 1 9312-9510 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9511-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9712-9801 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=325 		8-94175-946-0 04 1 9802- ● ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9312-9506 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9507-9601 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. FINAL GEAR RATIO 39/7(GV1) L=255 		8-94127-922-1 04 1 9602-9602 ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=255 		8-94127-922-1 04 1 9603-9711 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9603-9711 ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=255 		8-94127-922-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=255 		8-94127-922-1 04 1 9808- ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9808- ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) L=235 		8-94127-920-1 04 1 9507-9507 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) '95/7/17- L=235 		8-94127-920-1 04 1 9507- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> L=295 		8-94132-358-1 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9312-9506 ● ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9507-9510 ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=355 		8-94119-686-4 04 1 9511- ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9312-9506 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9507- ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9312-9510 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11> L=265 		8-94127-923-1 04 1 9312-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9511-9601 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11> L=265 		8-94127-923-1 04 1 9511-9601 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9602-9711 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11> L=265 		8-94127-923-1 04 1 9602-9711 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9602-9711 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9712-9807 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11>,FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9808- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11>,FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-1 04 1 9808- ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9808- ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) L=285 		8-94132-172-1 04 1 9312-9606 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) L=285 		8-94132-172-1 04 1 9607-9705 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) L=285 		8-94132-172-1 04 1 9607-9705 ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) L=285 		8-94132-172-1 04 1 9706-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) L=285 		8-94132-172-1 04 1 9706-9711 ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9712-9712 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9712-9712 ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9312-9506 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9312-9506 ● ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9507-9507 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9507-9507 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9511-9602 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9511-9602 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9511-9602 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9603-9711 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9603-9711 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9603-9711 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9712- ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9712- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305 		8-94412-505-0 04 1 9511-9711 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305 		8-94412-505-0 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9604-9801 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 9511-9603 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> L=345 		1-51371-195-2 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> L=345 		1-51371-195-2 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> L=345 		1-51371-195-2 04 1 9712- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9712- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9312-9510 ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) 07.516 M16 		8-94107-767-0 08 1 9511-9711 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9511-9711 ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9511-9611 ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9612-9711 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9712-9801 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9802- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9312-9510 ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) ID=16.4 		8-94137-482-1 08 1 9511-9711 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9511-9711 ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9312-9510 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9511-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9712- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9312-9510 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9511-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9312-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9312-9510 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9511-9611 ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9612-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
M16 FLANGE 		8-97147-389-0 04 1 9706-9706 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> '97/6/30- M16 FLANGE 		8-97147-389-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 '97/6/30- M16 		9-99110-516-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9712- ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9312-9510 ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9511-9602 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9511-9602 ● ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) L=130 T=4.5 		8-94119-069-2 02 1 9511-9602 ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9712- ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9312-9510 ● ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9511-9611 ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9612-9711 ● ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-1 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9712- ● ● ● ● ● ●
188 07.529 WASHER; PL,SHACKLE PIN
07.172 ID=16.5 		8-97070-925-1 04 1 9312-9510 ● ● ● ● ●
188 07.529 WASHER; PL,SHACKLE PIN
07.172 ID=16.5 		8-97070-925-1 04 1 9511-9603 ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9312-9510 ● ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9511-9611 ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9612-9711 ● ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9712- ● ● ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9604-9611 ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9612-9705 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9706-9711 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9712- ● ● ● ● ● ●
çizim 67314
180 15 15 188 18 188 18 166 209 1 180 4 1 194 157 465 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1> 16-LEAF 		8-97073-225-2 02 1 9312-9510 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9511-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 16-LEAF 		8-97073-225-2 02 1 9802- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-3 02 1 9507-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9604-9807 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9808- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-3 02 1 9507-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9604-9807 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9808- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) FRAME STRAIGHT TYPE<7KJ> 9-LEAF 		8-97174-306-0 02 1 9712- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97174-307-0 02 1 9712- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 10-LEAF 		8-97092-458-1 02 1 9312-9506 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) 10-LEAF 		8-97092-458-1 02 1 9507-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FINAL GEAR RATIO 39/7(GV1) G.V.W. 6.0-6.5TON(RPV) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 10-LEAF 		8-97092-458-1 02 1 9604-9807 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FINAL GEAR RATIO 39/7(GV1) G.V.W. 6.0-6.5TON(RPV) EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU),FRAME STRAIGHT T YPE<7KJ> 10-LEAF 		8-97092-458-1 02 1 9808- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9312-9506 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9507-9510 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97092-459-1 02 1 9511- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1> 10-LEAF 		8-97073-224-1 02 1 9312-9506 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) 10-LEAF 		8-97073-224-1 02 1 9507-9603 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97073-224-1 02 1 9604- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9312-9506 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9312-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9507-9510 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9507-9510 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9511-9711 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9511-9711 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> 4-LEAF 		8-97033-492-2 02 1 9712- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9712- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-3 02 1 9312-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-4 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97122-382-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9604-9711 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9802- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) 12-LEAF 		8-97096-576-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97096-576-0 02 1 9802- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9604-9801 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1> L=325 		8-94175-946-0 04 1 9312-9510 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9511-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9712-9801 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=325 		8-94175-946-0 04 1 9802- ● ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9312-9506 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9507-9601 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. FINAL GEAR RATIO 39/7(GV1) L=255 		8-94127-922-1 04 1 9602-9602 ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=255 		8-94127-922-1 04 1 9603-9711 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9603-9711 ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=255 		8-94127-922-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FRAME STRAIGHT TYPE<7KJ> L=255 		8-94127-922-1 04 1 9808- ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9808- ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) L=235 		8-94127-920-1 04 1 9507-9507 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) '95/7/17- L=235 		8-94127-920-1 04 1 9507- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> L=295 		8-94132-358-1 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9312-9506 ● ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9507-9510 ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=355 		8-94119-686-4 04 1 9511- ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9312-9506 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9507- ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9312-9510 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11> L=265 		8-94127-923-1 04 1 9312-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9511-9601 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11> L=265 		8-94127-923-1 04 1 9511-9601 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9602-9711 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11> L=265 		8-94127-923-1 04 1 9602-9711 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9602-9711 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9712-9807 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11>,FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9712-9807 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9808- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR REMOTE SHIFT<M11>,FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-1 04 1 9808- ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9808- ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) L=285 		8-94132-172-1 04 1 9312-9606 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) L=285 		8-94132-172-1 04 1 9607-9705 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) L=285 		8-94132-172-1 04 1 9607-9705 ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) L=285 		8-94132-172-1 04 1 9706-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) L=285 		8-94132-172-1 04 1 9706-9711 ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9712-9712 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9712-9712 ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU),FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9312-9506 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9312-9506 ● ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9507-9507 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9507-9507 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ●
4 07.516 U-BOLT; RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9511-9602 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9511-9602 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9511-9602 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) L=245 		8-94127-921-1 04 1 9603-9711 ● ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9603-9711 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9603-9711 ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9712- ●
4 07.516 U-BOLT; RR SPR
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9712- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305 		8-94412-505-0 04 1 9511-9711 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305 		8-94412-505-0 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9604-9801 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 9511-9603 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> L=345 		1-51371-195-2 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> L=345 		1-51371-195-2 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> L=345 		1-51371-195-2 04 1 9712- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9712- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9312-9510 ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) 07.516 M16 		8-94107-767-0 08 1 9511-9711 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9511-9711 ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9511-9611 ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9612-9711 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9712-9801 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9802- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9312-9510 ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) ID=16.4 		8-94137-482-1 08 1 9511-9711 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9511-9711 ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT), G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO N(RPX) ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9312-9510 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9511-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9712- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9312-9510 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9511-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9312-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9312-9510 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9511-9611 ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9612-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
M16 FLANGE 		8-97147-389-0 04 1 9706-9706 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> '97/6/30- M16 FLANGE 		8-97147-389-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 '97/6/30- M16 		9-99110-516-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9712- ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9602 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9603-9606 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9607-9705 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9706-9711 ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9312-9510 ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9511-9602 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9511-9602 ● ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) L=130 T=4.5 		8-94119-069-2 02 1 9511-9602 ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) L=130 T=4.5 		8-94119-069-2 02 1 9603-9711 ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> G.V.W. 4.0-4.5TON(RPR) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9712- ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9312-9510 ● ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9511-9611 ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9612-9711 ● ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-1 02 1 9312-9510 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9511-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9712- ● ● ● ● ● ●
188 07.529 WASHER; PL,SHACKLE PIN
07.172 ID=16.5 		8-97070-925-1 04 1 9312-9510 ● ● ● ● ●
188 07.529 WASHER; PL,SHACKLE PIN
07.172 ID=16.5 		8-97070-925-1 04 1 9511-9603 ● ● ● ●
194 07.158 PAD; CONTACT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 9511-9611 ● ●
194 07.158 PAD; CONTACT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 9612-9711 ● ● ●
194 07.158 PAD; CONTACT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 9712-9801 ● ● ● ●
194 07.158 PAD; CONTACT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 9802- ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9312-9510 ● ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9511-9611 ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9612-9711 ● ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9712- ● ● ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9604-9611 ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9612-9705 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9706-9711 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9712- ● ● ● ● ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 9712- ● ●
çizim 67535
244 227 229 232 225 225 225 323 317 319 62 25 318 323 314 274 294 308 320 285 285 318 308 330
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-94342-832-0 01 1 9312-9506 ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-94342-832-0 01 1 9507-9702 ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9703-9711 ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9712-9801 ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9802-9807 ● ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9808- ● ● ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9312-9506 ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9507-9711 ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9712-9801 ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9802-9807 ● ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9808- ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94118-510-4 02 1 9312-9510 ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-4 02 1 9511-9711 ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-4 02 1 9712-9801 ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-4 02 1 9802- ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-94379-470-0 02 1 9511-9603 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-94379-470-0 02 1 9604-9610 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> (B) 		8-94379-470-1 02 1 9611-9611 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE8.25-16<7QP> (B) 		8-94379-470-1 02 1 9612-9711 ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> (B) 		8-94379-470-1 02 1 9712- ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (C) 		5-53366-013-0 02 1 9604-9610 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9611-9611 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9611-9611 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9612-9711 ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9612-9711 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B> (C) 		5-53366-013-0 02 1 9712-9801 ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
THAILAND EQUIPMENT(PM9) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (C) 		5-53366-013-0 02 1 9712-9801 ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (C) 		5-53366-013-0 02 1 9712-9801 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. THAILAND EQUIPMENT(PM9),MINI BUS CHASSIS<V4B> (C) 		5-53366-013-0 02 1 9802- ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
THAILAND EQUIPMENT(PM9) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (C) 		5-53366-013-0 02 1 9802- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (C) 		5-53366-013-0 02 1 9802- ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312-9510 ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9511-9611 ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9612-9711 ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9712- ● ● ● ● ● ●
229 07.535 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.029 M10X28 W/LK WASHER 		0-50041-028-0 04 1 9604-9610 ● ●
232 07.535 BRACKET; CUSHION RUBBER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-94134-353-1 02 1 9604-9610 ● ●
244 07.242 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 09.011 M10 		9-09110-410-0 04 1 9604-9610 ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9312-9506 ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9507-9711 ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9712-9801 ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9802-9807 ● ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9808- ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9312-9506 ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9507-9711 ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9712-9801 ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9802-9807 ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9808- ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9312-9506 ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9507-9711 ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9712-9801 ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9802-9807 ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9808- ● ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9312-9506 ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9507-9711 ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9712-9801 ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9802-9807 ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9808- ● ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9312-9506 ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9507-9711 ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9712-9801 ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9802-9807 ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9808- ● ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9312-9506 ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9507-9711 ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9712-9801 ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9802-9807 ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9808- ● ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-2 02 1 9312-9506 ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9507-9711 ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9712-9801 ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9802-9807 ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9808- ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 		0-10806-470-0 02 1 9312-9412 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 		0-28081-470-0 02 1 9501-9506 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9507-9711 ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9712-9801 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9802-9807 ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9808- ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.417 (B) M10X25 FLANGE 		0-28081-025-0 04 1 9312-9506 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.417 (B) M10X25 FLANGE 		0-28081-025-0 04 1 9507-9703 ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9704-9711 ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9712-9801 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9802-9807 ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9808- ● ● ● ● ●
319 07.242 WASHER; LK,LINK ROD
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9312-9412 ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-1 02 1 9312-9506 ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9507-9711 ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9712-9801 ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9802-9807 ● ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9808- ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9312-9506 ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9507-9711 ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9712-9801 ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9802-9807 ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9808- ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 06.232 (A) M14 		9-99110-414-0 02 1 9312-9411 ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9412-9506 ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9507-9711 ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9712-9801 ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9802-9807 ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9808- ● ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9312-9506 ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9507-9711 ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9712-9801 ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9802-9807 ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9808- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
