◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50696 - NPR/NQR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55A - FRONT LEAF SPRING ▶
4-55A — FRONT LEAF SPRING (#34677) — 41 parça

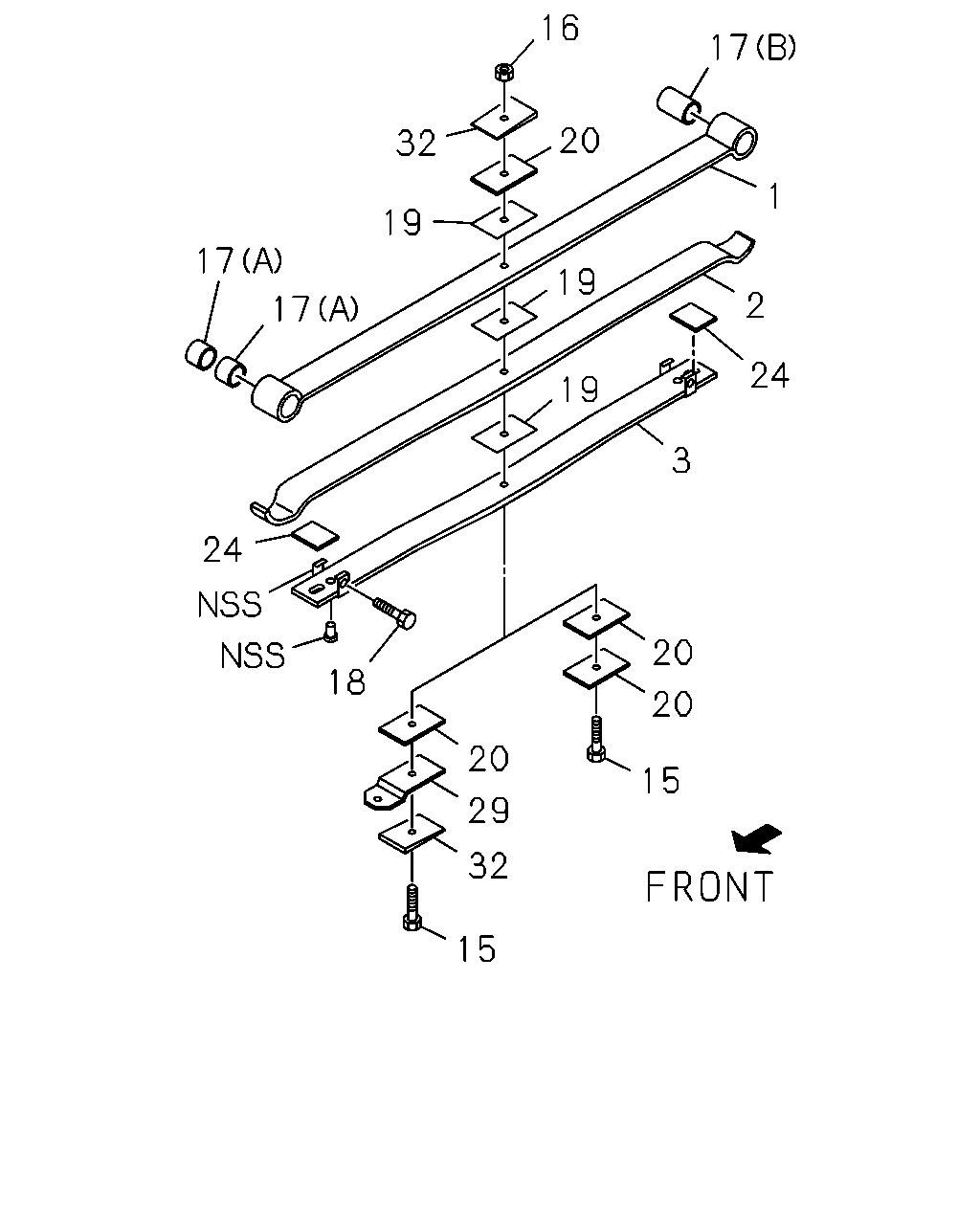

çizim 70626
16 17 20 32 1 19 17 19 2 17 24 19 3 24 20 18 20 20 15 29 32 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97033-429-3, 97033429 		8-97084-827-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-97033-430-3, 97033430 		8-97084-830-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-97033-431-3, 97033431 		8-97084-833-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97033-432-3, 97033432 		8-97084-836-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97033-421-3, 97033421 		8-97085-083-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97033-422-3, 97033422 		8-97085-086-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-97134-405-2, 97134405 		8-97135-345-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-97134-406-2, 97134406 		8-97135-348-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97033-429-3, 97033429 		8-97084-828-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-97033-430-3, 97033430 		8-97084-831-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-97033-431-3, 97033431 		8-97084-834-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97033-432-3, 97033432 		8-97084-837-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97033-421-3, 97033421 		8-97085-084-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97033-422-3, 97033422 		8-97085-087-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-97134-405-2, 97134405 		8-97135-346-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-97134-406-2, 97134406 		8-97135-349-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97033-429-3, 97033429 		8-97084-829-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-97033-430-3, 97033430 		8-97084-832-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-97033-431-3, 97033431 		8-97084-835-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-97033-432-3, 97033432 		8-97084-838-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97033-421-3, 97033421 		8-97085-085-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97033-422-3, 97033422 		8-97085-088-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-97134-405-2, 97134405 		8-97135-347-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-97134-406-2, 97134406 		8-97135-350-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422, C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432 		8-94476-373-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-97108-550-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422, C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432, G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422, C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432, G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-94130-354-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422, C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432 		8-97081-586-0 01 1 -
18 07.506 BOLT; CLIP,LEAF SPR,FRT
M8X90.5 ASM PART: A = 8-97033-421-3, 97033421, C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432 		8-94407-133-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422, C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432, G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-97084-845-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=6 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432, G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-94409-663-1 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=6 ASM PART: C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430 		8-94409-663-1 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=8 ASM PART: E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432 		8-97084-891-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=8 ASM PART: G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-97084-891-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=10 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-97085-097-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422, C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430, E = 8-97033-431-3, 97033431, F = 8-97033-432-3, 97033432, G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-97084-848-0 02 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: C = 8-97033-429-3, 97033429, D = 8-97033-430-3, 97033430 		8-94342-292-0 01 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-97141-927-0 01 1 -
32 07.425 PLATE; CASTER
ASM PART: G = 8-97134-405-2, 97134405, H = 8-97134-406-2, 97134406 		8-97128-730-0 02 1 -
