4-40 — STEERING UNIT (#34674) — 75 parça

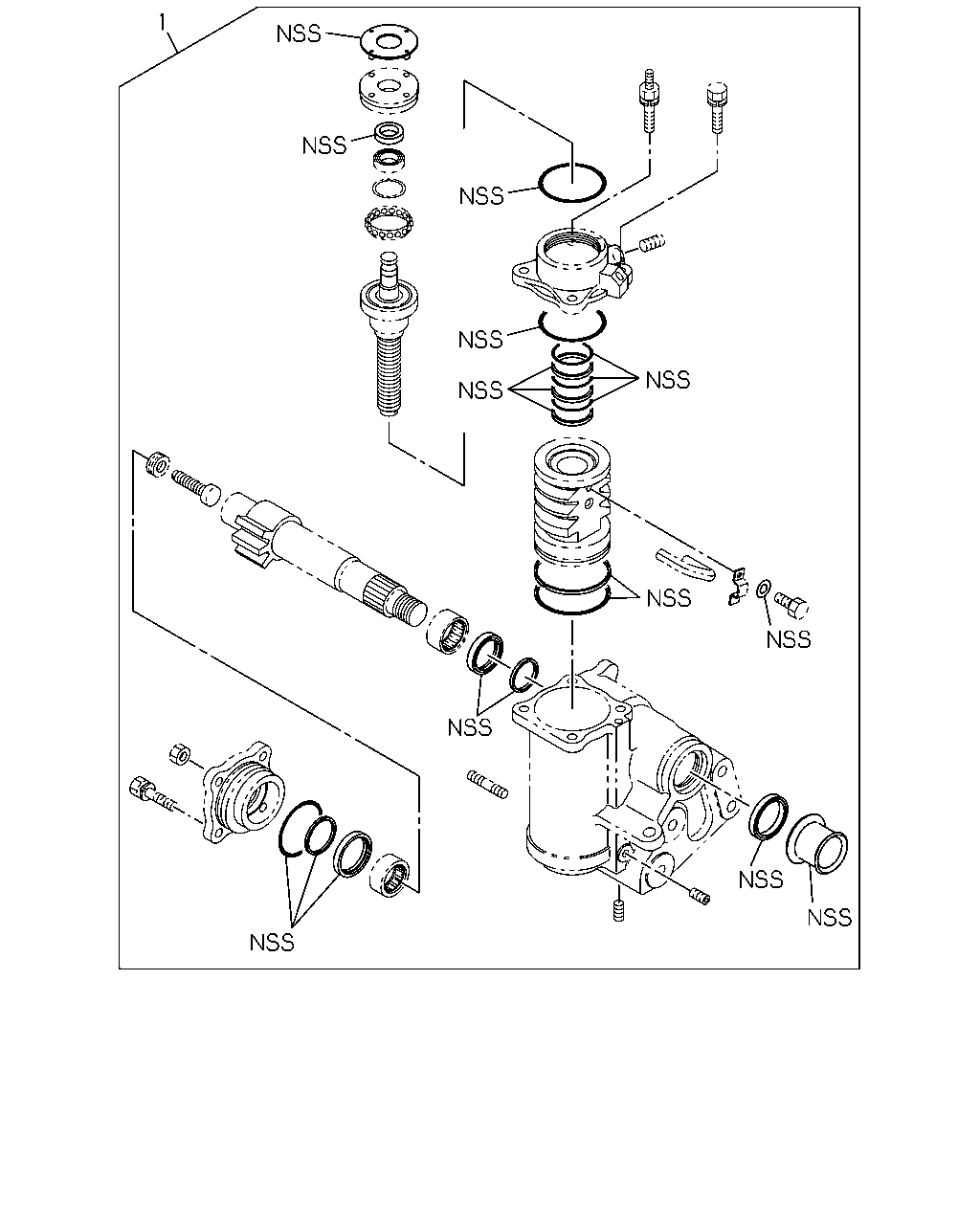

çizim 19543
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97039-458-1, 97039458 		8-97078-180-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741 		8-97147-043-0 01 1 -

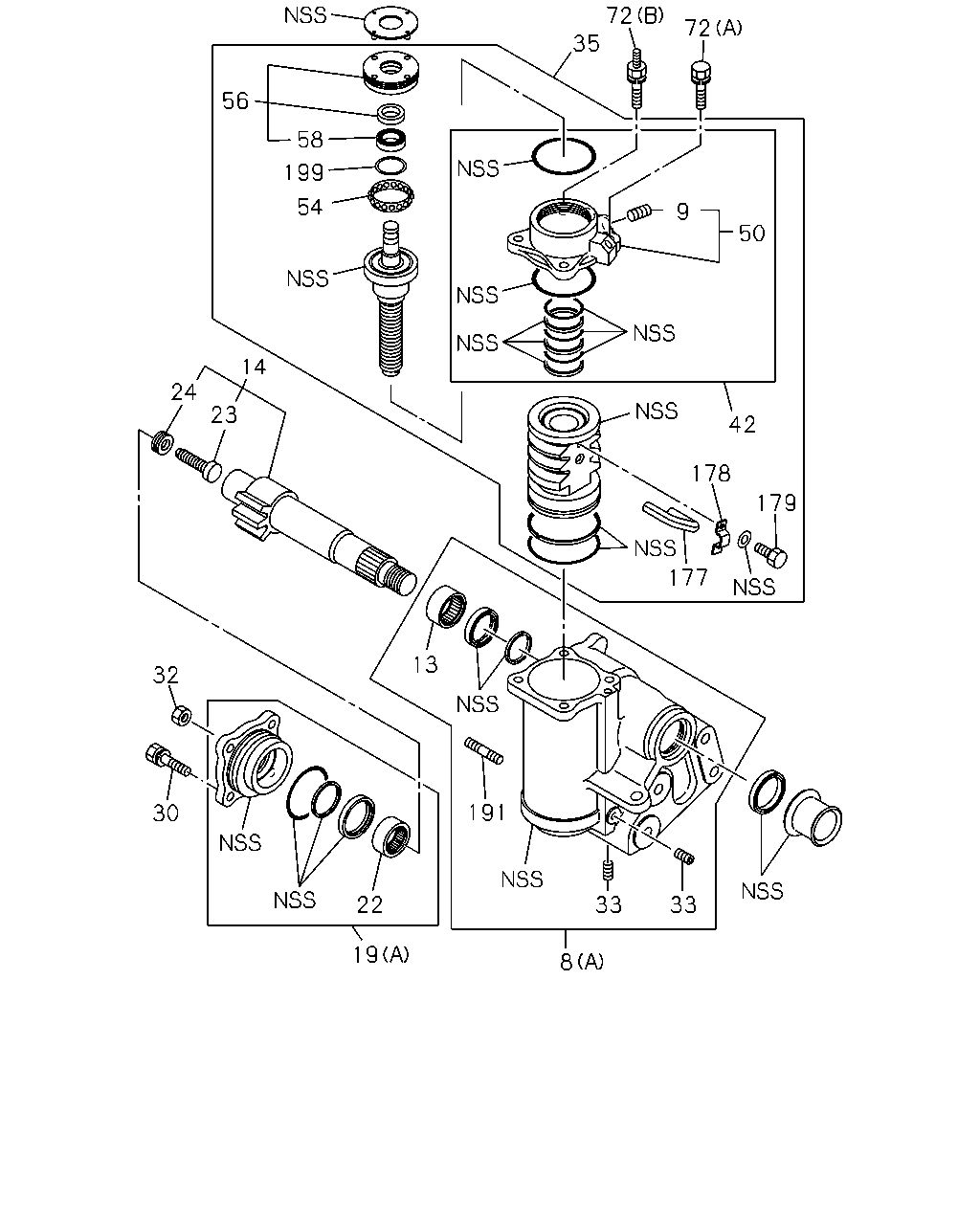

çizim 67443
72 72 35 56 58 199 54 9 50 14 24 23 42 178 179 177 13 32 191 30 22 33 33 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97039-458-1, 97039458 		8-97078-180-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741 		8-97147-043-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
(A) ASM PART: A = 8-97039-458-1, 97039458, D = 8-97145-741-1, 97145741 		8-97078-171-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
(B) ASM PART: B = 8-97073-275-0, 97073275 		8-97108-216-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
06.507 ASM PART: C = 8-97117-491-1, 97117491, E = 8-97218-594-1, 97218594 		8-97119-776-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-820-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97073-275-0, 97073275 		8-97015-202-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97078-177-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		8-97081-091-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-839-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-275-0, 97073275 		8-97015-209-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97073-275-0, 97073275 		9-44277-010-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: B = 8-97073-275-0, 97073275 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		8-97081-100-0 01 1 -
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741 		8-97078-174-1 01 1 -
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97078-175-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97078-176-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
(A) ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		1-44519-110-0 03 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (B) ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97078-178-0 01 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97077-537-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-808-0 01 1 -
179 06.822 SCREW; CLIP STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458 		8-97014-807-0 02 1 -
191 06.809 STUD; STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97078-173-0 01 1 -
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: D = 8-97145-741-1, 97145741 		8-97201-812-0 01 1 9807-
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: C = 8-97117-491-1, 97117491, E = 8-97218-594-1, 97218594 		8-97201-812-0 01 1 -
çizim 68179
69 66 26 68 44 43 55 9 43 7 14 13 22 8 30 23 25 32 26 19
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
(A) ASM PART: A = 8-97039-458-1, 97039458, D = 8-97145-741-1, 97145741 		8-97078-171-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
(B) ASM PART: B = 8-97073-275-0, 97073275 		8-97108-216-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
06.507 ASM PART: C = 8-97117-491-1, 97117491, E = 8-97218-594-1, 97218594 		8-97119-776-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		5-09605-020-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-820-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97073-275-0, 97073275 		8-97015-202-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97076-368-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97078-177-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		8-97081-091-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
(A) ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-933-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
(B) ASM PART: B = 8-97073-275-0, 97073275 		8-97081-094-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-839-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97073-275-0, 97073275 		8-97015-209-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-842-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: B = 8-97073-275-0, 97073275 		9-44277-010-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: B = 8-97073-275-0, 97073275 		9-44279-013-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: B = 8-97073-275-0, 97073275 		9-44279-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: B = 8-97073-275-0, 97073275 		9-44279-015-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: B = 8-97073-275-0, 97073275 		9-44279-016-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: B = 8-97073-275-0, 97073275 		9-44279-017-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
(A) ASM PART: B = 8-97073-275-0, 97073275 		8-97081-096-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
06.825, (B) ASM PART: B = 8-97073-275-0, 97073275 		8-97081-098-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
02.277, M10X25 ASM PART: B = 8-97073-275-0, 97073275 		9-01911-025-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97039-458-1, 97039458, C = 8-97117-491-1, 97117491, D = 8-97145-741-1, 97145741, E = 8-97218-594-1, 97218594 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		8-97081-100-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		8-94130-938-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: B = 8-97073-275-0, 97073275 		8-94130-940-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		8-97108-221-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: B = 8-97073-275-0, 97073275 		8-94130-939-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.05 ASM PART: B = 8-97073-275-0, 97073275 		8-94130-942-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.07 ASM PART: B = 8-97073-275-0, 97073275 		8-94130-943-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.08 ASM PART: B = 8-97073-275-0, 97073275 		8-94130-944-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.10 ASM PART: B = 8-97073-275-0, 97073275 		8-94130-945-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.20 ASM PART: B = 8-97073-275-0, 97073275 		8-94130-946-0 01 1 -
68 06.825 SHIM; COVER STRG UNIT
T=0.50 ASM PART: B = 8-97073-275-0, 97073275 		8-94130-947-0 01 1 -
69 06.521 BOLT; COVER FIX STRG UNIT
02.277, M10X25 ASM PART: B = 8-97073-275-0, 97073275 		9-01911-025-0 04 1 -
