◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#3467) — 45 parça

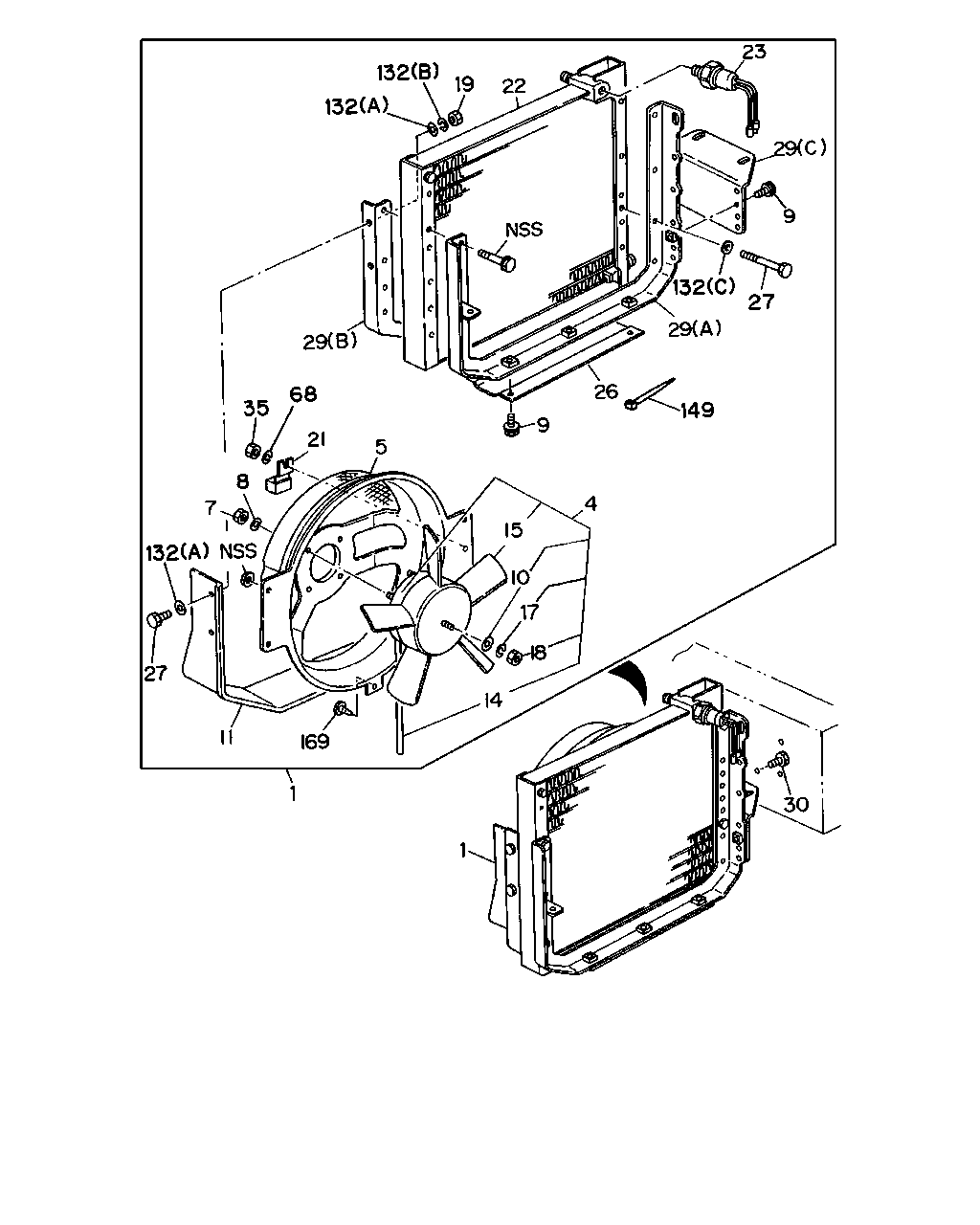

çizim 37127
9 26 149 29 132 27 9 29 23 22 19 132 132 29 68 35 5 21 8 7 132 27 11 169 1 14 18 17 10 15 4 1 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-049-2 01 1 9002-9306 ● ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-167-0 01 1 9307- ● ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-033-0 01 1 9002-9306 ● ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-175-0 01 1 9307- ● ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-034-0 01 1 9002-9306 ● ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-185-0 01 1 9307- ● ● ●
7 NUT; FAN
AIR CONDITIONER MANUAL CONTROL(C60) M4 		1-83539-065-0 04 1 9002- ● ● ●
8 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1 		9-09150-504-0 04 1 9002- ● ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER 		9-01960-822-0 06 1 9002-9009 ● ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X22 		1-83579-198-0 06 1 9010- ● ● ●
10 WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60) ID=5.3 OD=12 		9-09160-605-0 01 1 9002-9009 ● ● ●
10 WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-045-0 01 1 9010- ● ● ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-077-0 01 1 9002- ● ● ●
14 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-258-0 01 1 9002- ● ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-064-0 01 1 9002- ● ● ●
17 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) ID=5.1 		9-09150-505-0 01 1 9002-9009 ● ● ●
17 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60) ID=5 		1-83539-044-0 01 1 9010- ● ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 		9-99110-505-0 01 1 9002- ● ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		1-83539-068-0 02 1 9002- ● ● ●
21 CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-84132-007-0 01 1 9002-9306 ● ● ●
21 CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94150-133-0 01 1 9307- ● ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-084-1 01 1 9002-9306 ● ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-171-0 01 1 9307- ● ● ●
23 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82510-085-0 01 1 9002-9306 ● ● ●
23 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82380-127-0 01 1 9307- ● ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-071-0 01 1 9002- ● ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 		1-83539-067-0 02 1 9002-9009 ● ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) L=55 		1-83539-087-0 01 1 9002- ● ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M8X22 W/LK&PL WASHER 		9-01960-822-0 03 1 9002-9009 ● ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M8X22 		1-83579-198-0 03 1 9010- ● ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 		9-02040-818-0 02 1 9010- ● ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-074-0 01 1 9002- ● ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-075-0 01 1 9002- ● ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83539-086-0 01 1 9002- ● ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 05 1 9002-9002 ● ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		0-50141-035-0 05 1 9003- ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-083-0 01 1 9002- ● ● ●
68 WASHER; LK,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-082-0 01 1 9002- ● ● ●
132 WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8 		1-14319-034-0 04 1 9002- ● ● ●
132 WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8.2 		9-09150-608-0 02 1 9002-9009 ● ● ●
132 WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=6.4 		9-09160-506-0 01 1 9002-9009 ● ● ●
132 WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-492-0 02 1 9010- ● ● ●
132 WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=6.4 OD=14 		9-09160-606-0 01 1 9010- ● ● ●
149 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9307- ● ● ●
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-066-0 01 1 9002- ● ● ●
