4-30 — STEERING WHEEL AND COWL (#34669) — 194 parça
çizim 67498
20 5 11 3 9 26 30 44 81 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK BEIGE 		8-97009-451-1 01 1 9312-9510 ● ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK BEIGE 		8-97009-451-1 01 1 9511-9611 ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK BEIGE 		8-97009-451-1 01 1 9612-9711 ● ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK GRAY 		8-97098-531-1 01 1 9712- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) 		1-44110-150-0 01 1 9312-9611 ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) 		1-44110-150-0 01 1 9612-9711 ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 9712-9712 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 9801- ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK BEIGE 		8-97097-020-0 01 1 9312-9611 ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK BEIGE 		8-97097-020-0 01 1 9612-9711 ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-727-0 01 1 9712-9712 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-727-0 01 1 9801- ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9312-9510 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9511-9611 ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9612-9711 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9712- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9312-9510 ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9511-9611 ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9612-9711 ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9712- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9312-9611 ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9612-9711 ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9712-9712 ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9801- ● ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 02 1 9312-9510 ● ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 02 1 9511-9611 ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 02 1 9612-9711 ● ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 02 1 9712- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) DARK BEIGE 		8-97009-450-0 01 1 9312-9506 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK BEIGE 		8-97009-450-0 01 1 9507-9510 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK BEIGE 		8-97009-450-0 01 1 9511-9611 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK BEIGE 		8-97009-450-0 01 1 9612-9711 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK GRAY 		8-97098-526-0 01 1 9712- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EUROPEAN BASIC EQUIPMENT(EK4) POWER STEERING<N40> (B) DARK BEIGE 		8-97097-169-0 01 1 9312-9506 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) POWER STEERING<N40> (B) DARK BEIGE 		8-97097-169-0 01 1 9507-9711 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) POWER STEERING<N40> (B) DARK GRAY 		8-97158-723-0 01 1 9712-9807 ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) POWER STEERING<N40> (B) DARK GRAY 		8-97158-723-0 01 1 9808- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK BEIGE 		8-97097-214-0 01 1 9312-9611 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK BEIGE 		8-97097-214-0 01 1 9612-9711 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 9712-9712 ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 9801- ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4), DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (C) DARK BEIGE 		8-97097-254-0 01 1 9312-9506 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK BEIGE 		8-97097-254-0 01 1 9507-9611 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK BEIGE 		8-97097-254-0 01 1 9612-9711 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK GRAY 		8-97158-724-0 01 1 9712-9712 ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK GRAY 		8-97158-724-0 01 1 9801- ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK BEIGE 		8-97097-432-1 01 1 9312-9510 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK BEIGE 		8-97097-432-1 01 1 9511-9611 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK BEIGE 		8-97097-432-1 01 1 9612-9711 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 9712- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9312-9611 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9612-9711 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9712-9712 ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9801- ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-5 01 1 9404-9409 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9508-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97868-359-7 01 1 9712- ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK BEIGE 		8-97856-001-5 01 1 9312-9403 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9404-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97857-532-8 01 1 9712- ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9404-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97866-930-8 01 1 9712- ● ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-002-5 01 1 9312-9403 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9404-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97868-358-7 01 1 9712- ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9312-9510 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9511-9611 ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9612-9711 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9712- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK BEIGE 		8-97009-687-0 01 1 9312-9510 ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK BEIGE 		8-97009-687-0 01 1 9511-9611 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK BEIGE 		8-97009-687-0 01 1 9612-9711 ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 9712- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK BEIGE 		8-97097-172-0 01 1 9312-9611 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK BEIGE 		8-97097-172-0 01 1 9612-9711 ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 9712-9712 ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 9801- ● ● ● ● ●

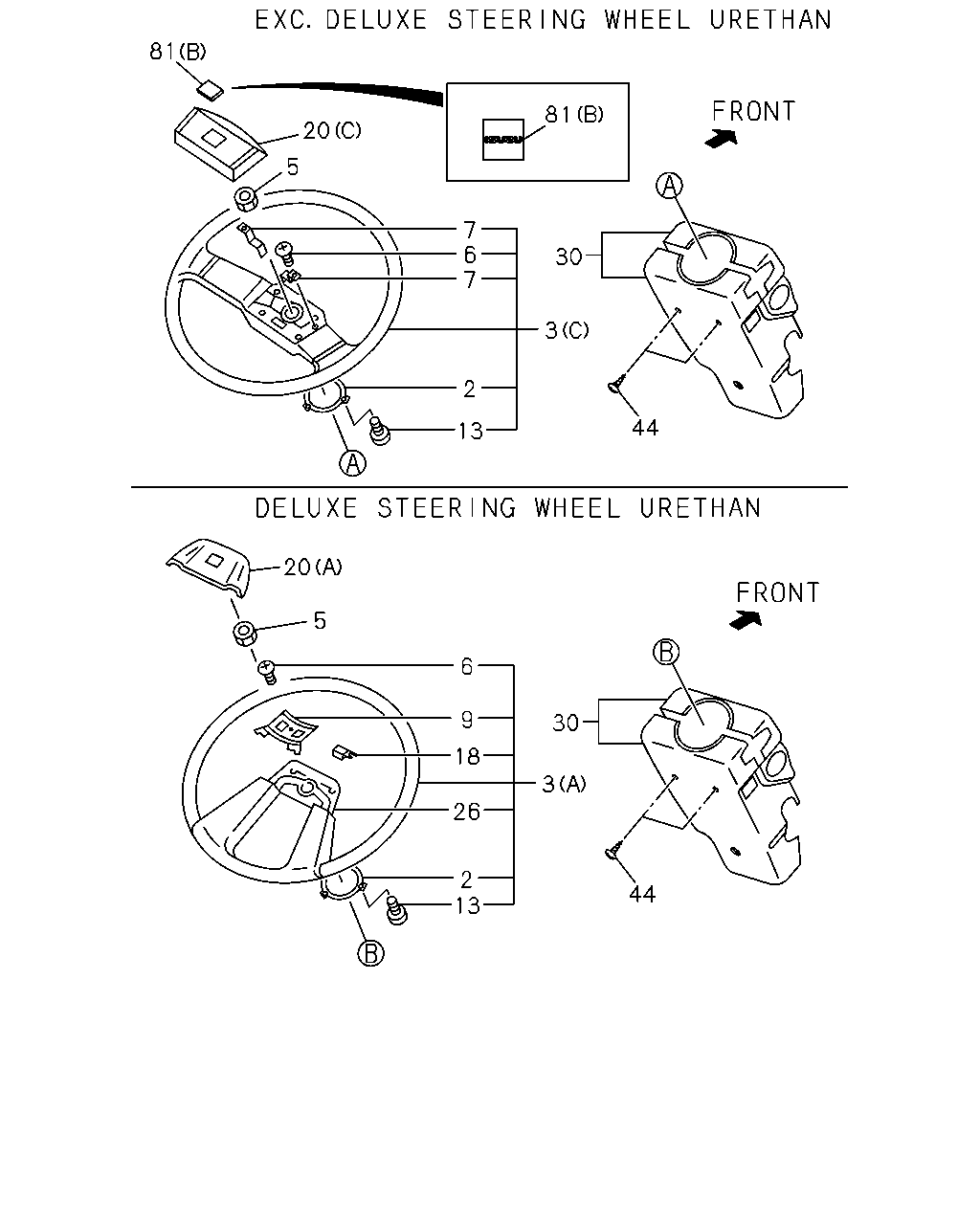

çizim 69189
81 20 5 7 6 7 30 3 2 44 13 20 5 6 9 30 18 3 26 2 13 44 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 06.514 RING; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-938-0 01 1 9312-9611 ● ● ● ●
2 06.514 RING; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-938-0 01 1 9612-9711 ● ● ● ● ●
2 06.514 RING; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-938-0 01 1 9712-9712 ● ● ● ● ● ●
2 06.514 RING; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-938-0 01 1 9801- ● ● ● ● ●
2 06.514 RING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 9312-9611 ● ● ● ●
2 06.514 RING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 9612-9711 ● ● ● ● ●
2 06.514 RING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 9712-9712 ● ● ● ● ● ●
2 06.514 RING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 9801- ● ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK BEIGE 		8-97009-451-1 01 1 9312-9510 ● ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK BEIGE 		8-97009-451-1 01 1 9511-9611 ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK BEIGE 		8-97009-451-1 01 1 9612-9711 ● ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK GRAY 		8-97098-531-1 01 1 9712- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) 		1-44110-150-0 01 1 9312-9611 ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) 		1-44110-150-0 01 1 9612-9711 ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 9712-9712 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 9801- ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK BEIGE 		8-97097-020-0 01 1 9312-9611 ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK BEIGE 		8-97097-020-0 01 1 9612-9711 ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-727-0 01 1 9712-9712 ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-727-0 01 1 9801- ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9312-9510 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9511-9611 ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9612-9711 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9712- ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 06.514 		9-93090-308-0 02 1 9312-9611 ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 06.514 		9-93090-308-0 02 1 9612-9711 ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 06.514 		9-93090-308-0 02 1 9712-9712 ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 06.514 		9-93090-308-0 02 1 9801- ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94458-316-0 02 1 9312-9611 ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94458-316-0 02 1 9612-9711 ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94458-316-0 02 1 9712-9712 ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94458-316-0 02 1 9801- ● ● ● ● ●
7 02.819 SPRING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94150-222-0 02 1 9312-9611 ● ● ● ●
7 02.819 SPRING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94150-222-0 02 1 9612-9711 ● ● ● ● ●
7 02.819 SPRING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94150-222-0 02 1 9712-9712 ● ● ● ● ● ●
7 02.819 SPRING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94150-222-0 02 1 9801- ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9312-9510 ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9511-9611 ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9612-9711 ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9712- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9312-9611 ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9612-9711 ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9712-9712 ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9801- ● ● ● ● ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 9312-9611 ● ● ● ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 9612-9711 ● ● ● ● ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 9712-9712 ● ● ● ● ● ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 9801- ● ● ● ● ●
18 06.508 CONDENSER ASM; STEERING WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94462-321-0 01 1 9312-9611 ● ● ● ●
18 06.508 CONDENSER ASM; STEERING WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94462-321-0 01 1 9612-9711 ● ● ● ● ●
18 06.508 CONDENSER ASM; STEERING WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94462-321-0 01 1 9712-9712 ● ● ● ● ● ●
18 06.508 CONDENSER ASM; STEERING WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94462-321-0 01 1 9801- ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (B) DARK BEIGE 		8-97009-450-0 01 1 9312-9506 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK BEIGE 		8-97009-450-0 01 1 9507-9510 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK BEIGE 		8-97009-450-0 01 1 9511-9611 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK BEIGE 		8-97009-450-0 01 1 9612-9711 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(6AA), IRISH EQUIPMENT(6CU) (B) DARK GRAY 		8-97098-526-0 01 1 9712- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EUROPEAN BASIC EQUIPMENT(EK4) POWER STEERING<N40> (B) DARK BEIGE 		8-97097-169-0 01 1 9312-9506 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) POWER STEERING<N40> (B) DARK BEIGE 		8-97097-169-0 01 1 9507-9711 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) POWER STEERING<N40> (B) DARK GRAY 		8-97158-723-0 01 1 9712-9807 ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) POWER STEERING<N40> (B) DARK GRAY 		8-97158-723-0 01 1 9808- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK BEIGE 		8-97097-214-0 01 1 9312-9611 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK BEIGE 		8-97097-214-0 01 1 9612-9711 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 9712-9712 ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 9801- ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4), DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (C) DARK BEIGE 		8-97097-254-0 01 1 9312-9506 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK BEIGE 		8-97097-254-0 01 1 9507-9611 ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK BEIGE 		8-97097-254-0 01 1 9612-9711 ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK GRAY 		8-97158-724-0 01 1 9712-9712 ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40>,UNITED KINGDOM EQUIPMENT(6AA),IRISH EQUIPMENT(6CU) (C) DARK GRAY 		8-97158-724-0 01 1 9801- ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK BEIGE 		8-97097-432-1 01 1 9312-9510 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK BEIGE 		8-97097-432-1 01 1 9511-9611 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK BEIGE 		8-97097-432-1 01 1 9612-9711 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 9712- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9312-9611 ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9612-9711 ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9712-9712 ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9801- ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-5 01 1 9404-9409 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9508-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-004-7 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
PTO TRANSMISSION SIDE(V66) EXC. TILT STEERING<N33> DARK GRAY 		8-97868-359-7 01 1 9712- ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK BEIGE 		8-97856-001-5 01 1 9312-9403 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9404-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-001-8 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97857-532-8 01 1 9712- ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9404-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-003-8 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97866-930-8 01 1 9712- ● ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-002-5 01 1 9312-9403 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9404-9510 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9511-9611 ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-002-7 01 1 9612-9711 ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE(V66) DARK GRAY 		8-97868-358-7 01 1 9712- ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9312-9510 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9511-9611 ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9612-9711 ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9712- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK BEIGE 		8-97009-687-0 01 1 9312-9510 ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK BEIGE 		8-97009-687-0 01 1 9511-9611 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK BEIGE 		8-97009-687-0 01 1 9612-9711 ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 9712- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK BEIGE 		8-97097-172-0 01 1 9312-9611 ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK BEIGE 		8-97097-172-0 01 1 9612-9711 ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 9712-9712 ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 9801- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
