1 |

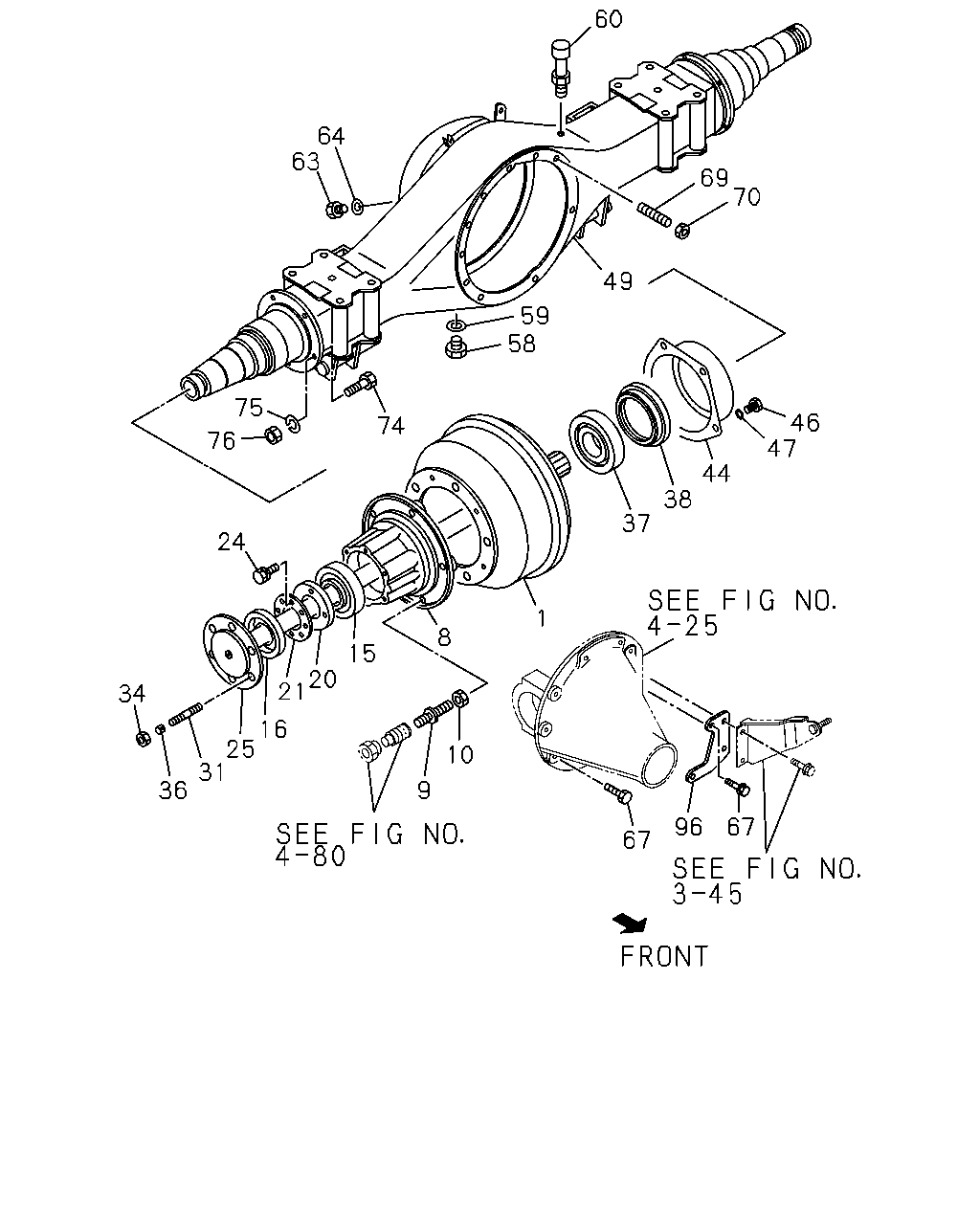

05.809 DRUM; BRK,RR
|
8-97081-219-1 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-219-1 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-219-1 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-219-1 |
02 |
1 |
9507-9509 |
● |
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97081-219-1 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
|
8-97081-219-1 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97081-219-1 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97081-219-1 |
02 |
1 |
9511-9608 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
|
8-97081-219-1 |
02 |
1 |
9511-9608 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97081-219-1 |
02 |
1 |
9511-9608 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-219-2 |
02 |
1 |
9609-9612 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-219-2 |
02 |
1 |
9609-9612 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-219-2 |
02 |
1 |
9701-9711 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-219-2 |
02 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97081-219-2 |
02 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-219-2 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
|
8-97081-219-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-219-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97081-219-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-219-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-219-2 |
02 |
1 |
9802-9807 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
|
8-97081-219-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-219-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97081-219-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-219-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
|
8-97081-219-2 |
02 |
1 |
9802-9807 |
|
|
|
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
|
8-97081-219-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
|
8-97081-219-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-219-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-219-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97081-219-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
4BD2 ENG(RLW)
DISC BRAKE FRT<J52>
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/9(S2J),FINAL GEAR RATIO
43/10(S7C)
|
8-97081-219-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-1 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-1 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-1 |
02 |
1 |
9312-9506 |
|
|
|
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97034-770-1 |
02 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97034-770-1 |
02 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
|
|
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
|
8-97034-770-1 |
02 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-1 |
02 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
|
8-97034-770-1 |
02 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
|
8-97034-770-1 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97034-770-1 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
|
8-97034-770-1 |
02 |
1 |
9607-9608 |
|
|
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-2 |
02 |
1 |
9609-9612 |
|
● |
● |
● |
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-2 |
02 |
1 |
9609-9612 |
|
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-97034-770-2 |
02 |
1 |
9701-9711 |
|
● |
|
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-2 |
02 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97034-770-2 |
02 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>
|
8-97034-770-2 |
02 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97034-770-2 |
02 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
|
8-97034-770-2 |
02 |
1 |
9712-9807 |
|
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-2 |
02 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-001-1 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97102-001-1 |
02 |
1 |
9512-9611 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-2 |
02 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
|
8-97102-001-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-2 |
02 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-001-2 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
|
8-97102-001-2 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-2 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ)
|
8-97102-001-2 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97102-001-2 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97102-001-2 |
02 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97081-323-2 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-323-2 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-323-2 |
02 |
1 |
9507-9509 |
● |
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
|
8-97081-323-2 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97081-323-2 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9511-9608 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
|
8-97081-323-2 |
02 |
1 |
9511-9608 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97081-323-2 |
02 |
1 |
9511-9608 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-323-2 |
02 |
1 |
9609-9612 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9609-9612 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97081-323-2 |
02 |
1 |
9701-9711 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
|
8-97081-323-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-323-2 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
9802-9807 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
|
8-97081-323-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97081-323-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97081-323-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-323-2 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
|
8-97081-323-2 |
02 |
1 |
9802-9807 |
|
|
|
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
|
8-97081-323-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
|
8-97081-323-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX)
|
8-97081-323-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-323-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97081-323-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4BD2 ENG(RLW)
DISC BRAKE FRT<J52>
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/9(S2J),FINAL GEAR RATIO
43/10(S7C)
|
8-97081-323-2 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 4.0-4.5TON(RPR)
|
8-94382-893-3 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-94382-893-3 |
02 |
1 |
9507-9606 |
|
● |
● |
● |
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
|
8-94382-893-3 |
02 |
1 |
9607-9612 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9607-9612 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
|
8-94382-893-3 |
02 |
1 |
9607-9612 |
|
|
|
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
|
8-94382-893-3 |
02 |
1 |
9701-9705 |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-94382-893-3 |
02 |
1 |
9701-9705 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
|
8-94382-893-3 |
02 |
1 |
9701-9705 |
|
|
|
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-94382-893-3 |
02 |
1 |
9706-9711 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-94382-893-3 |
02 |
1 |
9706-9711 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9706-9711 |
|
|
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-94382-893-3 |
02 |
1 |
9706-9711 |
|
|
|
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
|
8-94382-893-3 |
02 |
1 |
9712-9807 |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9712-9807 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
|
8-94382-893-3 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
EXC. DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-94382-893-3 |
02 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94382-893-3 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-94382-893-3 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
|
8-94382-893-3 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97026-139-2 |
02 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97026-139-2 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97026-139-2 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
|
8-97026-139-2 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97026-139-2 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
|
8-97026-139-2 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97107-549-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97107-549-0 |
02 |
1 |
9512-9611 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-0 |
02 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
|
8-97107-549-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-0 |
02 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97107-549-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
|
8-97107-549-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97107-549-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97107-549-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97107-549-0 |
02 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9507-9509 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9512-9608 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9512-9608 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9609-9611 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9612-9612 |
|
● |
● |
● |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9612-9612 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9701-9711 |
|
● |
● |
● |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9712-9712 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9712-9712 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9712-9712 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9801-9807 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9801-9807 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9801-9807 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9801-9807 |
|
|
|
|
● |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4BD2 ENG(RLW)
DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9507-9509 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9512-9608 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9512-9608 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9609-9611 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9612-9612 |
|
● |
● |
● |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9612-9612 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9701-9711 |
|
● |
● |
● |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9712-9712 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9712-9712 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9712-9712 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9801-9807 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9801-9807 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9801-9807 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9801-9807 |
|
|
|
|
● |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4BD2 ENG(RLW)
DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9312-9506 |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9511-9511 |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9607-9608 |
|
|
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9609-9612 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9609-9612 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9701-9711 |
|
● |
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9712-9807 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9312-9506 |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9511-9511 |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9607-9608 |
|
|
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9609-9612 |
|
● |
● |
● |
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9609-9612 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9701-9711 |
|
● |
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9712-9807 |
|
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
M22
|
9-09110-522-0 |
12 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M22
|
9-09110-522-0 |
12 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M22
|
9-09110-522-0 |
12 |
1 |
9507-9509 |
● |
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
M22
|
9-09110-522-0 |
12 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M22
|
9-09110-522-0 |
12 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
M22
|
9-09110-522-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M22
|
9-09110-522-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M22
|
9-09110-522-0 |
12 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO
41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
BRK WHL LK CONT LSPV<6PH>
M22
|
9-09110-522-0 |
12 |
1 |
9512-9608 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M22
|
9-09110-522-0 |
12 |
1 |
9512-9608 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9609-9611 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
9612-9612 |
|
● |
● |
● |
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9612-9612 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
9701-9711 |
|
● |
● |
● |
● |
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
9712-9712 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
M22
|
9-09110-522-0 |
12 |
1 |
9712-9712 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
M22
|
9-09110-522-0 |
12 |
1 |
9712-9712 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M22
|
9-09110-522-0 |
12 |
1 |
9801-9807 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
EXC. MINI BUS CHASSIS<V4B>
M22
|
9-09110-522-0 |
12 |
1 |
9801-9807 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
M22
|
9-09110-522-0 |
12 |
1 |
9801-9807 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
M22
|
9-09110-522-0 |
12 |
1 |
9801-9807 |
|
|
|
|
● |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
M22
|
9-09110-522-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4BD2 ENG(RLW)
DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
M22
|
9-09110-522-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9312-9506 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9312-9506 |
|
● |
● |
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9312-9506 |
|
|
|
|
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9507-9510 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9511-9511 |
|
|
|
|
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9607-9608 |
|
|
● |
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9609-9612 |
|
● |
● |
● |
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9609-9612 |
|
● |
● |
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9701-9711 |
|
● |
|
|
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9712-9807 |
|
● |
● |
● |
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9712-9807 |
|
● |
● |
|
|
|
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9808- |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
NSK
|
9-00093-607-0 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
NSK
|
9-00093-607-0 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
NSK
|
9-00093-607-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
NSK
|
9-00093-607-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
NSK
|
9-00093-607-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
NSK
|
9-00093-607-0 |
02 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NSK
|
9-00093-607-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
NSK
|
9-00093-607-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NSK
|
9-00093-607-0 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NSK
|
9-00093-607-0 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
NSK
|
9-00093-607-0 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS)
NSK
|
9-00093-607-0 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS)
NSK
|
9-00093-607-0 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
● |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS)
NSK
|
9-00093-607-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
● |
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
NSK
|
9-00093-607-0 |
02 |
1 |
9712-9807 |
|
● |
|
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
NSK
|
9-00093-607-0 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
9712-9807 |
|
|
|
|
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
NSK
|
9-00093-607-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
NSK
|
9-00093-607-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
NSK
|
9-00093-082-0 |
02 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-082-0 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
NSK
|
9-00093-082-0 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
NSK
|
9-00093-082-0 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
NSK
|
9-00093-082-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
NSK
|
9-00093-082-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
TKK
|
8-94336-317-1 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
TKK
|
8-94336-317-1 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
TKK
|
8-94336-317-1 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
TKK
|
8-94336-317-1 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
TKK
|
8-94336-317-1 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
TKK
|
8-94336-317-1 |
02 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
TKK
|
8-94336-317-1 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
TKK
|
8-94336-317-1 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
TKK
|
8-94336-317-1 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
TKK
|
8-94336-317-1 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
TKK
|
8-94336-317-1 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
TKK
|
8-94336-317-1 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
TKK
|
8-94336-317-1 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
TKK
|
8-94336-317-1 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
● |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
TKK
|
8-94336-317-1 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
TKK
|
8-94336-317-1 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
● |
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
TKK
|
8-94336-317-1 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
TKK
|
8-94336-317-2 |
02 |
1 |
9712-9807 |
|
● |
|
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
TKK
|
8-94336-317-2 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
TKK
|
8-94336-317-2 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-317-2 |
02 |
1 |
9712-9807 |
|
|
|
|
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
TKK
|
8-94336-317-2 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
TKK
|
8-94336-317-2 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
NOK
|
8-94367-960-1 |
02 |
1 |
9312-9406 |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4BE1 ENG(RLH)
TKK
|
8-94336-315-1 |
02 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
TKK
|
8-94336-315-1 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4BE1 ENG(RLH)
TKK
|
8-94336-315-1 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
TKK
|
8-94336-315-1 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4BE1 ENG(RLH)
TKK
|
8-94336-315-2 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
TKK
|
8-94336-315-2 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
05.829
M55
|
9-09644-502-3 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
05.829
M55
|
9-09644-502-3 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97137-093-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97137-093-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97137-093-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97137-093-0 |
02 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-97137-093-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97137-093-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4BE1 ENG(RLH)
M52
|
9-09644-037-3 |
02 |
1 |
9312-9509 |
|
● |
● |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4BE1 ENG(RLH)
M52
|
8-97137-092-0 |
02 |
1 |
9510-9511 |
|
● |
● |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
M52
|
8-97137-092-0 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4BE1 ENG(RLH)
M52
|
8-97137-092-0 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
M52
|
8-97137-092-0 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4BE1 ENG(RLH)
M52
|
8-97137-092-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
M52
|
8-97137-092-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M55
|
8-97137-094-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
M55
|
8-97137-094-0 |
02 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M55
|
8-97137-094-0 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M55
|
8-97137-094-0 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M55
|
8-97137-094-0 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
M55
|
8-97137-094-0 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
M55
|
8-97137-094-0 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
● |
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
M55
|
8-97137-094-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
● |
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
M55
|
8-97137-094-0 |
02 |
1 |
9712-9807 |
|
● |
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
M55
|
8-97137-094-0 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
9712-9807 |
|
|
|
|
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
M55
|
8-97137-094-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
M55
|
8-97137-094-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
ID=55
|
9-09653-002-0 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
ID=55
|
9-09653-002-0 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
ID=55
|
9-09653-002-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
ID=55
|
9-09653-002-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
ID=55
|
9-09653-002-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
ID=55
|
9-09653-002-0 |
02 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
ID=55
|
9-09653-002-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
ID=55
|
9-09653-002-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
ID=55
|
9-09653-002-0 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
ID=55
|
9-09653-002-0 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
ID=55
|
9-09653-002-0 |
02 |
1 |
9607-9608 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS)
ID=55
|
9-09653-002-0 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
9609-9611 |
|
● |
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS)
ID=55
|
9-09653-002-0 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
● |
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
9612-9705 |
|
● |
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS)
ID=55
|
9-09653-002-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
● |
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V
.W. 8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
9706-9711 |
|
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
ID=55
|
9-09653-002-0 |
02 |
1 |
9712-9807 |
|
● |
|
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
ID=55
|
9-09653-002-0 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
9712-9807 |
|
|
|
|
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
ID=55
|
9-09653-002-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
ID=55
|
9-09653-002-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4BE1 ENG(RLH)
ID=52
|
9-09853-214-0 |
02 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
ID=52
|
9-09853-214-0 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4BE1 ENG(RLH)
ID=52
|
9-09853-214-0 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
ID=52
|
9-09853-214-0 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4BE1 ENG(RLH)
ID=52
|
9-09853-214-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
ID=52
|
9-09853-214-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
24 |
05.830 BOLT; LK WASHER
04.686
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
9312-9507 |
● |
● |
● |
● |
|
|
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
9508-9510 |
● |
● |
● |
● |
|
|
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
L=830
|
8-97029-885-0 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
L=830
|
8-94341-974-1 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
L=830
|
8-94341-974-1 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
L=830
|
8-94341-974-1 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
L=830
|
8-94341-974-1 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
L=830
|
8-94341-974-1 |
02 |
1 |
9511-9612 |
|
● |
|
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
L=830
|
8-94341-974-1 |
02 |
1 |
9511-9612 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9511-9612 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
L=830
|
8-94341-974-1 |
02 |
1 |
9701-9705 |
|
● |
|
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9701-9705 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
L=830
|
8-94341-974-1 |
02 |
1 |
9701-9705 |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
L=830
|
8-94341-974-1 |
02 |
1 |
9706-9711 |
|
● |
|
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9706-9711 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9706-9711 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9712-9807 |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9712-9807 |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=830
|
8-94341-974-1 |
02 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
DISC BRAKE FRT<J52>
L=830
|
8-94341-974-1 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
L=830
|
8-94341-974-1 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=830
|
8-94341-974-1 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4BE1 ENG(RLH)
L=804.5
|
8-97032-497-0 |
02 |
1 |
9610-9711 |
|
● |
● |
● |
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ)
L=804.5
|
8-97032-497-0 |
02 |
1 |
9610-9711 |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4BE1 ENG(RLH)
L=804.5
|
8-97032-497-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
L=804.5
|
8-97032-497-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4BE1 ENG(RLH)
L=804.5
|
8-97032-497-0 |
02 |
1 |
9312-9510 |
|
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
|
8-97141-925-0 |
02 |
1 |
9609-9609 |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
L=822
|
8-97079-903-1 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=822
|
8-97079-903-1 |
02 |
1 |
9511-9711 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=822
|
8-97079-903-1 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=822
|
8-97079-903-1 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. FRAME STRAIGHT TYPE<7KJ>
L=822
|
8-97079-903-1 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-0 |
02 |
1 |
9604-9612 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
L=893
|
8-97073-871-0 |
02 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)
L=893
|
8-97073-871-1 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
L=893
|
8-97073-871-1 |
02 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
L=885
|
8-97134-439-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FRAME STRAIGHT TYPE<7KJ>
L=885
|
8-97134-439-0 |
02 |
1 |
9512-9801 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
9512-9801 |
|
|
|
|
● |
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FRAME STRAIGHT TYPE<7KJ>
L=885
|
8-97134-439-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FRAME STRAIGHT TYPE<7KJ>
L=885
|
8-97134-439-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
NSK
|
9-00093-624-0 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
NSK
|
9-00093-624-0 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
NSK
|
9-00093-624-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
NSK
|
9-00093-624-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
NSK
|
9-00093-624-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
NSK
|
9-00093-624-0 |
02 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NSK
|
9-00093-624-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
NSK
|
9-00093-624-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
NSK
|
9-00093-624-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-624-0 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
NSK
|
9-00093-624-0 |
02 |
1 |
9609-9711 |
|
● |
|
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NSK
|
9-00093-624-0 |
02 |
1 |
9609-9711 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
NSK
|
9-00093-624-0 |
02 |
1 |
9712-9801 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX)
NSK
|
9-00093-624-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
NSK
|
9-00093-624-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-624-0 |
02 |
1 |
9712-9801 |
|
|
|
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
NSK
|
9-00093-624-0 |
02 |
1 |
9802-9807 |
|
● |
|
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX)
NSK
|
9-00093-624-0 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
NSK
|
9-00093-624-0 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-624-0 |
02 |
1 |
9802-9807 |
|
|
|
|
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
NSK
|
9-00093-624-0 |
02 |
1 |
9802-9807 |
|
|
|
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
9802-9807 |
|
|
|
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. DISC BRAKE FRT<J52>
NSK
|
9-00093-624-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
NSK
|
9-00093-624-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. FRAME STRAIGHT TYPE<7KJ>
NSK
|
9-00093-624-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
FRAME STRAIGHT TYPE<7KJ>
G.V.W. 7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO MASTER<7LT>,
HYDRO BRAKE BOOSTER<7QQ>
NSK
|
9-00093-624-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
NSK
|
9-00093-081-0 |
02 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-081-0 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
NSK
|
9-00093-081-0 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
NSK
|
9-00093-081-0 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
NSK
|
9-00093-081-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
NSK
|
9-00093-081-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
NSK
|
8-97122-938-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NSK
|
8-97122-938-0 |
02 |
1 |
9512-9611 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
NSK
|
8-97122-938-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
NSK
|
8-97122-938-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
NSK
|
8-97122-938-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
NSK
|
8-97122-938-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
NSK
|
8-97122-938-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
8-97122-938-0 |
02 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
KOYO
|
8-97123-119-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
KOYO
|
8-97123-119-0 |
02 |
1 |
9512-9611 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
KOYO
|
8-97123-119-0 |
02 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
KOYO
|
8-97123-119-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
KOYO
|
8-97123-119-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
KOYO
|
8-97123-119-0 |
02 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
KOYO
|
8-97123-119-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
KOYO
|
8-97123-119-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
KOYO
|
8-97123-119-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
KOYO
|
8-97123-119-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
KOYO
|
8-97123-119-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
KOYO
|
8-97123-119-0 |
02 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
TKK
|
8-94336-316-0 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
TKK
|
8-94336-316-0 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
TKK
|
8-94336-316-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
TKK
|
8-94336-316-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
TKK
|
8-94336-316-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
TKK
|
8-94336-316-0 |
02 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
TKK
|
8-94336-316-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
TKK
|
8-94336-316-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
TKK
|
8-94336-316-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
TKK
|
8-94336-316-0 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
TKK
|
8-94336-316-0 |
02 |
1 |
9609-9711 |
|
● |
|
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
TKK
|
8-94336-316-0 |
02 |
1 |
9609-9711 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
TKK
|
8-94336-316-0 |
02 |
1 |
9712-9801 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX)
TKK
|
8-94336-316-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
TKK
|
8-94336-316-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-316-0 |
02 |
1 |
9712-9801 |
|
|
|
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
TKK
|
8-94336-316-1 |
02 |
1 |
9802-9807 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX)
TKK
|
8-94336-316-1 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
TKK
|
8-94336-316-1 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-316-1 |
02 |
1 |
9802-9807 |
|
|
|
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
TKK
|
8-94336-316-1 |
02 |
1 |
9802-9807 |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
9802-9807 |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. DISC BRAKE FRT<J52>
TKK
|
8-94336-316-1 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
TKK
|
8-94336-316-1 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. FRAME STRAIGHT TYPE<7KJ>
TKK
|
8-94336-316-1 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
REAR AXLE HEAVY DUTY 320MM(6CP)
FRAME STRAIGHT TYPE<7KJ>
G.V.W. 7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO MASTER<7LT>,
HYDRO BRAKE BOOSTER<7QQ>
TKK
|
8-94336-316-1 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
NOK
|
8-94367-958-0 |
02 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
NOK
|
8-94367-958-0 |
02 |
1 |
9506-9509 |
● |
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
NOK
|
8-94367-958-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
NOK
|
8-94367-958-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
NOK
|
8-94367-958-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
NOK
|
8-94367-958-0 |
02 |
1 |
9511-9606 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NOK
|
8-94367-958-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
NOK
|
8-94367-958-0 |
02 |
1 |
9511-9606 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
NOK
|
8-94367-958-0 |
02 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
NOK
|
8-94367-958-0 |
02 |
1 |
9609-9711 |
|
● |
|
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
NOK
|
8-94367-958-0 |
02 |
1 |
9609-9711 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
NOK
|
8-94367-958-0 |
02 |
1 |
9712-9801 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX)
NOK
|
8-94367-958-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
NOK
|
8-94367-958-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-958-0 |
02 |
1 |
9712-9801 |
|
|
|
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
NOK
|
8-94367-958-0 |
02 |
1 |
9802-9807 |
|
● |
|
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX)
NOK
|
8-94367-958-0 |
02 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
9802-9807 |
|
|
● |
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-958-0 |
02 |
1 |
9802-9807 |
|
|
|
|
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
9802-9807 |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
NOK
|
8-94367-958-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
NOK
|
8-94367-958-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/9(S2J),FINAL GEAR RATIO
43/10(S7C)
NOK
|
8-94367-958-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
TKK
|
8-94336-314-0 |
02 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
TKK
|
8-94336-314-0 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
TKK
|
8-94336-314-0 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
TKK
|
8-94336-314-0 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
TKK
|
8-94336-314-1 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
TKK
|
8-94336-314-1 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
NOK
|
8-94367-959-0 |
02 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
NOK
|
8-94367-959-0 |
02 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
NOK
|
8-94367-959-0 |
02 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
NOK
|
8-94367-959-0 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4BE1 ENG(RLH)
NOK
|
8-94367-959-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
NOK
|
8-94367-959-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
NOK
|
8-97122-937-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NOK
|
8-97122-937-0 |
02 |
1 |
9512-9611 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
NOK
|
8-97122-937-0 |
02 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
NOK
|
8-97122-937-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
NOK
|
8-97122-937-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 8.0-8.5TON(RPZ)
NOK
|
8-97122-937-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
NOK
|
8-97122-937-0 |
02 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-97122-937-0 |
02 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
44 |
05.815 CATCHER; OIL,RR AXLE SHAFT
|
8-94428-038-1 |
02 |
1 |
9312-9406 |
● |
|
|
|
|
|
|
| |
44 |
05.815 CATCHER; OIL,RR AXLE SHAFT
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-94428-038-1 |
02 |
1 |
9312-9406 |
|
● |
● |
● |
|
|
|
| |
44 |
05.815 CATCHER; OIL,RR AXLE SHAFT
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-94428-038-1 |
02 |
1 |
9312-9406 |
|
● |
● |
|
|
|
|
| |
44 |
05.815 CATCHER; OIL,RR AXLE SHAFT
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
|
8-97029-433-0 |
02 |
1 |
9312-9406 |
|
● |
● |
● |
|
|
|
| |
44 |
05.815 CATCHER; OIL,RR AXLE SHAFT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
|
8-97029-433-0 |
02 |
1 |
9312-9406 |
|
● |
● |
|
|
|
|
| |
44 |
05.815 CATCHER; OIL,RR AXLE SHAFT
|
8-97029-433-0 |
02 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
M6X10
|
0-20800-610-0 |
06 |
1 |
9312-9406 |
● |
|
|
|
|
|
|
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
M6X10
|
0-20800-610-0 |
06 |
1 |
9312-9406 |
|
● |
● |
● |
|
|
|
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
M6X10
|
0-20800-610-0 |
06 |
1 |
9312-9406 |
|
● |
● |
|
|
|
|
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
M6X10
|
0-20800-610-0 |
10 |
1 |
9312-9406 |
|
● |
● |
● |
|
|
|
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
M6X10
|
0-20800-610-0 |
10 |
1 |
9312-9406 |
|
● |
● |
|
|
|
|
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
M6X10
|
0-20800-610-0 |
10 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
00.679
ID=6.1
|
9-09150-606-0 |
06 |
1 |
9312-9406 |
● |
|
|
|
|
|
|
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
00.679
ID=6.1
|
9-09150-606-0 |
06 |
1 |
9312-9406 |
|
● |
● |
● |
|
|
|
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
00.679
ID=6.1
|
9-09150-606-0 |
06 |
1 |
9312-9406 |
|
● |
● |
|
|
|
|
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
00.679
ID=6.1
|
9-09150-606-0 |
10 |
1 |
9312-9406 |
|
● |
● |
● |
|
|
|
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT)
00.679
ID=6.1
|
9-09150-606-0 |
10 |
1 |
9312-9406 |
|
● |
● |
|
|
|
|
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
00.679
ID=6.1
|
9-09150-606-0 |
10 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97036-560-1 |
01 |
1 |
9312-9509 |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97036-560-1 |
01 |
1 |
9510-9510 |
● |
● |
● |
● |
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97036-560-1 |
01 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97036-560-1 |
01 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97036-560-2 |
01 |
1 |
9511-9612 |
|
● |
|
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97036-560-2 |
01 |
1 |
9511-9612 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9511-9612 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97036-560-2 |
01 |
1 |
9701-9705 |
|
● |
|
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9701-9705 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
|
8-97036-560-2 |
01 |
1 |
9701-9705 |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
|
8-97036-560-2 |
01 |
1 |
9706-9711 |
|
● |
|
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9706-9711 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9706-9711 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9712-9807 |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9712-9807 |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9712-9807 |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97036-560-2 |
01 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
DISC BRAKE FRT<J52>
|
8-97036-560-2 |
01 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
BRK WHL LK CONT LSPV<6PH>
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT)
|
8-97036-560-2 |
01 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97036-560-2 |
01 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97036-556-1 |
01 |
1 |
9312-9511 |
|
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97036-556-2 |
01 |
1 |
9512-9608 |
|
● |
● |
● |
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97036-556-2 |
01 |
1 |
9609-9711 |
|
● |
● |
● |
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
|
8-97036-556-2 |
01 |
1 |
9609-9711 |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97036-556-2 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 3.5-4.0TON(RPQ)
|
8-97036-556-2 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97048-635-4 |
01 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97048-635-5 |
01 |
1 |
9511-9711 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97048-635-5 |
01 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97048-635-5 |
01 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97048-635-5 |
01 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
|
8-97116-022-2 |
01 |
1 |
9604-9612 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97116-022-2 |
01 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97116-022-2 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)
|
8-97116-022-2 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
|
8-97116-022-2 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FRAME STRAIGHT TYPE<7KJ>
|
8-97116-022-2 |
01 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97142-808-0 |
01 |
1 |
9512-9711 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97142-808-0 |
01 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97142-808-0 |
01 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97142-808-0 |
01 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97116-021-2 |
01 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97116-021-2 |
01 |
1 |
9512-9611 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97116-021-2 |
01 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
|
8-97116-021-2 |
01 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
|
8-97116-021-2 |
01 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97116-021-2 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97116-021-2 |
01 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
|
8-97116-021-2 |
01 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
|
8-97116-021-2 |
01 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 8.0-8.5TON(RPZ)
|
8-97116-021-2 |
01 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97116-021-2 |
01 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97116-021-2 |
01 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
05.506
|
8-94363-097-0 |
01 |
1 |
9312-9406 |
● |
● |
● |
● |
|
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9407-9510 |
● |
● |
● |
● |
|
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
09 |
1 |
9312-9408 |
● |
● |
● |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9409-9509 |
● |
● |
● |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9510-9711 |
|
● |
● |
● |
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
9712- |
|
|
|
|
● |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X40 W/LK WASHER
|
0-50061-040-0 |
05 |
1 |
9312-9408 |
|
|
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
9409-9611 |
|
|
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9712- |
|
● |
|
|
|
|
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
9312-9611 |
|
|
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
9712- |
|
|
|
|
● |
● |
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
04 |
1 |
9312-9408 |
● |
● |
● |
● |
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9409-9510 |
● |
● |
● |
● |
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9408 |
● |
● |
● |
● |
|
|
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9409-9510 |
● |
● |
● |
● |
|
|
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9511-9611 |
|
● |
● |
● |
|
|
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9612-9711 |
|
● |
● |
● |
● |
|
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9712- |
|
● |
● |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M12X32
|
5-09000-078-0 |
12 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
M12X32
|
5-09000-078-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M12X32
|
5-09000-078-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 43/7(R42)
M12X32
|
5-09000-078-0 |
12 |
1 |
9511-9511 |
|
|
● |
|
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M12X32
|
5-09000-078-0 |
12 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
M12X32
|
5-09000-078-0 |
12 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
M12X32
|
5-09000-078-0 |
12 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
M12X32
|
5-09000-078-0 |
12 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
M12X32
|
5-09000-078-0 |
12 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
9609-9711 |
|
● |
|
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX),G.V.W. 7.5-8.0TON(RPY)
M12X32
|
5-09000-078-0 |
12 |
1 |
9609-9711 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
9712-9801 |
|
● |
|
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
M12X32
|
5-09000-078-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
M12X32
|
5-09000-078-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M12X32
|
5-09000-078-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
9802-9807 |
|
● |
|
|
|
|
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
M12X32
|
5-09000-078-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
M12X32
|
5-09000-078-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
M12X32
|
5-09000-078-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
M12X32
|
5-09000-078-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
M12X32
|
5-09000-078-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO MASTER<7LT>,
HYDRO BRAKE BOOSTER<7QQ>
M12X32
|
5-09000-078-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
M12X32
|
5-09000-078-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M14X35
|
8-97122-853-2 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M14X35
|
8-97122-853-2 |
12 |
1 |
9512-9512 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M14X35
|
8-97122-853-2 |
12 |
1 |
9601-9611 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
M14X35
|
8-97122-853-2 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X35
|
8-97122-853-2 |
12 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
M14X35
|
8-97122-853-2 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
M14X35
|
8-97122-853-2 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
M14X35
|
8-97122-853-2 |
12 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M14X35
|
8-97122-853-2 |
12 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M14X35
|
8-97122-853-2 |
12 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 43/7(R42)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9511-9511 |
|
|
● |
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9609-9612 |
|
● |
● |
● |
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9701-9711 |
|
● |
|
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JG2 ENG(RJC),4BE1 ENG(RLH)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9701-9711 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9712-9801 |
|
● |
|
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9802-9807 |
|
● |
|
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9601-9711 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
00.002
ID=12.2
|
9-09150-812-0 |
12 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9512-9512 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9601-9611 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
05.422
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9312-9510 |
● |
● |
● |
● |
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 43/7(R42)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9511-9511 |
|
|
● |
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43),
FINAL GEAR RATIO 41/6(6YB)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9607-9608 |
|
● |
● |
● |
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9609-9711 |
|
● |
|
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX),G.V.W. 7.5-8.0TON(RPY)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9609-9711 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9712-9801 |
|
● |
|
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9802-9807 |
|
● |
|
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9802-9807 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TO
N(RPX)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>,HYDRO MASTER<7LT>,
HYDRO BRAKE BOOSTER<7QQ>
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.5-8.0TON(RPY)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9512-9512 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEAR RATIO 43/7(R42),FINAL GEAR RATIO 4
1/6(6YB)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9601-9611 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9612-9711 |
|
|
● |
● |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9712-9801 |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9712-9801 |
|
|
|
|
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
DISC BRAKE FRT<J52>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9802- |
|
|
● |
● |
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 8.0-8.5TON(RPZ)
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9802- |
|
|
|
|
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
07.529
M14
|
9-99110-514-0 |
12 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH>
|
8-97011-997-1 |
01 |
1 |
9312-9509 |
|
● |
● |
● |
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>
|
8-97011-997-1 |
01 |
1 |
9510-9510 |
|
● |
● |
● |
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97011-997-1 |
01 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97011-997-1 |
01 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 43/7(R42)
|
8-97011-997-1 |
01 |
1 |
9510-9510 |
|
|
● |
|
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>
|
8-97011-997-1 |
01 |
1 |
9511-9511 |
|
● |
● |
● |
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97011-997-1 |
01 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97011-997-1 |
01 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 43/7(R42)
|
8-97011-997-1 |
01 |
1 |
9511-9511 |
|
|
● |
|
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V
.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>
|
8-97011-997-1 |
01 |
1 |
9512-9606 |
|
● |
● |
● |
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97011-997-1 |
01 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6)
|
8-97011-997-1 |
01 |
1 |
9512-9606 |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
|
8-97011-997-1 |
01 |
1 |
9512-9606 |
|
|
● |
|
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH>
|
8-97011-997-2 |
01 |
1 |
9607-9711 |
|
● |
● |
● |
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
|
8-97011-997-3 |
01 |
1 |
9712-9807 |
|
● |
|
|
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
|
8-97011-997-3 |
01 |
1 |
9712-9807 |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH>
|
8-97011-997-3 |
01 |
1 |
9712-9807 |
|
|
|
|
|
|
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
|
8-97011-997-3 |
01 |
1 |
9808- |
|
● |
● |
● |
● |
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 320MM(6CP)
BRK WHL LK CONT LSPV<6PH>
|
8-97145-451-2 |
01 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
|
8-97145-451-2 |
01 |
1 |
9712- |
|
|
|
|
● |
● |
|
