30 |
04.686 BOLT; CLIP,VAC PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
03.670
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9312-9404 |
● |
● |
● |
● |
● |
● |
● |
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
03.670
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9405-9506 |
● |
● |
● |
|
|
● |
● |
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4JG2 ENG(RJC)
03.670
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9405-9506 |
● |
● |
|
|
|
|
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
03.670
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
|
● |
● |
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4JG2 ENG(RJC)
03.670
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
04.930
M6X20 FLANGE
|
0-28680-620-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
M6X20 FLANGE
|
0-28680-620-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
M6X20 FLANGE
|
0-28680-620-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
M6X20 FLANGE
|
0-28680-620-0 |
01 |
1 |
9712-9801 |
|
● |
|
|
|
|
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
M6X20 FLANGE
|
0-28680-620-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
M6X20 FLANGE
|
0-28680-620-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4JG2 ENG(RJC)
03.704
M6X20 W/LK WASHER
|
0-50040-620-0 |
02 |
1 |
9312-9404 |
● |
● |
|
|
|
|
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
30 |
04.686 BOLT; CLIP,VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9312-9404 |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
04.686 NUT; CLIP,VAC PIPE
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9405-9506 |
● |
● |
● |
|
|
● |
● |
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4JG2 ENG(RJC)
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9405-9506 |
● |
● |
|
|
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
|
● |
● |
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4JG2 ENG(RJC)
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9712-9801 |
|
● |
|
|
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4JG2 ENG(RJC)
16.176
M6
|
9-09110-406-0 |
02 |
1 |
9312-9404 |
● |
● |
|
|
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
31 |
04.686 NUT; CLIP,VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
04.686
(B)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
● |
● |
| |
33 |
04.930 CLIP; VAC PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(B)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(B)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(B)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
● |
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(C)
ID=4.8X2
|
8-94316-410-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
04.686
(C)
ID=4.8X2
|
8-94316-410-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
04.686
(C)
ID=6.5 & 4.8X2
|
8-94424-234-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(C)
ID=6.5 & 4.8X2
|
8-94424-234-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(C)
ID=6.5 & 4.8X2
|
8-94424-234-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
● |
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(C)
ID=6.5 & 4.8X2
|
8-94424-234-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
04.686
(D)
ID=4.8X2
|
8-94455-816-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(D)
ID=4.8X2
|
8-94455-816-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(D)
ID=4.8X2
|
8-94455-816-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
● |
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.686
(D)
ID=4.8X2
|
8-94455-816-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
● |
● |
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9802-9807 |
|
● |
● |
● |
● |
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9802-9807 |
|
● |
● |
● |
|
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9808- |
● |
● |
● |
● |
● |
|
|
| |
33 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.686
(A)
ID=4.8X2
|
8-94316-410-0 |
02 |
1 |
9808- |
|
● |
● |
● |
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97108-022-0 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
● |
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97066-126-4 |
01 |
1 |
9402-9510 |
|
|
● |
|
|
|
● |
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97066-126-4 |
01 |
1 |
9511-9711 |
|
|
● |
|
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97066-126-4 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97108-023-0 |
01 |
1 |
9312-9401 |
● |
|
|
|
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97079-376-4 |
01 |
1 |
9402-9711 |
● |
|
|
|
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97079-376-4 |
01 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97106-949-2 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
● |
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97106-949-2 |
01 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-97106-949-2 |
01 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97106-949-2 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-97106-949-2 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
|
8-97066-124-6 |
01 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
43 |
04.930 PIPE; VAC,MAG VLV TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS)
AUSTRALIA EQUIPMENT(RR3)
|
8-97066-124-6 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
4HF1 ENG(RLS),4HE1 ENG(RLY)

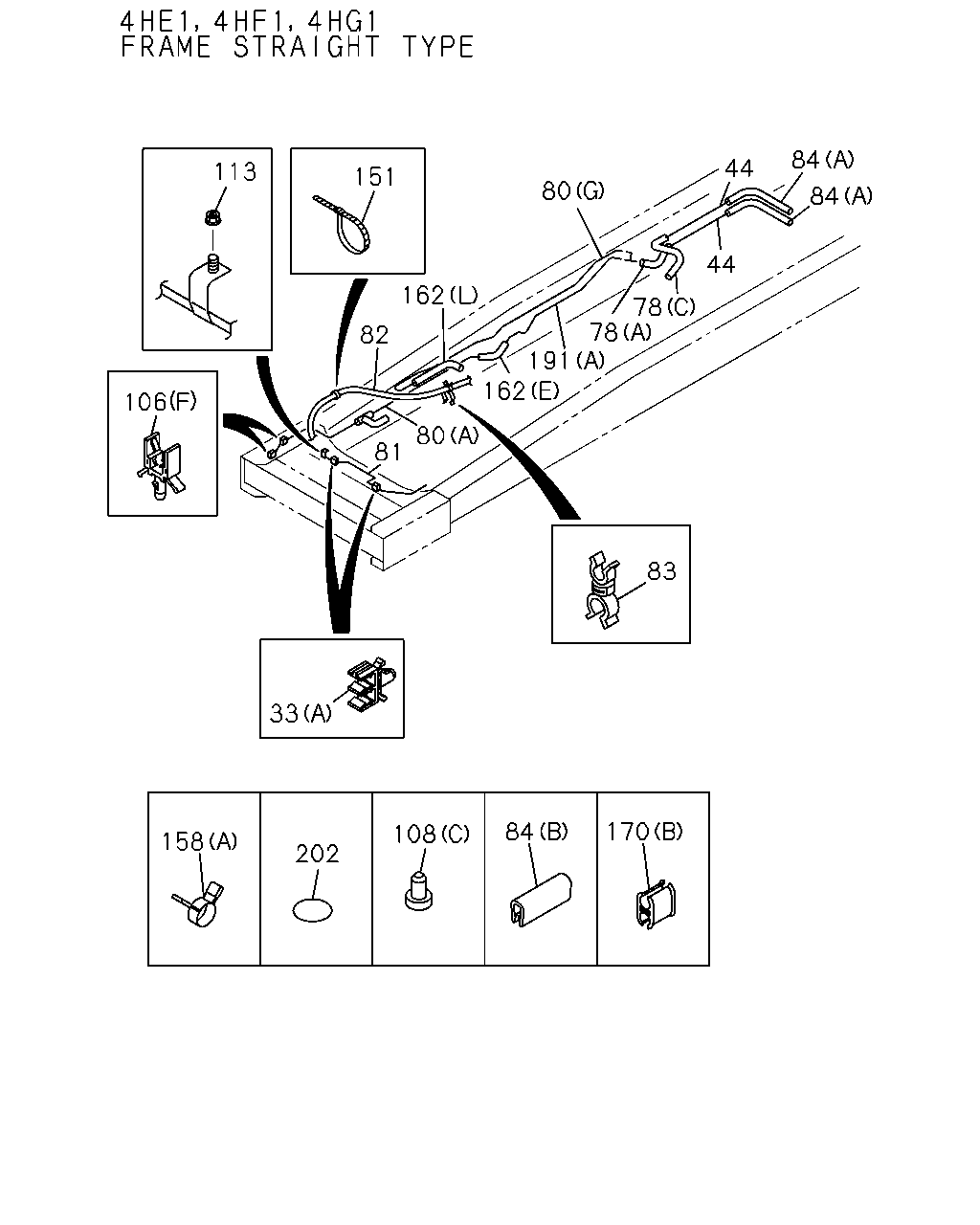

FRAME STRAIGHT TYPE<7KJ>
|
8-97149-845-2 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-971-0 |
02 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-971-0 |
02 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-972-0 |
02 |
1 |
9511-9611 |
|
|
● |
|
|
|
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-972-0 |
02 |
1 |
9612-9711 |
|
|
● |
|
|
|
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
|
8-97096-972-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-972-0 |
02 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
44 |
04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ>
|
8-97127-120-1 |
02 |
1 |
9712- |
|
|
|
|
● |
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
(A)
L=110
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
(A)
L=110
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
(A)
L=110
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
(A)
L=110
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
(B)
L=330
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
(B)
L=330
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
(B)
L=330
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
(B)
L=330
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
(A)
L=110
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=110
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=110
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=110
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FLOOR REMOTE SHIFT<M11>
(B)
|
8-97101-115-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FLOOR REMOTE SHIFT<M11>,FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-97101-115-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FLOOR REMOTE SHIFT<M11>,FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-97101-115-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FLOOR REMOTE SHIFT<M11>,FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-97101-115-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
(B)
L=330
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FLOOR REMOTE SHIFT<M11>
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=330
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=330
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FLOOR REMOTE SHIFT<M11>
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=330
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
L=430
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
● |
|
|
| |
78 |

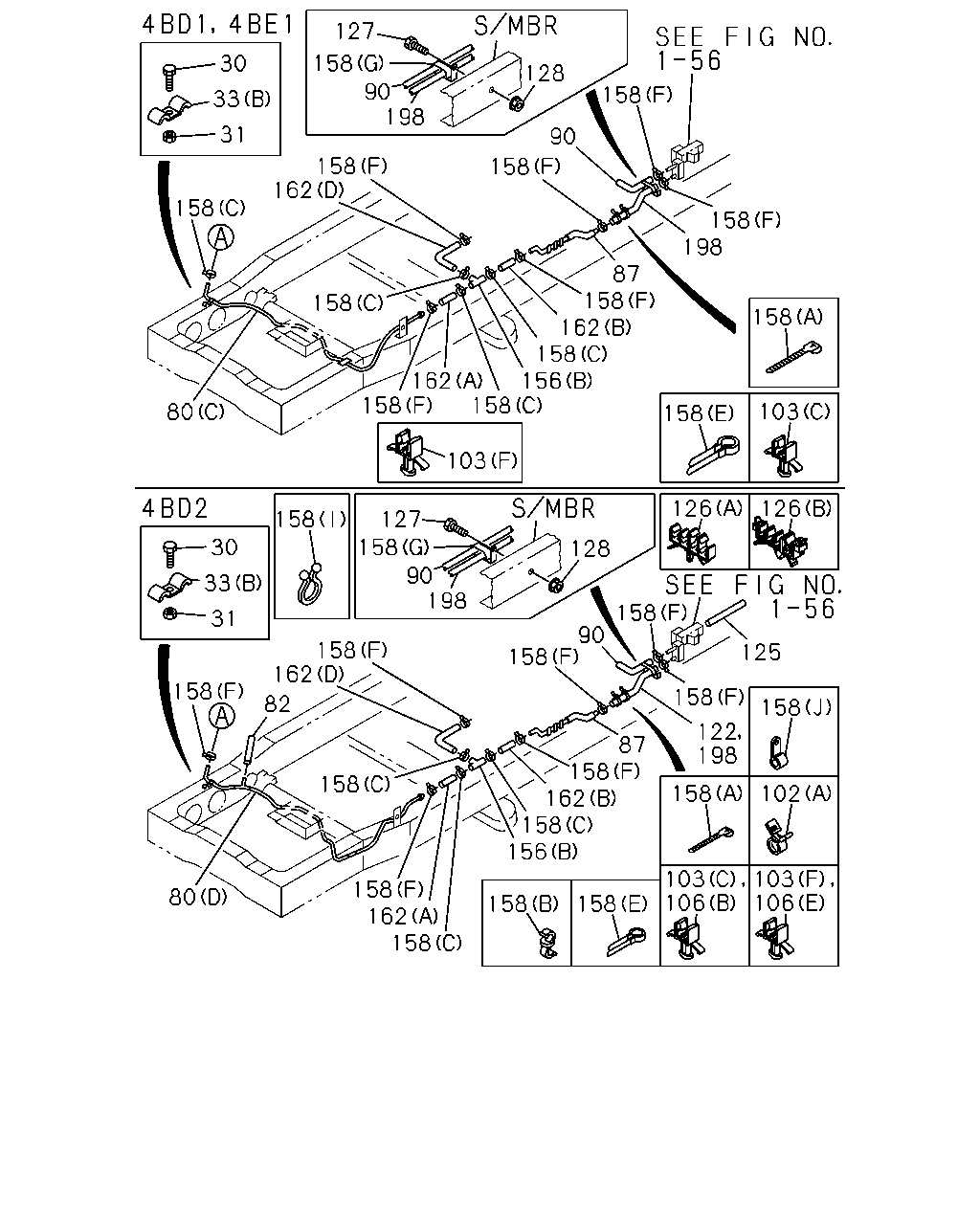

04.931 HOSE; VAC,PIPE TO PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
(B)
L=430
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9802- |
● |
● |
● |
|
|
● |
● |
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4JG2 ENG(RJC)
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
03.630
(B)
L=430
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9802- |
● |
● |
|
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4BD2 ENG(RLW)
03.630
(B)
L=430
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
AUSTRALIA EQUIPMENT(RR3)
(B)
L=500
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
AUSTRALIA EQUIPMENT(RR3)
EXC. HYDRO MASTER<7LT>
(A)
L=300
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
78 |

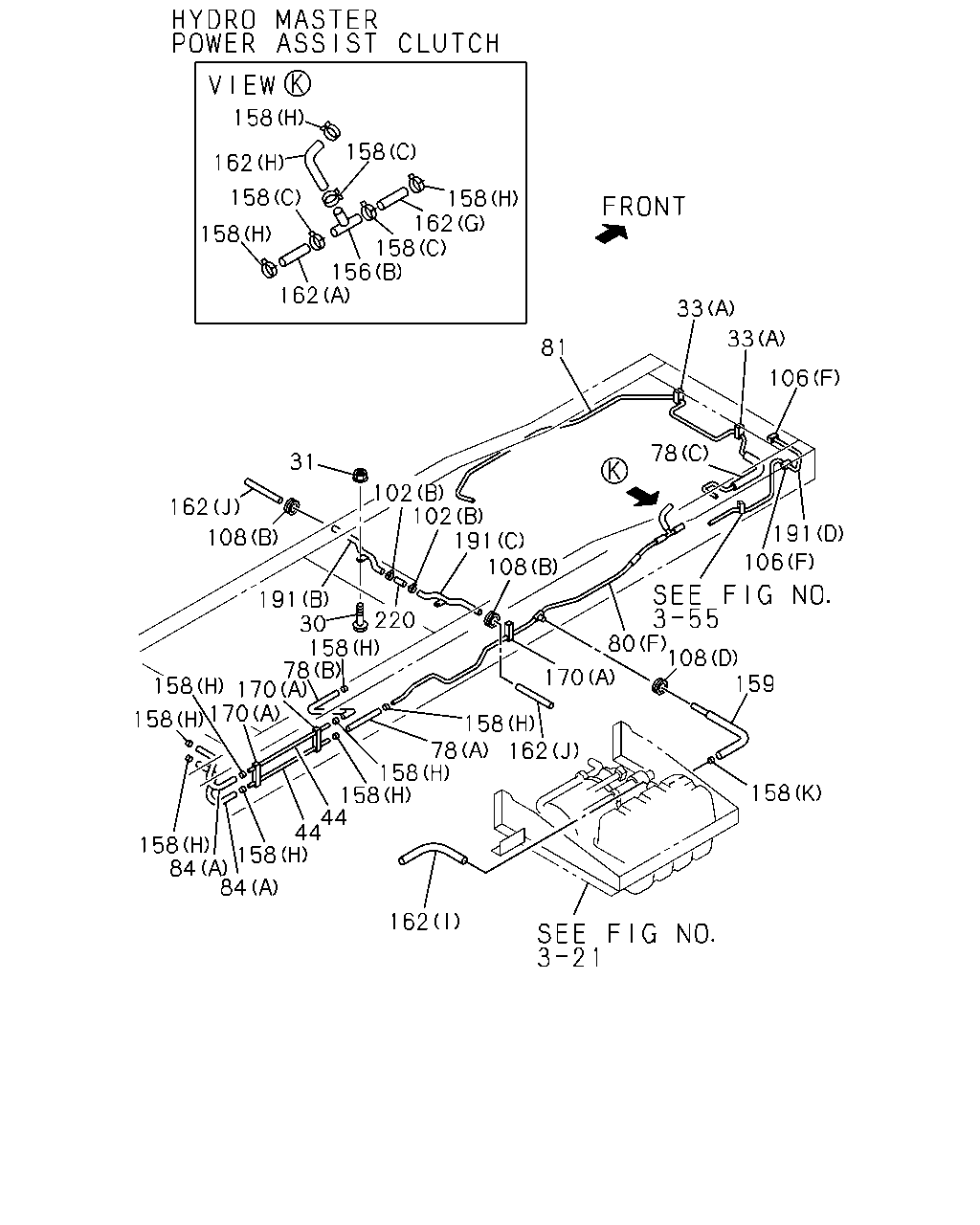

04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
08.962
(C)
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
HYDRO MASTER<7LT>
03.630
(A)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
03.630
(A)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
HYDRO MASTER<7LT>
03.630
(A)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
L=300
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
03.630
(B)
L=300
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. AUSTRALIA EQUIPMENT(RR3),HYDRO
MASTER<7LT>
03.630
(B)
L=300
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
L=490
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
L=490
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
|
|
|
| |
78 |
04.931 HOSE; VAC,PIPE TO PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. AUSTRALIA EQUIPMENT(RR3),
CHARGEAIR COOLER<6PL>
03.630
(B)
L=490
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97042-324-3 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97042-324-3 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97042-324-3 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97042-324-3 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(A)
|
8-97104-193-2 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>,FRAME
STRAIGHT TYPE<7KJ>
(A)
|
8-97104-193-2 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97181-831-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97181-831-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
(B)
|
8-97091-498-0 |
01 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
(B)
|
8-97091-498-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97091-498-0 |
01 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97091-498-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
(C)
|
8-97094-231-2 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97141-757-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97141-757-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
(D)
|
8-97073-492-2 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
(D)
|
8-97073-492-2 |
01 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97141-756-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97141-756-0 |
01 |
1 |
9607-9705 |
● |
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97141-756-0 |
01 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97141-756-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97096-966-3 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(A)
|
8-97096-966-3 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER<7QQ>
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97096-966-3 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97096-966-3 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
(E)
|
8-97129-542-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
(E)
|
8-97129-542-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
(E)
|
8-97129-542-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.685
(F)
|
8-97147-487-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
POWER ASSIST CLUTCH(S2T)
04.685
(F)
|
8-97147-487-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. POWER ASSIST CLUTCH(S2T)
(G)
|
8-97180-931-2 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
80 |
04.930 PIPE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. POWER ASSIST CLUTCH(S2T),
CHARGEAIR COOLER<6PL>
(G)
|
8-97180-792-2 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
81 |
04.930 PIPE; VAC,VSV
4HF1 ENG(RLS)
AIR CONDITIONER MANUAL CONT(C60)
|
8-97042-256-4 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
81 |
04.930 PIPE; VAC,VSV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97042-256-4 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
81 |
04.930 PIPE; VAC,VSV
4HF1 ENG(RLS)
AIR CONDITIONER MANUAL CONT(C60)
EXC. EXHAUST BRAKE<NF8>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97042-256-4 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
81 |
04.930 PIPE; VAC,VSV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97042-256-4 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
81 |
04.930 PIPE; VAC,VSV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97042-256-5 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
81 |
04.930 PIPE; VAC,VSV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97042-256-5 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
81 |
04.930 PIPE; VAC,VSV
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-97181-226-2 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
81 |
04.930 PIPE; VAC,VSV
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-968-5 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
81 |
04.930 PIPE; VAC,VSV
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-968-5 |
01 |
1 |
9612-9711 |
|
● |
● |
● |
|
|
|
| |
81 |
04.930 PIPE; VAC,VSV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
|
8-97096-968-5 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
82 |
04.931 HOSE; VAC,VSV
4HF1 ENG(RLS)
AIR CONDITIONER MANUAL CONT(C60)
08.962
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
82 |
04.931 HOSE; VAC,VSV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
08.962
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
82 |
04.931 HOSE; VAC,VSV
4HF1 ENG(RLS)
AIR CONDITIONER MANUAL CONT(C60)
EXC. EXHAUST BRAKE<NF8>,FRAME
STRAIGHT TYPE<7KJ>
08.962
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
82 |
04.931 HOSE; VAC,VSV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
08.962
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
82 |
04.931 HOSE; VAC,VSV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
08.962
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
82 |
04.931 HOSE; VAC,VSV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
08.962
L=120
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
08.962
L=1100
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9312-9408 |
|
● |
|
|
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
08.962
L=1150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9409-9506 |
|
● |
|
|
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
08.962
L=1150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
08.962
L=1150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
08.962
L=1150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9607-9705 |
|
● |
● |
|
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
08.962
L=1150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
08.962
L=1150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
4BD2 ENG(RLW)
08.962
L=1150
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
82 |
04.931 HOSE; VAC,VSV
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
08.962
L=960
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
08.962
L=960
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
82 |
04.931 HOSE; VAC,VSV
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
EXC. POWER ASSIST CLUTCH(S2T)
08.962
L=960
SERVICED BY L=3000
|
0-04740-300-0 |
01 |
1 |
9712- |
|
● |
● |
● |
● |
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY)
16.225
(B)
L=200
SERVICED BY L=3060
|
9-65731-223-1 |
01 |
1 |
9803-9803 |
● |
|
|
|
|
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
16.225
(B)
L=200
SERVICED BY L=3060
|
9-65731-223-1 |
01 |
1 |
9803- |
● |
|
|
|
|
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
03.630
(A)
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
AUSTRALIA EQUIPMENT(RR3)
(A)
L=350
SERVICED BY L=3000
|
0-08358-300-0 |
02 |
1 |
9712-9807 |
● |
● |
● |
● |
● |
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
AUSTRALIA EQUIPMENT(RR3)
(A)
L=350
SERVICED BY L=3000
|
0-08358-300-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
03.630
(A)
L=170
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
03.630
(A)
L=170
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
03.630
(A)
L=360
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
03.630
(A)
L=360
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9612-9711 |
|
● |
● |
● |
|
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
FRAME STRAIGHT TYPE<7KJ>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
(A)
L=360
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9712-9801 |
|
● |
● |
● |
● |
|
|
| |
84 |
04.931 PROTECTOR; EDGE,VAC HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
(A)
L=360
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9802- |
|
● |
● |
● |
● |
|
|
| |
85 |
04.931 HOSE; VAC,ENG SIDE
4HF1 ENG(RLS)
|
8-97091-966-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
85 |
04.931 HOSE; VAC,ENG SIDE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97091-966-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
85 |
04.931 HOSE; VAC,ENG SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97091-966-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97108-020-0 |
01 |
1 |
9312-9401 |
|
|
● |
|
|
|
● |
| |

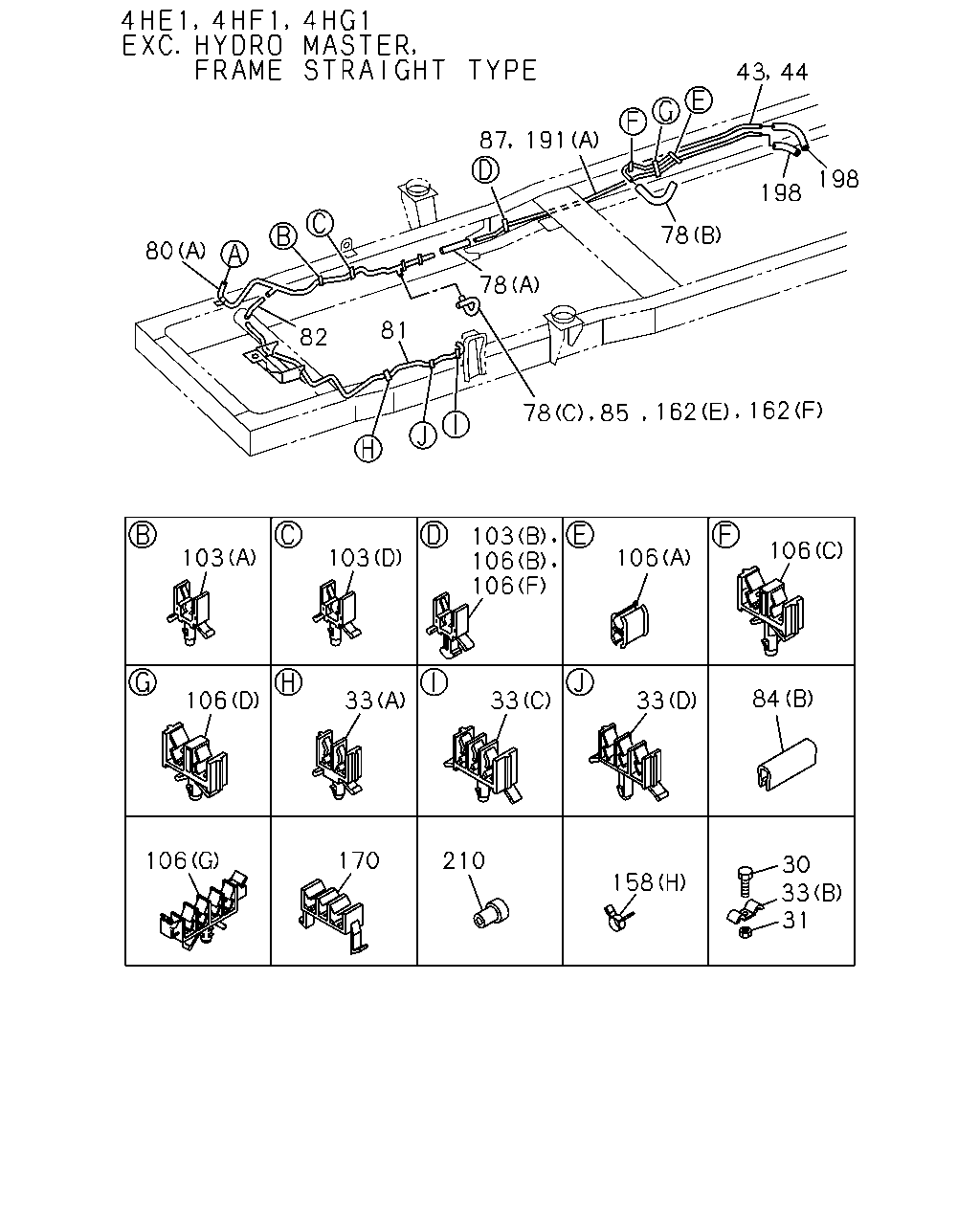

87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97066-125-4 |
01 |
1 |
9402-9510 |
|
|
● |
|
|
|
● |
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97066-125-4 |
01 |
1 |
9511-9607 |
|
|
● |
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97164-750-0 |
01 |
1 |
9608-9711 |
|
|
● |
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97164-750-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97108-021-0 |
01 |
1 |
9312-9401 |
● |
|
|
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97079-375-3 |
01 |
1 |
9402-9711 |
● |
|
|
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97079-375-3 |
01 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
|
8-97073-493-1 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97073-493-1 |
01 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97073-493-1 |
01 |
1 |
9607-9705 |
● |
● |
● |
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BE1 ENG(RLH)
|
8-97073-493-1 |
01 |
1 |
9607-9705 |
|
|
|
|
|
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97073-493-1 |
01 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97073-493-1 |
01 |
1 |
9712- |
● |
● |
● |
|
● |
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
|
8-97073-986-2 |
01 |
1 |
9511-9511 |
|
● |
● |
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
|
8-97142-711-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
|
8-97142-711-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
|
8-97106-948-1 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97106-948-1 |
01 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-97106-948-1 |
01 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97106-948-1 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
8-97106-948-1 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
|
8-97066-123-4 |
01 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
87 |
04.930 PIPE; VAC,ENG TO MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
AUSTRALIA EQUIPMENT(RR3)
|
8-97066-123-4 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9312-9404 |
● |
● |
● |
● |
● |
● |
● |
| |
103 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
02 |
1 |
9312-9404 |
● |
● |
● |
● |
● |
● |
● |
| |
103 |
04.930 CLIP; VAC PIPE
EXHAUST BRAKE<NF8>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9405-9510 |
|
|
|
|
|
|
● |
| |
103 |
04.930 CLIP; VAC PIPE
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9405-9510 |
|
|
|
|
|
|
● |
| |
103 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9405-9510 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9405-9510 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=10 & 6.4 & 4.8
|
8-97064-484-1 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
(A)
ID=10 H=40
|
8-94462-219-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC),4HF1 ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=10 H=40
|
8-94462-219-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=10 H=40
|
8-94462-219-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1
ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=10 H=40
|
8-94462-219-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC)
03.485
(D)
ID=10 H=36
|
8-94249-686-1 |
01 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC)
03.485
(D)
ID=10 H=36
|
8-94249-686-1 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.485
(D)
ID=10 H=36
|
8-94249-686-1 |
01 |
1 |
9511- |
|
● |
|
|
|
|
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC)
06.672
(E)
|
8-94363-358-0 |
01 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC)
06.672
(E)
|
8-94363-358-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
103 |
04.930 CLIP; VAC PIPE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.672
(E)
|
8-94363-358-0 |
01 |
1 |
9511- |
|
● |
|
|
|
|
|
| |
103 |
04.930 CLIP; VAC PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
(F)
ID=10 H=42.5
|
8-94405-140-0 |
02 |
1 |
9312-9404 |
● |
● |
● |
● |
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9405-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9511-9603 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9604-9606 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9607-9705 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
(C)
ID=10 H=45.5
|
8-97017-902-0 |
03 |
1 |
9312-9404 |
● |
● |
● |
● |
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
(C)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9405-9510 |
● |
● |
● |
● |
● |
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9607-9705 |
● |
● |
● |
|
|
|
|
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH)
(C)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9607-9705 |
|
|
|
|
|
● |
|
| |
103 |
04.930 CLIP; VAC PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9706- |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(B)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
|
● |
● |
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 H=45.5
|
8-97017-902-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
06.672
(A)
ID=10X2 H=22
|
8-94252-455-2 |
02 |
1 |
9312-9510 |
● |
|
● |
|
|
|
● |
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
06.672
(A)
ID=10X2 H=22
|
8-94252-455-2 |
02 |
1 |
9511-9711 |
● |
|
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.672
(A)
ID=10X2 H=22
|
8-94252-455-2 |
02 |
1 |
9712- |
● |
|
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(D)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
9312-9510 |
|
|
● |
|
|
|
● |
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
9511-9512 |
|
|
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(C)
ID=10X2 H=47.5
|
8-97018-605-0 |
03 |
1 |
9312-9510 |
|
|
● |
|
|
|
● |
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10X2 H=47.5
|
8-97018-605-0 |
03 |
1 |
9511-9512 |
|
|
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10X2 H=47.5
|
8-97018-605-0 |
02 |
1 |
9601-9711 |
|
|
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10X2 H=47.5
|
8-97018-605-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
(E)
ID=10 H=42.5
|
8-94405-140-0 |
04 |
1 |
9312-9404 |
● |
● |
● |
● |
● |
● |
|
| |
106 |
04.930 CLIP; PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
(E)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9405-9510 |
● |
● |
● |
● |
● |
● |
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9607-9705 |
● |
● |
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH)
(E)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9607-9705 |
|
|
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
ID=10 H=42.5
|
8-94405-140-0 |
01 |
1 |
9706- |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
(B)
ID=10 H=45.5
|
8-97017-902-0 |
02 |
1 |
9405-9510 |
● |
● |
● |
● |
● |
● |
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 H=45.5
|
8-97017-902-0 |
02 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 H=45.5
|
8-97017-902-0 |
02 |
1 |
9607-9705 |
● |
● |
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH)
(B)
ID=10 H=45.5
|
8-97017-902-0 |
02 |
1 |
9607-9705 |
|
|
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 H=45.5
|
8-97017-902-0 |
02 |
1 |
9706- |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(D)
ID=10X2 H=37.5
|
8-97018-546-0 |
03 |
1 |
9312-9510 |
● |
● |
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10X2 H=37.5
|
8-97018-546-0 |
03 |
1 |
9511-9512 |
● |
● |
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
9601-9711 |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
9712- |
● |
● |
● |
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(C)
ID=10X2 H=47.5
|
8-97018-605-0 |
01 |
1 |
9312-9510 |
● |
● |
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10X2 H=47.5
|
8-97018-605-0 |
01 |
1 |
9511-9711 |
● |
● |
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10X2 H=47.5
|
8-97018-605-0 |
01 |
1 |
9712- |
● |
● |
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ>
(F)
ID=10 H=40
|
8-94462-219-0 |
02 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(F)
ID=10 H=40
|
8-94462-219-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(F)
ID=10 H=40
|
8-94462-219-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(F)
ID=10 H=40
|
8-94462-219-0 |
02 |
1 |
9712-9804 |
● |
● |
● |
● |
● |
|
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(F)
ID=10 H=40
|
8-94462-219-0 |
02 |
1 |
9712-9804 |
|
● |
● |
● |
|
|
|
| |
106 |
04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(F)
ID=10 H=40
|
8-94462-219-0 |
02 |
1 |
9805- |
● |
● |
● |
● |
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(F)
ID=10 H=40
|
8-94462-219-0 |
02 |
1 |
9805- |
|
● |
● |
● |
● |
|
|
| |
106 |
04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ>
(G)
ID=10 & 4.8X3
|
8-97103-600-0 |
05 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
06.672
(A)
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
06.672
(A)
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
9511-9711 |
|
● |
|
|
|
● |
|
| |
106 |
04.930 CLIP; PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.672
(A)
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
9712- |
|
● |
|
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
04.930
(H)
ID=16
|
8-94238-568-0 |
09 |
1 |
9312-9407 |
● |
● |
● |
● |
● |
● |
● |
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9408-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9511-9611 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9612-9711 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9712-9801 |
● |
● |
● |
|
● |
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS)
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9712-9801 |
|
|
|
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
04.930
(H)
ID=16
|
8-94238-568-0 |
11 |
1 |
9802- |
|
● |
● |
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
04.930
(H)
ID=16
|
8-94238-568-0 |
03 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>,FRAME
STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
03 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
04.930
(D)
ID=16
|
8-94238-568-0 |
06 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
04.930
(D)
ID=16
|
8-94238-568-0 |
06 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(D)
ID=16
|
8-94238-568-0 |
06 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(D)
ID=16
|
8-94238-568-0 |
06 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9312-9506 |
● |
● |
● |
● |
● |
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH)
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9507-9510 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9607-9611 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9607-9611 |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9607-9611 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9612-9705 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9612-9705 |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9612-9705 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9612-9705 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9706-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9706-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9712- |
● |
|
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9712- |
● |
|
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9712- |
|
● |
|
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4JG2 ENG(RJC),4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=14.5
|
8-94167-480-0 |
03 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXHAUST BRAKE<NF8>
03.630
(E)
ID=18 L=51
|
5-09700-320-0 |
01 |
1 |
9312-9312 |
● |
● |
● |
● |
● |
● |
|
| |
158 |
04.681 CLIP; HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXHAUST BRAKE<NF8>
03.162
(A)
L=140
|
5-09707-031-0 |
02 |
1 |
9312-9312 |
● |
● |
● |
● |
● |
● |
|
| |
158 |
04.681 CLIP; HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXHAUST BRAKE<NF8>
02.559
(A)
L=250
|
5-09707-030-0 |
02 |
1 |
9401-9510 |
● |
● |
● |
● |
● |
● |
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
L=250
|
5-09707-030-0 |
03 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
L=250
|
5-09707-030-0 |
03 |
1 |
9607-9711 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
L=250
|
5-09707-030-1 |
03 |
1 |
9712- |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXHAUST BRAKE<NF8>
04.930
(F)
ID=16
|
8-94238-568-0 |
08 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(F)
ID=16
|
8-94238-568-0 |
08 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(F)
ID=16
|
8-94238-568-0 |
08 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(F)
ID=16
|
8-94238-568-0 |
08 |
1 |
9607-9711 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(F)
ID=16
|
8-94238-568-0 |
08 |
1 |
9607-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.930
(F)
ID=16
|
8-94238-568-0 |
08 |
1 |
9712- |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(F)
ID=16
|
8-94238-568-0 |
08 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXHAUST BRAKE<NF8>
(G)
|
8-94378-486-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
14 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(H)
ID=16
|
8-94238-568-0 |
14 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
04.930
(H)
ID=16
|
8-94238-568-0 |
14 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(H)
ID=16
|
8-94238-568-0 |
14 |
1 |
9712-9801 |
|
● |
● |
● |
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
04.930
(H)
ID=16
|
8-94238-568-0 |
14 |
1 |
9712-9801 |
|
● |
● |
● |
● |
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
04.930
(H)
ID=16
|
8-94238-568-0 |
13 |
1 |
9802-9804 |
|
● |
● |
● |
● |
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
04.930
(H)
ID=16
|
8-94238-568-0 |
13 |
1 |
9802-9804 |
|
● |
● |
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
13 |
1 |
9805- |
● |
|
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
04.930
(H)
ID=16
|
8-94238-568-0 |
13 |
1 |
9805- |
|
● |
● |
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
04.930
(H)
ID=16
|
8-94238-568-0 |
13 |
1 |
9805- |
|
● |
● |
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
04.930
(H)
ID=16
|
8-94238-568-0 |
13 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
03.483
(B)
ID=6
|
8-94144-843-0 |
04 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
03.483
(B)
ID=6
|
8-94144-843-0 |
04 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
03.483
(B)
ID=6
|
8-94144-843-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
03.483
(B)
ID=6
|
8-94144-843-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
09.663
(I)
ID=15
|
1-09709-003-0 |
02 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
09.663
(I)
ID=15
|
1-09709-003-0 |
02 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
L=250
|
5-09707-030-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
L=250
|
5-09707-030-1 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.483
(B)
ID=6
|
8-94144-843-0 |
04 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.483
(B)
ID=6
|
8-94144-843-0 |
04 |
1 |
9607-9705 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.483
(B)
ID=6
|
8-94144-843-0 |
04 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.483
(B)
ID=6
|
8-94144-843-0 |
04 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
03.483
(B)
ID=6
|
8-94144-843-0 |
04 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
M/T MXA5D(RMF)
FRAME STRAIGHT TYPE<7KJ>
02.343
(J)
ID=19 L=20
|
9-09525-832-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4BD2 ENG(RLW)
FLOOR REMOTE SHIFT<M11>
FRAME STRAIGHT TYPE<7KJ>
02.343
(J)
ID=19 L=20
|
9-09525-832-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
06.672
(K)
ID=21
|
8-94242-034-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
158 |
04.681 CLIP; HOSE
06.672
(K)
ID=21
|
8-94242-034-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
06.672
(K)
ID=21
|
8-94242-034-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
158 |
04.681 CLIP; HOSE
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. POWER ASSIST CLUTCH(S2T)
04.930
(H)
ID=16
|
8-94238-568-0 |
10 |
1 |
9802- |
|
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
EXC. AUSTRALIA EQUIPMENT(RR3),POWER
ASSIST CLUTCH(S2T)
(C)
|
8-97040-991-2 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
162 |
04.931 HOSE; VAC
EXC. AUSTRALIA EQUIPMENT(RR3),POWER
ASSIST CLUTCH(S2T)
(C)
|
8-97040-991-2 |
01 |
1 |
9511-9611 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
EXC. AUSTRALIA EQUIPMENT(RR3),POWER
ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>
(C)
|
8-97040-991-2 |
01 |
1 |
9612-9711 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
EXC. AUSTRALIA EQUIPMENT(RR3),POWER
ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>
,HYDRO BRAKE BOOSTER<7QQ>
(C)
|
8-97040-991-2 |
01 |
1 |
9712- |
● |
● |
● |
● |
|
● |
|
| |
162 |
04.931 HOSE; VAC
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
(C)
|
8-97065-311-3 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
162 |
04.931 HOSE; VAC
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
(C)
|
8-97065-311-3 |
01 |
1 |
9511-9611 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO MASTER<7LT>
(C)
|
8-97065-311-3 |
01 |
1 |
9612-9703 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO MASTER<7LT>
(C)
|
8-97178-658-0 |
01 |
1 |
9704-9711 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
FLOOR REMOTE SHIFT<M11>
POWER ASSIST CLUTCH(S2T)
(C)
|
8-97178-658-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
|
| |
162 |
04.931 HOSE; VAC
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
03.630
(A)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
03 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
03.630
(A)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
03 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.630
(A)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
03 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4JG2 ENG(RJC)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.630
(A)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
03 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
AUSTRALIA EQUIPMENT(RR3)
EXC. POWER ASSIST CLUTCH(S2T)
(C)
|
8-97091-963-0 |
01 |
1 |
9312-9711 |
● |
● |
● |
● |
● |
● |
|
| |
162 |
04.931 HOSE; VAC
FLOOR REMOTE SHIFT<M11>
AUSTRALIA EQUIPMENT(RR3)
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER<7QQ>
(C)
|
8-97091-963-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
|
● |
|
| |
162 |
04.931 HOSE; VAC
A/T 4 SPEED-JATCO(RMK)
AUSTRALIA EQUIPMENT(RR3)
EXC. HYDRO BRAKE BOOSTER<7QQ>
(C)
|
8-97091-963-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD1 ENG(LJ6),4BE1 ENG(RLH)
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
162 |
04.931 HOSE; VAC
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD1 ENG(LJ6),4BE1 ENG(RLH)
(A)
L=250
|
8-94449-019-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
162 |
04.931 HOSE; VAC
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=250
|
8-94449-019-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
4BE1 ENG(RLH)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=250
|
8-94449-019-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
AUSTRALIA EQUIPMENT(RR3)
EXC. HYDRO MASTER<7LT>
(L)
|
8-97170-264-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4HE1 ENG(RLY)
AUSTRALIA EQUIPMENT(RR3)
FRAME STRAIGHT TYPE<7KJ>
(L)
|
8-97170-264-0 |
01 |
1 |
9802-9802 |
● |
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(L)
|
8-97206-299-0 |
01 |
1 |
9803- |
● |
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. AUSTRALIA EQUIPMENT(RR3),HYDRO
MASTER<7LT>
(L)
|
8-97148-881-0 |
01 |
1 |
9712-9802 |
● |
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9607-9711 |
● |
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9607-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
03.630
(B)
OD=17.5 L=80
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9607-9611 |
● |
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9607-9611 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9612-9705 |
● |
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9612-9705 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9612-9705 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9706-9711 |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9706-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9706-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(A)
L=60
|
8-94317-763-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
04.681
(D)
L=80
|
8-94458-050-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
04.681
(D)
L=80
|
8-94458-050-0 |
01 |
1 |
9507-9510 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.681
(D)
L=80
|
8-94458-050-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.681
(D)
L=80
|
8-94458-050-0 |
01 |
1 |
9511-9606 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.681
(D)
L=80
|
8-94458-050-0 |
01 |
1 |
9607-9711 |
● |
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
FRAME STRAIGHT TYPE<7KJ>
04.681
(D)
L=80
|
8-94458-050-0 |
01 |
1 |
9607-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4BD2 ENG(RLW)
04.681
(D)
L=80
|
8-94458-050-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
● |
|
| |
162 |
04.931 HOSE; VAC
HYDRO MASTER<7LT>
(I)
|
8-97129-595-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
(I)
|
8-97129-595-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
HYDRO MASTER<7LT>
(I)
|
8-97129-595-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T)
HYDRO MASTER<7LT>
(K)
|
8-97147-494-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
AUSTRALIA EQUIPMENT(RR3)
EXC. HYDRO MASTER<7LT>
(E)
L=130
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
AUSTRALIA EQUIPMENT(RR3)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(E)
L=130
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
AUSTRALIA EQUIPMENT(RR3)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
(E)
L=130
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
03.630
(E)
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
03.630
(E)
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. AUSTRALIA EQUIPMENT(RR3),HYDRO
MASTER<7LT>
03.630
(E)
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. AUSTRALIA EQUIPMENT(RR3),HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
03.630
(E)
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
(E)
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(F)
|
8-97091-966-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
(F)
|
8-97091-966-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(F)
|
8-97091-966-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
(F)
|
8-97091-966-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(F)
|
8-97091-966-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. POWER ASSIST CLUTCH(S2T)
(F)
|
8-97091-966-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(G)
|
8-94491-020-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
POWER ASSIST CLUTCH(S2T)
(G)
|
8-94491-020-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(H)
|
8-97160-896-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
162 |
04.931 HOSE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
POWER ASSIST CLUTCH(S2T)
(H)
|
8-97160-896-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(J)
L=138
|
8-97145-249-0 |
02 |
1 |
9612-9711 |
|
● |
● |
● |
|
|
|
| |
162 |
04.931 HOSE; VAC
HYDRO MASTER<7LT>
(J)
L=138
|
8-97145-249-0 |
02 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
06.672
(B)
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
02 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
02 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
03 |
1 |
9511-9611 |
|
|
● |
|
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
03 |
1 |
9612-9711 |
|
|
● |
|
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
03 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
03 |
1 |
9712- |
|
|
● |
● |
|
|
|
| |
170 |
04.930 CLIP; VAC PIPE
FRAME STRAIGHT TYPE<7KJ>
04.128
(A)
ID=10X2 & 6.4
|
8-97103-601-0 |
04 |
1 |
9712- |
|
|
|
|
● |
|
|
| |
191 |
04.685 PIPE; VAC
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97172-691-2 |
01 |
1 |
9712-9801 |
● |
● |
● |
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
EXC. POWER ASSIST CLUTCH(S2T)
(A)
|
8-97172-691-2 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
● |
|
|
| |
191 |
04.685 PIPE; VAC
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97172-691-2 |
01 |
1 |
9802- |
● |
● |
● |
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HE1 ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97172-691-2 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
|
| |
191 |
04.685 PIPE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97104-170-4 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
|
| |
191 |
04.685 PIPE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(A)
|
8-97104-170-4 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
191 |
04.685 PIPE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97104-170-4 |
01 |
1 |
9712-9801 |
● |
|
|
|
|
|
|
| |
191 |
04.685 PIPE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(A)
|
8-97104-170-4 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
|
| |
191 |
04.685 PIPE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS)
EXC. HYDRO MASTER<7LT>
(A)
|
8-97104-170-4 |
01 |
1 |
9712-9801 |
|
|
|
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(A)
|
8-97104-170-4 |
01 |
1 |
9802- |
● |
● |
● |
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
|
8-97129-539-3 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
191 |
04.685 PIPE; VAC
(B)
|
8-97129-539-3 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
|
8-97129-539-3 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HF1 ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
|
8-97148-203-2 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
191 |
04.685 PIPE; VAC
(C)
|
8-97148-203-2 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
|
8-97148-203-2 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
191 |
04.685 PIPE; VAC
4HF1 ENG(RLS)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(D)
|
8-97147-486-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
|
| |
191 |
04.685 PIPE; VAC
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
POWER ASSIST CLUTCH(S2T)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(D)
|
8-97147-486-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
L=170
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9312-9312 |
|
|
|
|
|
● |
● |
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
03.630
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9511-9711 |
● |
|
|
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS),4HE1 ENG(RLY)
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
L=130
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
L=130
SERVICED BY L=3000
|
0-08358-300-0 |
02 |
1 |
9511-9711 |
● |
|
|
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS),4HE1 ENG(RLY)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=130
SERVICED BY L=3000
|
0-08358-300-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
L=730
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=730
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=730
SERVICED BY L=3000
|
0-08358-300-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
L=720
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
● |
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2
ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
L=720
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
L=720
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
L=720
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9607-9711 |
● |
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4BE1 ENG(RLH),4BD2 ENG(RLW)
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
L=720
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
L=180
SERVICED BY L=3000
|
0-08358-300-0 |
02 |
1 |
9312-9510 |
|
● |
● |
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=180
SERVICED BY L=1000
|
0-08358-100-0 |
02 |
1 |
9511-9711 |
|
● |
● |
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
AUSTRALIA EQUIPMENT(RR3)
EXC. FRAME STRAIGHT TYPE<7KJ>
L=180
SERVICED BY L=1000
|
0-08358-100-0 |
02 |
1 |
9712- |
|
● |
● |
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9312-9312 |
|
● |
● |
|
|
|
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3)
03.630
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9401-9510 |
|
● |
● |
|
|
● |
● |
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9511-9711 |
|
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
EXC. AUSTRALIA EQUIPMENT(RR3),FRAME
STRAIGHT TYPE<7KJ>
03.630
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
02 |
1 |
9712- |
|
● |
● |
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
AUSTRALIA EQUIPMENT(RR3)
L=170
SERVICED BY L=3000
|
0-08358-300-0 |
02 |
1 |
9312-9711 |
|
|
|
|
|
● |
|
| |
198 |
04.931 HOSE; VAC,PIPE TO MAG VLV
4HG1 ENG(RJH),4HF1 ENG(RLS)
AUSTRALIA EQUIPMENT(RR3)
L=170
SERVICED BY L=3000
|
0-08358-300-0 |
02 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
210 |
04.931 RUBBER; CAP
4HF1 ENG(RLS)
EXC. AIR CONDITIONER MANUAL
CONT(C60),EXHAUST BRAKE<NF8>
|
8-97108-680-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
210 |
04.931 RUBBER; CAP
4HF1 ENG(RLS)
EXC. AIR CONDITIONER MANUAL
CONT(C60),EXHAUST BRAKE<NF8>,FRAME STRAIGHT
TYPE<7KJ>
|
8-97108-680-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
|
