8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#34650) — 20 parça

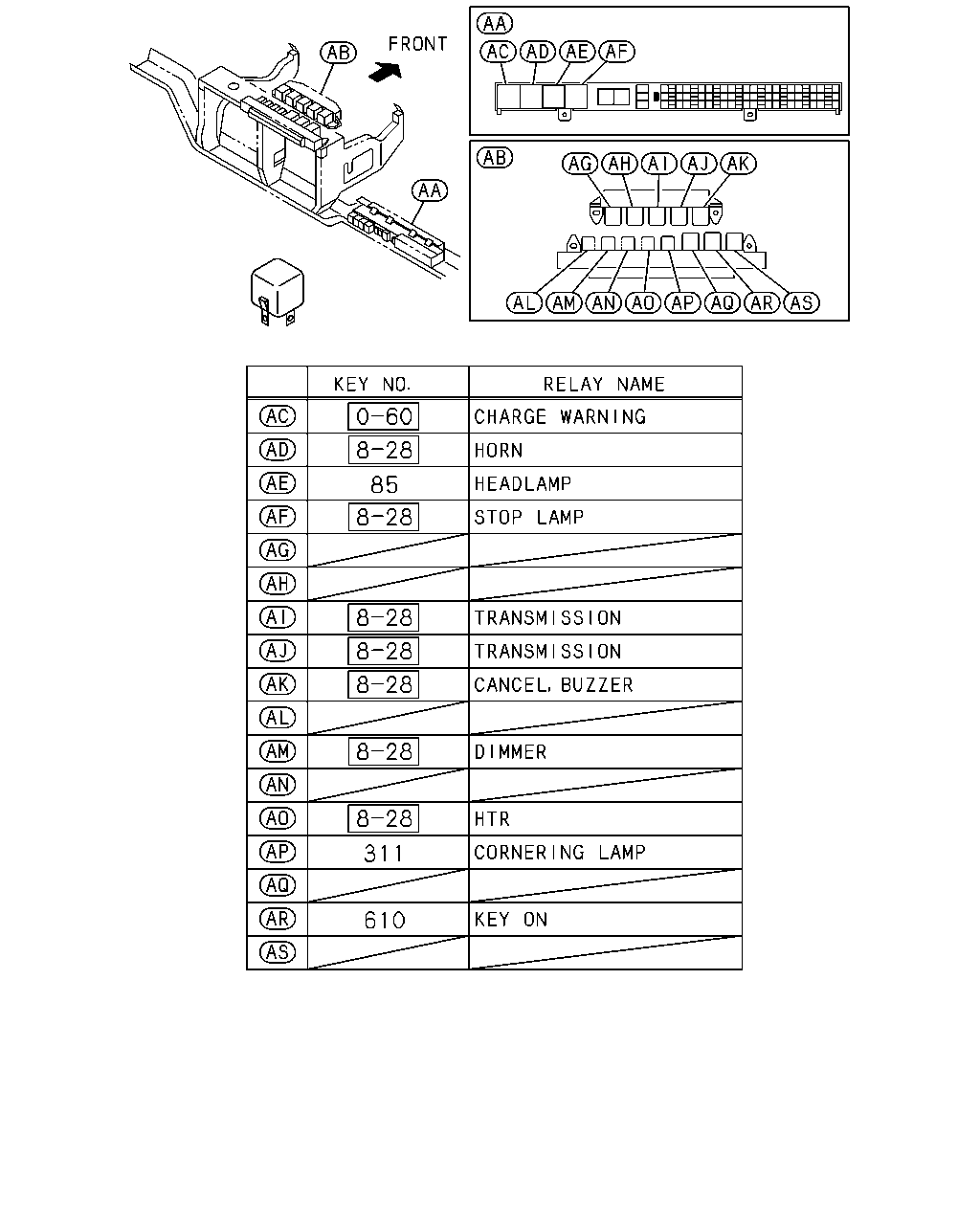

85 311 610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	02.485 RELAY; HEADLAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0612-
311	02.596 RELAY; CORNERING LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0612-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0612-

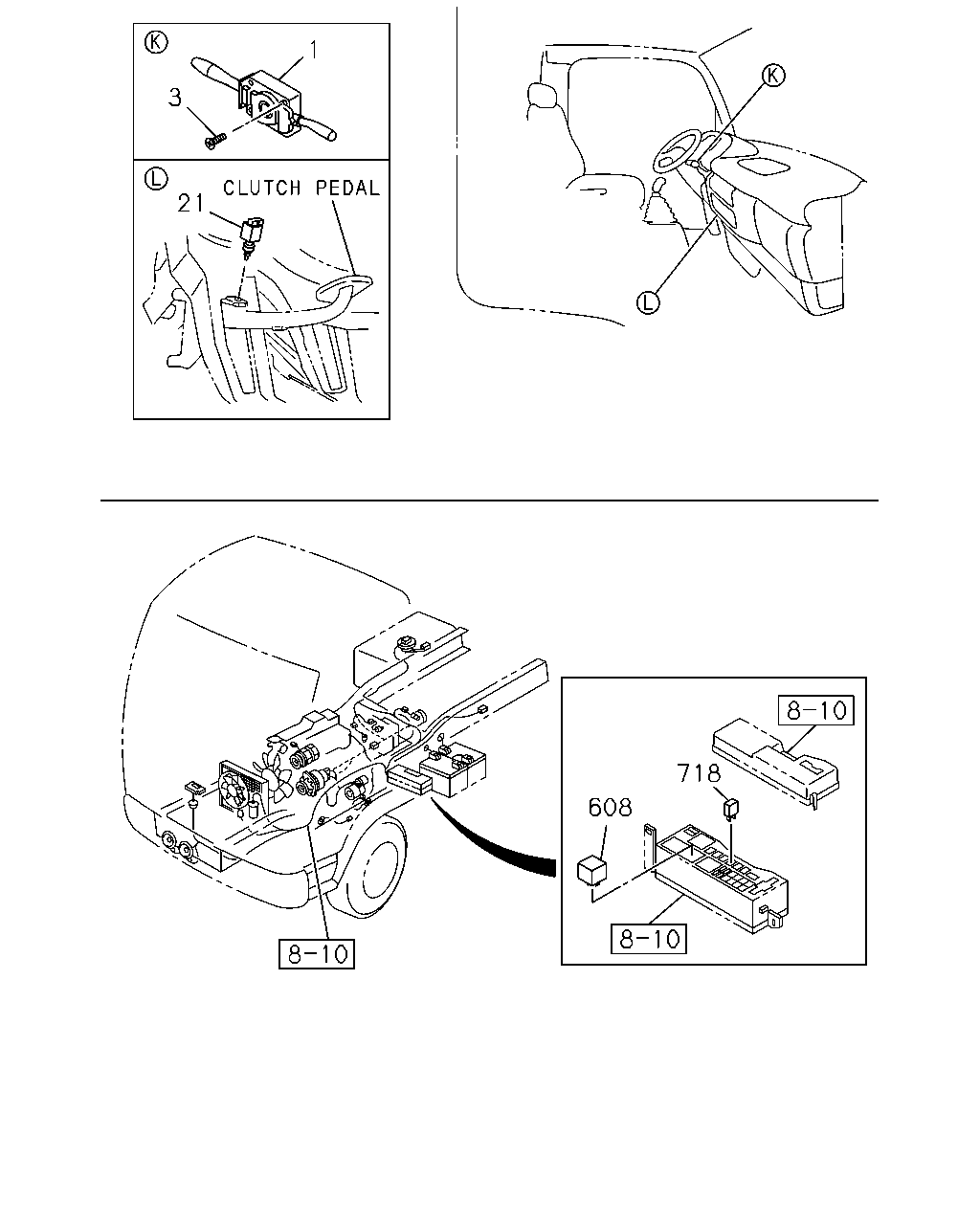

1 3 21 718 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97383-517-0	01	1	0612-
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97383-513-0	01	1	0612-
3	02.897 SCREW; COMB SW M5X20 W/LK WASHER	0-36220-520-0	04	1	0612-0612
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	04	1	0701-
21	02.575 SWITCH; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0612-
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITUBA	8-97238-540-0	01	1	0612-
718	02.510 RELAY; DPD 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0612-

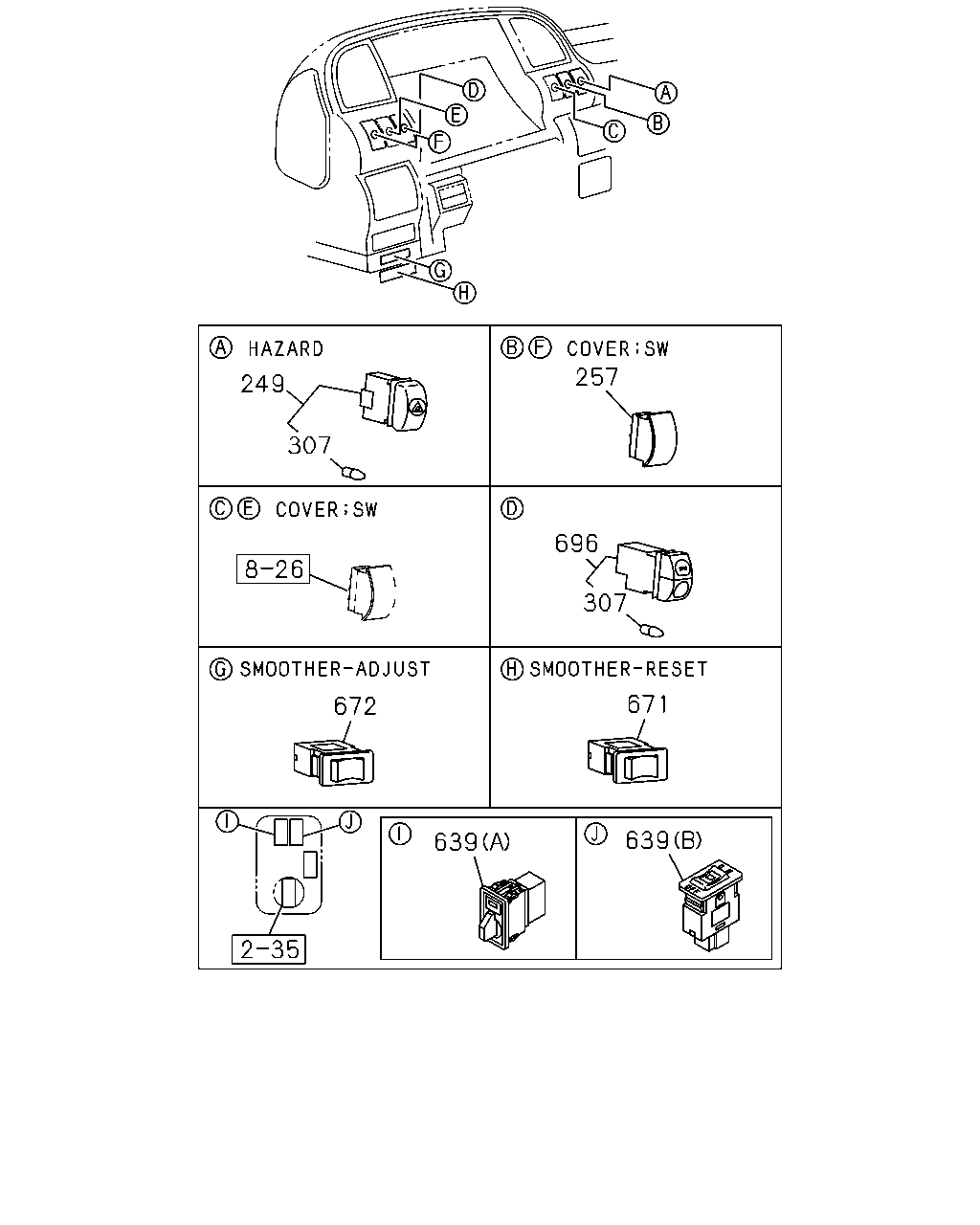

257 249 307 696 307 671 672 639 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
249	02.485 SWITCH; HAZARD	8-97202-475-0	01	1	0612-
257	16.081 COVER; HOLE,SW 09.744	8-97136-694-0	01	1	0612-
257	16.081 COVER; HOLE,SW 09.744	8-97136-694-0	01	1	0612-
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	01	1	0612-
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	02	1	0612-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	1-82350-361-0	01	1	0612-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97331-179-0	01	1	0612-
671	02.895 SWITCH; SMOOTHER,RESET TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263	8-97329-833-0	01	1	0612-
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-781-0	01	1	0612-
696	02.780 SWITCH; DPD	8-97366-763-2	01	1	0612-
