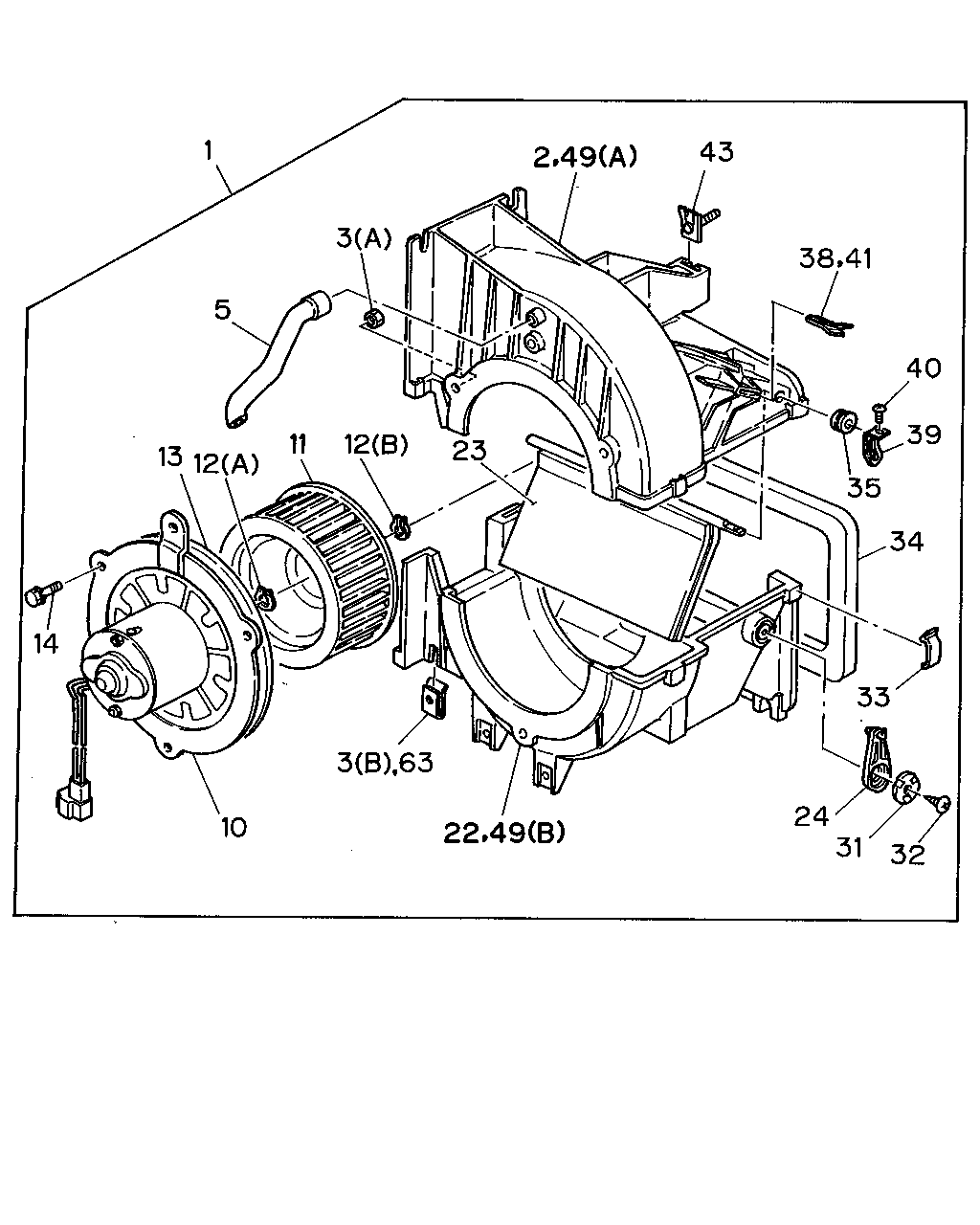

8-73 — BLOWER UNIT (#3465) — 27 parça

1 43 49 2 3 5 23 12 11 12 13 14 10 3 63 22 49 24 31 32 33 34 35 39 40 41 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOWER ASM	1-83561-036-5	01	1	9002-	●	●	●
2	CASE; BLOWER UNIT,FRT	1-83563-102-1	01	1	9002-9306	●	●	●
3	NUT; CASE (B) M6 FLANGE	1-09466-001-0	01	1	9002-9306	●	●	●
3	NUT; CASE (A)	8-94233-154-0	04	1	9002-	●	●	●
5	HOSE; AIR	1-83563-096-0	01	1	9002-	●	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-089-0	01	1	9002-	●	●	●
11	IMPELLER; FAN MOTOR	8-94240-570-0	01	1	9002-	●	●	●
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	9002-	●	●	●
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	9002-	●	●	●
13	LINING; BLOWER UNIT	8-94243-963-0	01	1	9002-	●	●	●
14	SCREW; COVER TO CASE M5X20	5-15719-013-0	04	1	9002-	●	●	●
22	CASE; BLOWER UNIT,RR AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-103-1	01	1	9002-9306	●	●	●
23	SHUTTER; BLOWER UNIT	1-83579-134-1	01	1	9002-	●	●	●
24	LEVER; CASE	1-83564-285-0	01	1	9002-	●	●	●
31	WASHER; LEVER	1-83579-095-0	01	1	9002-	●	●	●
32	SCREW; LEVER M5X14	1-83579-038-0	01	1	9002-	●	●	●
33	CLIP; BLOWER UNIT	1-83574-148-0	05	1	9002-	●	●	●
34	LINING; BLOWER UNIT	1-83579-135-0	01	1	9002-	●	●	●
35	BUSHING; LEVER	1-83576-028-0	01	1	9002-	●	●	●
38	CLIP; BLOWER UNIT	1-83574-149-0	01	1	9307-	●	●	●
39	LEVER; SHUTTER,BLOWER UNIT	1-83564-144-0	01	1	9002-	●	●	●
40	SCREW; LEVER,BLOWER UNIT	5-83571-160-0	01	1	9002-	●	●	●
41	CLIP; SHUTTER	1-83574-149-0	01	1	9002-9306	●	●	●
43	BOLT; CASE	1-83579-092-0	03	1	9002-	●	●	●
49	CASE; BLOWER UNIT (A)	1-83563-102-1	01	1	9307-	●	●	●
49	CASE; BLOWER UNIT (B)	1-83563-103-1	01	1	9307-	●	●	●
63	NUT; CLIP,CASE M6 FLANGE	1-09466-001-0	01	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
