Isuzu WW
▶
TRUCKS
▶
NP
▶
51104 - NP/NQR BUS(LHD)EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#34649) — 39 parça
◀

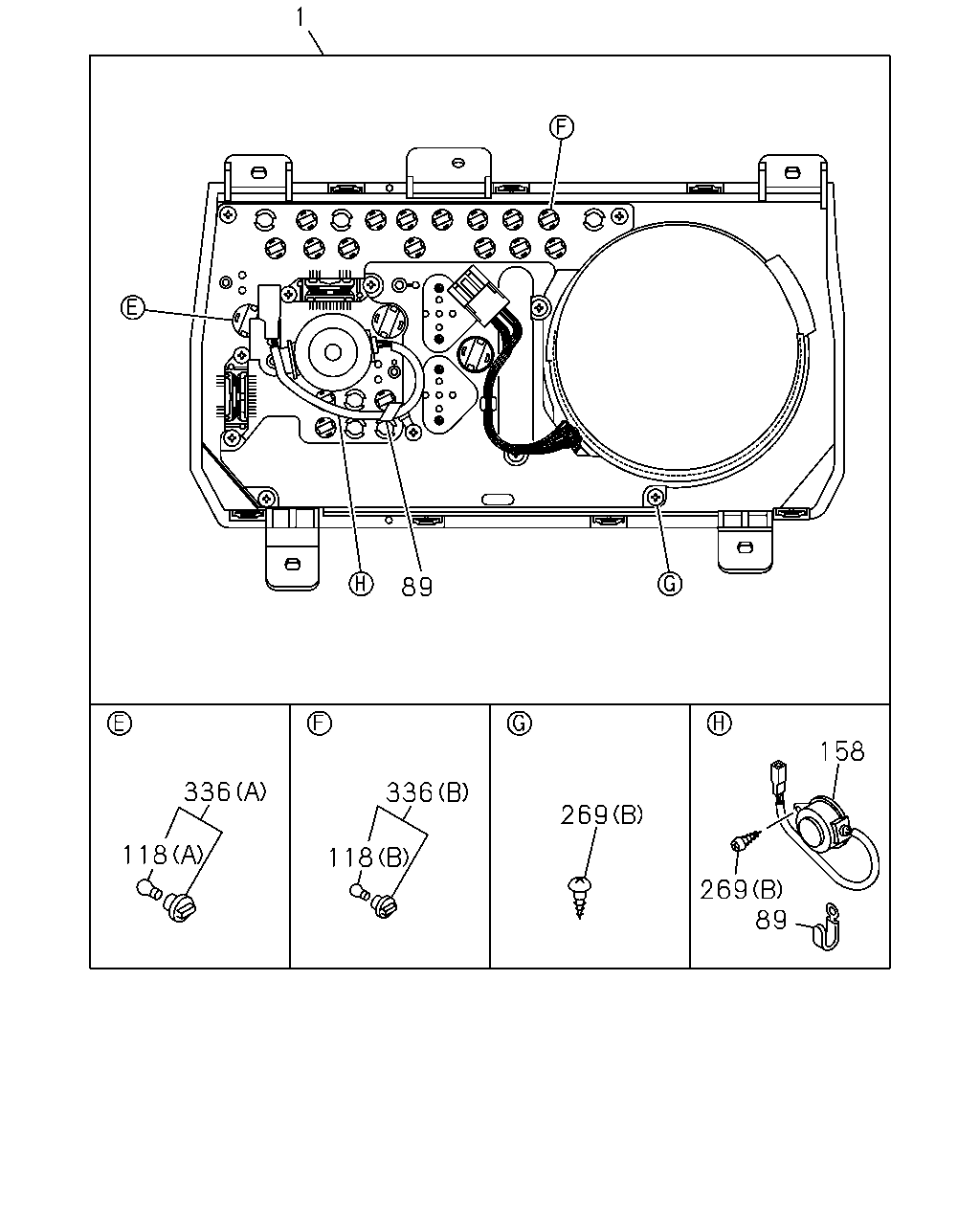

[821A] METER COMPL(NO.2) (10 parça)

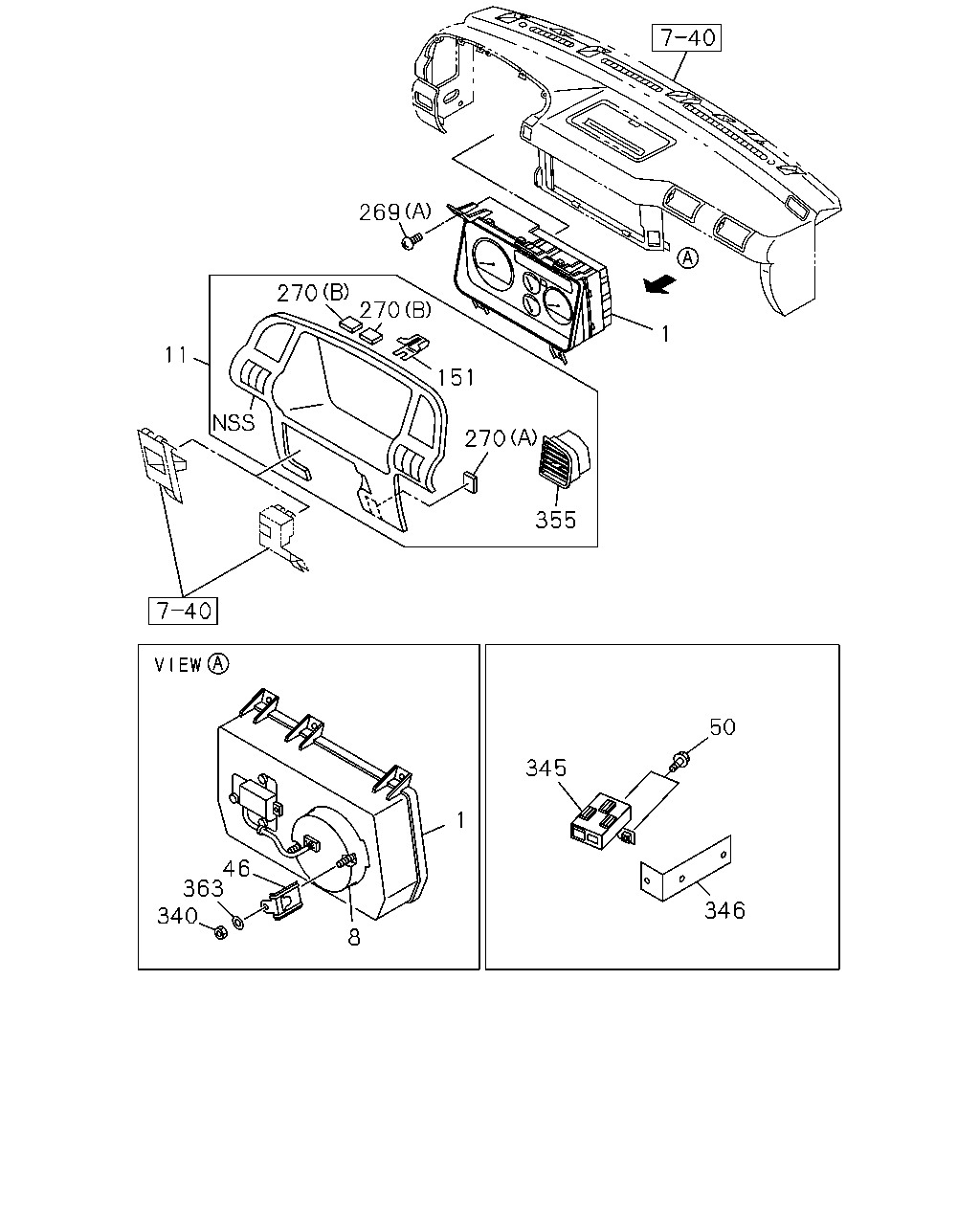

[821A] CLUSTER ASM (17 parça)

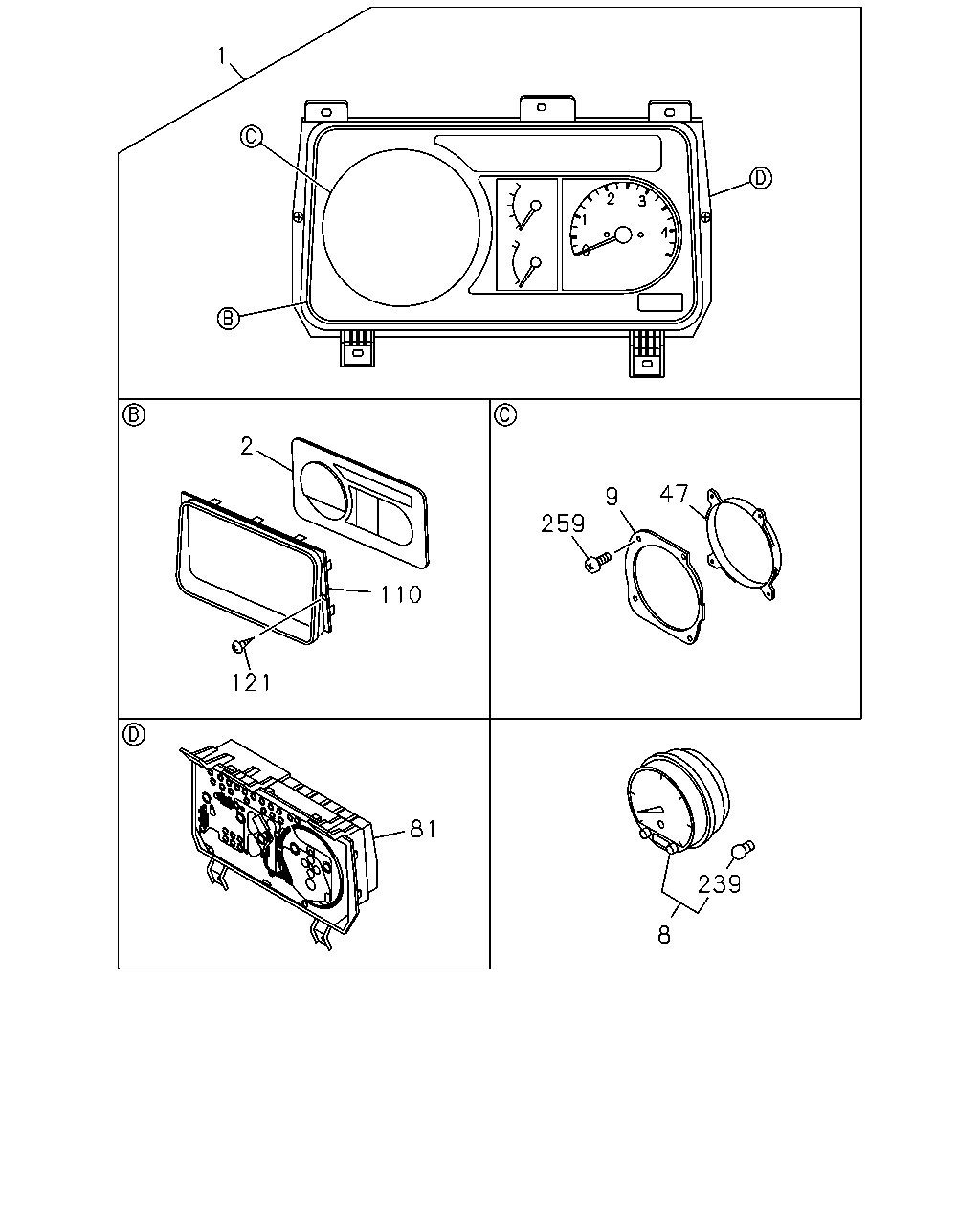

[821A] METER COMPL(NO.1) (12 parça)
▶
1
89
158
336
336
269
118
118
269
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98055-736-0
01
1
0612-
1
09.735 METER COMPL; CLUSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98000-531-1
01
1
0612-
89
09.761 CLIP; HARNESS
8-97253-928-0
01
1
0612-
118
08.991 BULB; CLUSTER METER
(B) 28V 1.8W
8-97305-177-0
18
1
0612-
118
08.991 BULB; CLUSTER METER
(A) 28V 3W
8-97305-178-0
03
1
0612-
158
09.765 BUZZER; VAC WARNING
8-98003-830-0
01
1
0612-
269
09.743 SCREW; METER CLUSTER
08.225 (A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
05
1
0612-
269
09.743 SCREW; METER CLUSTER
08.977 (B)
8-97185-099-0
02
1
0612-
336
02.575 LAMP ASM; WARNING
(B)
8-97185-091-0
18
1
0612-
336
02.575 LAMP ASM; WARNING
(A)
8-97185-093-0
03
1
0612-
270
1
11
151
355
50
345
1
46
363
340
346
8
269
270
270
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98055-736-0
01
1
0612-
1
09.735 METER COMPL; CLUSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98000-531-1
01
1
0612-
8
09.750 TACHOGRAPH; CLUSTER METER
8-97209-426-0
01
1
0612-
11
09.743 CLUSTER ASM; METER
BLACK
8-97195-965-2
01
1
0612-
46
09.743 BRACKET; TACHOGRAPH
8-97096-244-0
01
1
0612-
50
03.342 BOLT; FIX
03.162 M6X20 FLANGE
0-28650-620-0
02
1
0612-
151
09.747 CLIP; METER CLUSTER
8-97217-066-0
07
1
0612-
269
09.743 SCREW; METER CLUSTER
08.225 (A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
05
1
0612-
269
09.743 SCREW; METER CLUSTER
08.977 (B)
8-97185-099-0
02
1
0612-
270
09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5
8-94270-366-2
01
1
0612-
270
09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2
8-94270-378-1
02
1
0612-
340
09.743 NUT; TACHOGRAPH
02.343 M5
0-91110-505-0
02
1
0612-
345
09.743 CONTROL UNIT; TACHOGRAPH
8-98020-896-0
01
1
0612-
346
09.743 BRACKET; CONTROL UNIT
02.679
8-98033-660-0
01
1
0805-
355
09.748 GRILLE; VENT
BLACK
8-97195-967-1
01
1
0612-
355
09.748 GRILLE; VENT
BLACK
8-97195-966-1
01
1
0612-
363
09.744 WASHER; LK,TACHOGRAPH
02.708 ID=5.1
0-91510-505-0
02
1
0612-
2
47
9
259
110
121
81
239
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98055-736-0
01
1
0612-
1
09.735 METER COMPL; CLUSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98000-531-1
01
1
0612-
2
09.735 PANEL; CLUSTER
8-97185-048-0
01
1
0612-
8
09.750 TACHOGRAPH; CLUSTER METER
8-97209-426-0
01
1
0612-
9
09.748 PLATE; BASE,TACHOGRAPH,CLUSTER M
8-97185-102-0
01
1
0612-
47
09.748 COVER; TACHOGRAPH,CLUSTER METER
8-97185-103-0
01
1
0612-
81
09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743
8-98020-258-0
01
1
0612-
81
09.735 METER SUB ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743
8-98020-257-0
01
1
0612-
110
09.748 GLASS; CLUSTER METER
8-97185-046-0
01
1
0612-
121
09.744 SCREW; PANEL FIX,CLUSTER METER
8-97185-100-0
02
1
0612-
239
08.991 BULB; TACHOGRAPH
8-97190-921-0
03
1
0612-
259
09.772 SCREW; TACHOGRAPH
8-97192-556-0
02
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
