8-15 — FIXING PARTS; WIRING HARNESS (#34648) — 121 parça

48 48 16 264 483 16 16 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (B) L=135	1-09987-143-1	01	1	0612-
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	03	1	0612-
16	02.559 CLIP; HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	10	1	0612-
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	02	1	0612-
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	03	1	0612-
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	04	1	0612-
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (D) ID=22 & 22	8-94464-837-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 04.197 (J) ID=32 L=75	1-09700-702-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (G) ID=9	8-97063-874-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.483 (L)	8-97101-436-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (E) ID=33 L=63	1-09700-807-0	05	1	0612-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (I) ID=30 W/STUD	8-97078-642-2	04	1	0612-
48	02.559 CLIP; FRAME HARNESS (H) ID=11 L=50	0-95235-085-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.483 (B) L=450	1-09707-142-1	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	03	1	0612-
48	02.559 CLIP; FRAME HARNESS (F) T=6.0	5-09709-024-0	04	1	0612-
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=20	5-09700-321-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 ID=6 & 10-13	8-97069-515-0	01	1	0612-
483	02.559 CLIP; ENG HARNESS 02.483 ID=20 H=23 L=27	1-09700-861-0	01	1	0612-

16 48 102 16 14 22 220 488 16 205 48 142 16 14 22 48 16 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	01	1	0612-
14	02.559 CLIP; BAND,HARNESS 09.242 (B) L=150	8-97355-273-0	02	1	0612-
16	02.559 CLIP; HARNESS (B) L=135	1-09987-143-1	01	1	0612-
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	03	1	0612-
16	02.559 CLIP; HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	10	1	0612-
16	02.559 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	02	1	0612-
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	03	1	0612-
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	04	1	0612-
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (D) ID=22 & 22	8-94464-837-0	01	1	0612-
22	02.559 CLIP; ENG HARNESS (A) L=250	5-09707-030-1	02	1	0612-
22	02.559 CLIP; ENG HARNESS (B) ID=12	8-97329-630-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 04.197 (J) ID=32 L=75	1-09700-702-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (G) ID=9	8-97063-874-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.483 (L)	8-97101-436-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (E) ID=33 L=63	1-09700-807-0	05	1	0612-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS (I) ID=30 W/STUD	8-97078-642-2	04	1	0612-
48	02.559 CLIP; FRAME HARNESS (H) ID=11 L=50	0-95235-085-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.483 (B) L=450	1-09707-142-1	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	03	1	0612-
48	02.559 CLIP; FRAME HARNESS (F) T=6.0	5-09709-024-0	04	1	0612-
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=20	5-09700-321-0	01	1	0612-
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0612-
102	02.559 CLIP; BAND 03.162 L=140	5-09707-031-1	02	1	0612-
142	02.559 CLIP; HARNESS,ENG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=170.3	1-09987-182-0	01	1	0612-
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0612-
220	02.559 CLIP; HARNESS TO CABLE L=250	5-09707-030-1	01	1	0612-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0612-

150 8 150 150 304 139 8 38 239 386 377 139 150 304 139 19 64 219 294 515 515 294 219 294 469 515 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0612-
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0612-
19	02.559 BOLT; PROTECTOR 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0612-
38	02.559 BOLT; CLIP,HARNESS 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
38	02.559 BOLT; CLIP,HARNESS 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
38	02.559 BOLT; CLIP,HARNESS 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
38	02.559 BOLT; CLIP,HARNESS 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
64	02.559 SCREW; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0612-
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0612-
139	02.559 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0612-
139	02.559 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	0612-
150	02.343 BOLT; CLIP 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0612-
150	02.343 BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	01	1	0612-
150	02.343 BOLT; CLIP (D) M8X16 FLANGE	0-28050-816-0	01	1	0612-
150	02.343 BOLT; CLIP 00.662 (C) M8X14 FLANGE	0-28080-814-0	01	1	0612-
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	0612-
239	02.559 BOLT; GRAND 02.343 M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0612-
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-
294	02.559 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-
294	02.559 NUT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-
304	02.483 BOLT; ENG HARNESS CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-
304	02.483 BOLT; ENG HARNESS CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0612-
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0612-
386	02.559 BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0612-
469	02.559 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0612-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0612-
515	02.559 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0612-
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-

7 7 7 53 53 53 53 53 53 412 412 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (A)	8-97094-992-1	01	1	0612-
7	02.559 BRACKET; CONNECTOR (B)	8-98003-671-1	01	1	0612-
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98019-630-0	01	1	0612-
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97373-532-2	01	1	0612-0612
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0612-
53	02.483 BRACKET; HARNESS (E)	8-98003-050-0	01	1	0612-
53	02.483 BRACKET; HARNESS (F)	8-98039-606-0	01	1	0612-
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0612-
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-060-0	01	1	0612-
53	02.483 BRACKET; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97352-527-0	01	1	0612-
412	02.559 BRACKET; HARNESS,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-059-1	01	1	0612-
412	02.559 BRACKET; HARNESS,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-451-1	01	1	0612-
504	02.559 PROTECTOR; HARNESS 03.008 L=80	5-22439-006-0	01	1	0612-
504	02.559 PROTECTOR; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80	5-22439-006-0	01	1	0612-
504	02.559 PROTECTOR; HARNESS 03.008 L=80	5-22439-006-0	01	1	0612-
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0612-
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0612-
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0612-
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0612-
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	02	1	0612-

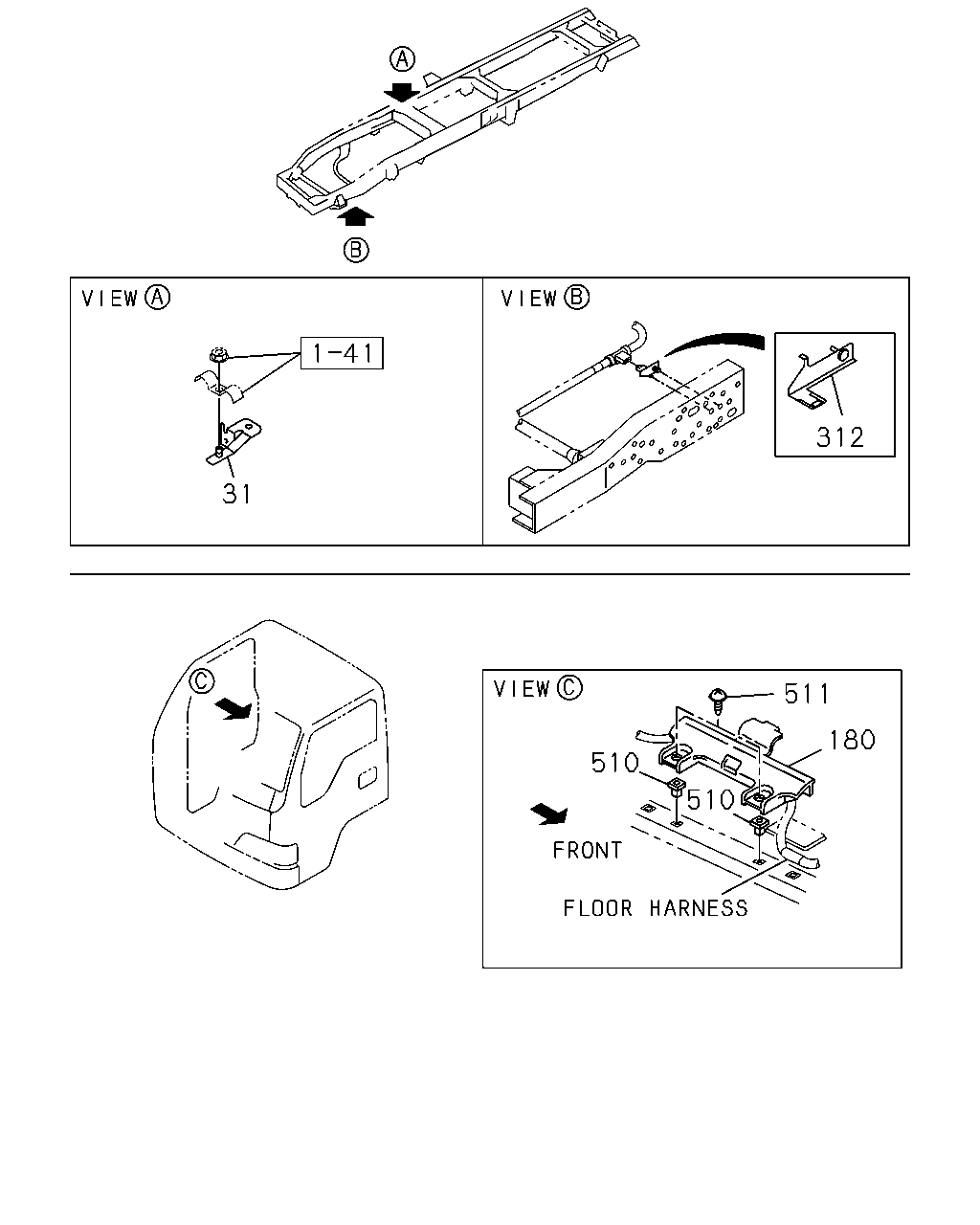

312 31 511 180 510 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	02.559 BRACKET; HARNESS CLIP,PIPE L=47	8-97042-635-0	01	1	0612-
31	02.559 BRACKET; HARNESS CLIP,PIPE L=73	8-97077-845-0	02	1	0612-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0612-
312	02.559 BRACKET; CLIP HARNESS	8-97017-072-2	01	1	0612-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0612-
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0612-0702
511	02.559 SCREW; HARNESS COVER 04.681 M5X12 TAPPING	0-72180-512-0	04	1	0703-
