51104 - NP/NQR BUS(LHD)EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

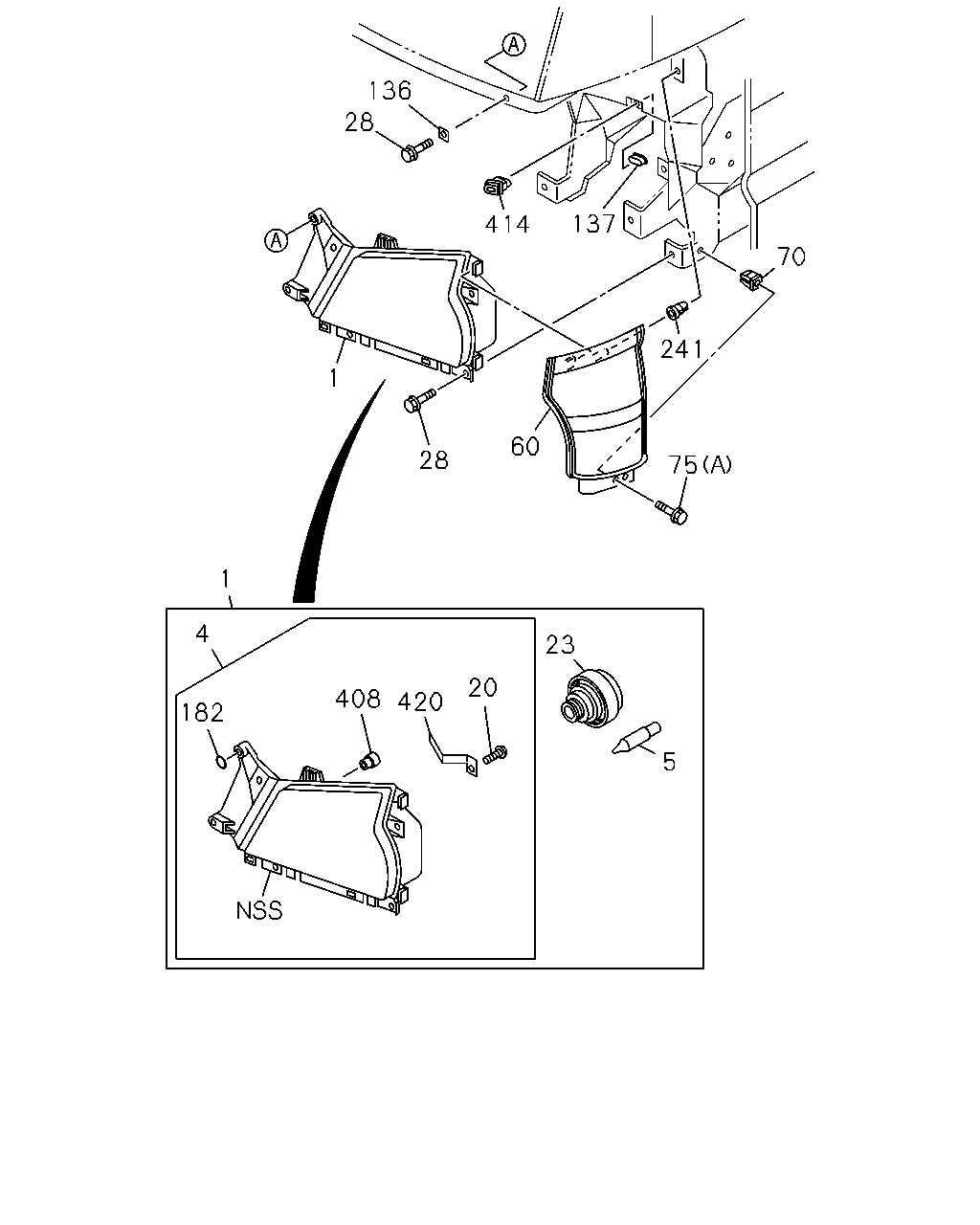

8-01 — LAMP; FRONT AND FRONT SIDE
(#34645) — 36 parça
◀
[801A] COMPONENT;FRT COMB (14 parça)
[801A] FIXING AND HEADLAMP ASM (22 parça)
▶
60
76
67
75
93
75
315
419
68
68
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
02.585 LAMP ASM; FRT COMB
8-98010-892-0
01
1
0612-
60
02.585 LAMP ASM; FRT COMB
8-98010-891-0
01
1
0612-
67
02.590 GASKET; FRT COMB LAMP
8-97378-948-0
02
1
0612-
68
08.991 BULB; FRT COMB LAMP
(A) 24V 21/5W
8-94125-957-0
02
1
0612-
68
08.991 BULB; FRT COMB LAMP
(B) 24V 21W AMBER
8-97323-806-0
02
1
0612-
75
02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING
8-97374-995-0
02
1
0612-
75
02.587 SCREW; FRT COMB LAMP
(B) M4X12
8-97378-944-0
14
1
0612-
76
02.589 LENS; FRT COMB LAMP
8-97378-966-0
01
1
0612-
76
02.589 LENS; FRT COMB LAMP
8-97378-965-0
01
1
0612-
93
02.892 BRACKET; SIDE COMB LAMP
8-97378-945-0
01
1
0612-
93
02.892 BRACKET; SIDE COMB LAMP
8-97378-943-0
01
1
0612-
315
02.596 HARNESS; FRT COMB LAMP
8-98010-916-0
02
1
0612-
419
02.589 LENS; INNER,FRT COMB LAMP
8-97378-947-0
01
1
0612-
419
02.589 LENS; INNER,FRT COMB LAMP
8-97378-946-0
01
1
0612-
136
28
414
137
70
241
75
60
28
1
1
4
182
408
420
20
23
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.725 LAMP ASM; HEAD
8-97376-898-2
01
1
0612-0701
1
02.725 LAMP ASM; HEAD
8-98053-914-0
01
1
0702-
1
02.725 LAMP ASM; HEAD
8-97376-897-2
01
1
0612-0701
1
02.725 LAMP ASM; HEAD
8-98053-913-0
01
1
0702-
4
02.727 HEADLAMP UNIT
8-98009-823-0
01
1
0612-
4
02.727 HEADLAMP UNIT
8-98009-822-0
01
1
0612-
5
02.727 BULB; HEADLAMP
24V 75/70W
1-82194-063-0
02
1
0612-
20
02.736 SCREW; HEADLAMP
8-97378-871-0
02
1
0612-
23
02.727 COVER; BULB,HEADLAMP
8-97232-491-0
02
1
0612-
28
02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER
8-98031-842-0
08
1
0612-
60
02.585 LAMP ASM; FRT COMB
8-98010-892-0
01
1
0612-
60
02.585 LAMP ASM; FRT COMB
8-98010-891-0
01
1
0612-
70
02.587 GROMMET; SCREW,FRT COMB LAMP
16.445
1-09983-081-0
02
1
0612-
75
02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING
8-97374-995-0
02
1
0612-
75
02.587 SCREW; FRT COMB LAMP
(B) M4X12
8-97378-944-0
14
1
0612-
136
02.726 SEAL; HEADLAMP
03.602 25X25
8-94272-533-0
02
1
0612-
137
02.726 GROMMET; HEADLAMP
8-97581-666-0
02
1
0612-
182
02.722 GASKET; HEADLAMP
8-97378-869-0
02
1
0612-
241
02.726 GROMMET; FRT LAMP
8-97380-030-0
02
1
0612-
408
02.727 CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
0612-
414
02.736 PIN; HEADLAMP,RIM
8-97581-667-0
02
1
0612-
420
02.737 SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
0612-
