7-40 — INSTRUMENT PANEL AND BOX (#34639) — 75 parça

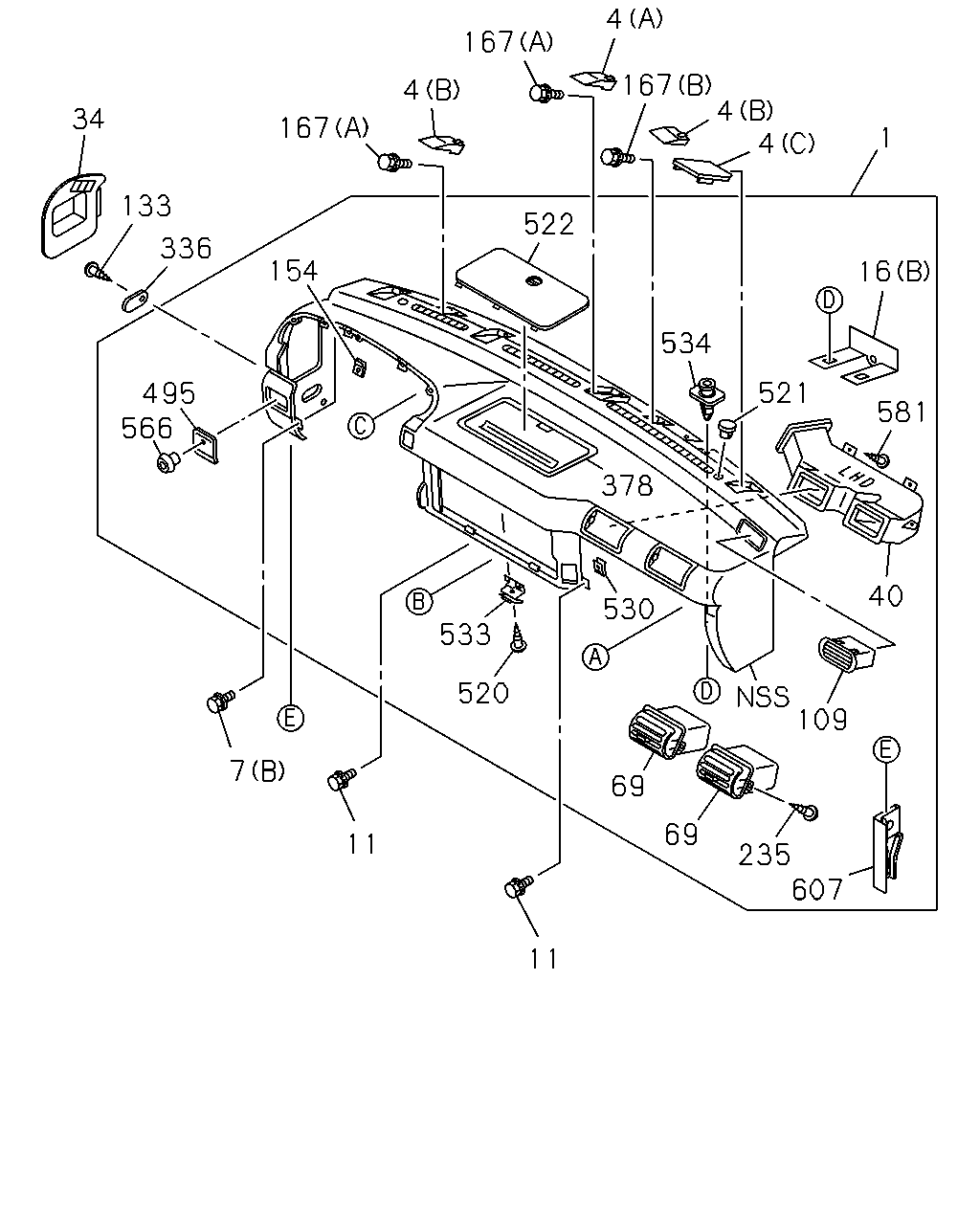

çizim 55872
1 4 4 167 4 167 4 167 34 133 336 154 522 534 521 16 581 40 109 530 378 495 566 533 520 69 69 235 607 11 11 7
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK GRAY 		8-97585-435-1 01 1 0612-
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0612-
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0612-
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0612-
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0612-
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0612-
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0612-
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0612-
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0612-
16 16.085 BRACKET; INST PNL
(A) 		8-98012-981-1 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0612-
34 16.085 LID; OIL TANK
FORGED AIR VENTILATION(C39) 16.081 DARK GRAY 		8-97585-448-4 01 1 0612-
34 16.085 LID; OIL TANK
EXC. FORGED AIR VENTILATION(C39) DARK GRAY 		8-97585-433-5 01 1 0612-
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-699-0 01 1 0612-
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0612-
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 0612-
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0612-0612
133 16.081 SCREW; COVER,INST PNL
09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0612-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0612-
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 0612-
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0612-
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 0612-
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0612-
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 0612-
495 09.743 BEZEL; SW
DARK GRAY 		8-97582-214-4 01 1 0612-
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 0612-
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0612-
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0612-
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 0612-
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0612-
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 0612-
566 16.085 PLUG; HOLE
DARK GRAY 		8-97582-247-0 01 1 0612-
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 0612-
607 16.085 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 0612-

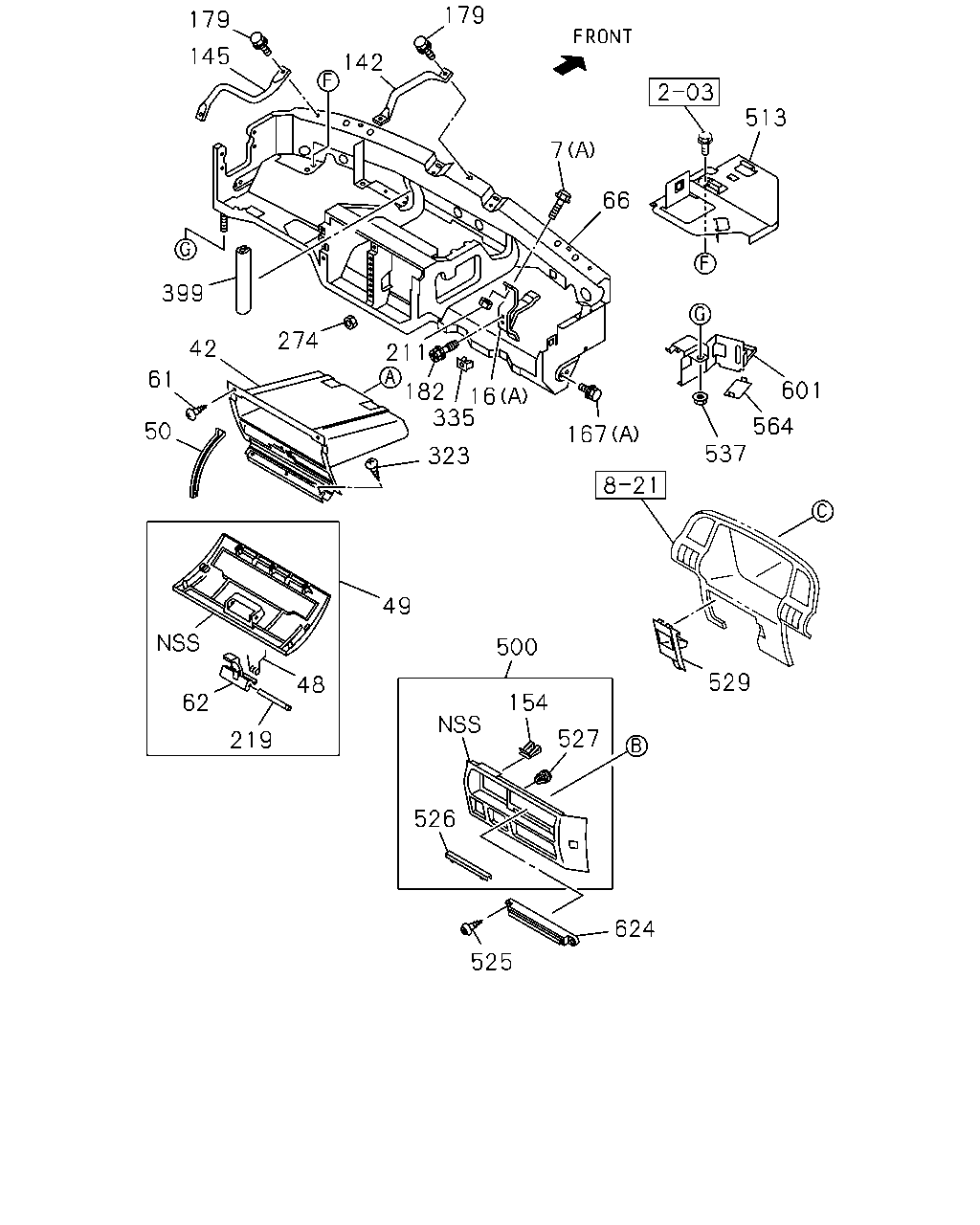

çizim 58616
179 145 142 179 7 66 513 601 564 537 167 16 323 335 182 211 274 399 61 42 50 62 219 48 49 500 529 527 154 526 525 624
BalonParca AdiParca NoAdetTipApplied Date
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0612-
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0612-
16 16.085 BRACKET; INST PNL
(A) 		8-98012-981-1 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0612-
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0612-
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0612-
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0612-
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 0612-
61 16.100 SCREW; GLOVE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0612-0612
61 16.100 SCREW; GLOVE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0612-
66 16.085 REINFORCEMENT; INST PANEL 8-98021-526-1 01 1 0612-
142 16.085 STAY; INST PANEL 8-97856-460-2 01 1 0612-
145 16.085 STAY; INST PANEL SIDE 8-97856-461-3 01 1 0612-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0612-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0612-
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 0612-
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0612-
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0612-
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0612-
211 16.120 NUT; BRKT TO INST
01.062 M6 FLANGE 		0-91180-106-0 02 1 0612-
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0612-
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 0612-
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 0612-0612
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0612-
399 16.085 FINISHER; HARNESS
03.885 L=50 		8-94270-377-1 01 1 0612-
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97585-434-8 01 1 0612-
513 16.120 BRACKET; RELAY 8-97410-713-2 01 1 0612-
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 0612-0612
525 16.100 SCREW; CUP STAND
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0612-
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0612-
529 16.100 POCKET; COIN
BLACK 		8-97867-543-5 01 1 0612-
537 16.085 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
564 16.081 COVER; SW
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97856-401-3 01 1 0612-
601 16.085 BRACKET; SW
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97583-896-2 01 1 0612-
624 16.085 COVER; CUP STAND 1-72438-139-1 01 1 0612-
