8-65 — CONTROL LEVER; HEATER AND AIR CON (#3463) — 20 parça

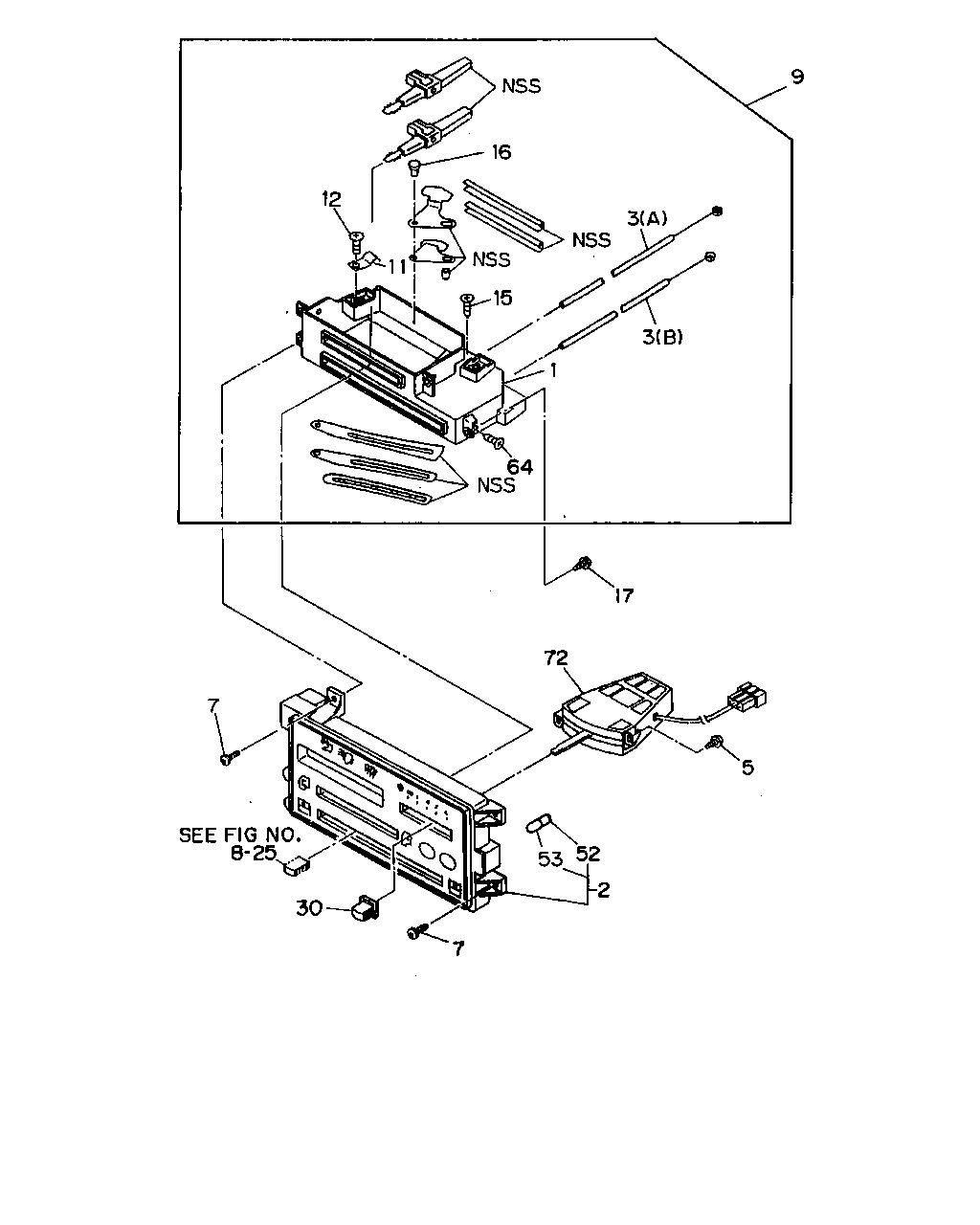

çizim 36141
9 16 12 11 15 3 3 1 64 17 72 5 52 2 53 7 30 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LEVER SUB ASM; HTR CONT 1-83519-040-0 01 1 9002- ● ● ●
2 PANEL ASM; CONT,ILLUMINATION 1-72410-149-1 01 1 9002- ● ● ●
3 CABLE; HTR CONT LVR
(A) FRESH RECIRCULATION CONT 		1-83519-045-0 01 1 9002- ● ● ●
3 CABLE; HTR CONT LVR
(B) HOT COOL CONT 		1-83519-046-0 01 1 9002- ● ● ●
5 SCREW; FAN SW
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ●
7 SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9002- ● ● ●
9 LEVER ASM; HTR & A/C CONT 1-83513-082-2 01 1 9002- ● ● ●
11 CLIP; CABLE,HTR CONT LVR 1-83519-034-0 02 1 9002- ● ● ●
12 SCREW; CABLE CLIP,HTR CONT LVR 1-83519-038-0 02 1 9002- ● ● ●
15 SCREW; HTR CONT LVR CLIP 1-83519-036-0 06 1 9002- ● ● ●
16 PIN; HTR CONT LVR 1-83519-039-0 02 1 9002- ● ● ●
17 SCREW; CONT LEVER,HTR
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9002- ● ● ●
30 KNOB; FAN SW 1-82346-067-0 03 1 9002- ● ● ●
52 BULB; PANEL ILLUMINATION
24V1.2W WO/FILTER 		1-82194-027-0 04 1 9002-9103 ● ● ●
52 BULB; PANEL ILLUMINATION
24V1.2W WO/FILTER 		1-82194-027-0 01 1 9104- ● ● ●
52 BULB; PANEL ILLUMINATION
24V1.2W GREEN FILTER 		1-82194-045-0 02 1 9104- ● ● ●
52 BULB; PANEL ILLUMINATION
24V1.2W BLUE FILTER 		1-82194-046-0 01 1 9104- ● ● ●
53 COVER; COLLAR
GREEN 		1-82199-001-0 02 1 9002-9103 ● ● ●
64 SCREW; PANEL,HTR CONT LVR 1-83519-041-0 04 1 9307- ● ● ●
72 SWITCH; FAN MOTOR 1-82360-236-0 01 1 9002- ● ● ●
