◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51104 - NP/NQR BUS(LHD)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#34628) — 16 parça

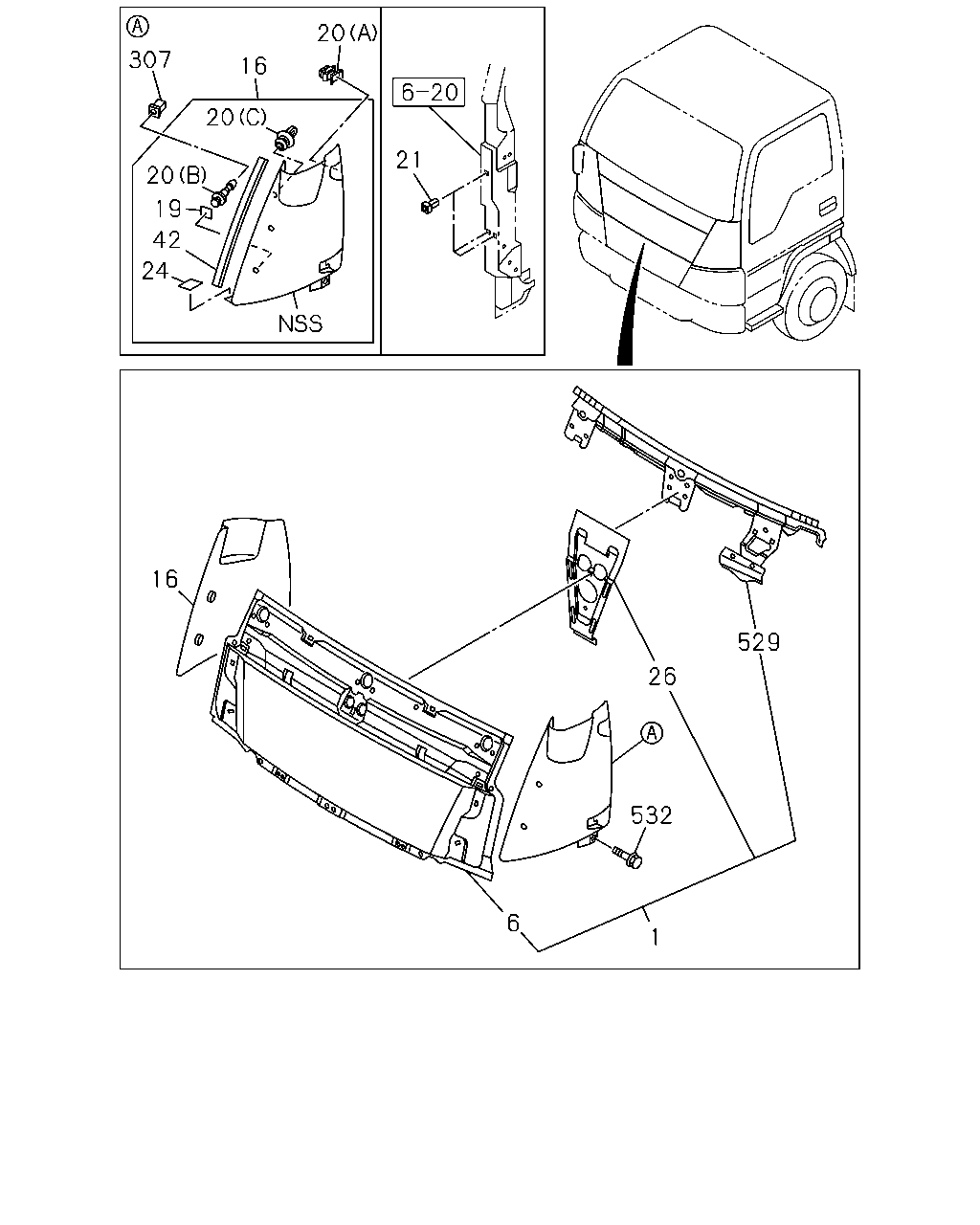

çizim 58492
21 20 16 307 20 20 19 42 24 16 532 26 529 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT 8-97583-956-0 01 1 0612-
6 16.570 PANEL; FRONT 8-97583-957-1 01 1 0612-
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97585-430-4 01 1 0612-
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97585-428-4 01 1 0612-
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0612-
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0612-
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0612-
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0612-
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0612-
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0612-
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0612-
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0612-
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0612-
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0612-
529 16.578 REINFORCEMENT; PANEL 8-97851-407-2 01 1 0612-
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
