5-20 — BATTERY CARRIER (#34625) — 28 parça

26 52 52 51 42 43 40 45 37 29 35 45 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0612-
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0612-
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26R<6KC> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0612-
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-97134-838-0	01	1	0612-0706
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-98091-497-0	01	1	0707-
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>	8-97384-068-2	01	1	0612-0612
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>	8-97384-067-2	01	1	0701-
40	02.335 CLAMP; BATTERY BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0612-
42	02.334 NUT; CLAMP BATTERY 80D26R<6KC> M8	0-91110-508-0	02	1	0612-
43	02.334 WASHER; PL,CLAMP BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0612-
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0612-
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>	9-53616-615-0	02	1	0612-
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0612-
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>	8-97120-747-0	01	1	0612-
52	02.335 NUT; WING,COVER FIX BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0612-

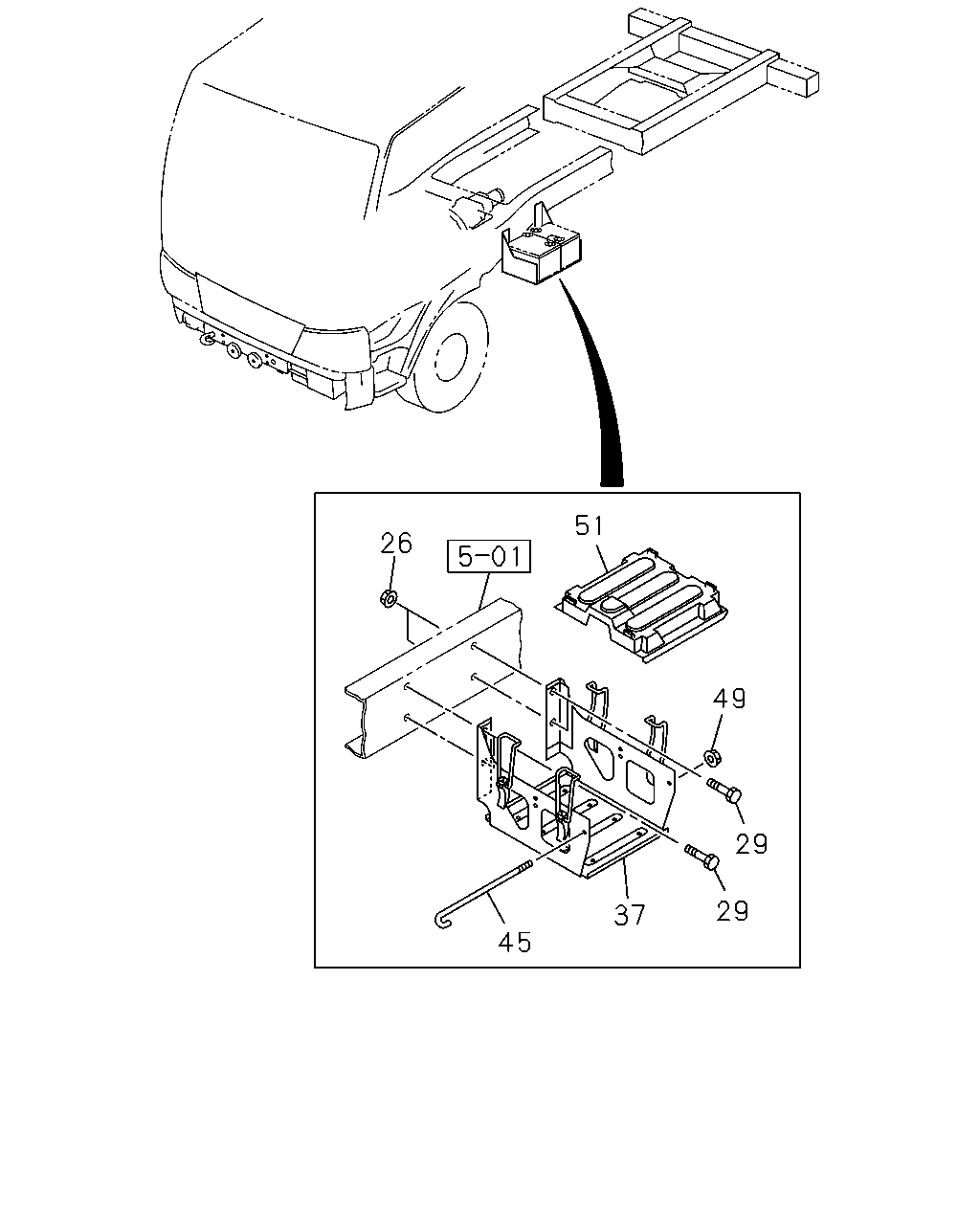

26 51 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0612-
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0612-
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-97134-838-0	01	1	0612-0706
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-98091-497-0	01	1	0707-
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>	8-97384-068-2	01	1	0612-0612
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>	8-97384-067-2	01	1	0701-
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0612-
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>	9-53616-615-0	02	1	0612-
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0612-
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>	8-97120-747-0	01	1	0612-
