5-01 — FRAME AND OTHER PARTS (#34622) — 85 parça

376 376 376 376 376 376 376 376 376 376 376 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRAME PRESS KOUGYOU<7RZ> 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0612-0703
176	04.085 BOLT; C/MBR,ENG MTG 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0704-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> 07.395 (A) D8X26 TAPER END	9-06750-826-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> (B) D10X24 TAPER END	9-06751-024-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> (C) D10X26 TAPER END	9-06751-026-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> (D) D10X28 TAPER END	9-06751-028-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> (E) D10X32 TAPER END	9-06751-032-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> (F) D10X36 TAPER END	9-06751-036-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> (G) D11X26 TAPER END	9-06751-126-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> (H) D11X30 TAPER END	9-06751-130-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> 07.428 (J) D12X36 TAPER END	9-06751-236-0	AR	1	0612-
376	07.039 RIVET; FRAME EXC. FRAME PRESS KOUGYOU<7RZ> 07.112 (K) D12X40 TAPER END	9-06751-240-0	AR	1	0612-

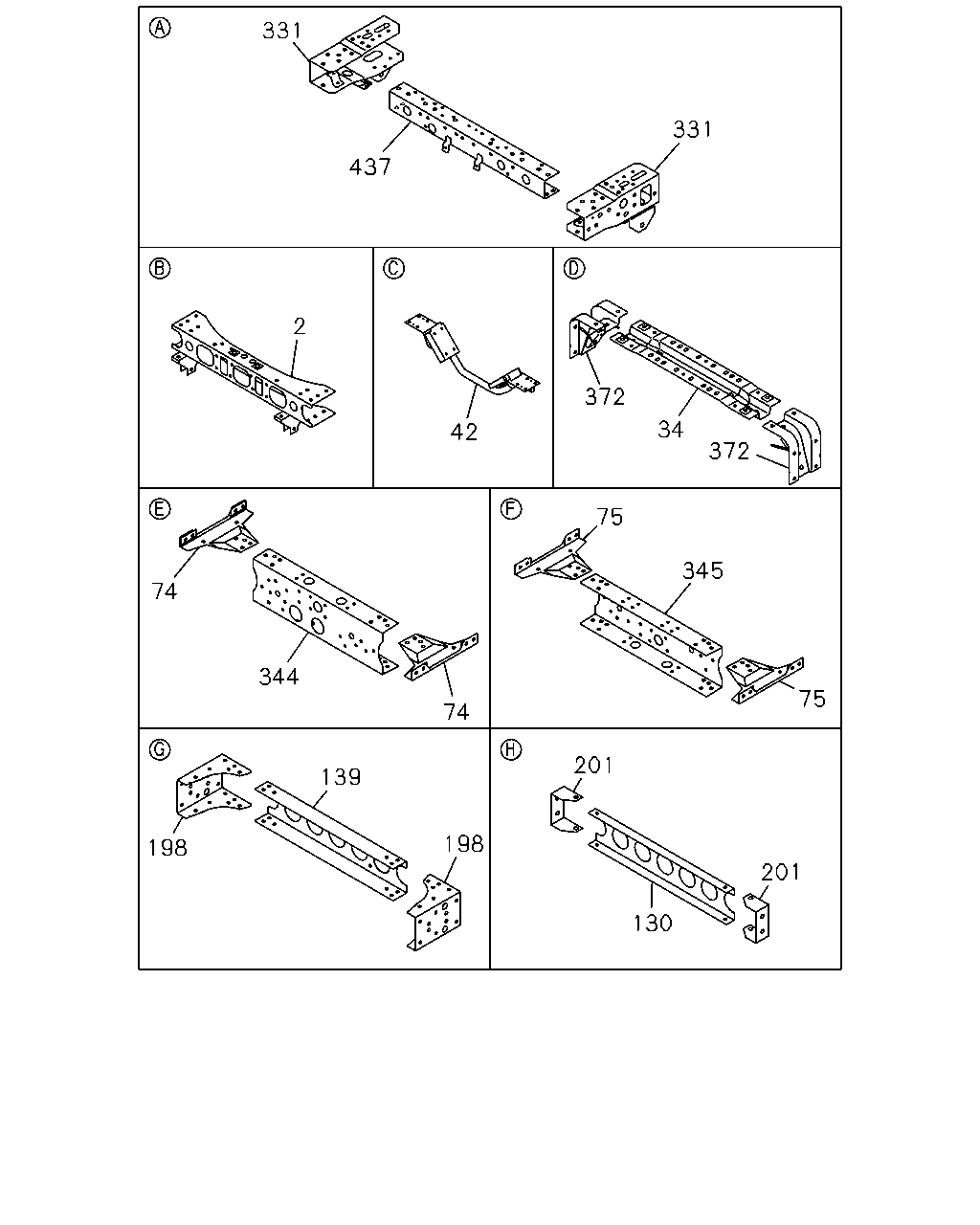

331 31 437 2 42 372 34 372 75 345 75 74 344 74 198 139 198 201 130 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.010 MEMBER; CROSS,1ST EXC. FRAME PRESS KOUGYOU<7RZ>	8-97080-862-4	01	1	0612-0703
2	07.010 MEMBER; CROSS,1ST	8-97080-862-4	01	1	0704-
31	07.428 BUSHING; FRT SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ> 07.524	8-97184-699-1	04	1	0612-0703
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0704-
34	07.012 MEMBER; CROSS,3RD EXC. FRAME PRESS KOUGYOU<7RZ> 07.010	8-97096-875-2	01	1	0612-0703
34	07.012 MEMBER; CROSS,3RD 07.010	8-97096-875-2	01	1	0704-
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRAME PRESS KOUGYOU<7RZ>	8-97080-868-0	01	1	0612-0703
42	07.011 MEMBER; CROSS,ENG MTG	8-97080-868-0	01	1	0704-
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> UPPER	8-97080-878-0	01	1	0612-0703
74	07.039 GUSSET; 4TH C/MBR UPPER	8-97080-878-0	01	1	0704-
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> LOWER	8-97118-876-1	01	1	0612-0703
74	07.039 GUSSET; 4TH C/MBR LOWER	8-97118-876-1	01	1	0704-
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> UPPER	8-97109-777-0	01	1	0612-0703
74	07.039 GUSSET; 4TH C/MBR UPPER	8-97109-777-0	01	1	0704-
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> LOWER	8-97118-875-1	01	1	0612-0703
74	07.039 GUSSET; 4TH C/MBR LOWER	8-97118-875-1	01	1	0704-
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> LOWER	8-97080-878-0	01	1	0612-0703
75	07.039 GUSSET; 5TH C/MBR LOWER	8-97080-878-0	01	1	0704-
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> UPPER	8-97118-876-1	01	1	0612-0703
75	07.039 GUSSET; 5TH C/MBR UPPER	8-97118-876-1	01	1	0704-
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> LOWER	8-97109-777-0	01	1	0612-0703
75	07.039 GUSSET; 5TH C/MBR LOWER	8-97109-777-0	01	1	0704-
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ> UPPER	8-97118-875-1	01	1	0612-0703
75	07.039 GUSSET; 5TH C/MBR UPPER	8-97118-875-1	01	1	0704-
130	07.014 MEMBER; CROSS,END EXC. FRAME PRESS KOUGYOU<7RZ>	8-97080-872-0	01	1	0612-0703
130	07.014 MEMBER; CROSS,END	8-97080-872-0	01	1	0704-
139	07.012 MEMBER; CROSS,6TH EXC. FRAME PRESS KOUGYOU<7RZ>	8-97107-384-0	01	1	0612-0703
139	07.012 MEMBER; CROSS,6TH	8-97107-384-0	01	1	0704-
198	07.039 GUSSET; 6TH C/MBR EXC. FRAME PRESS KOUGYOU<7RZ>	8-97080-882-1	02	1	0612-0703
198	07.039 GUSSET; 6TH C/MBR	8-97080-882-1	02	1	0704-
201	07.039 GUSSET; C/MBR EXC. FRAME PRESS KOUGYOU<7RZ>	8-97096-871-0	02	1	0612-0703
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0704-
331	07.039 BRACKET; STRG UNIT EXC. FRAME PRESS KOUGYOU<7RZ>	8-97096-865-1	01	1	0612-0703
331	07.039 BRACKET; STRG UNIT	8-97096-865-1	01	1	0704-
331	07.039 BRACKET; STRG UNIT EXC. FRAME PRESS KOUGYOU<7RZ> 07.112	8-97096-864-0	01	1	0612-0703
331	07.039 BRACKET; STRG UNIT 07.112	8-97096-864-0	01	1	0704-
344	07.012 MEMBER; CROSS,4TH EXC. FRAME PRESS KOUGYOU<7RZ>	8-97175-993-3	01	1	0612-0703
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	0704-
345	07.012 MEMBER; CROSS,5TH EXC. FRAME PRESS KOUGYOU<7RZ>	8-97175-993-3	01	1	0612-0703
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	0704-
372	07.039 BRACKET EXC. FRAME PRESS KOUGYOU<7RZ>	8-97139-128-0	02	1	0612-0703
372	07.039 BRACKET	8-97139-128-0	02	1	0704-
437	07.010 MEMBER; CROSS,BUMPER EXC. FRAME PRESS KOUGYOU<7RZ> 07.011	8-97100-041-1	01	1	0612-0703
437	07.010 MEMBER; CROSS,BUMPER 07.011	8-97100-041-1	01	1	0704-

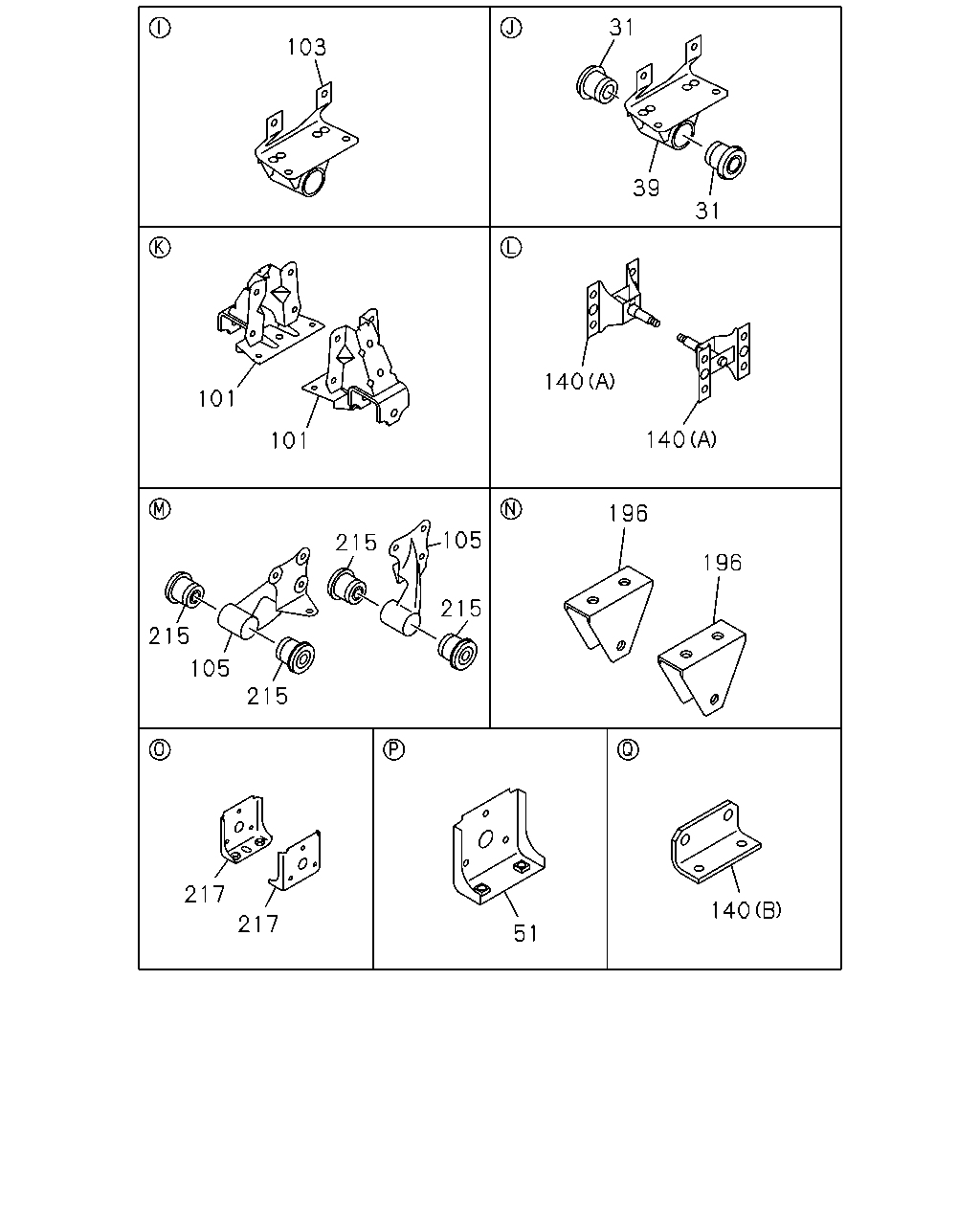

103 31 39 31 140 140 101 101 215 105 215 215 105 215 196 196 140 51 217 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	07.428 BUSHING; FRT SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ> 07.524	8-97184-699-1	04	1	0612-0703
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0704-
39	07.112 BRACKET; FRT SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ>	8-97079-495-1	02	1	0612-0703
39	07.112 BRACKET; FRT SPR,RR	8-97079-495-1	02	1	0704-
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0612-0703
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-97202-415-1	02	1	0704-
101	07.112 BRACKET; RR SPR,FRT EXC. FRAME PRESS KOUGYOU<7RZ>	8-97042-245-1	02	1	0612-0703
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0704-
103	07.420 STOPPER; SUB SPR EXC. FRAME PRESS KOUGYOU<7RZ> 07.524	8-97079-659-1	02	1	0612-0703
103	07.420 STOPPER; SUB SPR 07.524	8-97079-659-1	02	1	0704-
105	07.112 BRACKET; RR SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ>	8-94459-512-1	01	1	0612-0703
105	07.112 BRACKET; RR SPR,RR	8-94459-512-1	01	1	0704-
105	07.112 BRACKET; RR SPR,RR EXC. FRAME PRESS KOUGYOU<7RZ>	8-94459-511-1	01	1	0612-0703
105	07.112 BRACKET; RR SPR,RR	8-94459-511-1	01	1	0704-
140	07.112 BRACKET; S/ABS,RR EXC. FRAME PRESS KOUGYOU<7RZ> 07.395 (B)	8-97302-511-0	02	1	0612-0703
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-97302-511-0	02	1	0704-
140	07.112 BRACKET; S/ABS,RR EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97080-884-0	02	1	0612-0703
140	07.112 BRACKET; S/ABS,RR (A)	8-97080-884-0	02	1	0704-
196	07.242 BRACKET; STAB TO FRAME EXC. FRAME PRESS KOUGYOU<7RZ>	8-97118-620-2	02	1	0612-0703
196	07.242 BRACKET; STAB TO FRAME	8-97118-620-2	02	1	0704-
215	07.524 BUSHING; BRKT,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ>	8-97184-699-1	04	1	0612-0703
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0704-
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0612-0703
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0704-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98073-761-0	01	1	0704-
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98073-758-0	01	1	0704-
1	07.003 FRAME ASM EXC. FRAME PRESS KOUGYOU<7RZ>, TRANSMISSIONCONTROL-SMOOTHER(8GF)	8-98003-465-0	01	1	0612-
1	07.003 FRAME ASM TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME PRESS KOUGYOU<7RZ>	8-98043-404-0	01	1	0612-
