◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10669 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶

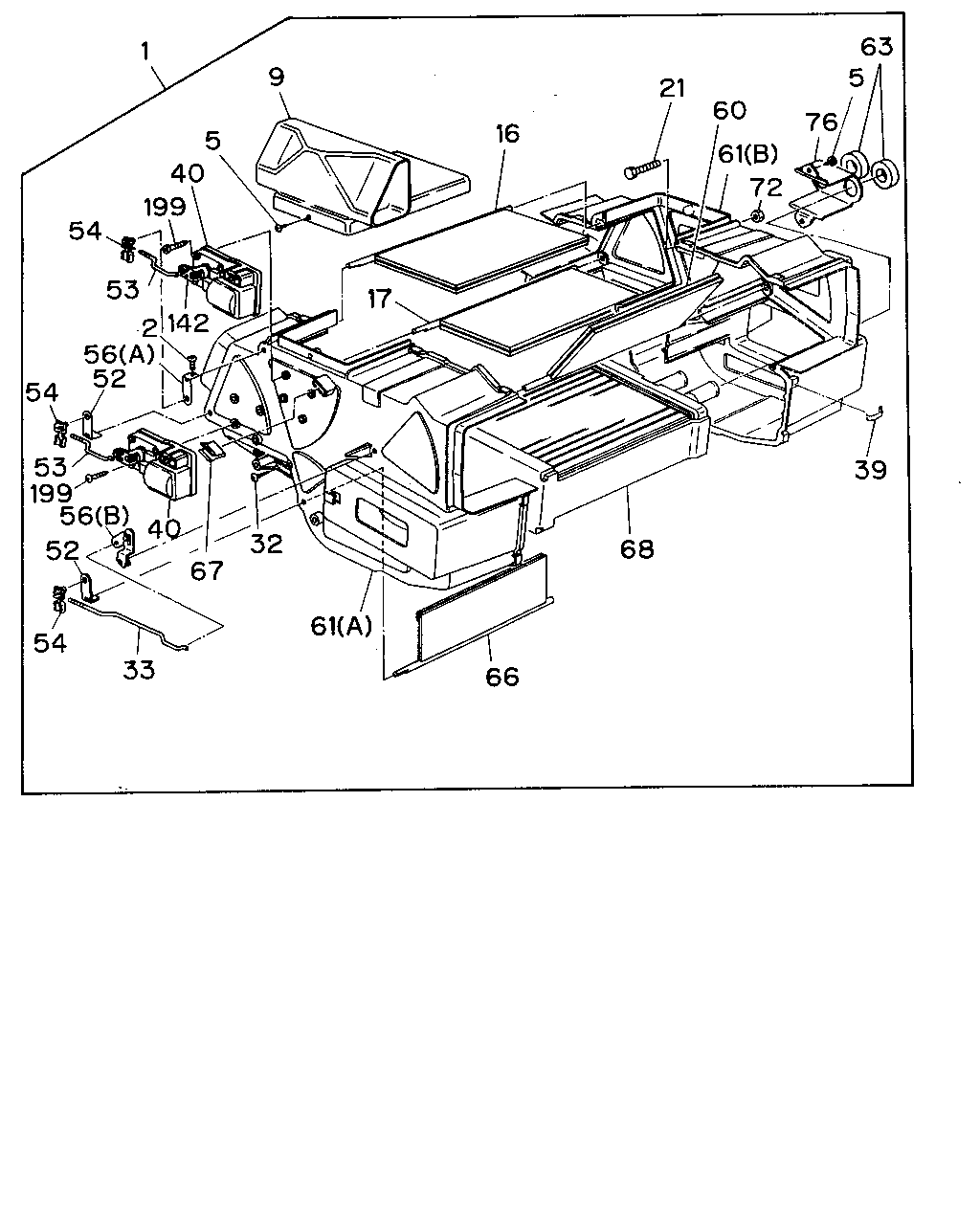

8-60 — HEATER UNIT; FRONT (#3462) — 27 parça
çizim 39070
1 9 5 40 199 54 53 17 142 2 56 54 52 53 199 40 56 52 54 33 67 61 32 66 68 39 63 5 76 60 21 16 61 72
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT 1-83511-086-4 01 1 9002- ● ● ●
2 SCREW; LEVER 5-83571-160-0 04 1 9002- ● ● ●
5 SCREW; BRKT
M5X12 TAPPING 		9-07076-512-0 04 1 9002- ● ● ●
9 DUCT; HTR UNIT 1-83563-118-1 01 1 9002- ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-272-1 01 1 9002- ● ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-131-1 01 1 9002- ● ● ●
21 BOLT; CASE,HTR UNIT 1-15619-207-0 03 1 9002- ● ● ●
32 SCREW; HTR UNIT 1-83579-133-0 02 1 9002- ● ● ●
33 ROD; SHUTTER LEVER 1-83579-128-1 01 1 9002- ● ● ●
39 CLIP; HTR UNIT 1-83574-148-0 09 1 9002- ● ● ●
40 ACTUATOR; HTR UNIT 1-83579-419-0 02 1 9002- ● ● ●
52 LEVER; SHUTTER,HTR UNIT 1-83564-216-0 02 1 9002- ● ● ●
53 ROD; SHUTTER LEVER 1-83579-273-0 02 1 9002- ● ● ●
54 CLIP; SHUTTER LEVER 1-83574-143-0 03 1 9002- ● ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		1-83564-163-0 01 1 9002- ● ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		1-83564-215-0 01 1 9002- ● ● ●
60 DOOR; MIX,HTR UNIT 1-83579-193-1 01 1 9002- ● ● ●
61 CASE; HTR UNIT
(A) 		1-83564-213-0 01 1 9002- ● ● ●
61 CASE; HTR UNIT
(B) 		1-83564-214-0 01 1 9002- ● ● ●
63 LINING; HTR UNIT 1-83579-104-0 02 1 9002- ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-271-1 01 1 9002- ● ● ●
67 CLIP; HTR UNIT 1-83574-149-0 01 1 9002- ● ● ●
68 CORE; HTR UNIT 1-83562-034-1 01 1 9002- ● ● ●
72 NUT; CASE,HTR UNIT 9-88410-525-0 03 1 9002- ● ● ●
76 BRACKET; HTR UNIT 1-83571-368-0 01 1 9002- ● ● ●
142 LEVER; ACTUATOR 1-83564-114-0 02 1 9002- ● ● ●
199 SCREW; ACTUATOR 1-83579-422-0 06 1 9002- ● ● ●
