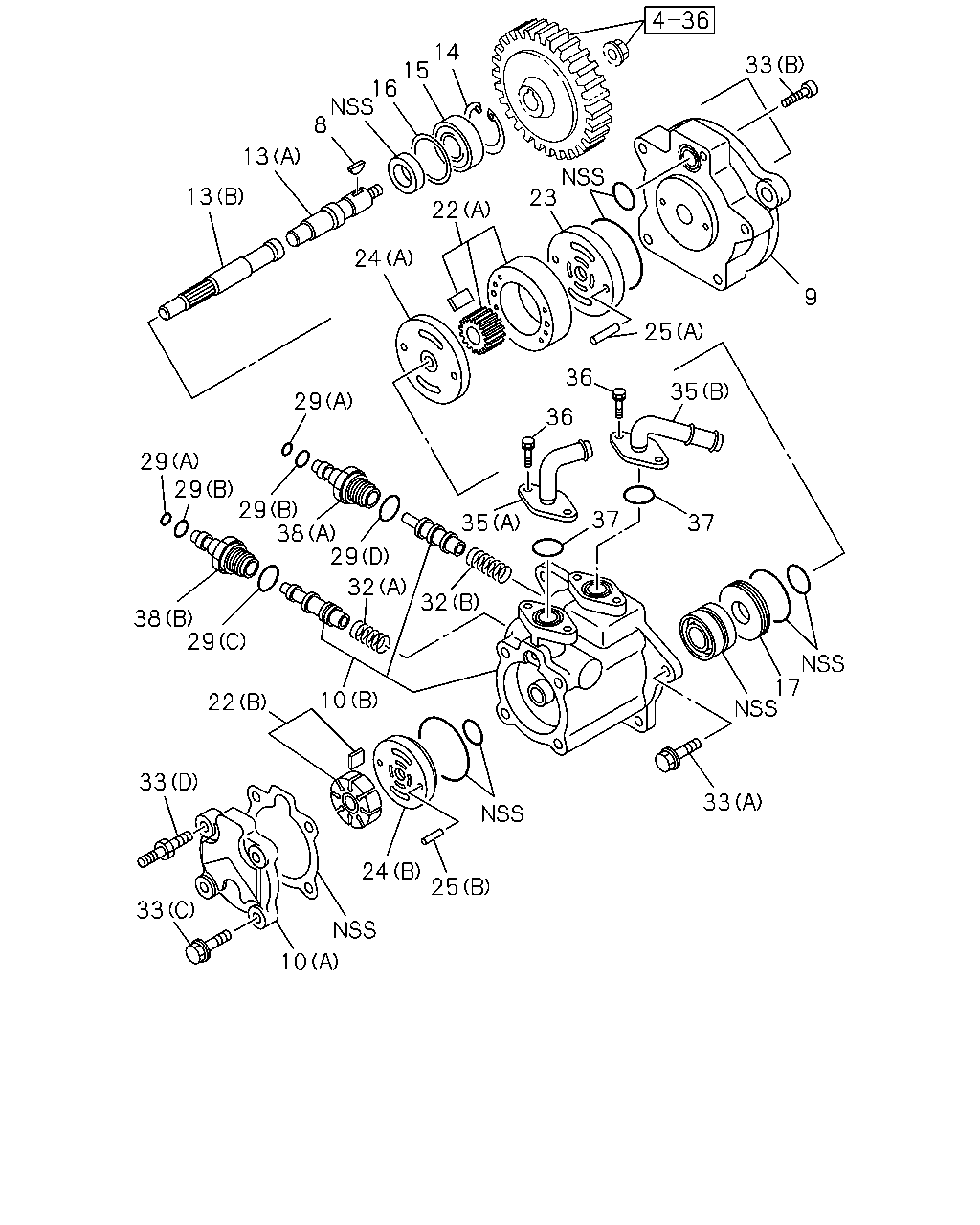

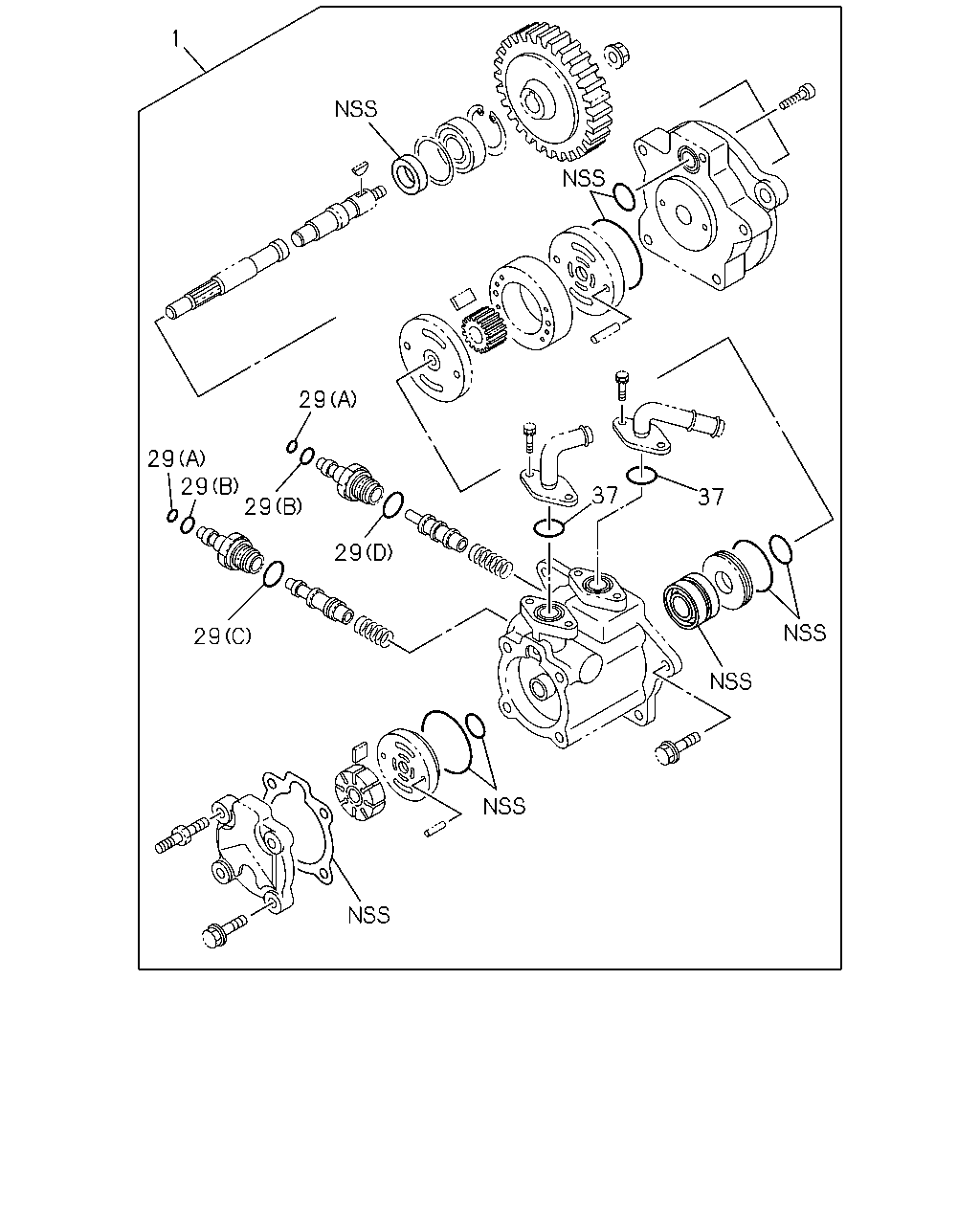

8 |
06.616 KEY; SHAFT,OIL PUMP
ASM PART: A = 8-97258-461-3, 97258461
|
9-19519-089-0 |
01 |
1 |
- |
| |
9 |
06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-095-0 |
01 |
1 |
- |
| |
10 |
06.608 BODY ASM; RR,OIL PUMP
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-097-0 |
01 |
1 |
- |
| |
10 |
06.608 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-108-0 |
01 |
1 |
- |
| |
13 |
06.605 SHAFT KIT; RET
(A) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-096-0 |
01 |
1 |
- |
| |
13 |
06.605 SHAFT KIT; RET
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-105-0 |
01 |
1 |
- |
| |
14 |
06.616 RING; RET,OIL PUMP
ASM PART: A = 8-97258-461-3, 97258461
|
1-19519-257-0 |
01 |
1 |
- |
| |
15 |
06.616 BEARING; BALL,OIL PUMP
ASM PART: A = 8-97258-461-3, 97258461
|
1-19519-264-0 |
01 |
1 |
- |
| |
16 |
06.616 RING; RET,OIL PUMP
ASM PART: A = 8-97258-461-3, 97258461
|
1-19519-258-0 |
01 |
1 |
- |
| |
17 |
06.616 RING; RET
ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-106-0 |
01 |
1 |
- |
| |
22 |
06.610 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-092-0 |
01 |
1 |
- |
| |
22 |
06.610 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-102-0 |
01 |
1 |
- |
| |
23 |
06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-094-0 |
01 |
1 |
- |
| |
24 |
06.612 PLATE ASM; THRUST
(A) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-093-0 |
01 |
1 |
- |
| |
24 |
06.612 PLATE ASM; THRUST
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-103-0 |
01 |
1 |
- |
| |
25 |
06.608 PIN; HSG,P/S
(A) ASM PART: A = 8-97258-461-3, 97258461
|
1-19519-052-0 |
02 |
1 |
- |
| |
25 |
06.608 PIN; HSG,P/S
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-104-0 |
02 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(A), ID=11.0
ASM PART: A = 8-97258-461-3, 97258461
|
9-09561-111-0 |
02 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(B), ID=13.0
ASM PART: A = 8-97258-461-3, 97258461
|
9-09561-113-0 |
02 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
06.635, (C)
ASM PART: A = 8-97258-461-3, 97258461
|
9-48429-028-0 |
01 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97258-461-3, 97258461
|
9-88510-248-0 |
01 |
1 |
- |
| |
32 |
06.606 SPRING; OIL PUMP
06.612, (A)
ASM PART: A = 8-97258-461-3, 97258461
|
8-94475-376-0 |
01 |
1 |
- |
| |
32 |
06.606 SPRING; OIL PUMP
06.612, (B)
ASM PART: A = 8-97258-461-3, 97258461
|
9-19529-013-0 |
01 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
(A) ASM PART: A = 8-97258-461-3, 97258461
|
1-44519-119-0 |
04 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
(C) ASM PART: A = 8-97258-461-3, 97258461
|
1-48119-054-0 |
02 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-100-0 |
01 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
(D) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-110-0 |
02 |
1 |
- |
| |
35 |
06.602 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-101-0 |
01 |
1 |
- |
| |
35 |
06.602 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97258-420-1 |
01 |
1 |
- |
| |
36 |
06.602 BOLT; CONN,PIPE
ASM PART: A = 8-97258-461-3, 97258461
|
8-94461-139-1 |
04 |
1 |
- |
| |
37 |
06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97258-461-3, 97258461
|
1-19519-292-0 |
02 |
1 |
- |
| |
38 |
06.624 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-098-0 |
01 |
1 |
- |
| |
38 |
06.624 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-97258-461-3, 97258461
|
8-97182-109-0 |
01 |
1 |
- |
