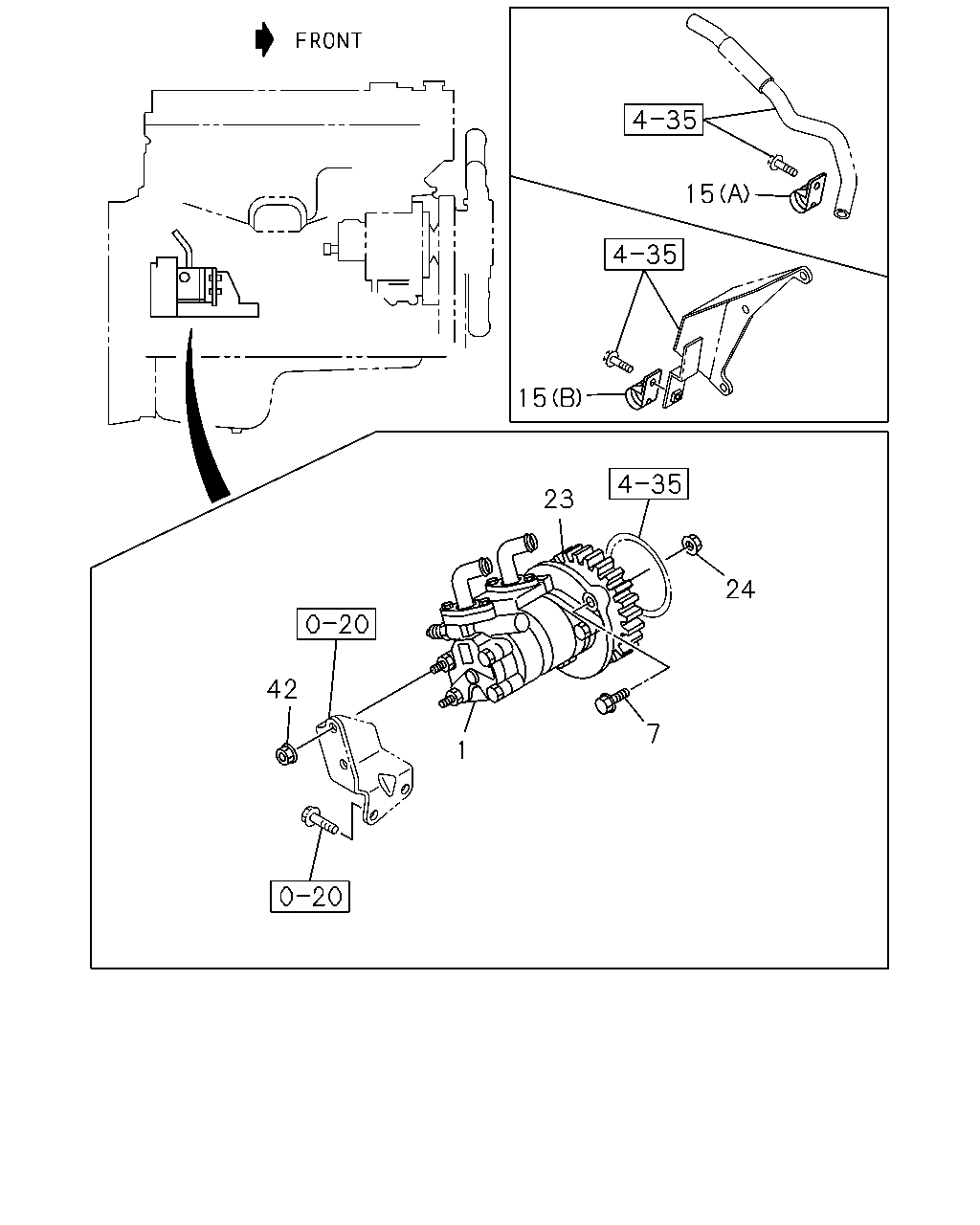

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#34613) — 7 parça

15 15 23 24 42 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-97258-461-3	01	1	0612-
7	09.181 BOLT; OIL PUMP,P/S GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0612-
15	06.672 CLIP; OIL PIPE SUCTION 01.762 (A) ID=26 L=26	1-09701-236-0	01	1	0612-
15	06.672 CLIP; OIL PIPE SUCTION 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0612-
23	06.660 GEAR; OIL PUMP GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN)	8-97114-550-1	01	1	0612-
24	06.673 NUT; GEAR,P/S PUMP GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 05.816 M12 FLANGE	0-91180-212-0	01	1	0612-
42	06.672 NUT; ADJ PLATE 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
