4-31 — STEERING COLUMN AND SHAFT (#34610) — 75 parça

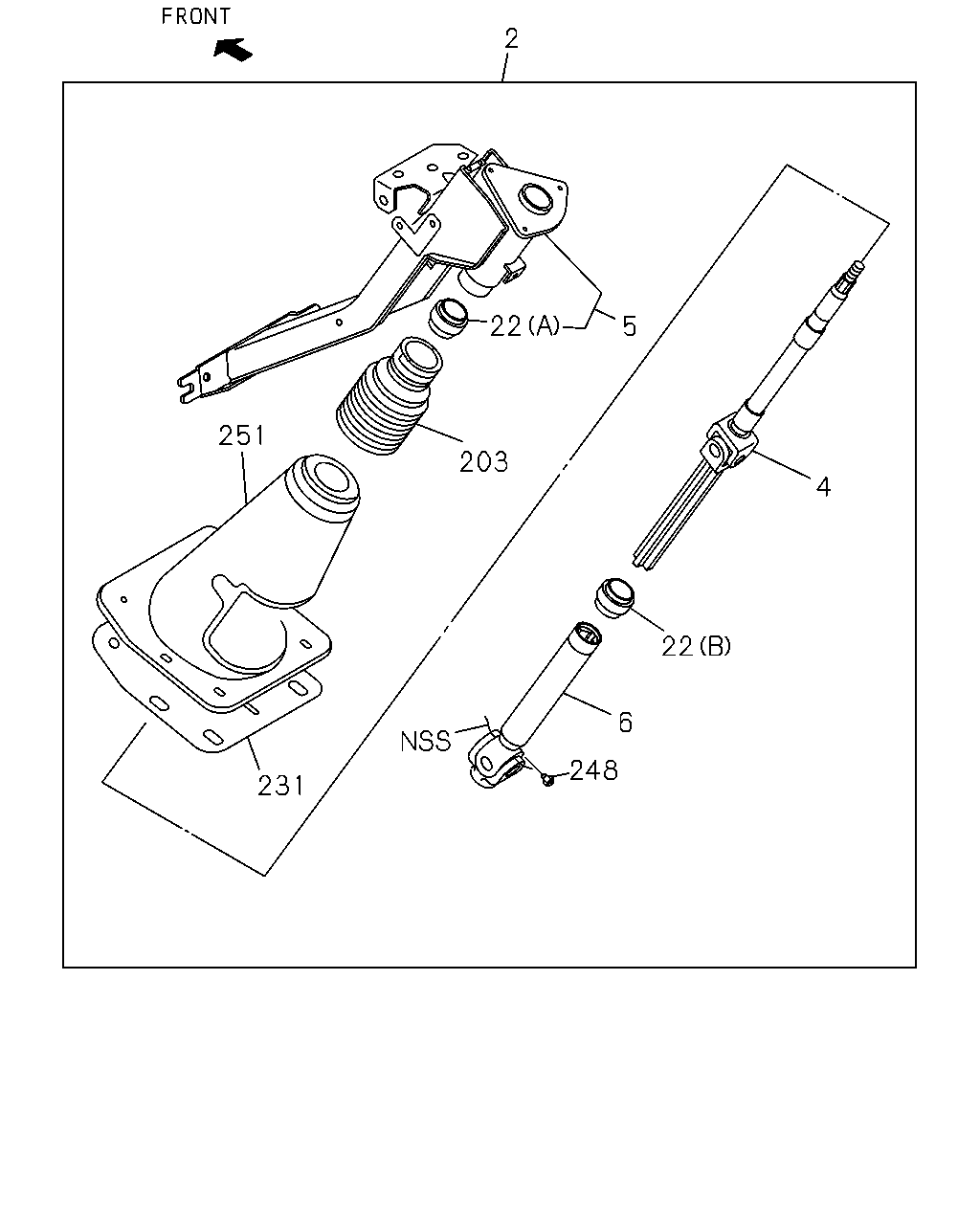

2 22 5 251 203 4 22 6 248 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0612-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0612-
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0612-
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0612-
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0612-
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0612-
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0612-
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0612-
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0612-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0612-
203	06.525 BOOT; STRG COLUMN LWR 06.518	8-97076-822-0	01	1	0612-
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0612-
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0612-
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0612-

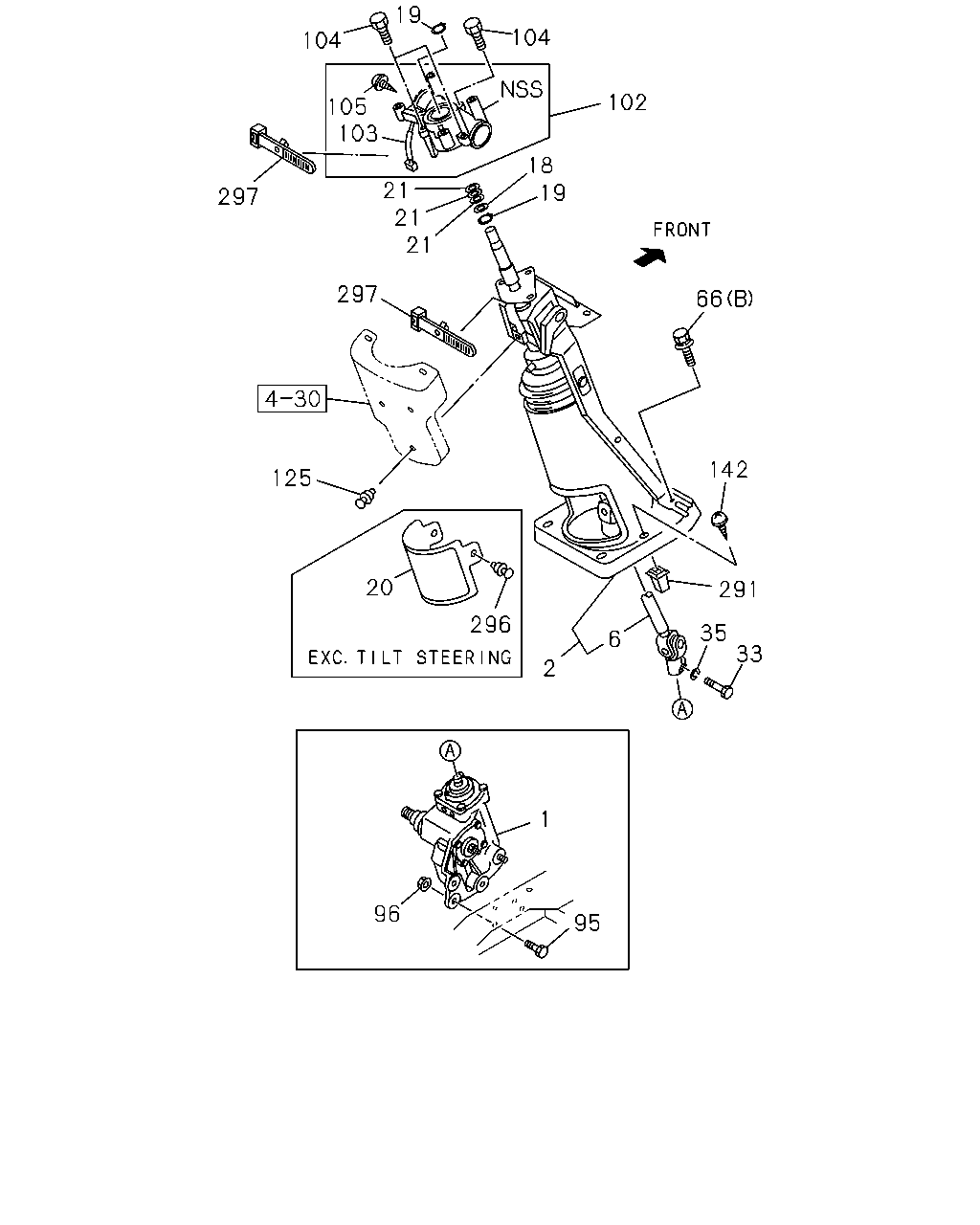

19 104 104 102 105 103 18 19 21 21 21 297 297 66 142 125 20 291 296 35 33 6 2 1 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97305-047-6	01	1	0612-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0612-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0612-
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0612-
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0612-
18	06.525 WASHER; STEERING SHAFT 06.500 ID=19	8-94146-919-0	01	1	0612-
19	06.515 RING; SNAP,STRG SHAFT 00.349 ID=17.5	9-09180-019-0	02	1	0612-
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0612-
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	0612-
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0612-
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	0612-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0612-0612
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0612-
95	06.509 BOLT; STRG UNIT M12X45	8-97212-810-1	03	1	0612-
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	04	1	0612-
102	06.500 LOCK ASM; STRG	8-97170-364-0	01	1	0612-
103	02.188 SWITCH; IGNITION	8-97088-268-0	01	1	0612-
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	01	1	0612-
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	0612-
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	0612-
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	0612-
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74365-520-0	06	1	0612-0612
142	06.518 SCREW; BRKT COWL 06.514 M5X18 TAPPING	0-72180-518-0	06	1	0701-
291	06.518 GROMMET; STRG SHAFT COVER 04.931 H=15	8-94463-268-1	06	1	0612-
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0612-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0612-
297	06.525 CLIP; BAND 02.559 L=145	8-94257-575-1	03	1	0612-

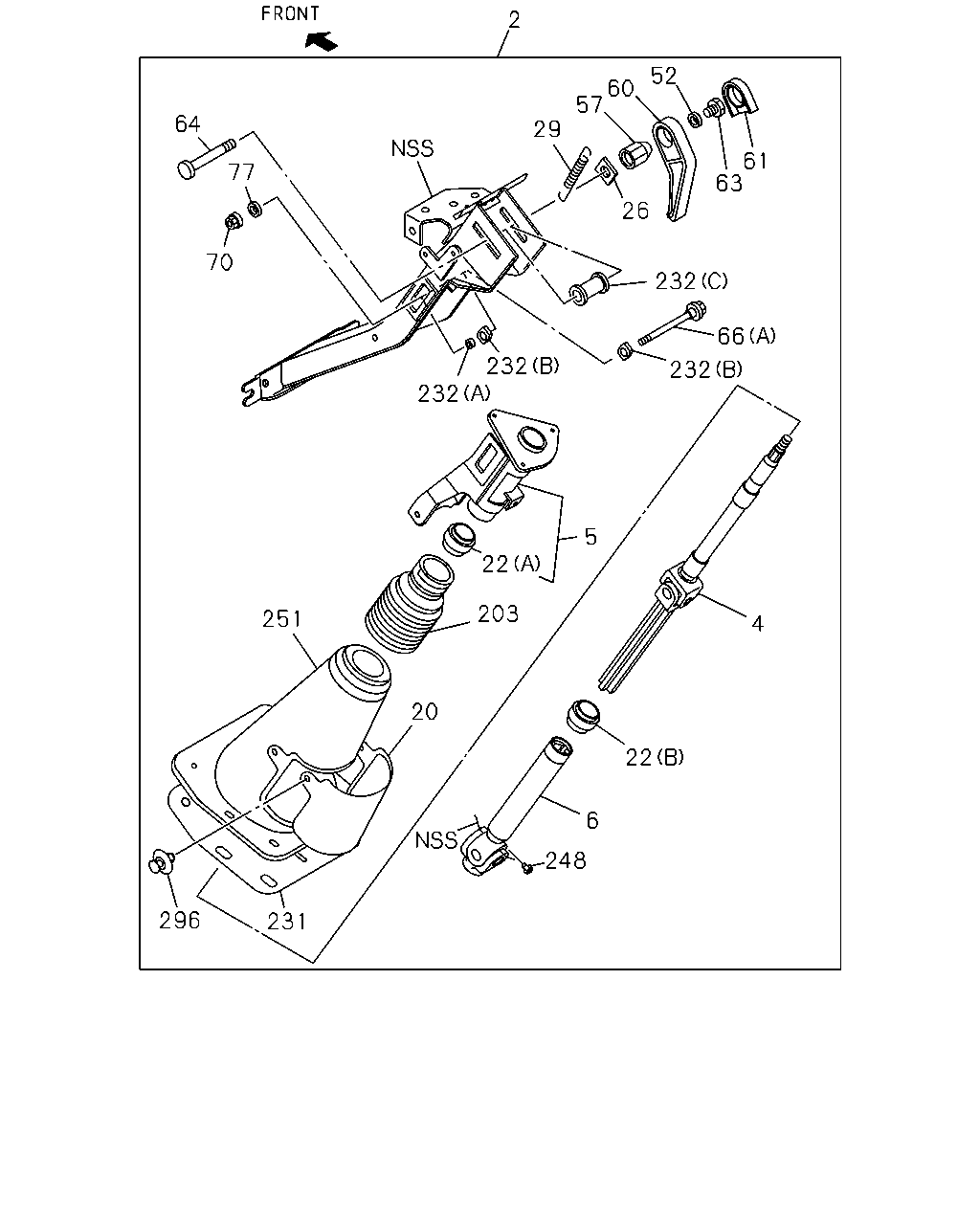

2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 5 22 203 251 4 20 22 6 248 296 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0612-
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0612-
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0612-
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0612-
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0612-
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0612-
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0612-
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0612-
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0612-
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0612-
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0612-
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0612-
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0612-
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0612-
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0612-
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0612-
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0612-
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0612-
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0612-
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0612-0612
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0612-
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0612-
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0612-
203	06.525 BOOT; STRG COLUMN LWR 06.518	8-97076-822-0	01	1	0612-
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0612-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0612-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0612-
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0612-
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0612-
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0612-
296	06.525 CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	0612-
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0612-
