Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#3461) — 142 parça

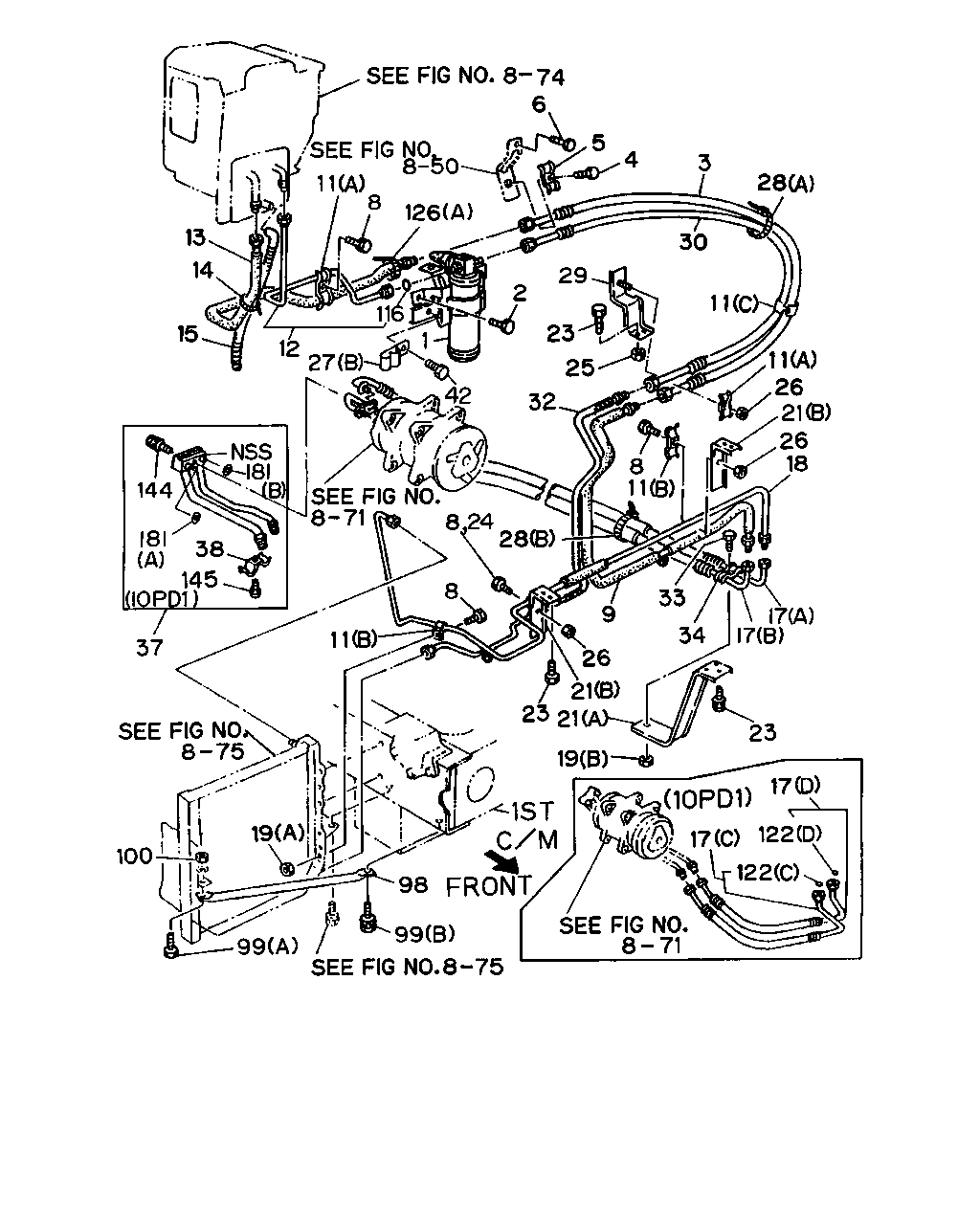

181 144 181 38 145 37 11 8 28 24 8 11 8 18 26 21 26 11 11 30 28 3 4 5 6 126 8 11 13 15 14 12 116 27 1 2 29 23 32 25 42 9 34 17 17 33 26 21 21 23 19 23 17 122 17 122 98 99 99 19 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	1-83535-065-0	01	1	9307-	●	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X20	1-09980-279-0	03	1	9002-	●	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-608-0	01	1	9002-9306	●	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-037-0	01	1	9307-	●	●	●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●	●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9306	●	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=9.2 & 16.2	1-83574-188-0	01	1	9307-	●	●	●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●	●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9204	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9302	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28080-830-0	01	1	9303-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-175-1	01	1	9002-9306	●	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-508-0	01	1	9307-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9307	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.2 & 16.2	1-83574-188-0	01	1	9307-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	01	1	9002-9307	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 20	1-83574-185-0	01	1	9307-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=12.7 & 9.6	1-83574-103-0	01	1	9002-	●	●	●
11	CLIP; COOLER PIPE 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09707-123-0	01	1	9002-	●	●	●
11	CLIP; COOLER PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09707-123-0	01	1	9002-		●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-156-1	01	1	9002-9306	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-466-0	01	1	9307-	●	●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-155-1	01	1	9002-9306	●	●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-465-0	01	1	9307-	●	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-0	03	1	9002-	●	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-254-1	01	1	9002-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83566-562-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-032-0	01	1	9307-		●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83566-563-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-033-0	01	1	9307-		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-588-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-034-0	01	1	9307-		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-589-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-035-0	01	1	9307-		●	●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-166-0	01	1	9002-9306	●	●	●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-504-0	01	1	9307-	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M6	9-09110-406-0	01	1	9002-9103	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M6 FLANGE	5-09440-004-0	01	1	9104-	●	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M8	9-09110-408-0	01	1	9002-	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-311-1	02	1	9002-9306	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-710-0	01	1	9307-	●	●	●
21	BRACKET; COOLER HOSE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-313-1	01	1	9002-	●	●	●
21	BRACKET; COOLER HOSE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-312-1	01	1	9002-		●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	04	1	9303-9306	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	05	1	9303-	●	●	●
24	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01910-616-0	01	1	9002-9005	●	●	●
24	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9302	●	●	●
24	SCREW; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9002-	●	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9002-9306	●	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9307-	●	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9307-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	02	1	9002-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) D=12.5 & 9.5	1-83574-178-0	01	1	9403-	●	●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (A) L=170	1-83574-139-0	01	1	9002-	●	●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (B) L=250	5-09707-030-0	01	1	9002-	●	●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-524-0	01	1	9002-	●	●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-339-2	01	1	9002-9306	●	●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-036-0	01	1	9307-	●	●	●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-194-1	01	1	9002-9306	●	●	●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-505-0	01	1	9307-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-157-0	01	1	9002-9306	●	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9307-	●	●	●
37	CONNECTOR; CMPR TO FLEX HOSE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83575-071-0	01	1	9002-9306	●	●	●
37	CONNECTOR; CMPR TO FLEX HOSE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83575-077-0	01	1	9307-	●	●	●
38	CLIP; CONNECTOR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-093-0	01	1	9002-9205	●	●	●
38	CLIP; CONNECTOR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-039-0	01	1	9206-9306	●	●	●
38	CLIP; CONNECTOR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	9307-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK WASHER	9-03910-612-0	02	1	9002-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-	●	●	●
98	STAY; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-295-1	01	1	9002-	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X35	9-01970-835-0	01	1	9002-9005	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X35 W/LK&PL WASHER	0-50140-835-0	01	1	9006-	●	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
100	NUT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-508-0	01	1	9002-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	02	1	9307-	●	●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09623-488-0	02	1	9002-9306		●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	02	1	9307-		●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-09623-489-0	02	1	9002-9306		●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	02	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-488-0	01	1	9002-9306		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13.9	8-94113-330-0	01	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-489-0	01	1	9002-9306		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	01	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.0	8-94461-900-0	01	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.8	8-94461-901-0	01	1	9307-		●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	01	1	9002-	●	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97084-632-0	01	1	9307-	●	●	●
144	BOLT; CONN TO CMPR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	9002-	●	●	●
145	BOLT; CLIP,CONNECTOR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-	●	●	●
181	GASKET; CONNECTOR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-514-0	01	1	9002-	●	●	●
181	GASKET; CONNECTOR 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-515-0	01	1	9002-	●	●	●

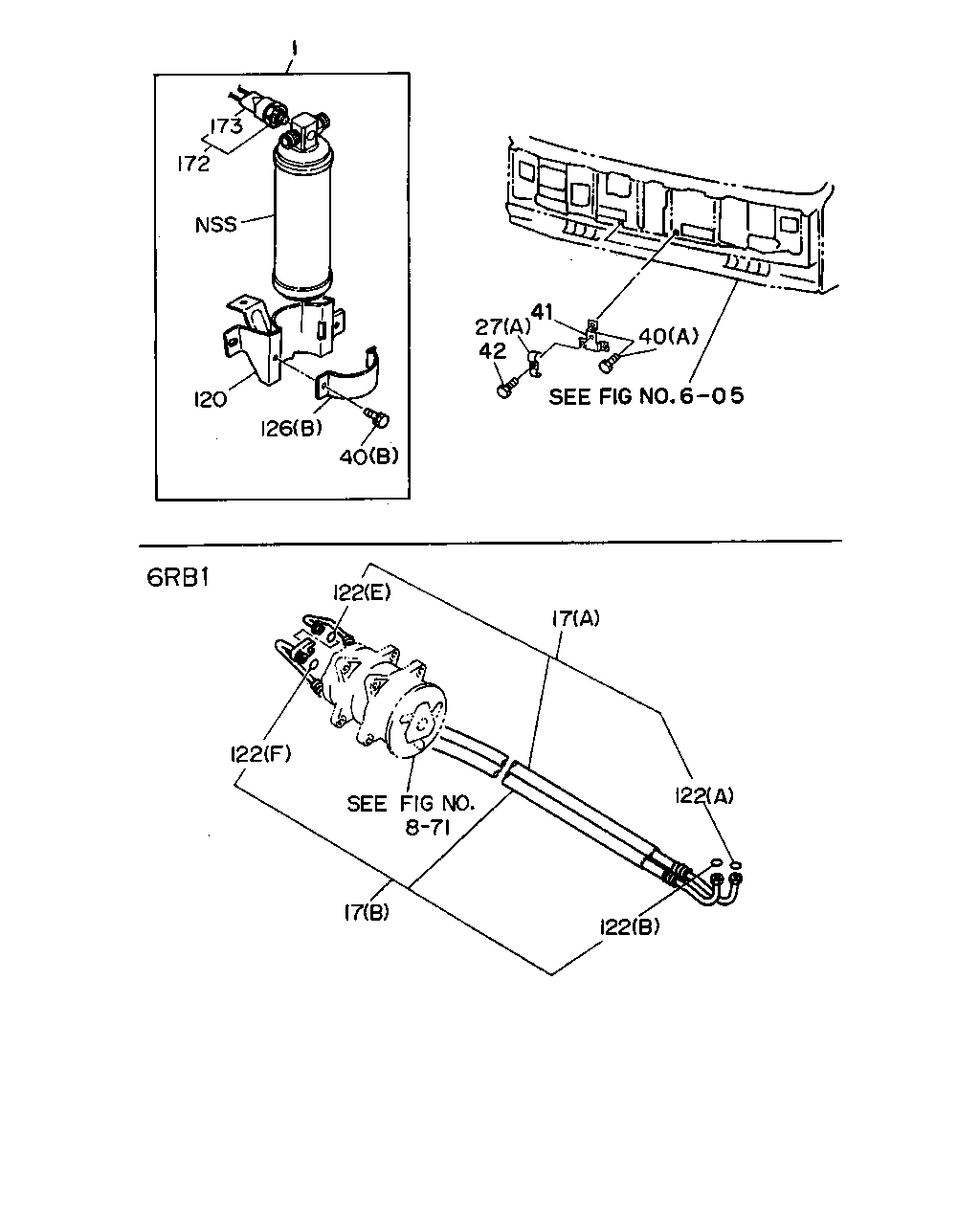

1 173 172 120 40 126 42 27 41 40 17 122 122 17 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306	●	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	1-83535-065-0	01	1	9307-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83566-562-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-032-0	01	1	9307-		●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83566-563-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-033-0	01	1	9307-		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-588-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-034-0	01	1	9307-		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-589-0	01	1	9002-9307		●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-035-0	01	1	9307-		●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) D=20 & 9.6	1-09700-639-0	02	1	9002-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) D=12.5 & 9.5	1-83574-178-0	01	1	9403-	●	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X20	1-09980-279-0	04	1	9002-	●	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-048-0	01	1	9002-	●	●	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-256-0	02	1	9002-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK WASHER	9-03910-612-0	02	1	9002-	●	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9403-	●	●	●
120	BRACKET; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-645-1	01	1	9002-	●	●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09623-488-0	02	1	9002-9306		●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	02	1	9307-		●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-09623-489-0	02	1	9002-9306		●	●
122	GASKET 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	02	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-488-0	01	1	9002-9306		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13.9	8-94113-330-0	01	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-489-0	01	1	9002-9306		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=10.8	8-94113-331-0	01	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.0	8-94461-900-0	01	1	9307-		●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.8	8-94461-901-0	01	1	9307-		●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	01	1	9002-	●	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97084-632-0	01	1	9307-	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-283-0	01	1	9002-9306	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-224-0	01	1	9307-	●	●	●
173	COVER; PRESS SW AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-429-0	01	1	9002-9306	●	●	●
