Isuzu WW
▶
TRUCKS
▶
NP
▶
51104 - NP/NQR BUS(LHD)EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

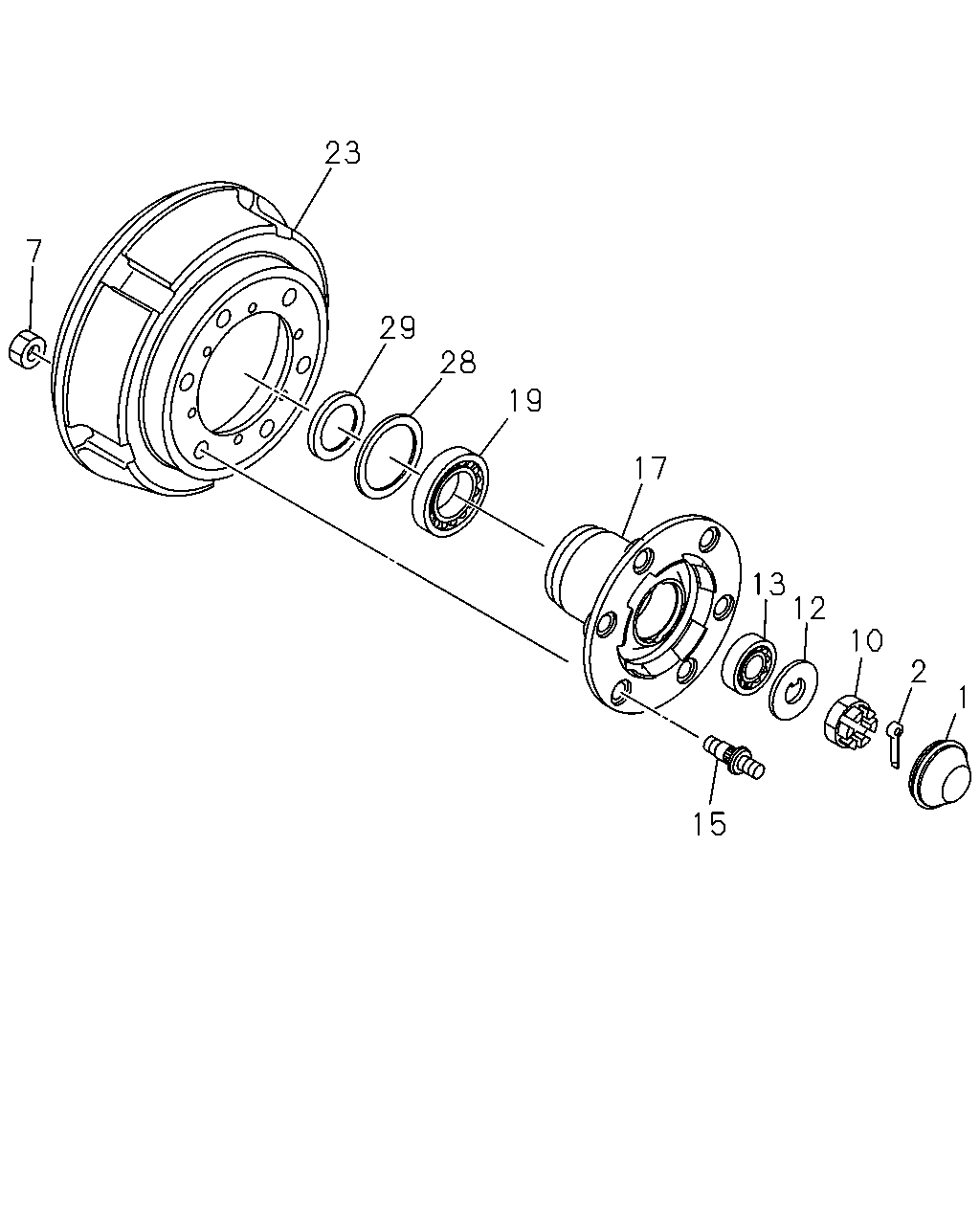

4-11 — FRONT HUB AND DRUM OR ROTOR
(#34606) — 14 parça
23
7
29
28
19
17
13
12
10
2
1
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.330 CAP; HUB,FRT AXLE
8-97360-101-0
02
1
0612-
2
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
0612-
7
05.812 NUT; FRT HUB
07.172 M22
0-91110-522-0
12
1
0612-
10
05.812 NUT; FRT HUB BRG
06.022
8-94247-357-1
02
1
0612-
12
06.321 WASHER; LK,FRT HUB BRG
8-94247-356-1
02
1
0612-
13
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
0612-
15
05.812 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X50 RH THREAD
8-97131-284-2
06
1
0612-
15
05.812 PIN; WHEEL,FRT AXLE
M20X28,M22X50 RH THREAD
8-97131-283-2
06
1
0612-
17
06.307 HUB; FRT AXLE
8-97131-236-0
02
1
0612-
19
06.311 BEARING; HUB INNER,FRT AXLE
JTEKT
8-94248-088-2
02
1
0612-
19
06.311 BEARING; HUB INNER,FRT AXLE
NSK
9-00093-149-0
02
1
0612-
23
05.809 DRUM; BRK,FRT
8-97188-115-0
02
1
0612-
28
06.326 SEAL; OIL,FRT HUB
8-94248-117-1
02
1
0612-
29
06.326 DISTANCE PIECE; HUB BRKT
NTN
8-97234-513-0
02
1
0612-
