4-10 — FRONT AXLE (#34605) — 57 parça

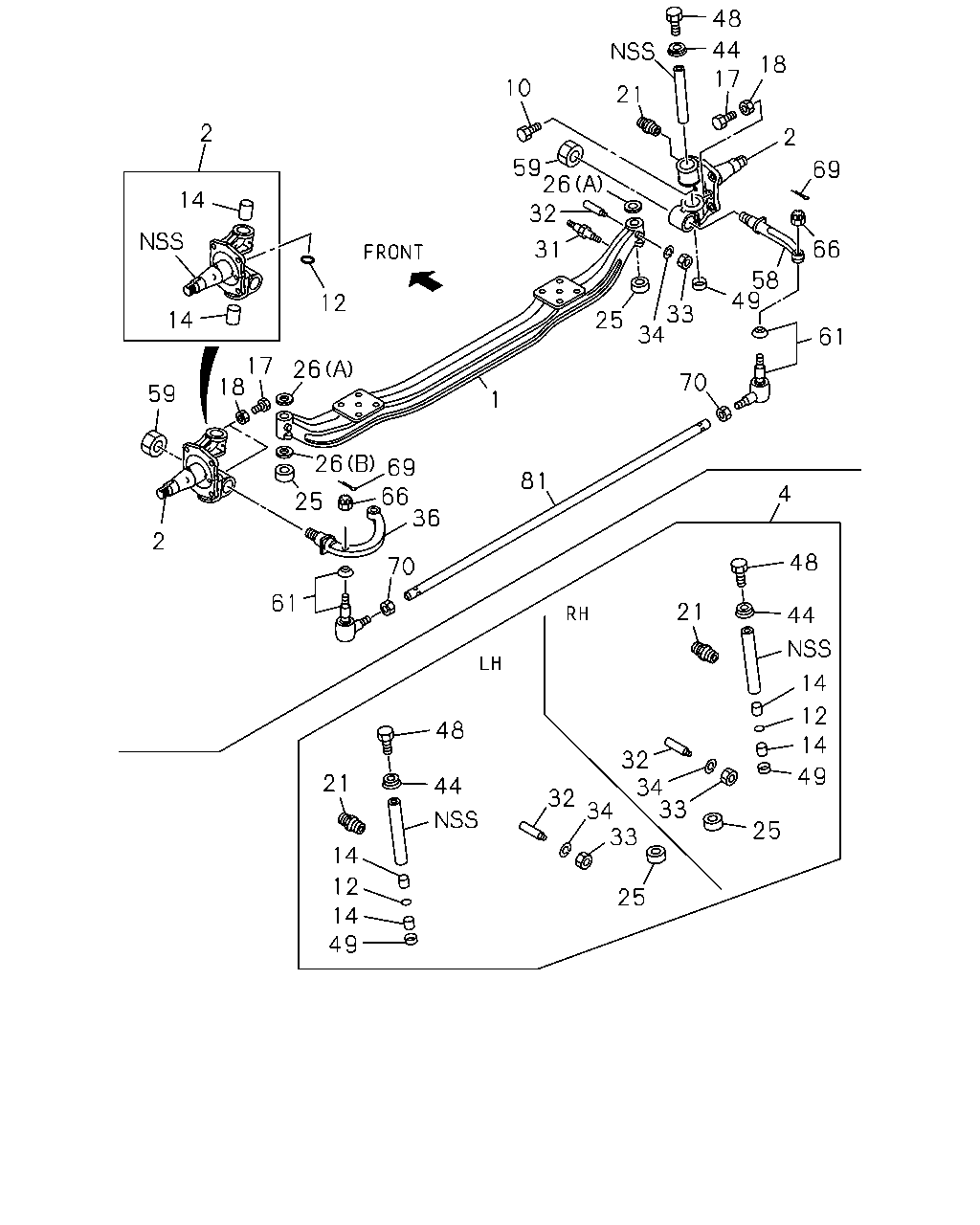

48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 17 18 26 70 59 1 2 69 66 36 81 4 25 2 48 70 61 21 44 14 12 48 14 32 34 33 49 21 44 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.008 AXLE; FRT	8-97137-588-3	01	1	0612-
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-1	01	1	0612-
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-1	01	1	0612-
4	06.203 KING PIN KIT	5-87832-207-0	01	1	0612-0707
4	06.203 KING PIN KIT	5-87832-219-0	01	1	0708-
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0612-
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	0612-0707
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0708-
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0612-
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0612-
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0612-0612
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0612-
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0612-
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	02	1	0612-
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0612-
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0612-
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0612-
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0612-
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	0612-
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0612-
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0612-
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0612-
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	0612-
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0612-
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0612-
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0612-
36	06.103 ARM; KNUCKLE	8-97210-771-3	01	1	0612-
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	0612-0612
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0612-
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0612-0612
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0612-
58	06.103 ARM; TIE ROD	8-97147-636-0	01	1	0612-
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	0612-0612
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0612-
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0612-
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0612-
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0612-
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0612-
70	06.234 NUT; TIE ROD END M20	8-98043-530-0	01	1	0612-
81	06.230 ROD; TIE	8-97061-869-0	01	1	0612-

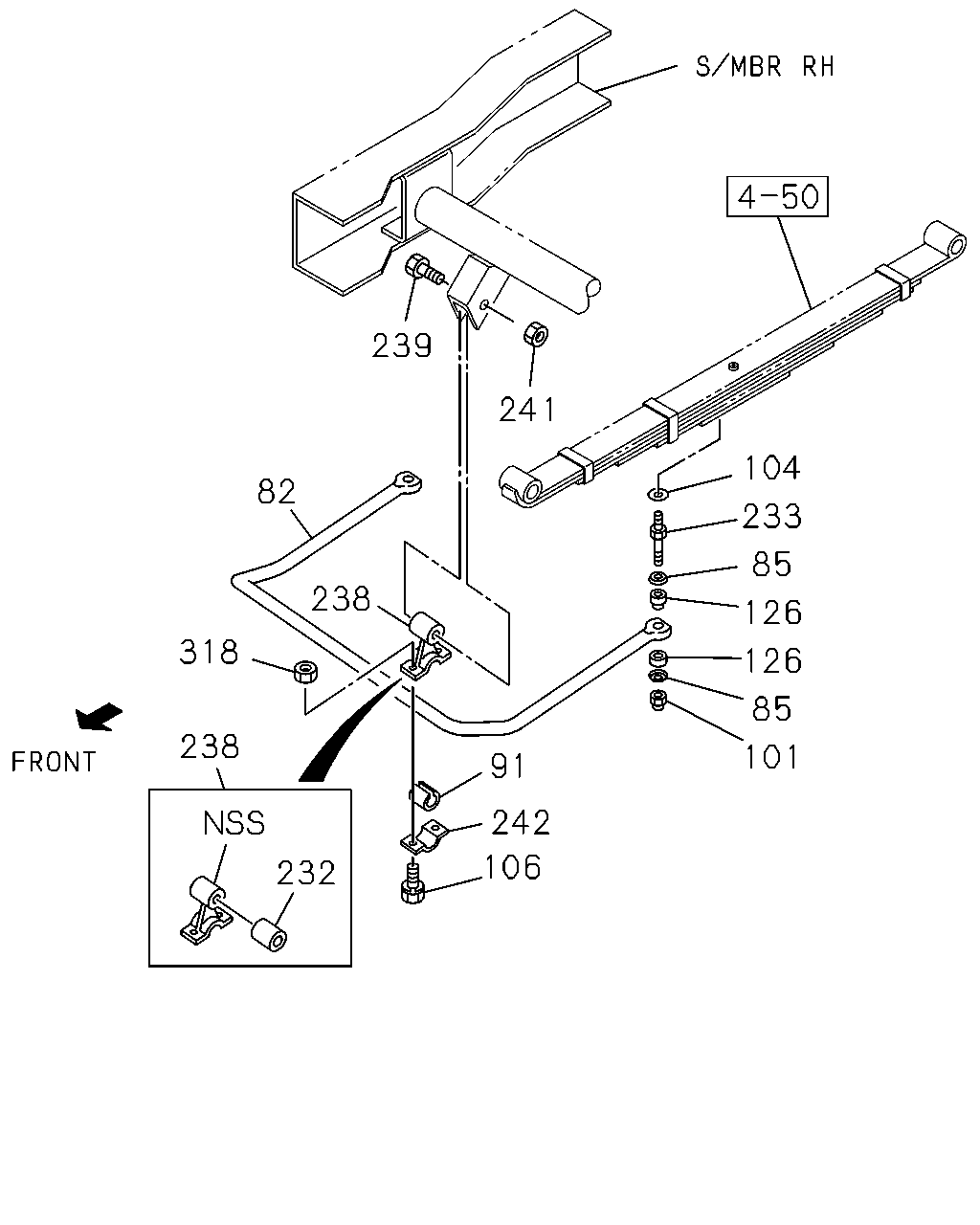

239 241 104 82 233 85 238 126 318 126 85 238 101 91 242 106 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97138-348-0	01	1	0612-
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-97360-055-0	04	1	0612-
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	0612-
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> M12 LOCK NUT	0-91370-012-0	02	1	0612-
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 05.605 ID=14.2	0-91510-514-0	02	1	0612-
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0612-
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-083-0	04	1	0612-
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	0612-
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97360-120-0	02	1	0612-
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	0612-
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28851-470-0	02	1	0612-
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 06.174 M14 FLANGE	8-97360-124-0	02	1	0612-
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	0612-
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE	0-91180-210-0	04	1	0612-
