3-60 — BRAKE PIPING; VACUUM (#34603) — 74 parça

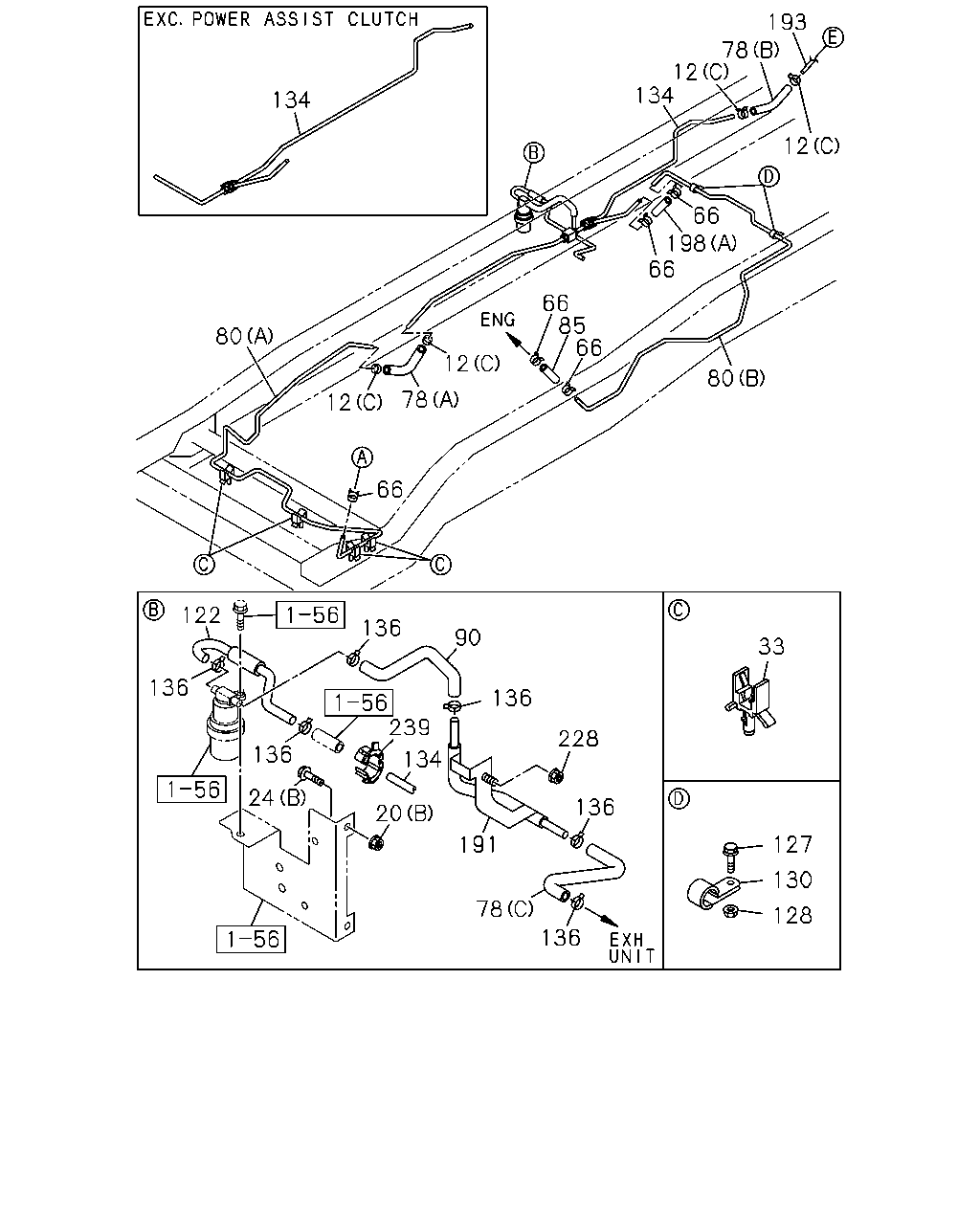

çizim 13917
193 78 12 134 134 12 66 198 66 66 85 66 80 12 80 78 12 66 122 136 90 33 136 136 239 136 228 134 24 136 20 127 191 130 78 128 136
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
04.930 (C) ID=16 		8-94238-568-0 08 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5 		8-94167-480-0 04 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=16 		8-94238-568-0 02 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=15.5 		8-94367-944-0 01 1 0612-
20 04.686 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0612-
20 04.686 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0612-
24 04.686 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
24 04.686 BOLT; BRKT
00.029 (B) M10X25 FLANGE 		0-28651-025-0 01 1 0612-
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 0612-
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 0612-
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 04 1 0612-
66 04.930 CLIP; VAC HOSE,M/VAC
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 01 1 0612-
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (B) L=160 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98027-915-0 01 1 0612-
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) 03.630 (A) L=140 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
80 04.930 PIPE; VAC,ENG SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-872-1 01 1 0612-
80 04.930 PIPE; VAC,ENG SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98009-047-5 01 1 0612-
80 04.930 PIPE; VAC,ENG SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98009-509-5 01 1 0612-
85 04.931 HOSE; VAC,ENG SIDE 8-98029-339-2 01 1 0612-
90 04.931 HOSE; VAC,MAG VLV 8-98027-912-1 01 1 0612-
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98027-914-1 01 1 0612-
127 04.930 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0612-
128 04.930 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0612-
130 04.930 CLIP; VAC PIPE TO FRAME
ID=11 L=32 		0-95235-065-0 02 1 0612-
134 04.685 PIPE; VAC,3 WAY TO HOSE
POWER ASSIST CLUTCH(S2T) 		8-98019-655-2 01 1 0612-
134 04.685 PIPE; VAC,3 WAY TO HOSE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98019-656-1 01 1 0612-
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 06 1 0612-
191 04.685 PIPE; VAC 8-98027-849-0 01 1 0612-
193 04.685 PIPE; VAC,3 WAY TO MAG VLV 8-98019-675-2 01 1 0612-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (B) L=220 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=140 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
228 04.930 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0612-
239 04.931 GROMMET; FRAME
02.343 ID=17 		8-94128-319-2 01 1 0612-
çizim 56566
201 184 200 202
BalonParca AdiParca NoAdetTipApplied Date
184 04.685 BRACKET; UNION FIX
(B) 		8-97175-473-1 01 1 0612-
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-402-0 01 1 0612-
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97094-014-3 01 1 0612-
200 04.931 GROMMET; SCREW
H=15 		8-94463-268-1 02 1 0612-
201 04.686 SCREW; BRKT
04.012 M5X16 TAPPING W/PL WASHER 		0-74365-516-0 02 1 0612-
202 04.686 SEAL
EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0612-

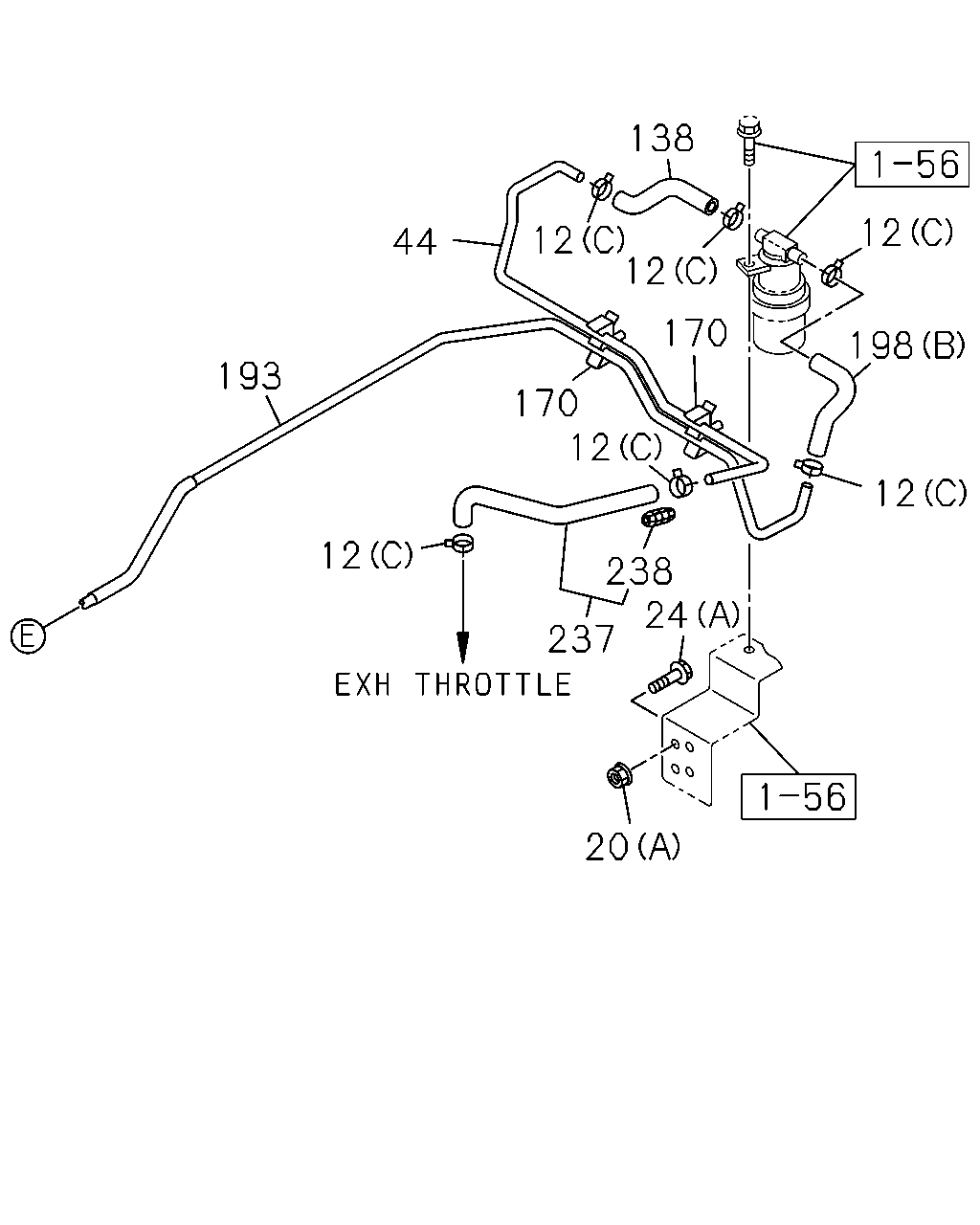

çizim 56850
138 12 12 12 44 170 198 193 170 12 12 12 238 24 237 20
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
04.930 (C) ID=16 		8-94238-568-0 08 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5 		8-94167-480-0 04 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=16 		8-94238-568-0 02 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=15.5 		8-94367-944-0 01 1 0612-
20 04.686 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0612-
20 04.686 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0612-
24 04.686 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
24 04.686 BOLT; BRKT
00.029 (B) M10X25 FLANGE 		0-28651-025-0 01 1 0612-
44 04.930 PIPE; VAC,MAG VLV 8-98019-677-2 01 1 0612-
138 04.931 HOSE; MAG VLV TO PIPE
03.630 L=220 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
170 04.930 CLIP; VAC PIPE
ID=10X2 H=37.5 		8-97018-546-0 02 1 0612-
193 04.685 PIPE; VAC,3 WAY TO MAG VLV 8-98019-675-2 01 1 0612-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 (B) L=220 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.630 (A) L=140 SERVICED BY L=3000 		0-08258-300-0 01 1 0612-
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 8-97378-769-0 01 1 0612-
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0612-

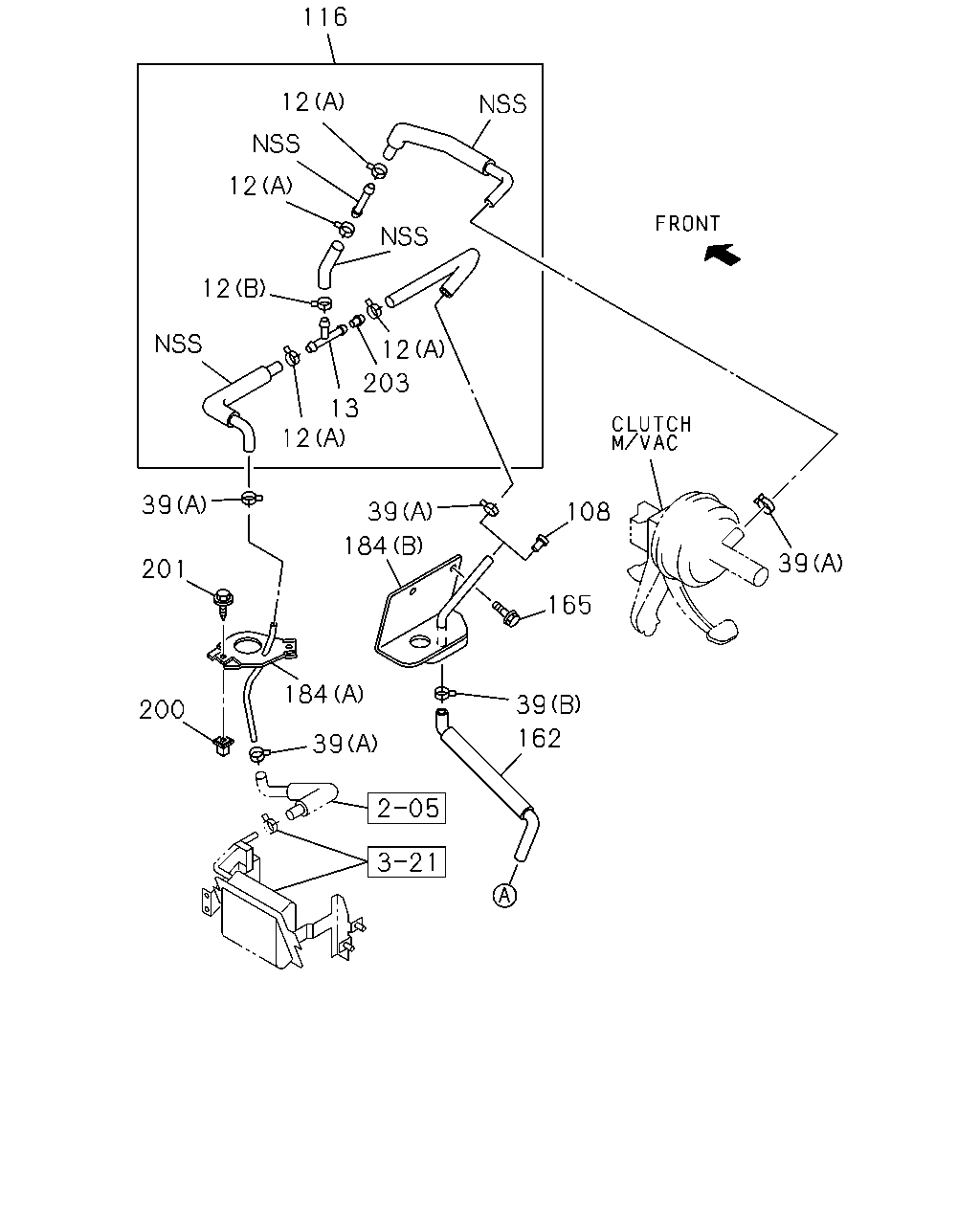

çizim 57586
116 12 12 12 12 203 13 12 39 39 108 184 39 201 165 184 39 200 162 39
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
04.930 (C) ID=16 		8-94238-568-0 08 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5 		8-94167-480-0 04 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=16 		8-94238-568-0 02 1 0612-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) (B) ID=15.5 		8-94367-944-0 01 1 0612-
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.931 3WAY 		8-94167-478-0 01 1 0612-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		5-09707-023-2 01 1 0612-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16 		8-94238-568-0 04 1 0612-
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 		9-09956-353-0 01 1 0612-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) 		8-97188-946-2 01 1 0612-
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) 		8-97081-535-1 01 1 0612-
165 04.686 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0612-
184 04.685 BRACKET; UNION FIX
(B) 		8-97175-473-1 01 1 0612-
184 04.685 BRACKET; UNION FIX
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-402-0 01 1 0612-
184 04.685 BRACKET; UNION FIX
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97094-014-3 01 1 0612-
200 04.931 GROMMET; SCREW
H=15 		8-94463-268-1 02 1 0612-
201 04.686 SCREW; BRKT
04.012 M5X16 TAPPING W/PL WASHER 		0-74365-516-0 02 1 0612-
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) 		8-94104-021-0 01 1 0612-
