3-55 — BRAKE PIPING; OIL,REAR (#34601) — 12 parça

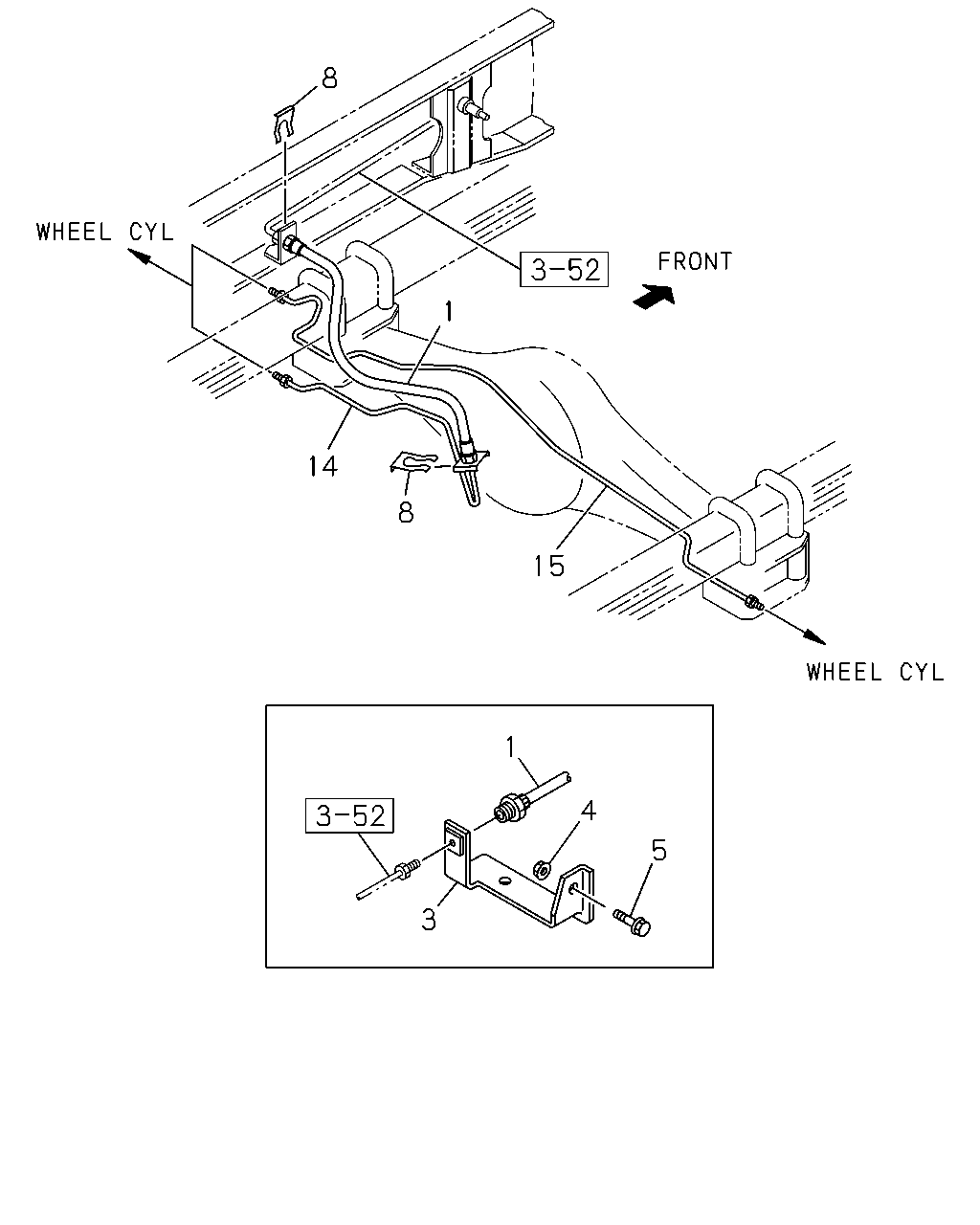

çizim 56738
8 1 14 8 15 1 4 5 3
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0612-
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0612-
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0612-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0612-0701
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702-
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97122-715-1 01 1 0612-

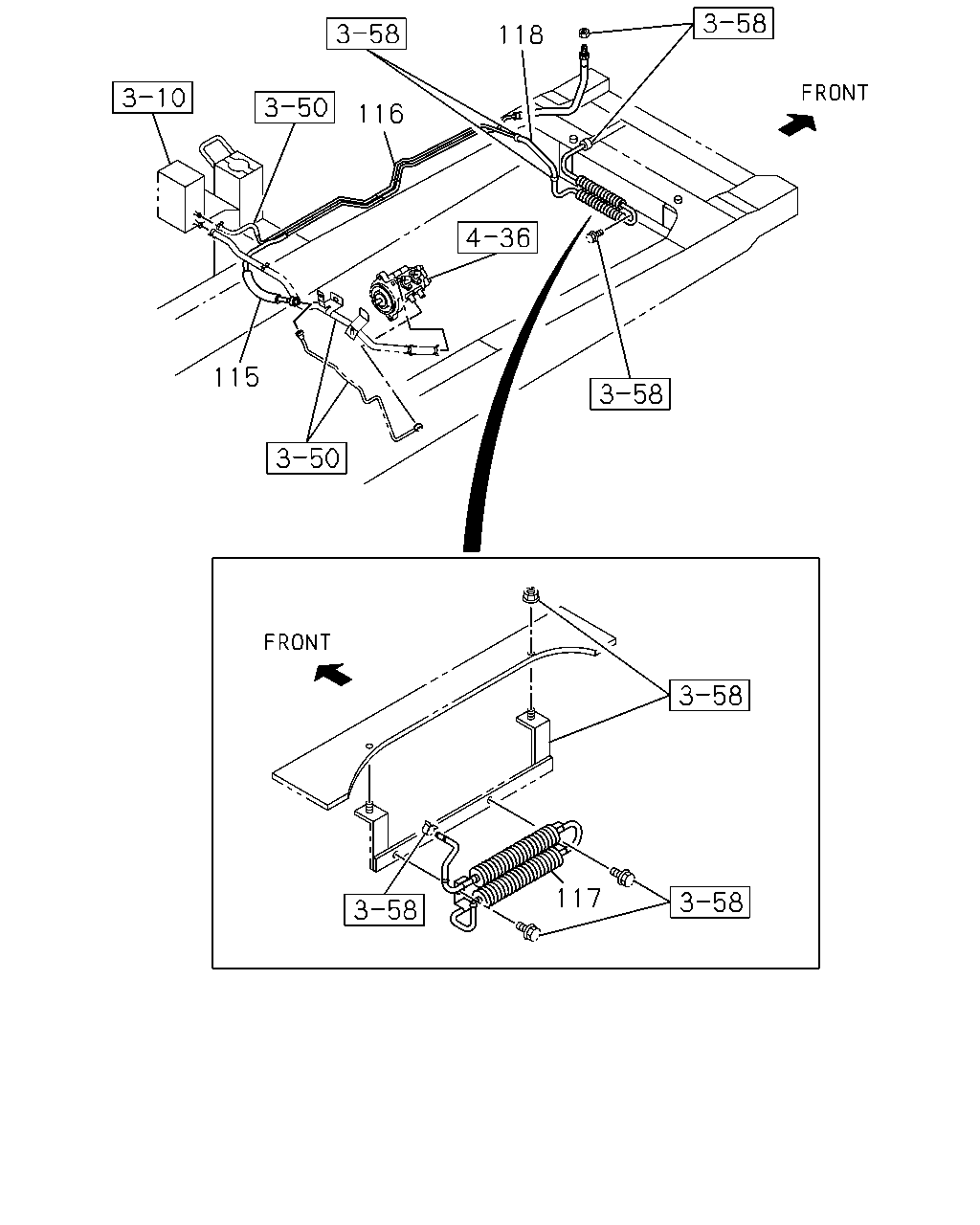

çizim 58938
118 116 115 117
BalonParca AdiParca NoAdetTipApplied Date
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-98035-909-2 01 1 0612-
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-452-3 01 1 0612-
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0612-
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0612-
