Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#346) — 189 parça

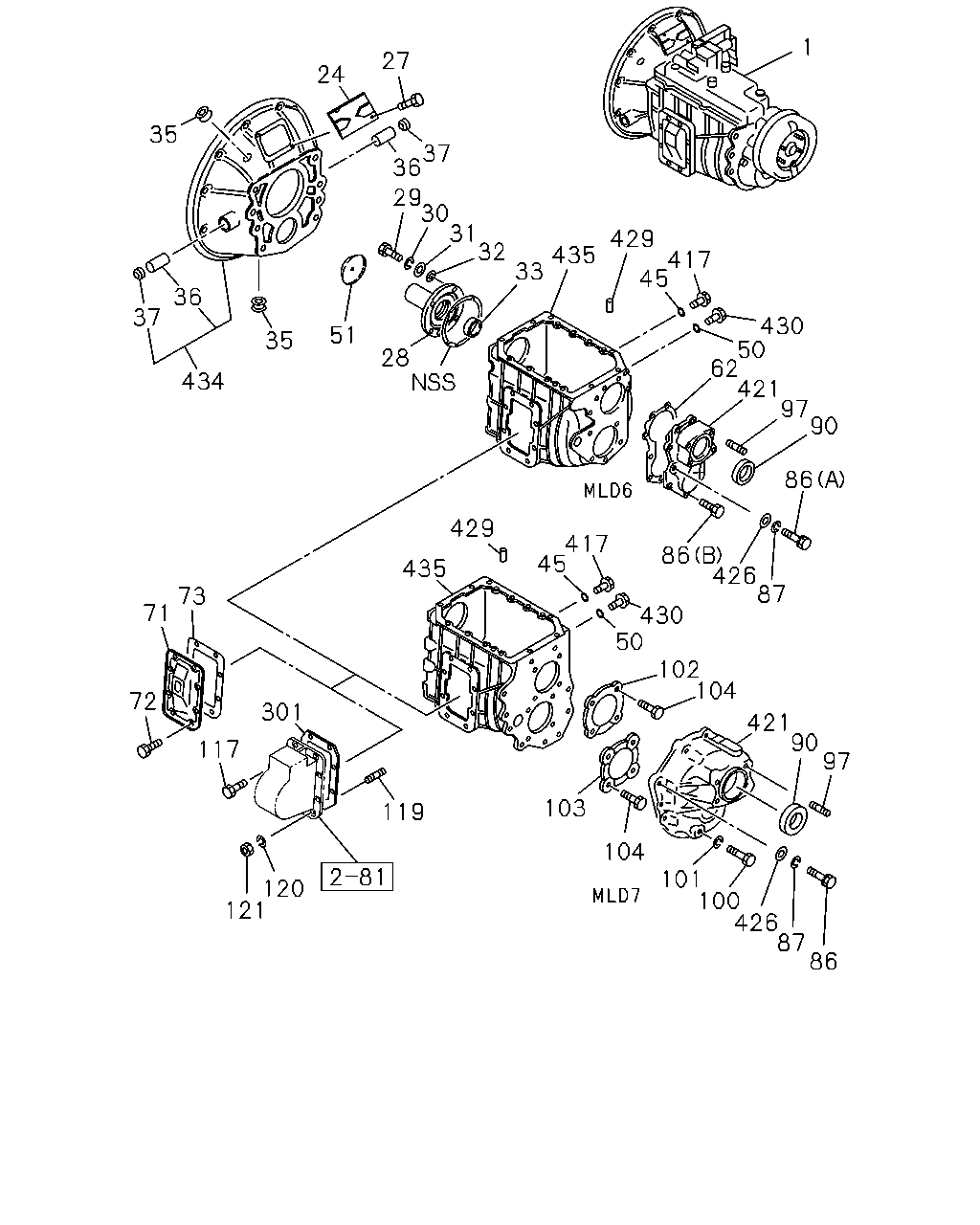

1 27 24 35 37 36 29 30 31 32 435 33 429 417 45 36 37 430 50 62 421 97 90 51 35 28 434 86 429 417 45 86 426 87 435 73 71 430 50 72 102 104 301 421 90 97 117 103 119 104 101 100 426 87 86 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL TRANSMISSION FRONT PTO(RC2) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-352-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-330-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33033-932-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33033-919-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33033-971-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5" HYPOID(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-407-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/715.5" HYPOID(W3S) 14"SPICER CLUTCH(SFF)	1-33032-207-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) 14"SPICER CLUTCH(SFF) RR TIRE 10.00-20<96X>	1-33032-207-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> RR TIRE 10.00-20<96X>	1-33035-356-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/715.5" HYPOID(W3S) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33035-356-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> RR TIRE 9.00-20<94X>	1-33035-357-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) 14"SPICER CLUTCH(SFF) RR TIRE 9.00-20<94X>	1-33032-209-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-395-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33035-419-0	01	1	9402-			●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9202-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-		●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9202-9306	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-		●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9202-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-		●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9202-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9202-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-		●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
86	BOLT; RR COVER (A) M10X60	9-01656-060-0	02	1	9202-9205	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9206-	●
86	BOLT; RR COVER (B) M10X30	9-01931-030-0	07	1	9202-9205	●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9206-	●
86	BOLT; RR COVER (A) M12X65	9-01656-265-0	01	1	9202-9205		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9206-		●
86	BOLT; RR COVER (B) M12X40	9-01991-240-0	08	1	9202-9205		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9206-		●
86	BOLT; RR COVER M12X50	1-09020-137-0	02	1	9202-9205			●
86	BOLT; RR COVER M12X50	1-09044-085-0	02	1	9206-			●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9202-9205			●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-			●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9202-9205	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205		●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9202-9205			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-		●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9202-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9202-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-0	03	1	9202-		●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9202-			●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-			●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9202-			●
103	RETAINER; BRG	1-33151-037-0	01	1	9202-			●
104	BOLT; BRG RET M10X30	9-01921-030-0	08	1	9202-9204			●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9205-9205			●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 W/LK WASHER	0-50051-030-0	06	1	9202-9205	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	1-38119-013-0	01	1	9202-9408			●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-039-0	01	1	9409-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9202-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-		●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-			●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	01	1	9202-9205		●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	02	1	9202-9205			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-		●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9202-	●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-		●	●
435	CASE; TRANS	1-33111-157-3	01	1	9202-	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204		●
435	CASE; TRANS	1-33111-235-0	01	1	9205-		●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204			●
435	CASE; TRANS	1-33111-236-0	01	1	9205-			●

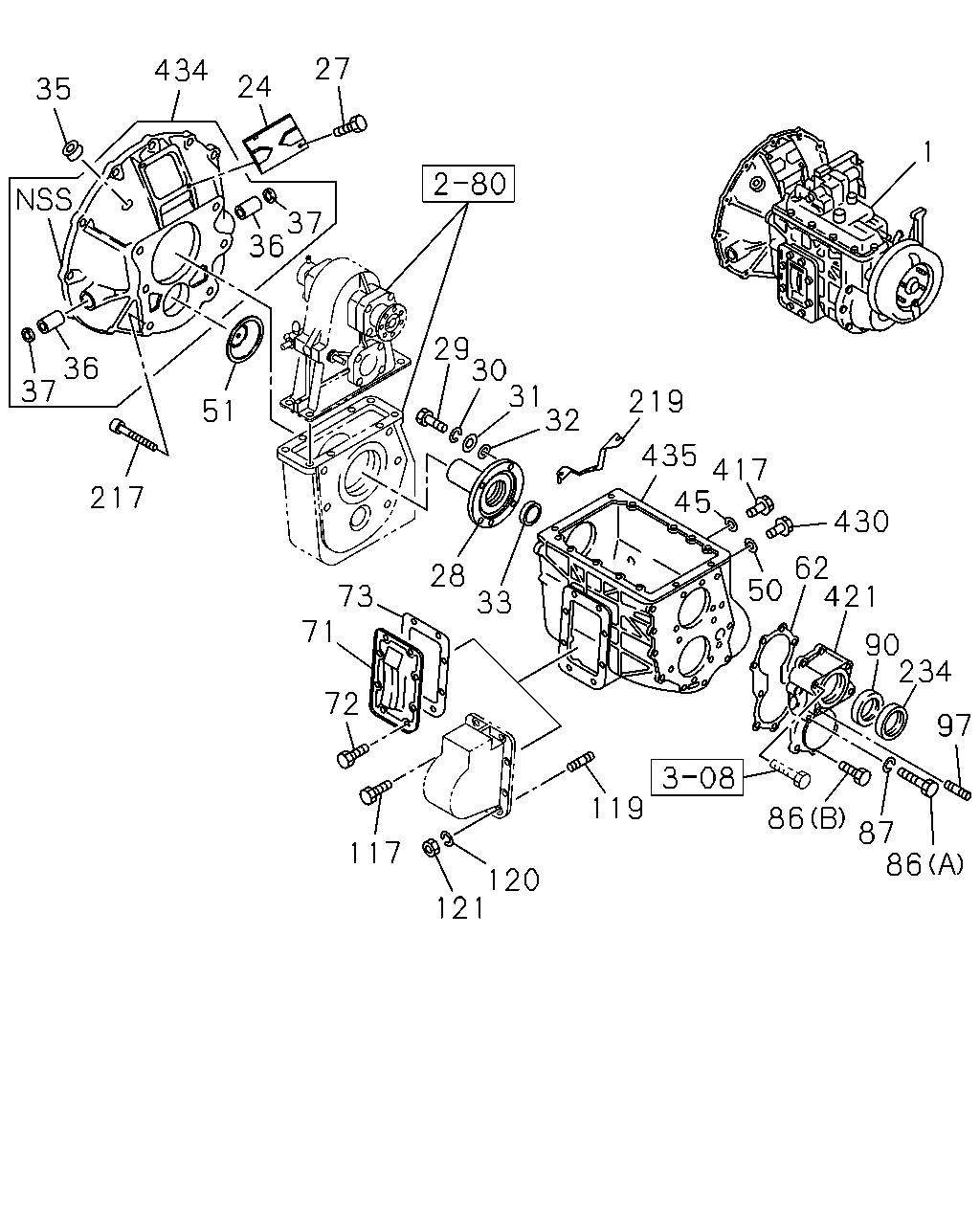

27 434 24 35 1 37 36 29 30 31 32 36 37 219 51 435 417 45 217 430 62 50 421 28 33 73 71 90 234 72 97 119 86 87 86 117 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL TRANSMISSION FRONT PTO(RC2) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-352-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION FRONT PTO(RC2) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33033-330-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33033-932-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33033-919-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33033-971-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5" HYPOID(W3K) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33035-407-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/715.5" HYPOID(W3S) 14"SPICER CLUTCH(SFF)	1-33032-207-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) 14"SPICER CLUTCH(SFF) RR TIRE 10.00-20<96X>	1-33032-207-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> RR TIRE 10.00-20<96X>	1-33035-356-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/715.5" HYPOID(W3S) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8>	1-33035-356-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 14" CLUTCH(WF6) ASSISTER SHIFT CONTROL<WX8> RR TIRE 9.00-20<94X>	1-33035-357-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 15.5" HYPOID(W1R) 14"SPICER CLUTCH(SFF) RR TIRE 9.00-20<94X>	1-33032-209-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33035-395-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33035-419-0	01	1	9402-			●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9202-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-		●	●
29	BOLT; FRT COVER M10X32	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9206-	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9202-9306	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-		●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9202-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-		●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9202-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9202-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-		●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
86	BOLT; RR COVER (A) M10X60	9-01656-060-0	02	1	9202-9205	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9206-	●
86	BOLT; RR COVER (B) M10X30	9-01931-030-0	07	1	9202-9205	●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9206-	●
86	BOLT; RR COVER (A) M12X65	9-01656-265-0	01	1	9202-9205		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9206-		●
86	BOLT; RR COVER (B) M12X40	9-01991-240-0	08	1	9202-9205		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9206-		●
86	BOLT; RR COVER M12X50	1-09020-137-0	02	1	9202-9205			●
86	BOLT; RR COVER M12X50	1-09044-085-0	02	1	9206-			●
86	BOLT; RR COVER M12X40	9-01991-240-0	09	1	9202-9205			●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9206-			●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9202-9205	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205		●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9202-9205			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-		●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9202-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9202-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-0	03	1	9202-		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 W/LK WASHER	0-50051-030-0	06	1	9202-9205	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
217	BOLT; CLU HSG TO FRT PTO TRANSMISSION FRONT PTO(RC2)	1-09020-034-0	01	1	9202-	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9202-	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9202-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9202-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-		●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9202-	●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-		●	●
435	CASE; TRANS	1-33111-157-3	01	1	9202-	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204		●
435	CASE; TRANS	1-33111-235-0	01	1	9205-		●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204			●
435	CASE; TRANS	1-33111-236-0	01	1	9205-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
