51104 - NP/NQR BUS(LHD)EURO4
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#34597) — 13 parça
◀

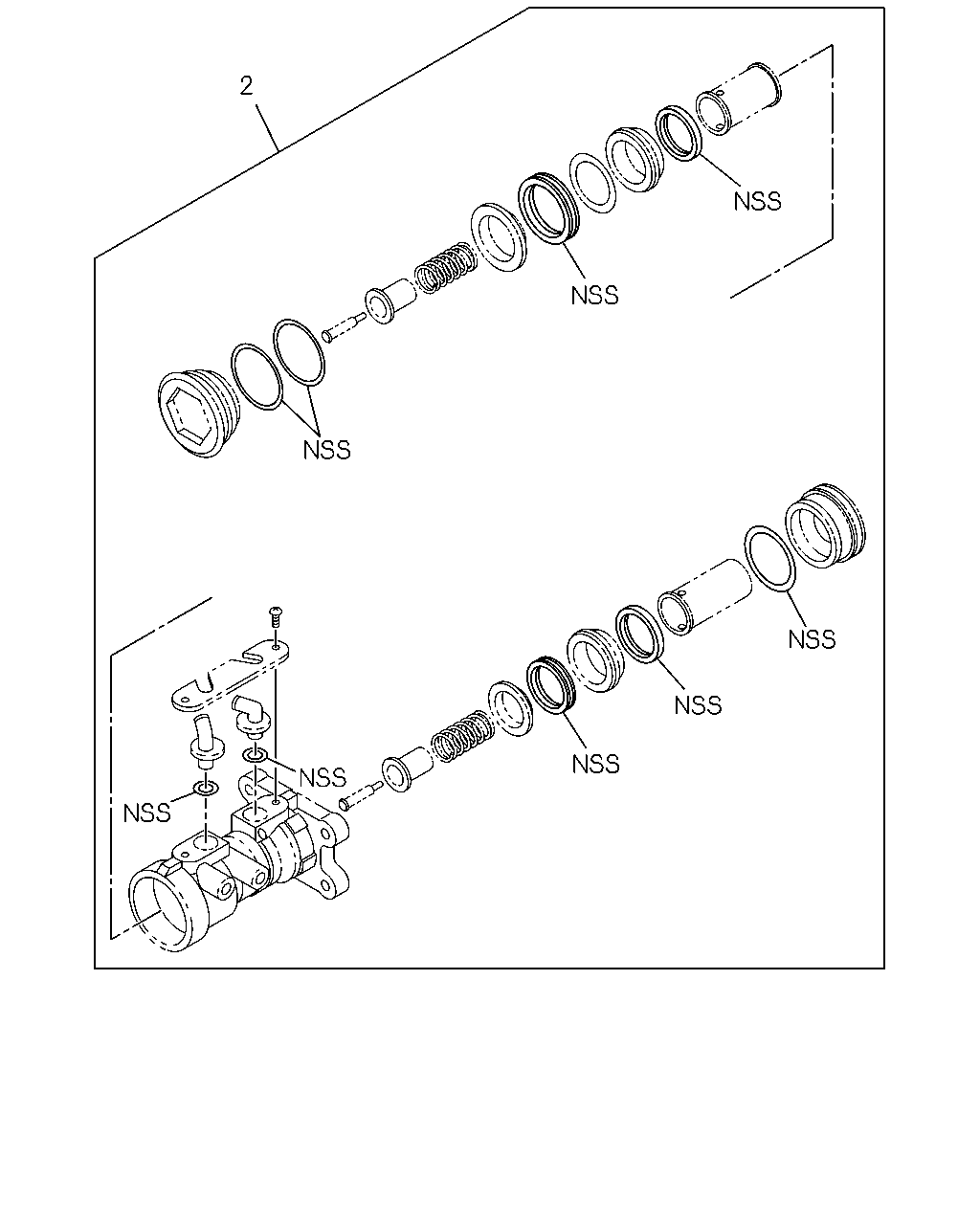

[330A] REPAIR KIT (1 parça)
[330A] ASM AND COMPONENT (12 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.649 REPAIR KIT; BRK,M/CYL
8-97254-775-0
01
1
0612-

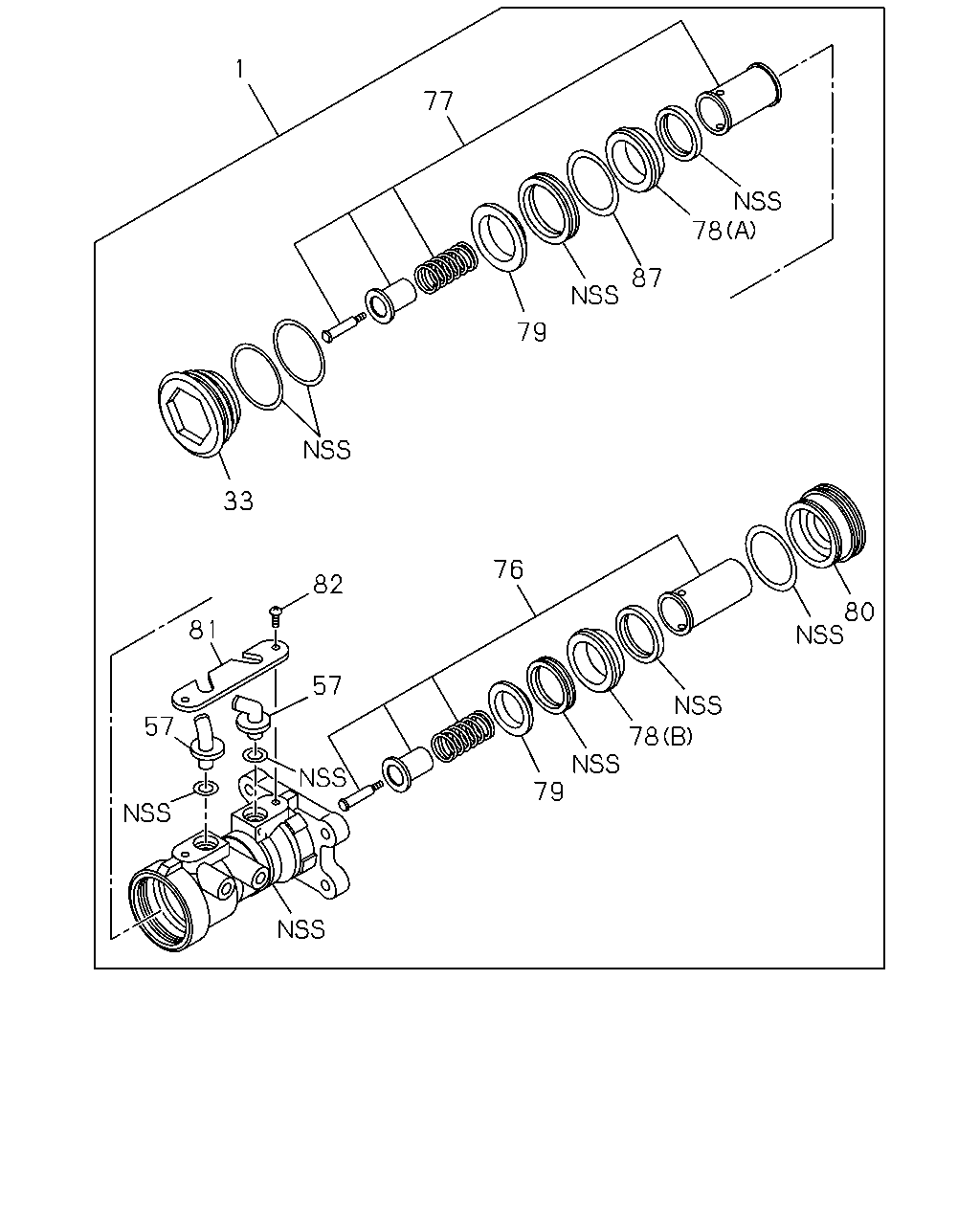

1
77
78
87
79
33
76
82
80
81
57
78
79
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.650 CYLINDER ASM; BRK MASTER
8-97254-771-0
01
1
0612-
33
04.661 PLUG; END,M/CYL
8-97186-699-0
01
1
0612-
57
04.651 NIPPLE; BRK M/CYL
8-97130-442-0
02
1
0612-
76
04.653 PISTON ASM; PRIMARY
8-97224-641-0
01
1
0612-
77
04.653 PISTON ASM; SECONDARY
8-97224-640-0
01
1
0612-
78
04.651 BUSHING; MASTER CYL
(A)
8-97170-695-0
01
1
0612-
78
04.651 BUSHING; MASTER CYL
(B)
8-97207-685-0
01
1
0612-
79
04.651 SUPPORTER; CUP
8-97170-698-0
02
1
0612-
80
04.651 COVER; MASTER CYL
8-97170-692-0
01
1
0612-
81
04.651 HOLDER; NIPPLE
8-97130-445-0
01
1
0612-
82
04.651 SCREW; HOLDER
8-97130-446-0
02
1
0612-
87
04.662 SPACER; CUP
8-97170-696-0
01
1
0612-
