Isuzu WW
▶
TRUCKS
▶
NP
▶
51104 - NP/NQR BUS(LHD)EURO4
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#34595) — 36 parça
◀

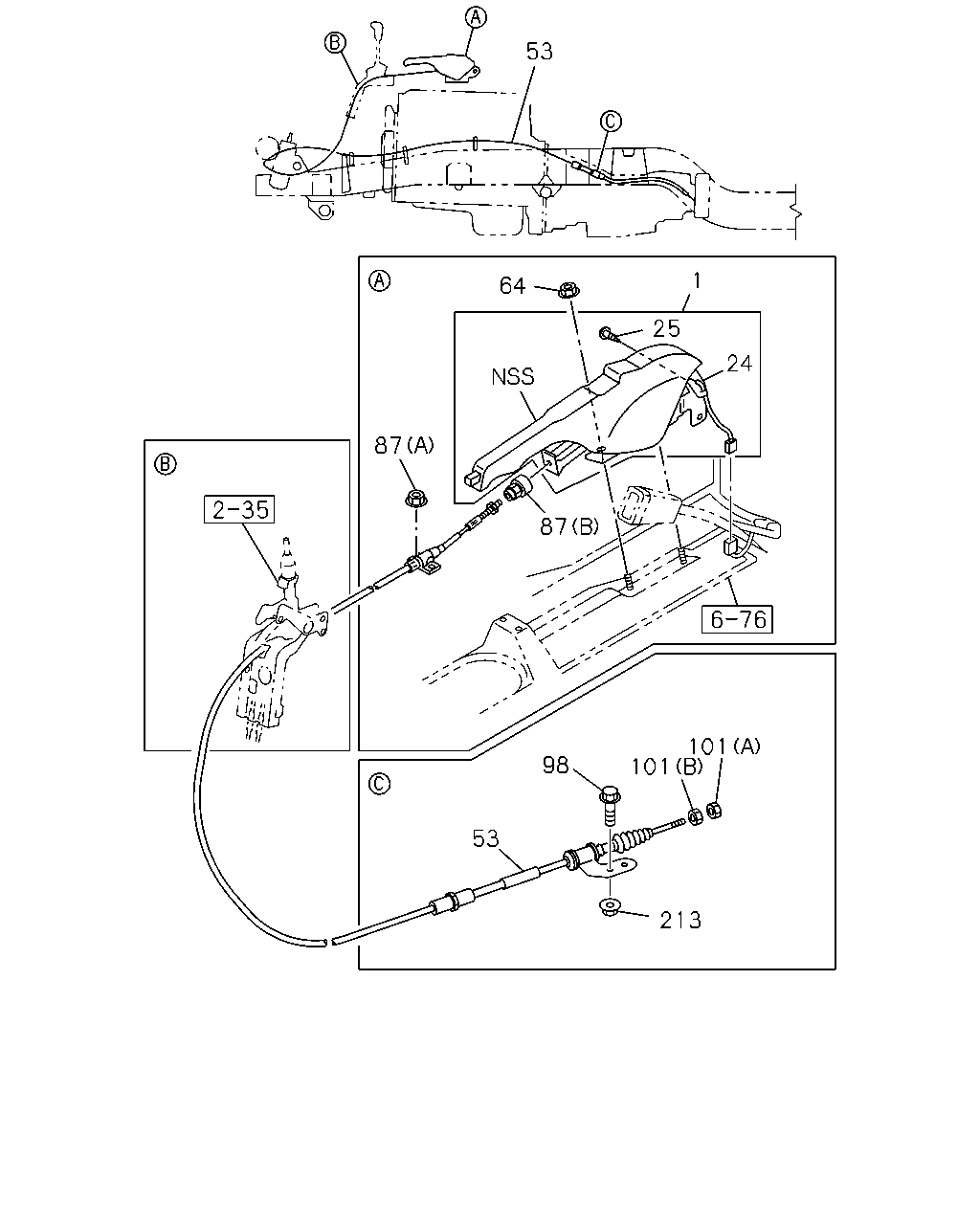

[311A] STEM AND CABLE (13 parça)

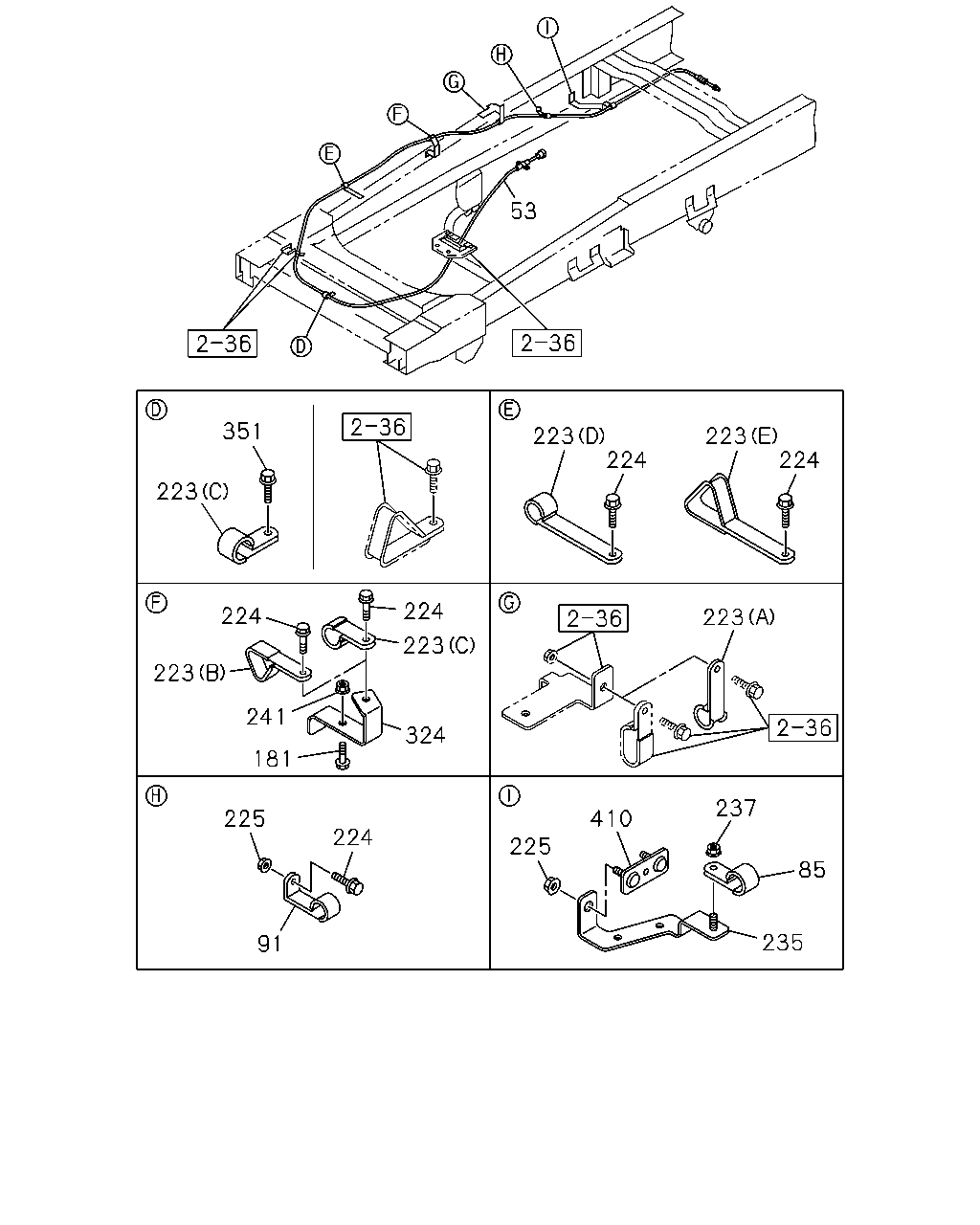

[311A] FIXING PARTS (23 parça)
▶
53
1
64
25
24
87
87
101
101
98
53
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97409-385-0
01
1
0612-
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0612-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0612-
53
04.779 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98020-009-3
01
1
0612-
53
04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98020-008-2
01
1
0612-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0612-
87
04.785 NUT
(B) M6
1-71996-312-0
01
1
0612-0612
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
0612-
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0612-
98
04.785 BOLT; RR COVER
00.029 M10X30 FLANGE
0-28651-030-0
02
1
0612-
101
04.785 NUT; CABLE TO LEVER
02.334 (A) M8
0-91110-508-0
01
1
0612-
101
04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE
9-46259-016-0
01
1
0612-
213
04.785 NUT; WIRE,RR COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE
0-91180-110-0
02
1
0703-
53
351
223
224
223
224
223
224
224
223
223
223
241
324
181
237
225
410
224
25
85
235
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0612-
53
04.779 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98020-009-3
01
1
0612-
53
04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98020-008-2
01
1
0612-
85
04.785 CLIP; BRKT
ID=13 L=20
0-95235-236-0
01
1
0612-
91
04.785 CLIP; PARKING BRK CABLE
8-94405-465-0
01
1
0612-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0612-
223
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (C) ID=16 L=28
0-95235-556-0
01
1
0612-
223
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (C) ID=16 L=28
0-95235-556-0
01
1
0612-
223
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=12 L=70
1-09700-097-1
01
1
0612-
223
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98023-698-0
01
1
0612-
223
04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B)
8-97036-333-1
01
1
0612-
223
04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (E)
8-97039-517-1
01
1
0612-
224
04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0612-
224
04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0612-
224
04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0612-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0612-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0612-
235
04.785 BRACKET; CONT CABLE TO FRAME
8-98048-393-0
01
1
0612-
237
04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
01
1
0612-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0612-
324
04.785 BRACKET
8-98039-594-0
01
1
0612-
351
04.785 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE
0-28650-825-0
01
1
0612-
410
04.748 PLATE; BRACKET
8-98045-743-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
