Isuzu WW
▶
TRUCKS
▶
NP
▶
51104 - NP/NQR BUS(LHD)EURO4
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#34593) — 29 parça
◀

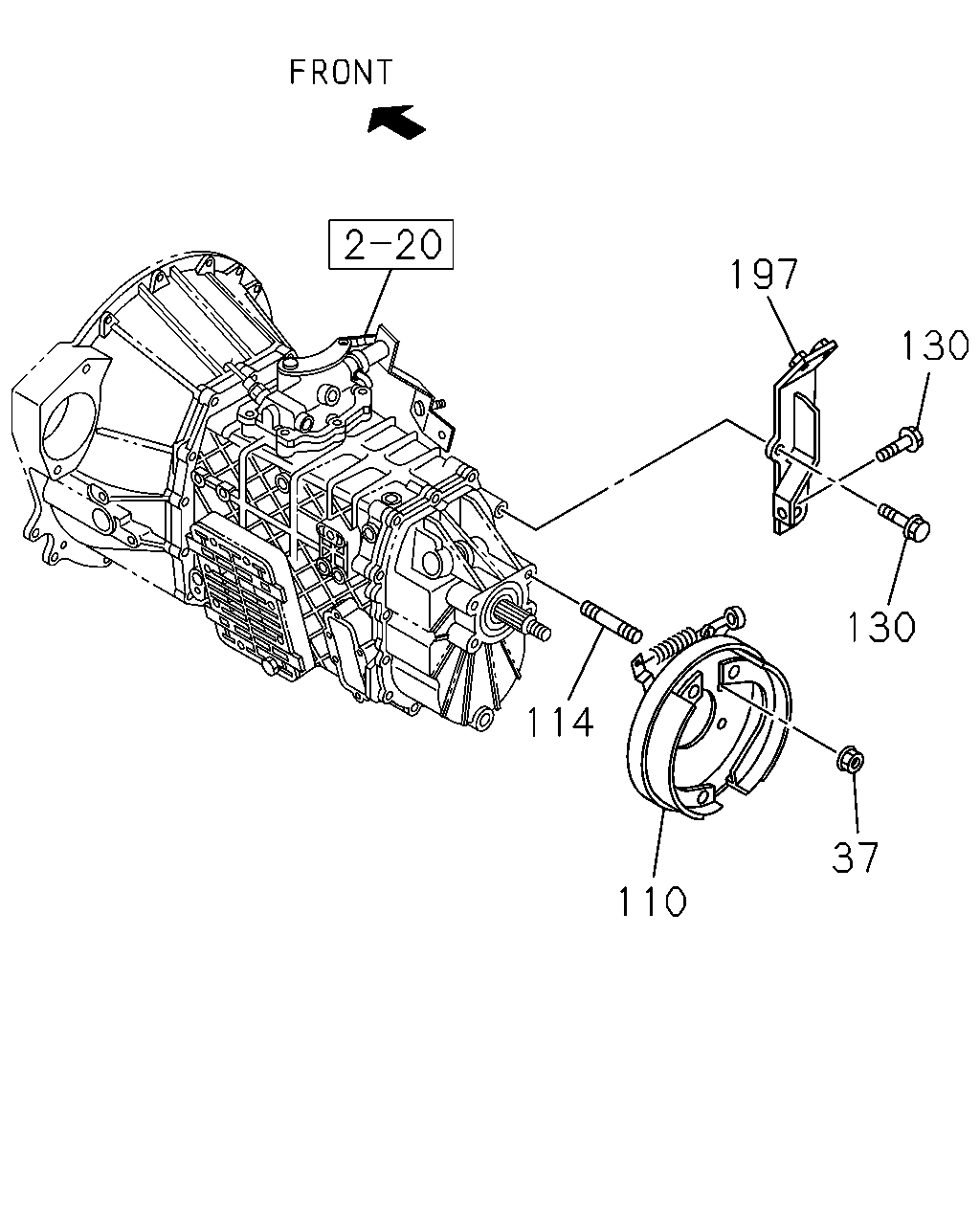

[308A] NO.1 (7 parça)
[308A] NO.2 (22 parça)
▶
197
130
130
114
37
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
05.610 NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
0612-
110
05.610 BRAKE ASM; PARKING
8-97205-628-0
01
1
0612-0706
110
05.610 BRAKE ASM; PARKING
8-98034-305-0
01
1
0707-
114
05.605 STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
0612-
130
05.605 BOLT; BRKT
02.042 M10X25 FLANGE
0-28151-025-0
03
1
0612-
197
05.605 BRACKET; CENTER BRAKE CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97304-238-0
01
1
0612-
197
05.605 BRACKET; CENTER BRAKE CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97244-812-0
01
1
0612-
54
2
81
8
198
20
33
17
110
20
13
32
39
40
46
17
21
41
23
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.605 DRUM; PARKING BRK
1-46211-057-0
01
1
0612-
8
05.605 FLANGE; PARKING BRK
8-98044-142-0
01
1
0612-
13
05.615 BRACE; PARKING BRK
1-46239-003-0
01
1
0612-
17
05.606 SHOE; PARKING BRK
8-97042-934-1
02
1
0612-
20
05.606 SPRING; RETURN,SECONDARY,PARKING
1-09586-002-0
02
1
0612-
21
05.606 SPRING; RETURN,PARKING BRK SHOE
1-09583-280-0
01
1
0612-
23
05.615 SCREW; ADJ,PARKING BRK SHOE
1-46240-004-0
01
1
0612-0706
23
05.615 SCREW; ADJ,PARKING BRK SHOE
8-98043-963-0
01
1
0707-
32
05.610 PLATE; SUPPORT,PARKING BRK
1-46213-069-0
01
1
0612-
33
05.605 SHAFT; CAM,PARKING BRK
1-46251-009-0
01
1
0612-0706
33
05.605 SHAFT; CAM,PARKING BRK
8-98043-961-0
01
1
0707-
39
05.610 COVER; DUST,PARKING BRK
1-46213-075-0
01
1
0612-
40
05.605 LEVER; CM/SHF,PARKING BRK
1-46252-041-0
01
1
0612-0706
40
05.605 LEVER; CM/SHF,PARKING BRK
8-98047-550-0
01
1
0707-
41
05.605 PIN; KNOCK,LEVER
9-09878-594-0
01
1
0612-
42
05.605 SPRING; RETURN,LEVER
1-09583-041-0
01
1
0612-
46
05.605 WASHER; LEVER
1-09509-057-0
01
1
0612-
54
05.606 BOLT; COVER
03.403 M8X20 W/LK&PL WASHER
0-50640-820-0
02
1
0612-
81
05.606 COVER; CHECK HOLE,PARKING BRK
8-98031-861-0
02
1
0612-
110
05.610 BRAKE ASM; PARKING
8-97205-628-0
01
1
0612-0706
110
05.610 BRAKE ASM; PARKING
8-98034-305-0
01
1
0707-
198
05.605 BOLT; KNURL
M12X39
8-97365-446-0
04
1
0612-
