◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51104 - NP/NQR BUS(LHD)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#34592) — 29 parça

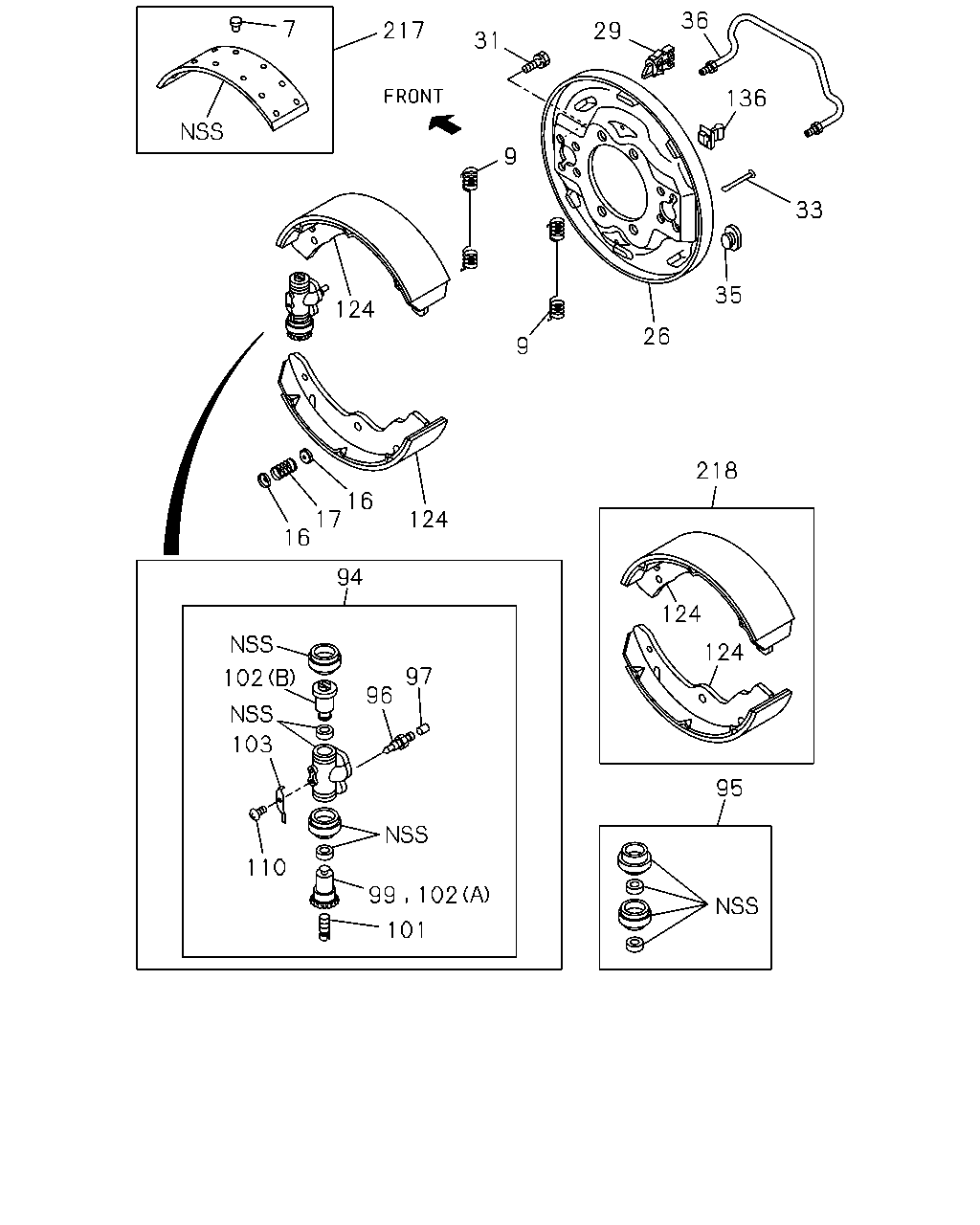

çizim 58934
36 7 217 29 31 136 9 33 35 124 26 9 218 16 17 16 124 94 124 124 97 102 96 103 95 110 99 102 101
BalonParca AdiParca NoAdetTipApplied Date
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0612-
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0612-
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0612-
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0612-
26 05.001 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0612-
26 05.001 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0612-
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0612-
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0612-
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0612-
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0612-
36 04.685 PIPE; OIL,RR BRK 8-97079-847-0 02 1 0612-
94 04.665 CYLINDER; WHEEL,RR BRK 8-97353-570-0 02 1 0612-
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97353-571-0 01 1 0612-
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97353-572-0 01 1 0612-
95 04.665 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0612-
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0612-0710
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 01 1 0711-
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0612-0710
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0711-
99 04.668 PISTON; RR WHEEL CYL 8-97353-579-0 03 1 0612-
101 04.666 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0612-
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97353-578-0 04 1 0612-
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97353-579-0 01 1 0612-
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0612-
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0612-
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0612-
136 05.002 GROMMET 8-97044-742-1 04 1 0612-
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0612-
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0612-
