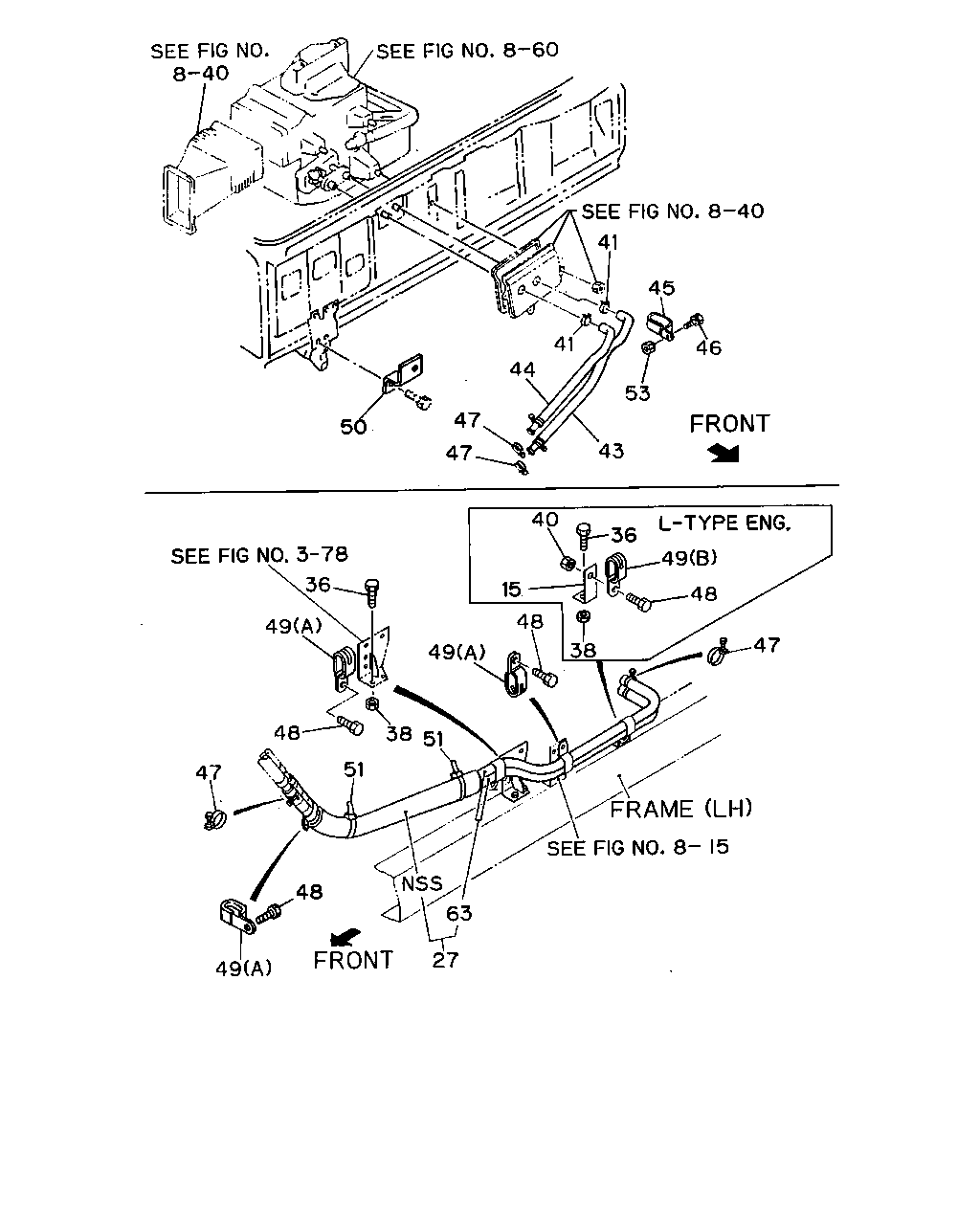

15 |
BRACKET; WATER HOSE
6RB1 STD ENG(07L)
L=68
|
1-47475-525-0 |
01 |
1 |
9002- |
● |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
10PD1 STD ENG(40L)
|
1-83565-428-0 |
01 |
1 |
9002- |
● |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
12PD1 C ENG(43L)
|
1-83565-427-0 |
01 |
1 |
9307- |
● |
|
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6RB1 STD ENG(07L)
|
1-83565-431-0 |
01 |
1 |
9002- |
● |
● |
|
| |
36 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9002-9009 |
● |
● |
● |
| |
36 |
BOLT; BRKT
6RB1 STD ENG(07L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9002-9009 |
● |
|
● |
| |
36 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 W/LK WASHER
|
9-01900-825-0 |
01 |
1 |
9010-9204 |
● |
● |
● |
| |
36 |
BOLT; BRKT
6RB1 STD ENG(07L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 W/LK WASHER
|
9-01900-825-0 |
01 |
1 |
9010-9204 |
● |
|
● |
| |
36 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9205-9302 |
● |
● |
● |
| |
36 |
BOLT; BRKT
6RB1 STD ENG(07L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9205-9302 |
● |
|
● |
| |
36 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9303-9306 |
● |
● |
● |
| |
36 |
BOLT; BRKT
6RB1 STD ENG(07L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9303-9306 |
● |
|
● |
| |
36 |
BOLT; BRKT
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9307- |
● |
● |
● |
| |
36 |
BOLT; BRKT
6RB1 STD ENG(07L)
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9002- |
● |
● |
|
| |
38 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9307- |
● |
● |
● |
| |
38 |
NUT; BRKT
6RB1 STD ENG(07L)
M8
|
9-09110-408-0 |
01 |
1 |
9002- |
● |
● |
|
| |
40 |
NUT; CLIP
10PD1 STD ENG(40L)
M8
|
9-09110-408-0 |
01 |
1 |
9002-9010 |
● |
● |
● |
| |
40 |
NUT; CLIP
6RB1 STD ENG(07L)
M8
|
9-09110-408-0 |
02 |
1 |
9002-9010 |
● |
● |
|
| |
40 |
NUT; CLIP
6RB1 STD ENG(07L)
M8
|
9-09110-408-0 |
01 |
1 |
9011- |
● |
● |
|
| |
41 |
CLAMP; WATER HOSE,HTR
ID=26
|
1-09704-090-1 |
02 |
1 |
9002- |
● |
● |
● |
| |
43 |
HOSE; WATER,OUTLET,HTR
|
1-83565-324-0 |
01 |
1 |
9002-9301 |
● |
● |
● |
| |
43 |
HOSE; WATER,OUTLET,HTR
|
1-83565-592-0 |
01 |
1 |
9302- |
● |
● |
● |
| |
44 |
HOSE; WATER,HTR,INL
|
1-83565-323-0 |
01 |
1 |
9002-9301 |
● |
● |
● |
| |
44 |
HOSE; WATER,HTR,INL
|
1-83565-591-0 |
01 |
1 |
9302- |
● |
● |
● |
| |
45 |
CLIP; WATER PIPE
|
1-09700-625-0 |
03 |
1 |
9002- |
● |
● |
● |
| |
46 |
SCREW; CLIP
M6X20
|
1-09980-279-0 |
01 |
1 |
9002- |
● |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
ID=26
|
1-09704-090-1 |
04 |
1 |
9002- |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9011-9204 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9302 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9303-9306 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
10PD1 STD ENG(40L)
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9002-9003 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9004-9010 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
10PD1 STD ENG(40L)
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9004-9010 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
10PD1 STD ENG(40L)
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9011-9204 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
10PD1 STD ENG(40L)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9205-9302 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
10PD1 STD ENG(40L)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9303-9306 |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
6RB1 STD ENG(07L)
M8X20 W/LK WASHER
|
9-01900-820-0 |
03 |
1 |
9002-9204 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
6RB1 STD ENG(07L)
M8X20 W/LK WASHER
|
0-50040-820-0 |
03 |
1 |
9205-9302 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
6RB1 STD ENG(07L)
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9303-9306 |
● |
● |
|
| |
48 |
BOLT; CLIP FIX
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9307- |
● |
● |
● |
| |
48 |
BOLT; CLIP FIX
6RB1 STD ENG(07L)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9307- |
● |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
(A)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9011- |
● |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
10PD1 STD ENG(40L)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9002-9003 |
● |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9004-9010 |
● |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
10PD1 STD ENG(40L)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9004-9010 |
● |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
10PD1 STD ENG(40L)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9011-9306 |
● |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6RB1 STD ENG(07L)
(B)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9002-9306 |
● |
● |
|
| |
49 |
CLIP; WATER HOSE,HTR
6RB1 STD ENG(07L)
(B)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9307- |
● |
● |
|
| |
50 |
BRACKET
CAB SUSPENSION RIGID(W71)
|
1-83571-321-0 |
01 |
1 |
9002- |
● |
● |
|
| |
51 |
CLIP; WATER HOSE,HTR
L=250
|
5-09707-030-0 |
02 |
1 |
9002- |
● |
● |
● |
| |
53 |
NUT; HOSE CLIP
M6 FLANGE
|
1-09984-141-0 |
02 |
1 |
9002- |
● |
● |
● |
| |
63 |
HOSE; WATER
10PD1 STD ENG(40L)
L=740
|
1-83565-442-0 |
01 |
1 |
9002- |
● |
● |
● |
| |
63 |
HOSE; WATER
10PD1 STD ENG(40L)
L=730
|
1-83565-443-0 |
01 |
1 |
9002- |
● |
● |
● |
| |
63 |
HOSE; WATER
12PD1 C ENG(43L)
L=695
|
1-83565-327-0 |
01 |
1 |
9307- |
● |
|
|
| |
63 |
HOSE; WATER
12PD1 C ENG(43L)
L=680
|
1-83565-333-0 |
01 |
1 |
9307- |
● |
|
|
| |
63 |
HOSE; WATER
6RB1 STD ENG(07L)
L=930
|
1-83565-448-0 |
01 |
1 |
9002- |
● |
● |
|
| |
63 |
HOSE; WATER
6RB1 STD ENG(07L)
L=885
|
1-83565-449-0 |
01 |
1 |
9002- |
● |
● |
|
