2-30 — GEAR SHIFTER AND QUADRANT BOX (#34584) — 141 parça

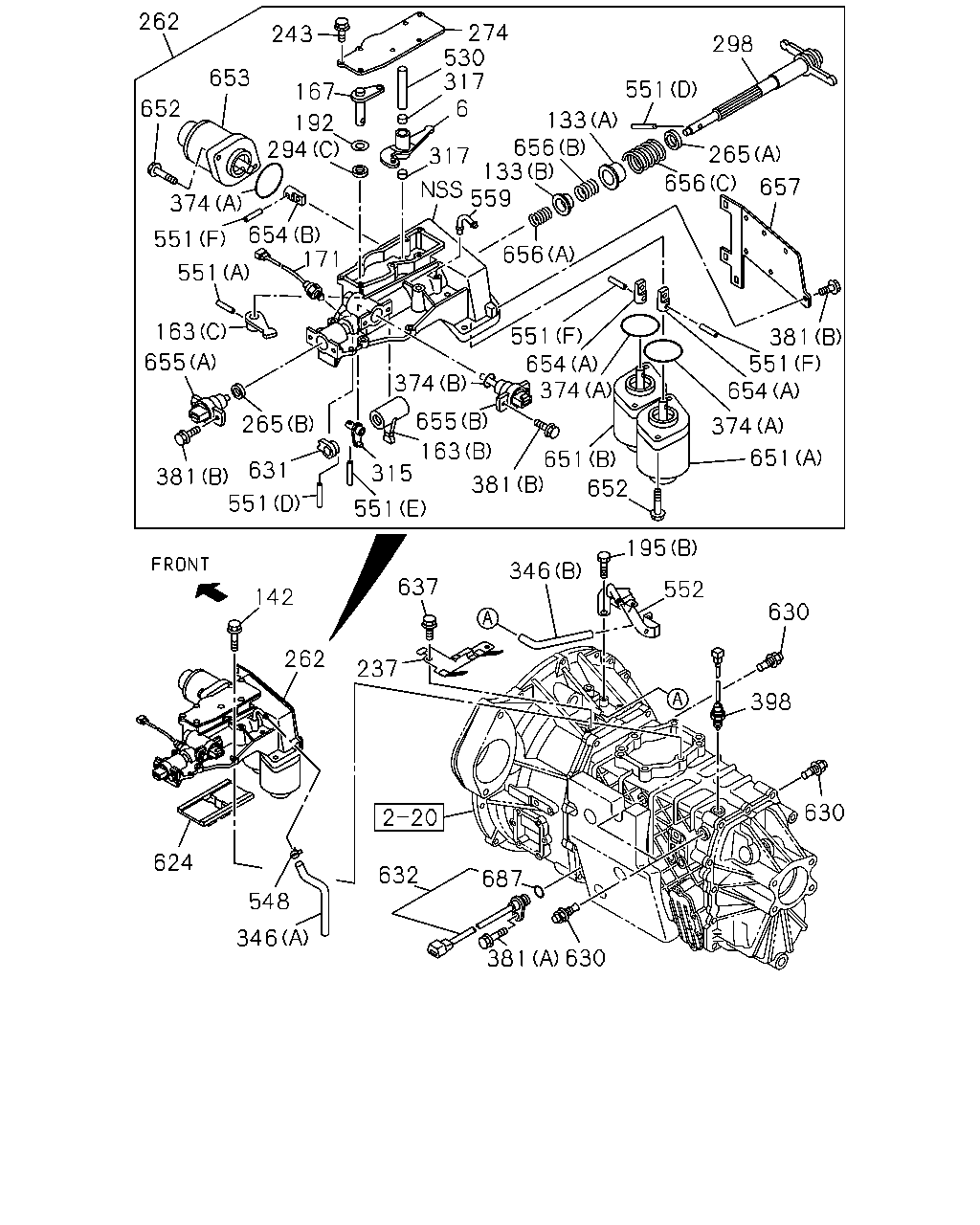

262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 637 552 142 630 262 237 398 630 624 632 687 548 346 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.302 LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-995-0	01	1	0612-
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0612-
133	04.027 SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-989-0	01	1	0612-
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	0612-
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	0612-
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0612-
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0612-
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0612-
163	04.302 LEVER; SELECT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0612-
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0612-
167	04.302 LEVER; SELECT,EXTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-596-0	01	1	0612-0612
167	04.302 LEVER; SELECT,EXTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-444-0	01	1	0612-
171	04.054 SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0612-0612
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0612-
171	04.054 SWITCH; NEUTRAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-688-1	01	1	0612-0612
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0612-
192	04.309 WASHER; PL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	02	1	0612-
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0612-
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-
237	04.057 BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97369-186-1	01	1	0612-0612
237	04.057 BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-905-1	01	1	0612-
243	04.105 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE	0-28050-612-0	11	1	0612-
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-5	01	1	0612-
262	04.105 BOX ASM; SHIFT CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-592-1	01	1	0612-
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0612-
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0612-
274	04.105 COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	0612-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0612-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0612-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0612-
298	04.309 SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0612-
315	04.302 LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0612-
317	04.302 BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0612-
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	0612-
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0612-
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0612-
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0612-
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0612-
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0612-
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0612-
530	04.302 SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0612-
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0612-
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0612-
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	05	1	0612-
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0612-
552	04.105 BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	8-97385-018-2	01	1	0612-
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0612-
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0612-
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	0612-
630	04.307 DETENT ASM	8-98019-536-0	04	1	0612-
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0612-
631	04.105 STOPPER; SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0612-
632	04.054 SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	0612-
637	04.105 BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98002-759-0	01	1	0612-
651	04.309 SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98002-760-0	01	1	0612-
652	04.309 BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE	0-28151-025-0	06	1	0612-
653	04.309 SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	0612-
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0612-
654	04.309 JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0612-
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0612-
655	04.309 SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0612-
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0612-
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0612-
656	04.307 SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0612-
657	04.105 PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	0612-
687	04.075 GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	9-09567-113-0	01	1	0612-

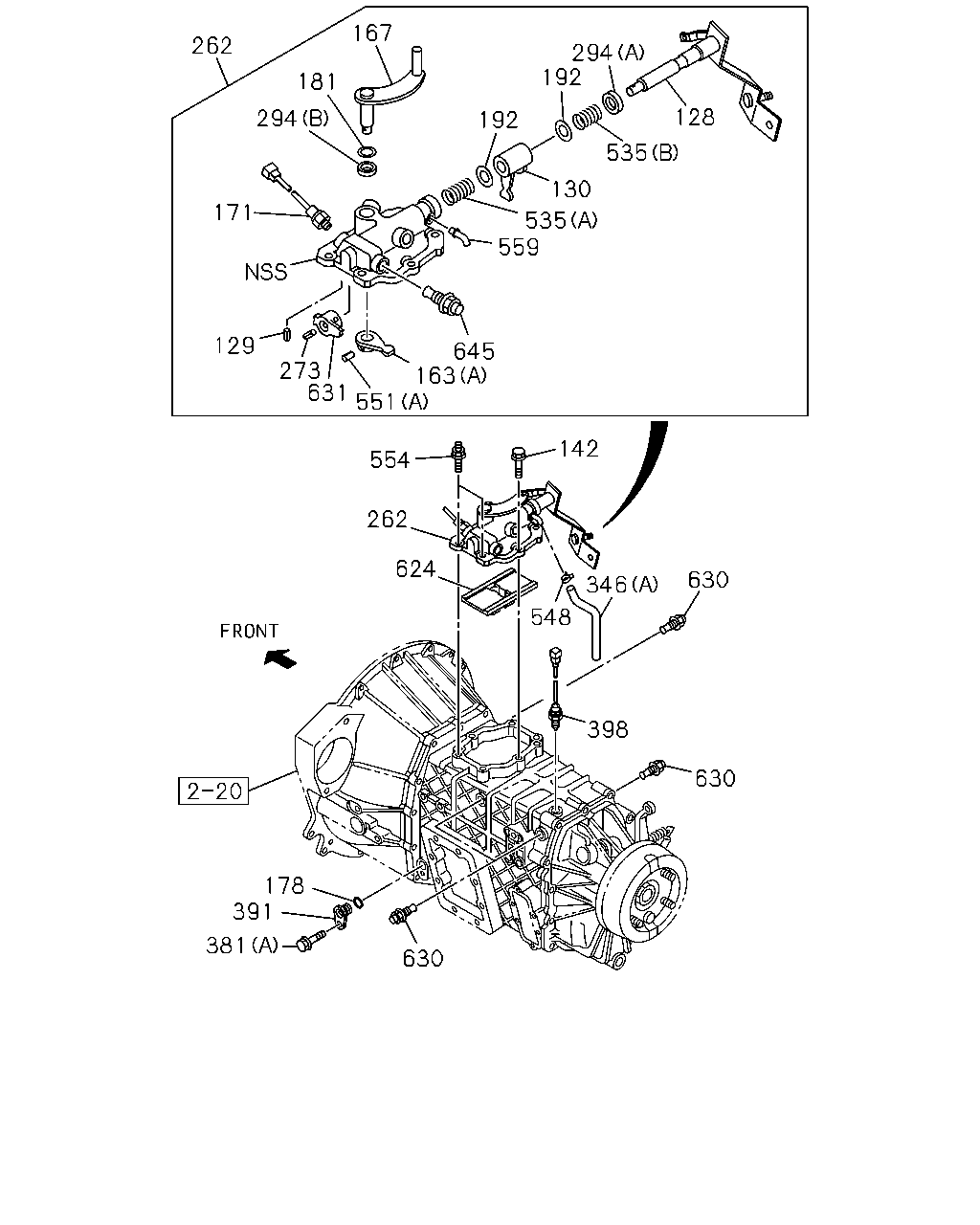

167 262 294 192 181 128 294 192 535 130 171 535 559 129 645 163 551 273 631 142 554 262 624 630 346 548 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
128	04.030 LEVER; SHIFT,EXTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-595-0	01	1	0612-
129	04.027 PIN; SPR,SHIFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=30 OD=4	1-09748-031-0	01	1	0612-
130	04.302 LEVER; SHIFT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97306-647-0	01	1	0612-
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	0612-
142	04.012 BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	0612-
142	04.012 BOLT; QUAD BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0612-
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0612-
163	04.302 LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0612-
163	04.302 LEVER; SELECT,INTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0612-
167	04.302 LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0612-
167	04.302 LEVER; SELECT,EXTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-596-0	01	1	0612-0612
167	04.302 LEVER; SELECT,EXTERNAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-444-0	01	1	0612-
171	04.054 SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0612-0612
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0612-
171	04.054 SWITCH; NEUTRAL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-688-1	01	1	0612-0612
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	0612-
181	04.302 WASHER; PL,SELECT LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-327-0	01	1	0612-
192	04.309 WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0612-
192	04.309 WASHER; PL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	02	1	0612-
262	04.105 BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-5	01	1	0612-
262	04.105 BOX ASM; SHIFT CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-592-1	01	1	0612-
273	04.309 PIN; SPR,STOPPER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0612-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0612-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0612-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0612-
346	04.545 HOSE; AIR (A)	8-97309-855-0	01	1	0612-
346	04.545 HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0612-
381	04.105 BOLT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0612-
381	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0612-
391	04.104 PLUG; SW HOLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-273-1	01	1	0612-
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0612-
535	04.302 SPRING; LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-659-0	01	1	0612-
535	04.302 SPRING; LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-660-0	01	1	0612-
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0612-
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0612-
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	05	1	0612-
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0612-
554	04.302 STUD; CONT BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X15,M8X25 L=49	8-97365-378-0	02	1	0612-
559	04.302 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0612-
559	04.302 PIPE; BREATHER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0612-
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	0612-
630	04.307 DETENT ASM	8-98019-536-0	04	1	0612-
631	04.105 STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0612-
631	04.105 STOPPER; SPRING EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0612-
645	04.311 DETENT ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	8-98019-536-0	01	1	0612-

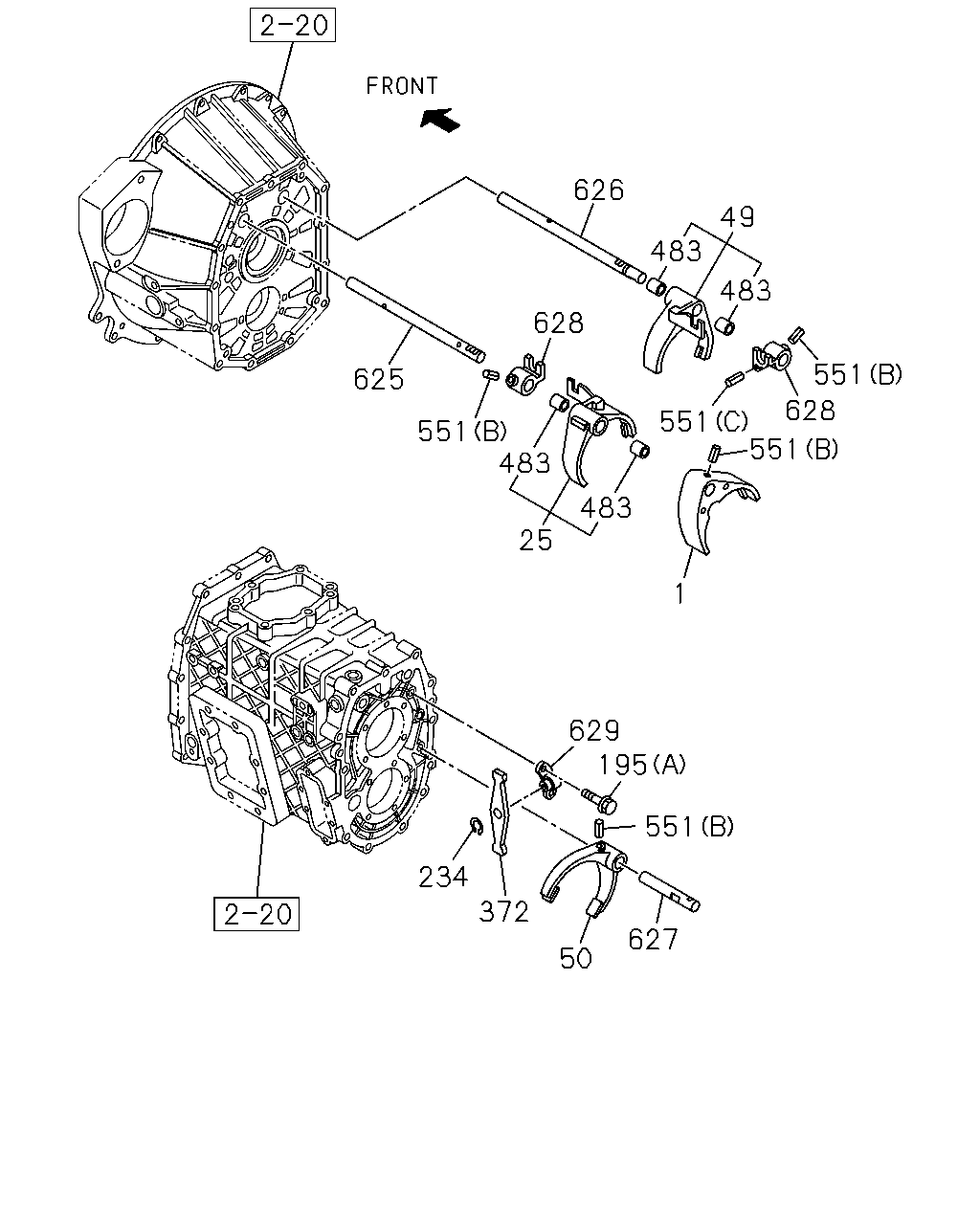

626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0612-
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-737-1	01	1	0612-
49	04.302 ARM; SHIFT,4TH & 5TH	8-97362-738-1	01	1	0612-
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0612-
195	04.105 BOLT (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0612-
195	04.105 BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-
234	04.311 RING; SNAP ID=16.5	0-91800-618-0	01	1	0612-
372	04.302 LEVER; RELAY,6TH	8-97241-342-0	01	1	0612-
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0612-
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0612-
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	05	1	0612-
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0612-
551	04.303 PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0612-
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-735-0	01	1	0612-
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-548-0	01	1	0802-
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97383-754-0	01	1	0612-0801
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97383-754-0	01	1	0802-
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-97241-339-0	01	1	0612-0805
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-98119-293-0	01	1	0806-
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	0612-
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0612-
