2-26 — MANUAL TRANSMISSION GEAR (#34583) — 83 parça

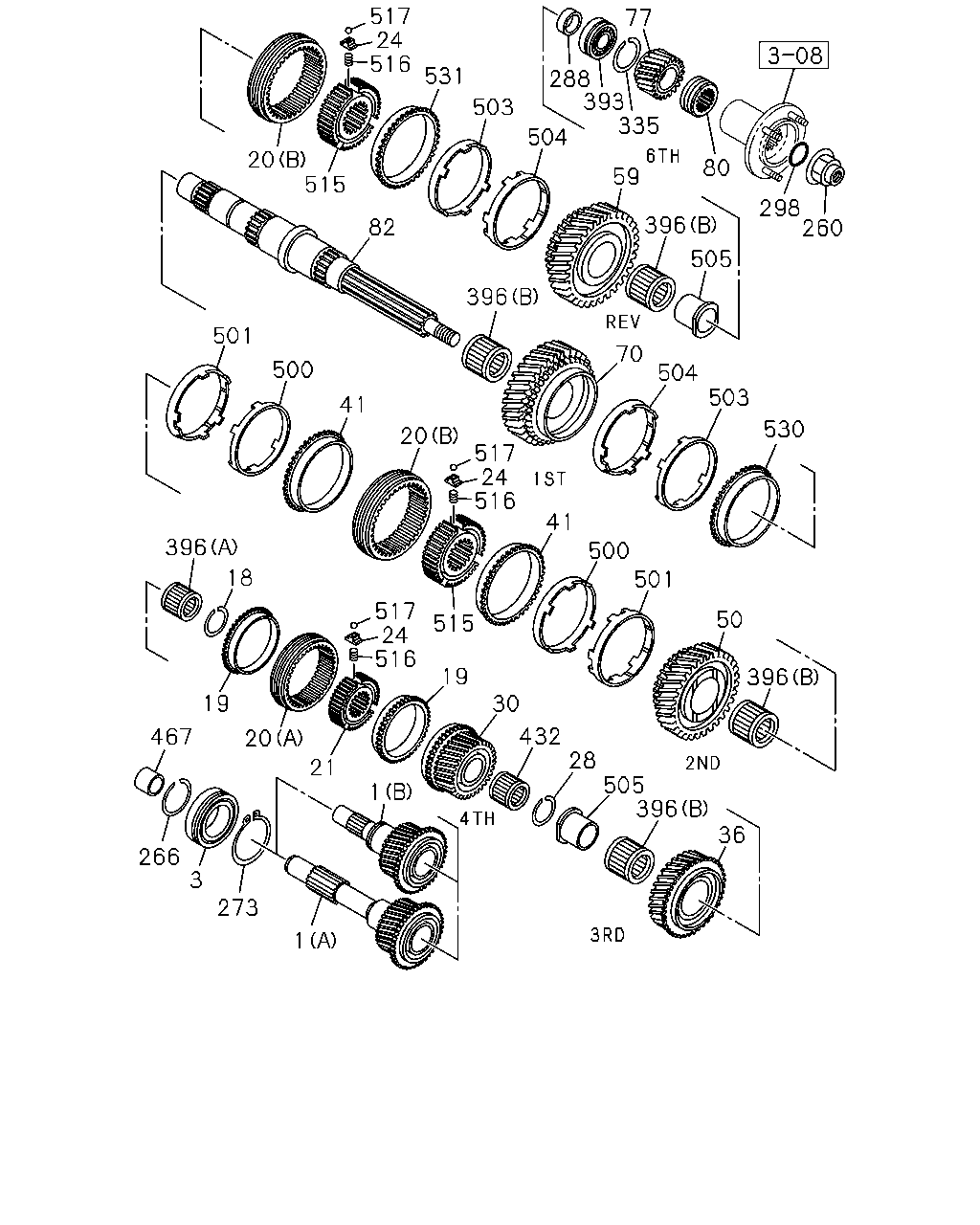

517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 467 20 21 1 266 3 273 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0612-
1	04.351 SHAFT; TOP GEAR,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=25	8-97371-090-0	01	1	0612-
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0612-
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0612-
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0612-
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	0612-
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0612-
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0612-
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0612-
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0612-
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0612-
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	0612-
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	0612-
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0612-
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0612-
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0612-
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0612-
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0612-
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0612-
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0612-
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0612-
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0612-
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0612-
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0612-
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0612-
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0612-
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0612-
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0612-
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0612-
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0612-
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0612-
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0612-
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0612-
503	04.383 RING; OUTSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-307-1	02	1	0612-
504	04.383 RING; INSIDE,LOW & REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-311-1	02	1	0612-
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0612-
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0612-
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0612-
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0612-
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0612-
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0612-
530	04.383 RING; BLOCK,LOW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0612-
531	04.383 RING; BLOCK,REV EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=54	8-97241-305-2	01	1	0612-

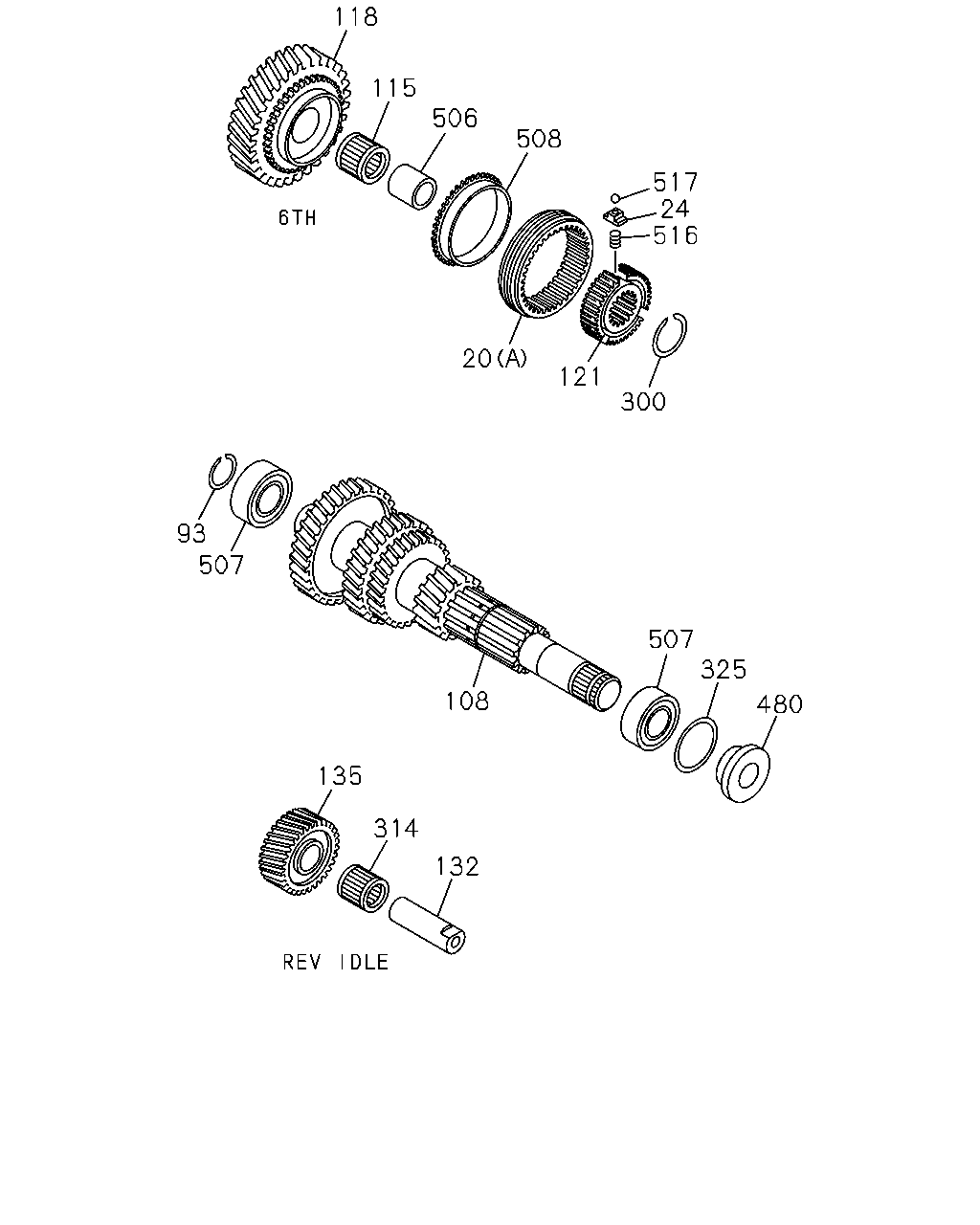

118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	0612-
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0612-
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	09	1	0612-
24	04.383 BLOCK; INDEX,SYN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-313-1	12	1	0612-
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0612-
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0612-
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0612-
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-97349-881-0	01	1	0612-
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0612-
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0612-
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0612-
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0612-
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0612-
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0612-
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0612-
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0612-
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0612-
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0612-
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0612-
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	0612-
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0612-
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0612-
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0612-
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	09	1	0612-
516	04.384 SPRING; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-803-1	12	1	0612-
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	09	1	0612-
517	04.384 BALL; SYNCHRO,INDEX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	12	1	0612-
