8-40 — HEATER SYSTEM (#3458) — 46 parça

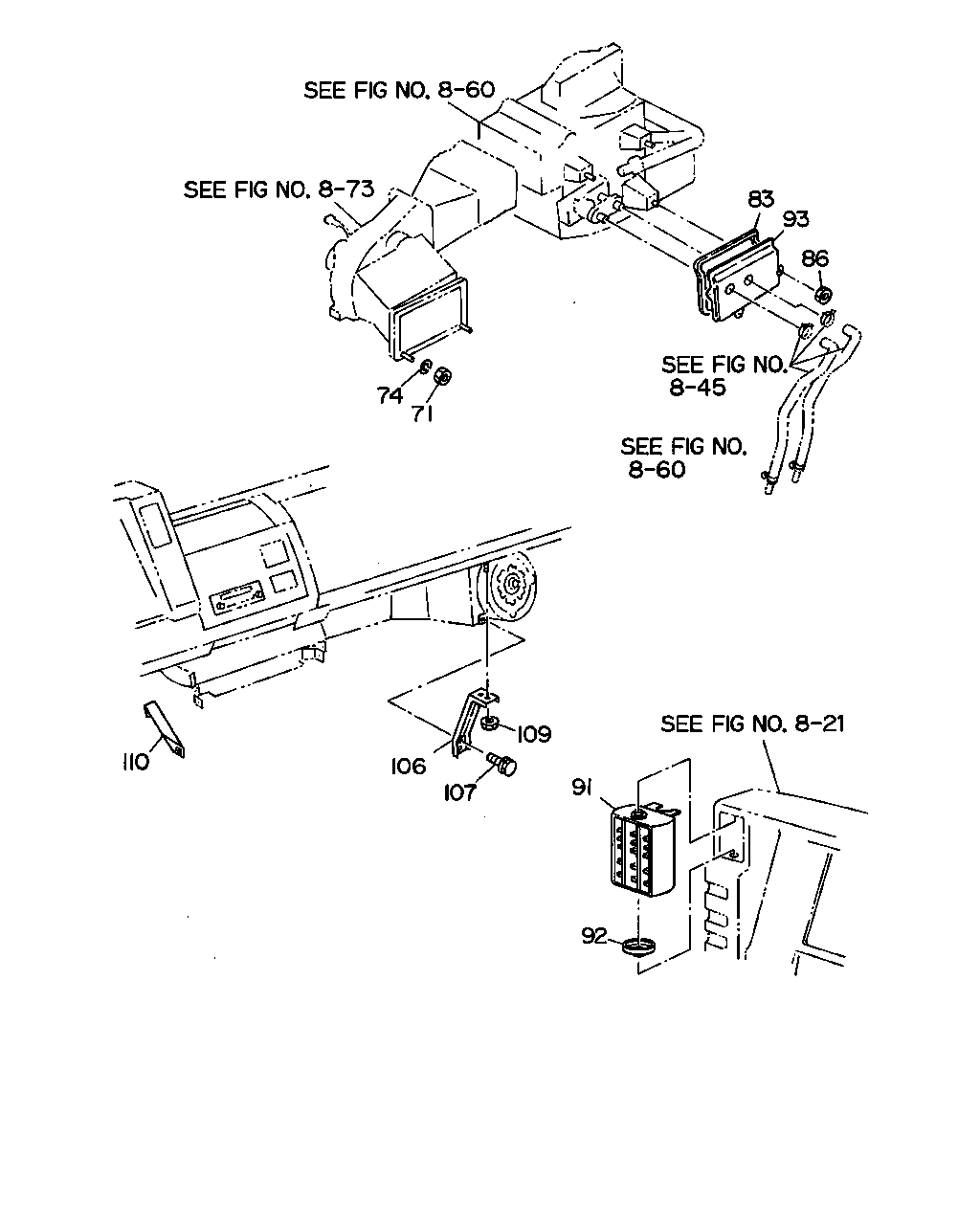

çizim 3007
86 93 83 71 74 110 106 107 109 91 92
BalonParca AdiParca NoAdetTipApplied Date A B C
71 NUT; BLOWER UNIT TO DASH
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 03 1 9002- ● ● ●
74 WASHER; PL,BLOWER UNIT TO DASH
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=20 		1-09509-047-0 01 1 9002- ● ● ●
74 WASHER; PL,BLOWER UNIT TO DASH
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=14 		1-09509-048-0 02 1 9002- ● ● ●
83 SEAL; COVER,HTR HOLE 1-71997-456-3 01 1 9002- ● ● ●
86 NUT; COVER,HTR HOLE
M6 FLANGE 		1-09984-141-0 03 1 9002- ● ● ●
91 GRILLE ASM; AIR OUTLET,METER CLUSTER 1-76367-050-1 02 1 9002- ● ● ●
92 BUSHING; AIR OUTLET GRILLE,METER CLUST 1-72547-048-1 02 1 9002- ● ● ●
93 COVER; HTR CORE 1-71997-476-3 01 1 9002- ● ● ●
106 STAY; HTR UNIT 1-65680-450-1 01 1 9002- ● ● ●
107 BOLT; STAY,HTR UNIT
M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204 ● ● ●
107 BOLT; STAY,HTR UNIT
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205- ● ● ●
109 NUT; STAY,HTR UNIT
M6 FLANGE 		5-09440-004-0 01 1 9002- ● ● ●
110 BRACKET ASM; CONT UNIT
INTAKE HEATER<SL2> 		1-73997-787-0 01 1 9002- ● ● ●

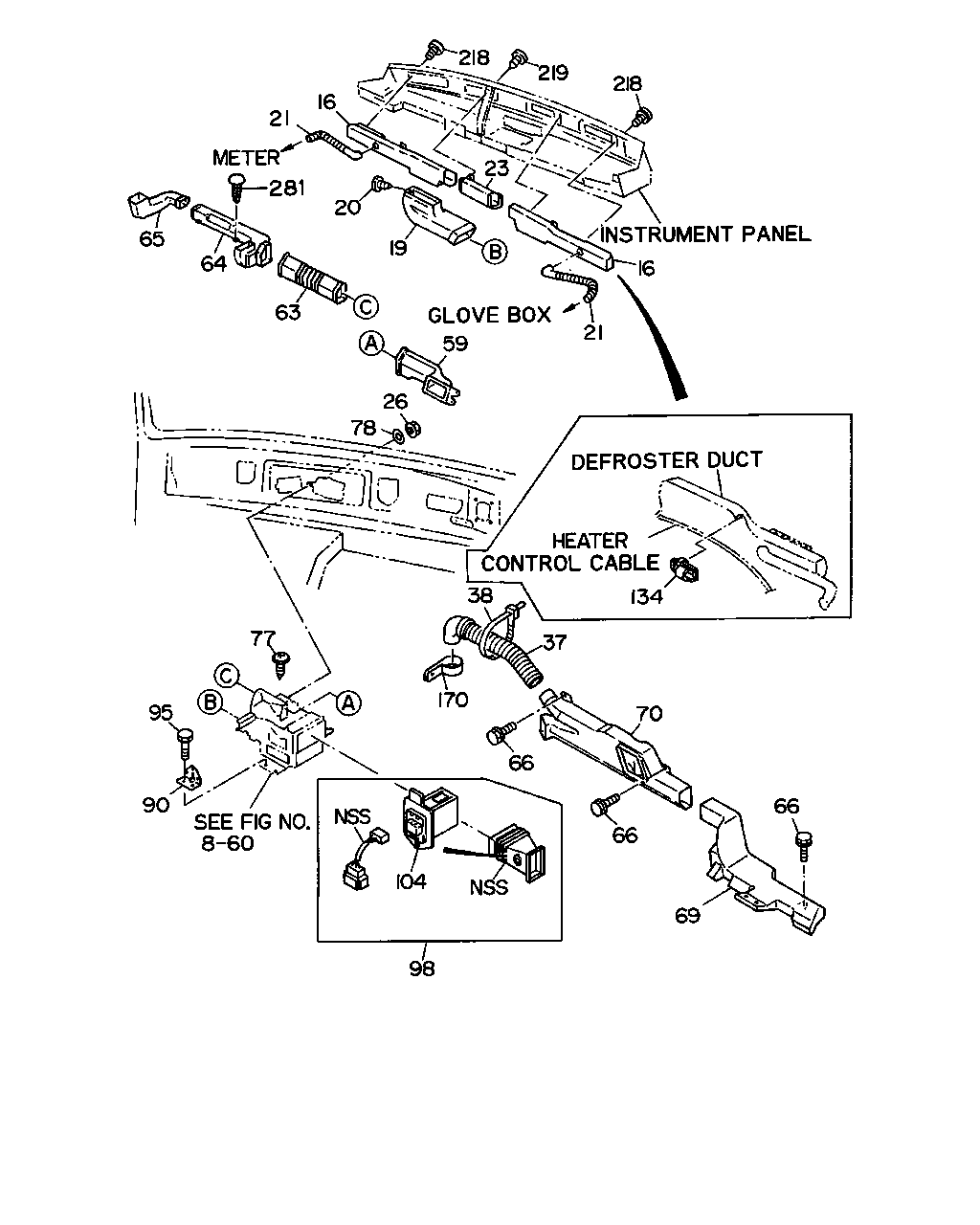

çizim 37134
78 26 59 21 16 218 219 218 23 19 20 281 16 21 65 63 64 38 37 134 70 66 69 66 66 170 104 98 90 95 77
BalonParca AdiParca NoAdetTipApplied Date A B C
16 DUCT ASM; DEFROSTER 1-76377-074-5 01 1 9002- ● ● ●
16 DUCT ASM; DEFROSTER 1-76377-073-4 01 1 9002- ● ● ●
19 DUCT; DEFROSTER,HTR JOINT 1-76377-097-1 01 1 9002- ● ● ●
20 FASTENER; DEFROSTER DUCT,HTR JOINT 1-09987-144-0 01 1 9002- ● ● ●
21 HOSE; DEFROSTER,DRIVER SIDE
WO/URETHANE 		1-76377-085-4 02 1 9002- ● ● ●
23 DUCT ASM; DEFROSTER,JOINT CTR 1-76377-088-3 01 1 9002- ● ● ●
26 NUT; HTR
M6 FLANGE 		1-09984-141-0 03 1 9002- ● ● ●
37 HOSE; AIR,HTR 1-83512-112-0 01 1 9002- ● ● ●
38 CLIP; BAND,HTR AIR HOSE
L=300 		1-09707-001-0 01 1 9002- ● ● ●
59 DUCT; VENT,ASSIST SIDE 1-76377-084-3 01 1 9002- ● ● ●
63 DUCT; VENT,DRIVER JOINT 1-76377-098-4 01 1 9002- ● ● ●
64 DUCT; VENT,DRIVER SIDE 1-76377-081-4 01 1 9002- ● ● ●
65 DUCT; VENT,DRIVER SIDE 1-76377-079-3 01 1 9002- ● ● ●
66 BOLT; DUCT
M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ● ● ●
66 BOLT; DUCT
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9306 ● ● ●
66 BOLT; DUCT
M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9002-9204 ● ● ●
66 BOLT; DUCT
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9307- ● ● ●
66 BOLT; DUCT
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205- ● ● ●
69 DUCT; ROOM 1-83542-053-1 01 1 9002- ● ● ●
70 DUCT; ROOM 1-83542-057-1 01 1 9002- ● ● ●
77 BOLT; HTR UNIT
M5X16 TAPPING W/PL WASHER 		0-74110-516-0 03 1 9002- ● ● ●
78 WASHER; PL,HTR UNIT
OD=20 		1-09509-047-0 01 1 9002- ● ● ●
78 WASHER; PL,HTR UNIT
OD=14 		1-09509-048-0 02 1 9002- ● ● ●
90 BRACKET; SUPPORT,HTR UNIT 1-76397-008-2 01 1 9002- ● ● ●
95 BOLT; SUPPORT BRKT
M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9301 ● ● ●
95 BOLT; SUPPORT BRKT
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9302- ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83542-054-2 01 1 9002- ● ● ●
104 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-028-0 01 1 9002- ● ● ●
134 CLIP; CONT CABLE 1-09987-147-0 01 1 9002- ● ● ●
170 CLIP; HTR HOSE 9-09915-526-2 01 1 9002- ● ● ●
218 SCREW; DEFROSTER DUCT
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9002- ● ● ●
219 SCREW; DEFROSTER DUCT,CTR
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ●
281 FASTENER; VENT DUCT,DRIVER SIDE
BLACK 		8-94104-935-0 04 1 9407- ● ● ●
