◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51104 - NP/NQR BUS(LHD)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#34579) — 73 parça

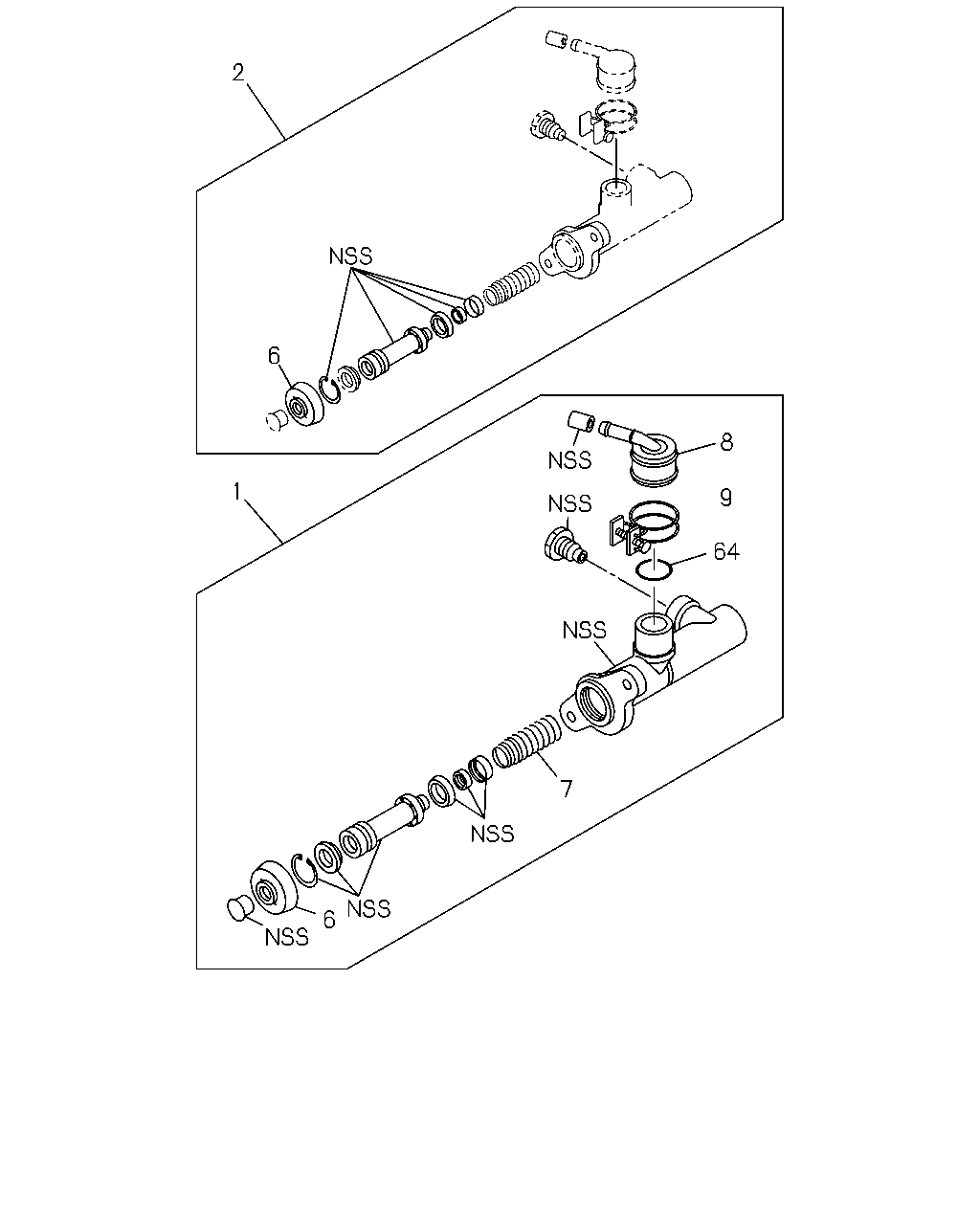

çizim 55618
2 6 8 1 9 64 7 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-748-1 01 1 0612-0704
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98083-061-0 01 1 0705-0709
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-694-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-406-0 01 1 0612-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98117-644-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-617-0 01 1 0612-0709
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-221-0 01 1 0710-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		5-87831-597-0 01 1 0612-0803
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		5-87832-226-0 01 1 0804-
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-153-0 01 1 0612-0709
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-94412-200-0 01 1 0612-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-148-0 01 1 0612-0709
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-784-0 01 1 0710-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-780-0 01 1 0612-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-190-0 01 1 0612-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-789-0 01 1 0802-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-766-0 01 1 0612-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-789-0 01 1 0710-0801
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-143-0 01 1 0612-0704
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-352-0 01 1 0705-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0612-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0710-
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0612-0709
64 00.777 GASKET; CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0710-
çizim 58494
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-748-1 01 1 0612-0704
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98083-061-0 01 1 0705-0709
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-694-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-406-0 01 1 0612-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98117-644-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-617-0 01 1 0612-0709
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-221-0 01 1 0710-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		5-87831-597-0 01 1 0612-0803
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		5-87832-226-0 01 1 0804-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-148-0 01 1 0612-0709
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-784-0 01 1 0710-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-780-0 01 1 0612-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-190-0 01 1 0612-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-789-0 01 1 0802-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-766-0 01 1 0612-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-789-0 01 1 0710-0801
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-143-0 01 1 0612-0704
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-352-0 01 1 0705-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0612-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0710-
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0612-0709
64 00.777 GASKET; CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0710-

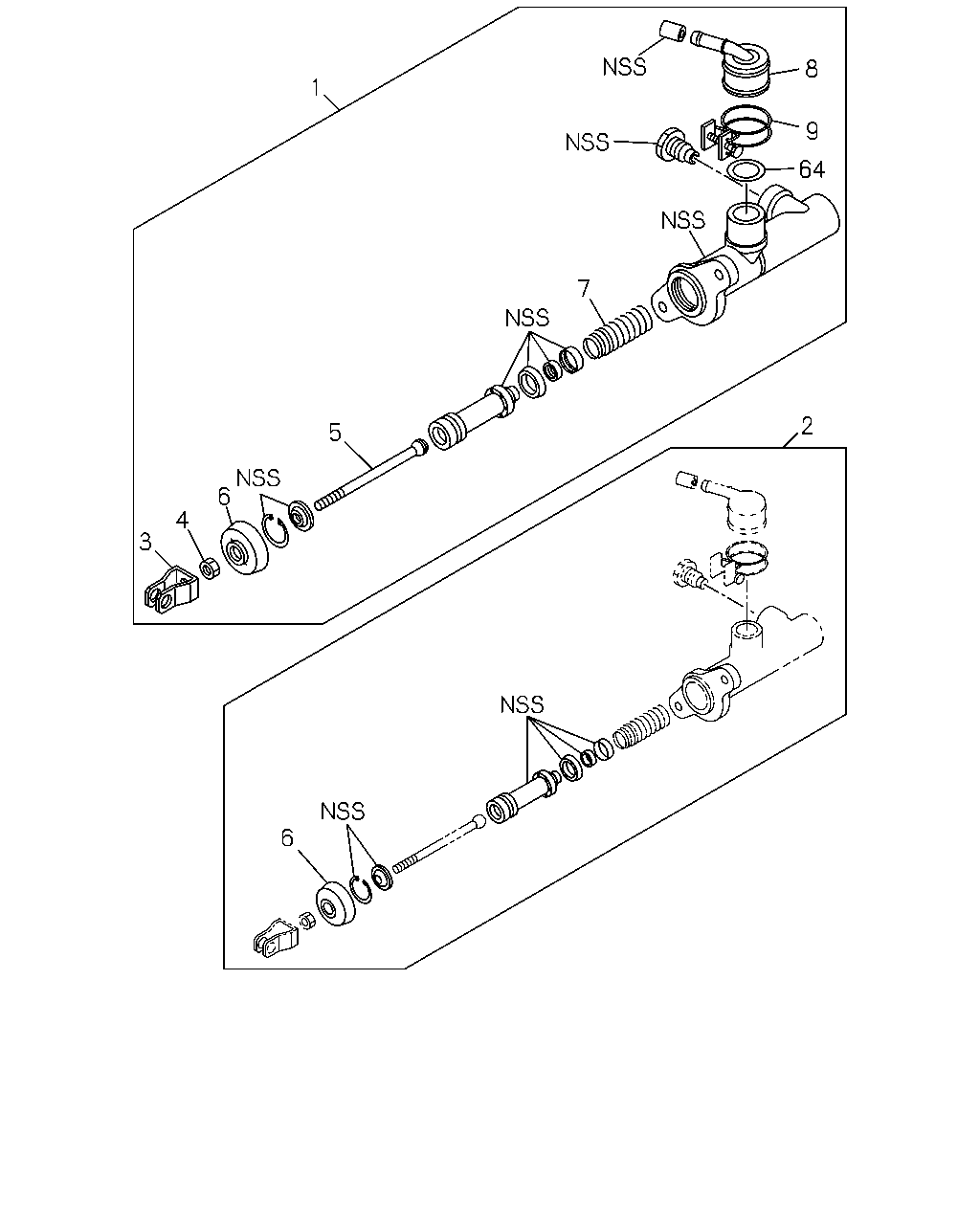

çizim 58742
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97210-748-1 01 1 0612-0704
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98083-061-0 01 1 0705-0709
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-694-0 01 1 0710-
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-406-0 01 1 0612-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-98117-644-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87831-617-0 01 1 0612-0709
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-221-0 01 1 0710-
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		5-87831-597-0 01 1 0612-0803
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		5-87832-226-0 01 1 0804-
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-770-0 01 1 0612-
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) M8 		0-91111-508-0 01 1 0612-
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-768-0 01 1 0612-
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-153-0 01 1 0612-0709
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-94412-200-0 01 1 0612-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-148-0 01 1 0612-0709
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-784-0 01 1 0710-
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-780-0 01 1 0612-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-190-0 01 1 0612-0709
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-789-0 01 1 0802-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-766-0 01 1 0612-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-789-0 01 1 0710-0801
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-143-0 01 1 0612-0704
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-352-0 01 1 0705-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0612-0709
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-773-0 01 1 0710-
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSIONCONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0612-0709
64 00.777 GASKET; CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-767-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
