1 |

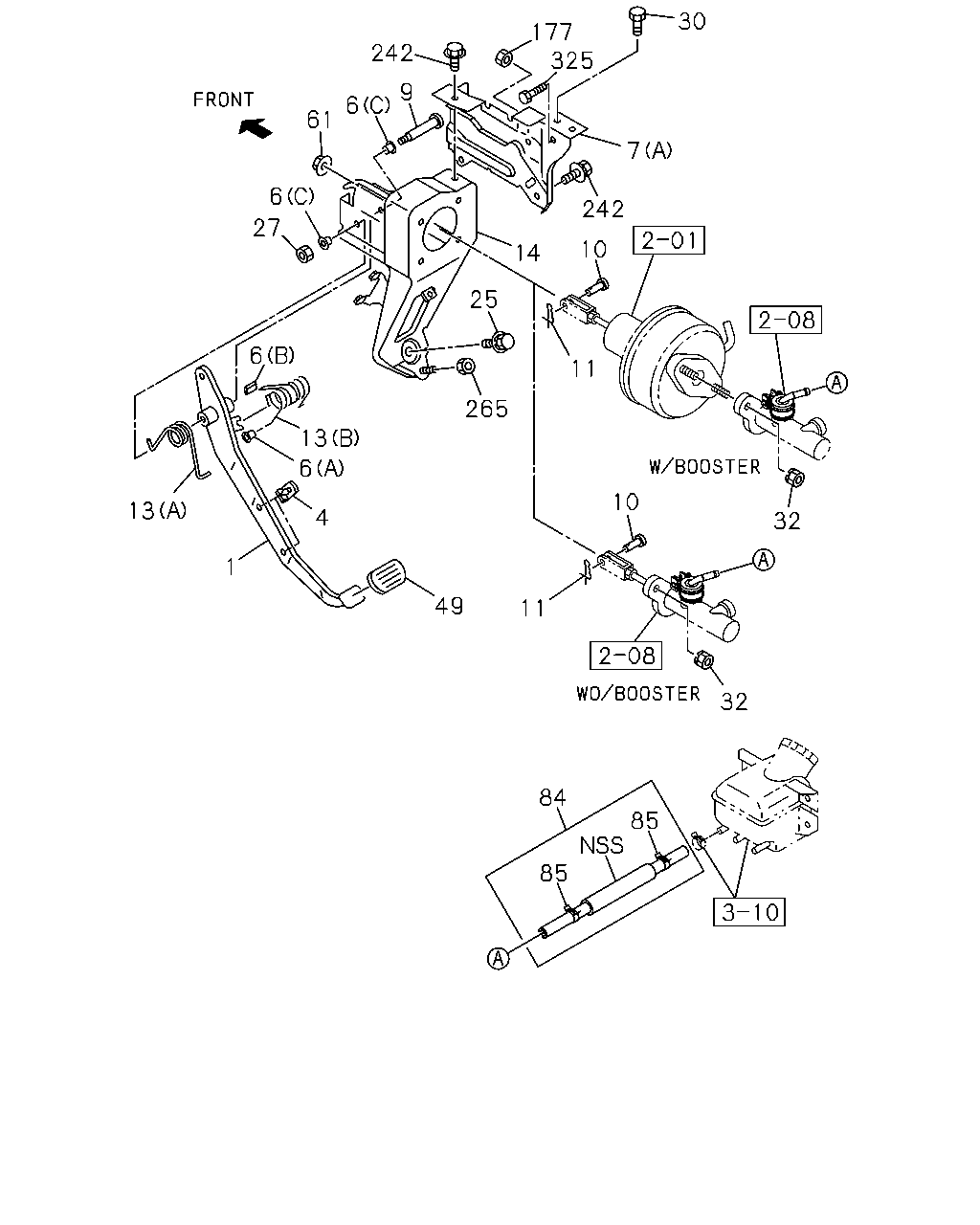

00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97853-220-2 |
01 |
1 |
0612- |
| |
1 |
00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSIONCONTROL-SMOOTHER(8GF)
|
8-97857-984-2 |
01 |
1 |
0612- |
| |
4 |
00.829 STOPPER; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97853-534-1 |
02 |
1 |
0612- |
| |
6 |
00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSIONCONTROL-SMOOTHER(8GF)
(A)
|
8-97853-619-0 |
02 |
1 |
0612- |
| |
6 |
00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSIONCONTROL-SMOOTHER(8GF)
(B)
|
8-97853-620-0 |
01 |
1 |
0612- |
| |
6 |
00.831 BUSHING; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
04.792
(C)
|
8-94238-596-0 |
02 |
1 |
0612- |
| |
7 |
00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-97868-177-1 |
01 |
1 |
0612- |
| |
7 |
00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98052-042-0 |
01 |
1 |
0612- |
| |
7 |
00.829 BRACKET; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97856-307-3 |
01 |
1 |
0612- |
| |
9 |
00.833 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
04.634
|
8-97866-667-0 |
01 |
1 |
0612- |
| |
10 |
00.833 PIN; CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
04.634
|
8-94410-276-0 |
01 |
1 |
0612- |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
04.634
|
8-94279-912-0 |
01 |
1 |
0612- |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97853-535-1 |
01 |
1 |
0612- |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSIONCONTROL-SMOOTHER(8GF)
(B)
|
8-97853-221-1 |
01 |
1 |
0612- |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98030-647-0 |
01 |
1 |
0612- |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSIONCONTROL-SMOOTHER(8GF)
|
8-98030-646-0 |
01 |
1 |
0612- |
| |
25 |
00.833 BOLT; PEDAL
M10X22 W/PL WASHER
|
8-97313-188-0 |
01 |
1 |
0612- |
| |
27 |
00.833 NUT; FULCRUM PIN
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
M10 FLANGE
|
1-09440-022-0 |
01 |
1 |
0612- |
| |
30 |
00.829 BOLT; CLU MTG BRKT
07.833
M10X25 FLANGE
|
0-28661-025-0 |
01 |
1 |
0612- |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
M8 W/LK WASHER
|
8-94279-050-0 |
02 |
1 |
0612- |
| |
49 |
00.829 RUBBER; PAD,CLU PEDAL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97853-413-2 |
01 |
1 |
0612- |
| |
61 |
00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T)
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
M8 W/LK WASHER
|
8-94279-050-0 |
04 |
1 |
0612- |
| |
84 |
00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T)
|
8-98033-675-0 |
01 |
1 |
0612- |
| |
84 |
00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSIONCONTROL-SMOOTHER(8GF)
|
8-97135-023-1 |
01 |
1 |
0612- |
| |
85 |
00.785 CLIP; HOSE TO M/CYL
POWER ASSIST CLUTCH(S2T)
04.681
|
8-98031-178-0 |
02 |
1 |
0612- |
| |
85 |
00.785 CLIP; HOSE TO M/CYL
EXC. POWER ASSIST CLUTCH(S2T),
TRANSMISSIONCONTROL-SMOOTHER(8GF)
04.681
|
8-97130-480-0 |
02 |
1 |
0612- |
| |
177 |
00.785 NUT; BRKT
00.777
M8 W/LK WASHER
|
8-94279-050-0 |
02 |
1 |
0612- |
| |
177 |
00.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF)
01.540
M8 FLANGE
|
0-91180-208-0 |
02 |
1 |
0612- |
| |
242 |
00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER(8GF)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
0612- |
| |
242 |
00.785 BOLT; BRKT,CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
03.604
M8X16 FLANGE
|
0-28450-816-0 |
02 |
1 |
0612- |
| |
265 |
00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840
M8 W/DISHED WASHER
|
8-97329-625-0 |
01 |
1 |
0612- |
| |
325 |
00.782 BOLT; BRKT,STRG SUPPORT
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0612- |
