2-01 — CLUTCH (#34574) — 33 parça

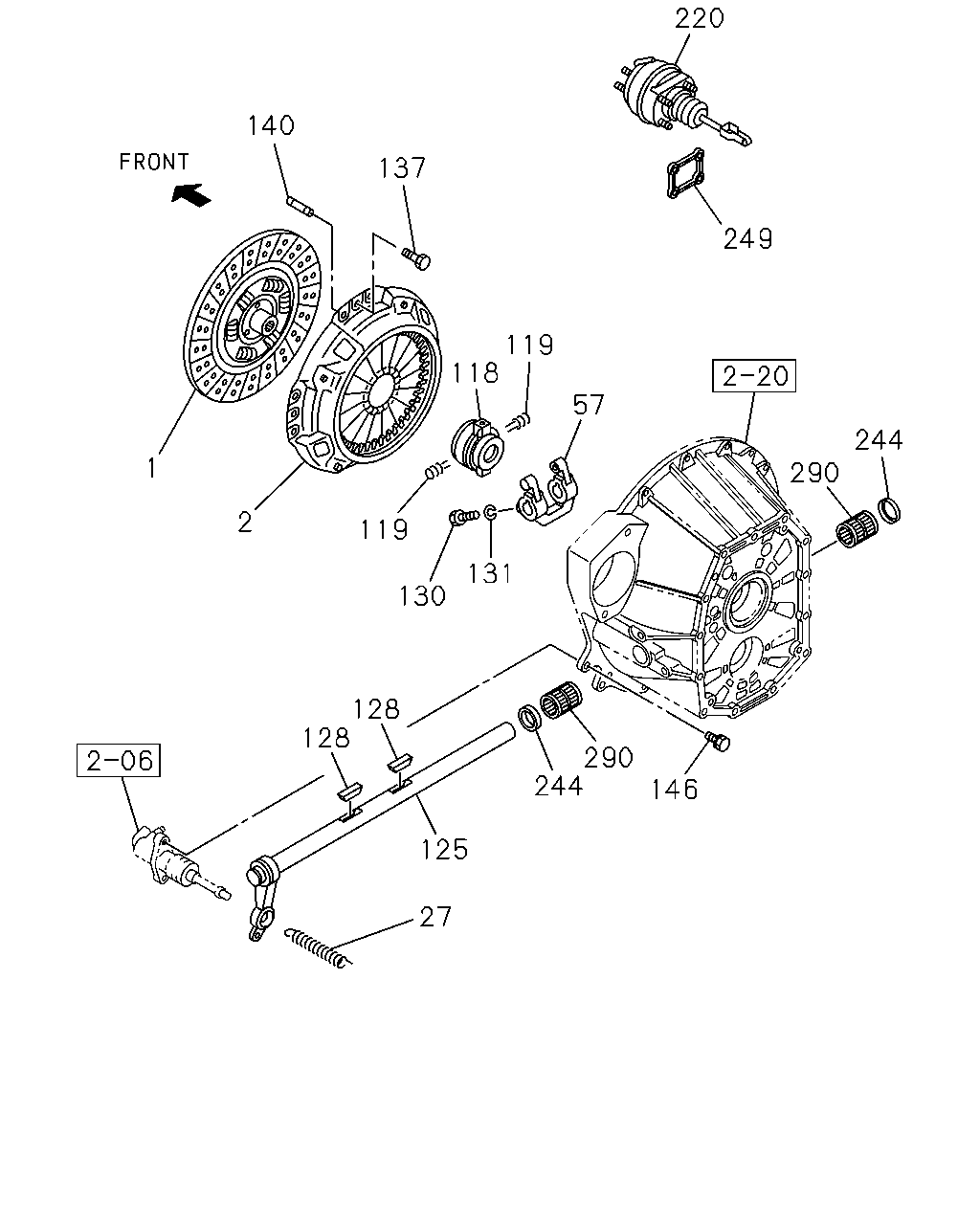

220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.886 DISC; CLUTCH GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-795-0	01	1	0612-
2	00.859 PLATE ASM; PRESSURE,CLU GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.859	8-97351-794-0	01	1	0612-
27	00.837 SPRING; RETURN,SHIFT FORK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97184-358-0	01	1	0612-
57	00.795 FORK; SHIFT,CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97310-456-1	01	1	0612-
118	00.799 BEARING; CLU RELEASE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-31310-012-0	01	1	0612-
119	00.797 SPRING; SHIFT FORK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-31329-024-0	02	1	0612-
125	00.805 SHAFT; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97310-435-0	01	1	0612-
128	00.833 KEY; FEATHER,CLU SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09867-008-0	02	1	0612-
130	00.833 SCREW; SHIFT FORK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X14	0-61200-814-0	01	1	0612-
131	00.833 WASHER; LK,SHIFT FORK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 ID=8.2	0-91510-508-0	01	1	0612-
137	00.862 BOLT; CLU COVER GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0612-
140	00.862 PIN; STRAIGHT GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25	8-94410-361-0	02	1	0612-
146	00.780 BOLT; SLAVE CYL TO TRANS CASE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0612-
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97166-854-1	01	1	0612-
244	00.805 SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.797	1-09625-002-0	02	1	0612-
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97167-489-0	01	1	0612-
290	00.862 BEARING; NEEDLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 NTN	1-09811-002-1	02	1	0612-

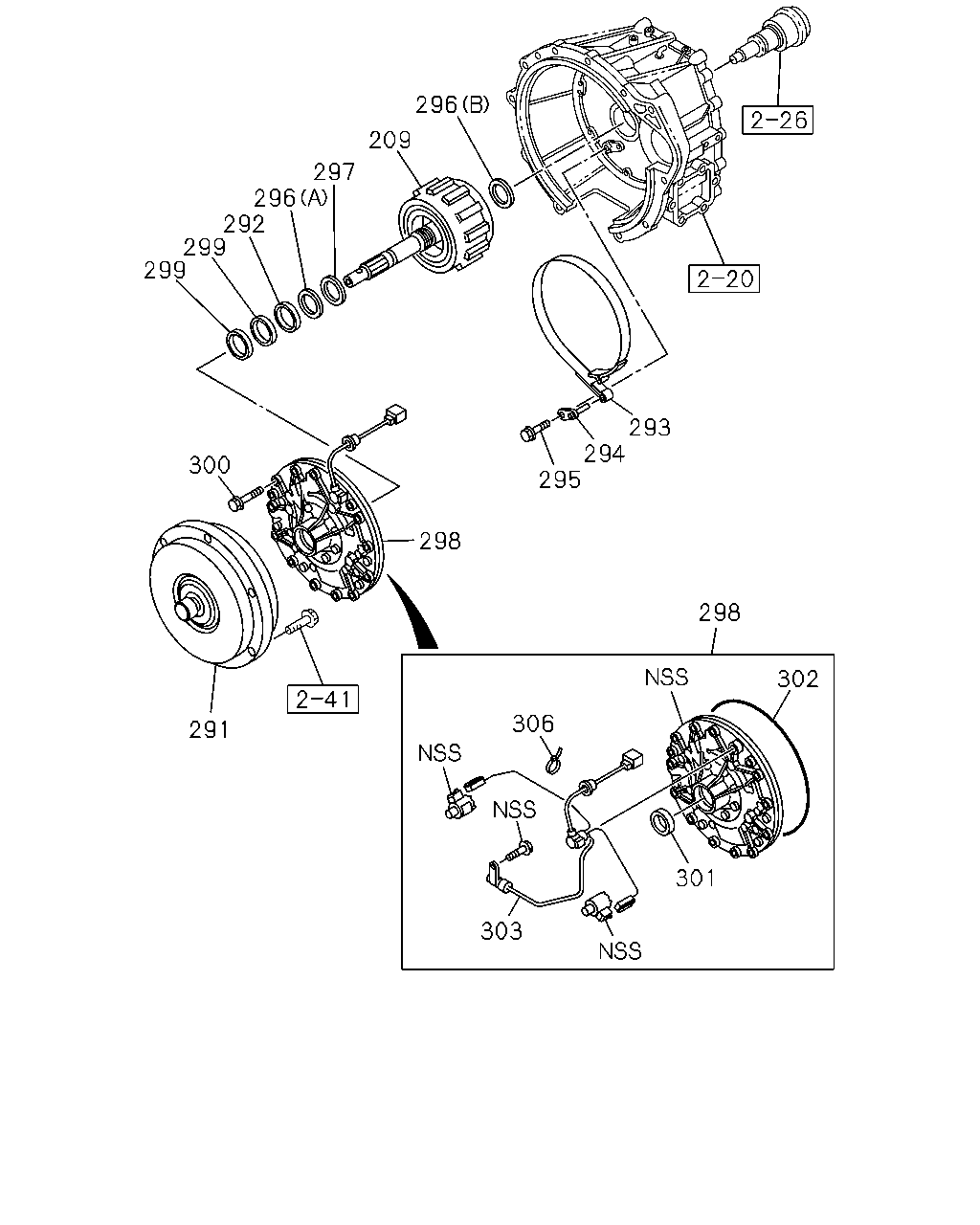

296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	00.885 CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-723-1	01	1	0612-
291	00.863 COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98056-709-1	01	1	0612-
292	00.862 RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	0612-
293	00.799 BAND; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	0612-
294	00.846 PIN; ANCHOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	0612-
295	00.864 BOLT; ANCHOR PIN TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-
296	00.862 BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	0612-
296	00.862 BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	0612-
297	00.862 WASHER; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	0612-
298	04.020 PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-361-3	01	1	0612-
299	04.105 RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	0612-
300	04.226 BOLT; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF) 00.685 M8X40 FLANGE	0-28650-840-0	11	1	0612-
301	04.166 SEAL; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	0612-
302	04.226 RING; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	0612-
303	02.480 HARNESS ASM; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-621-1	01	1	0612-
306	00.785 CLIP; BAND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97138-392-0	01	1	0612-
